KYOCERA Precision Tools THC07028

KYOCERA Precision Tools THC07028

$
106
82
/ 1
  • Part Number: THC07028
  • UPC:
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (37)
Product Overview

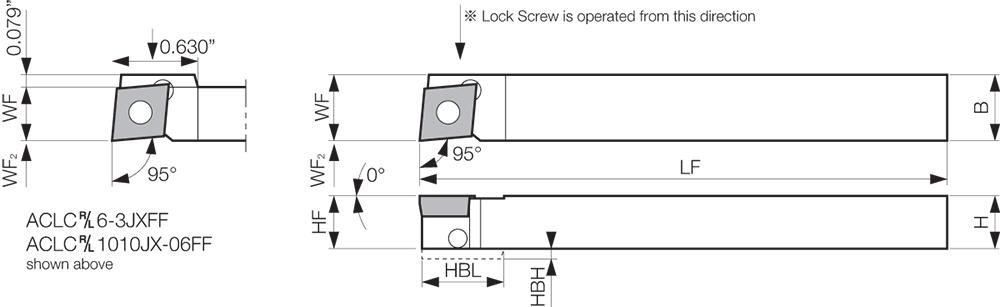

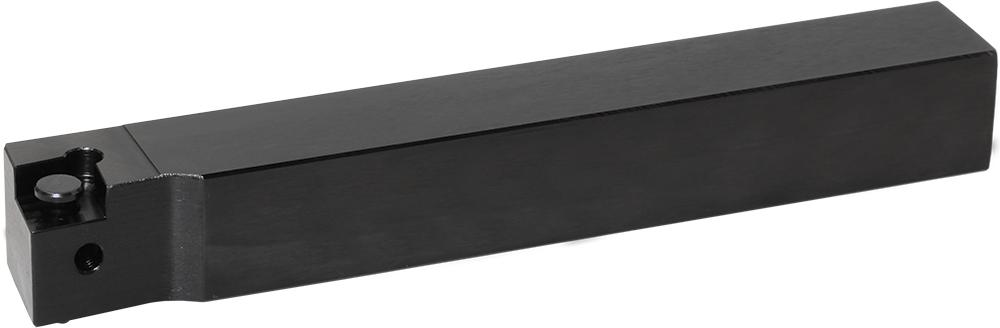

Kyocera ACLCR 1010JX09FF, Indexable Turning Toolholder
Specifications
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
Insert Holding Method:
Anchor Pin
Insert Shape:
80 Degree Diamond
Material:
Steel
Rake:
Positive
Additional Manufacturer Part Number:
8834839
ANSI Part Number:
ACLCR1010JX09FF
Application:
External Turning|Facing|Small Parts Machining
California Prop 65 Item:
View
Coolant Through (Yes/No):
No
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Facing
Feature 3:
Back Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand CCGT325…, CCMT325…, CCGW325…, CCMW325… Style Inserts
Feature 5:
Easy Insert Replacement; General Use
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
ACLCR1010JX-09FF
Material Group / Grade:
GR99
Min Order Qty:
1
Origin:
JPN
Pack Height:
1.142
Pack Length:
5.906
Pack Width:
1.378
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8834839
Series Description:
Anchor Pin Turning Toolholder
Series.1:
APTT
Shipping Weight:
0.2469
Tool Style:
ACLC
Unit (inch/mm):
mm
UNSPSC:
23242106
UNSPSC Title:
Indexable Tool Bodies or Holders
[B] Shank Width (Decimal Inch):
0.3937
[B] Shank Width (mm):
10.00
[H] Shank Height (Decimal Inch):
0.3937
[H] Shank Height (mm):
10.00

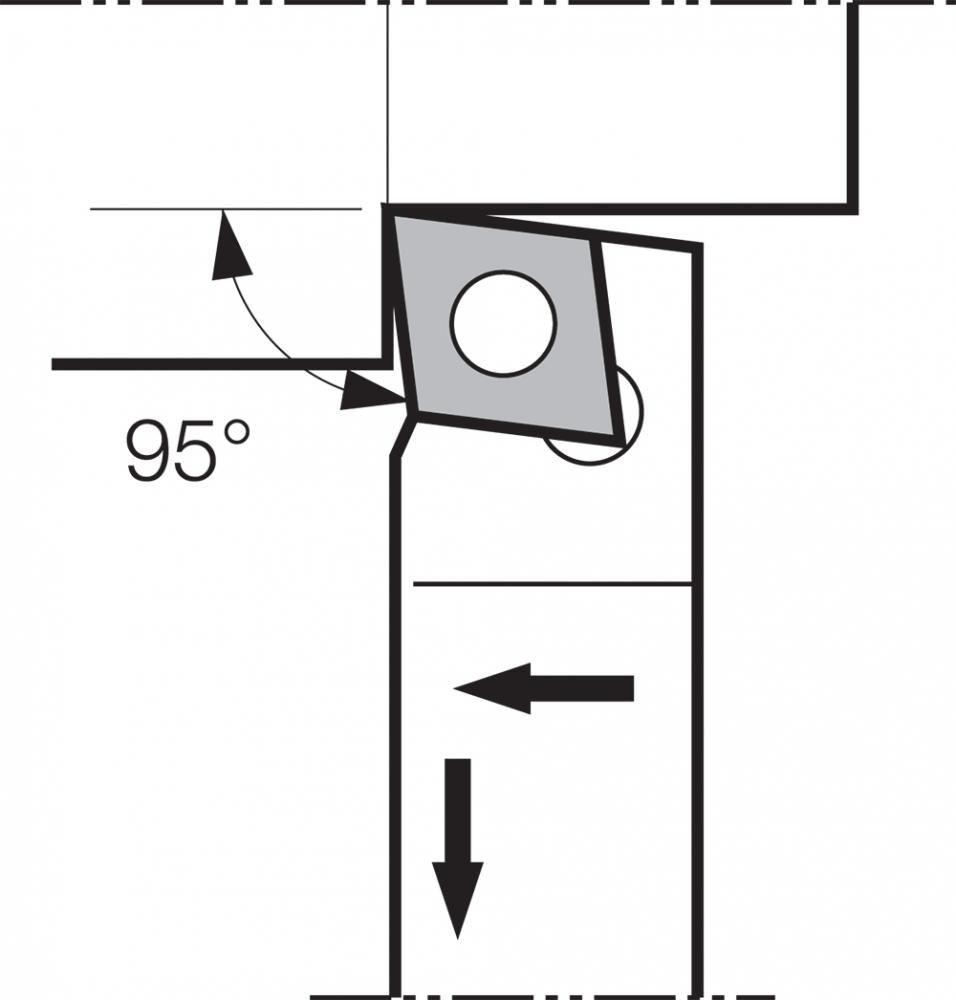

[KAPR] Tool Entering Angle (Degree):
95
