KYOCERA Precision Tools THC13290

102

/ 1

Part Number: THC13290
UPC:
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (63)

Product Overview

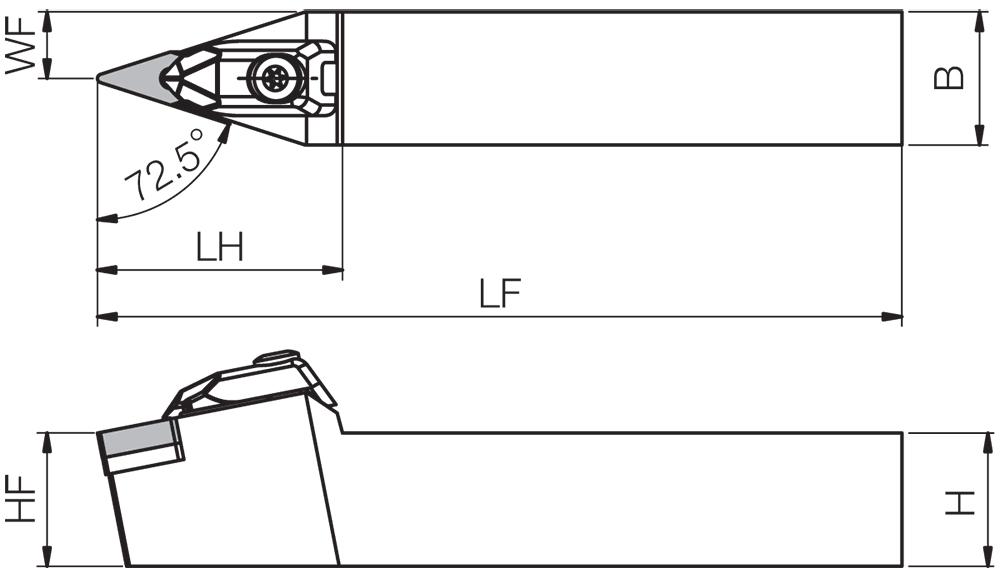

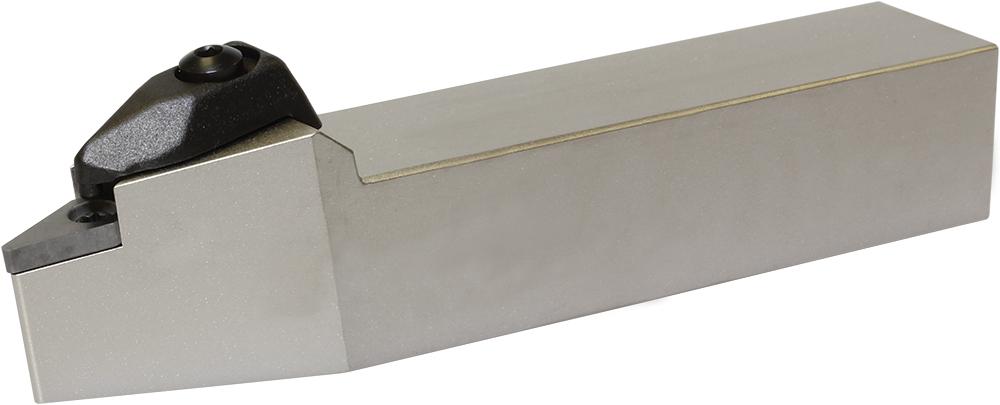

Kyocera DVVNN 2020K16, Indexable Turning Toolholder

Specifications

Details

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

Insert Holding Method:

Double Clamp

Insert Shape:

35 Degree Diamond

Material:

Steel

Rake:

Negative

Additional Manufacturer Part Number:

8828614

ANSI Part Number:

DVVNN2020K16

Application:

Copying|External Turning

California Prop 65 Item:

View

Coolant Through (Yes/No):

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Feature 1:

Neutral Toolholder

Feature 2:

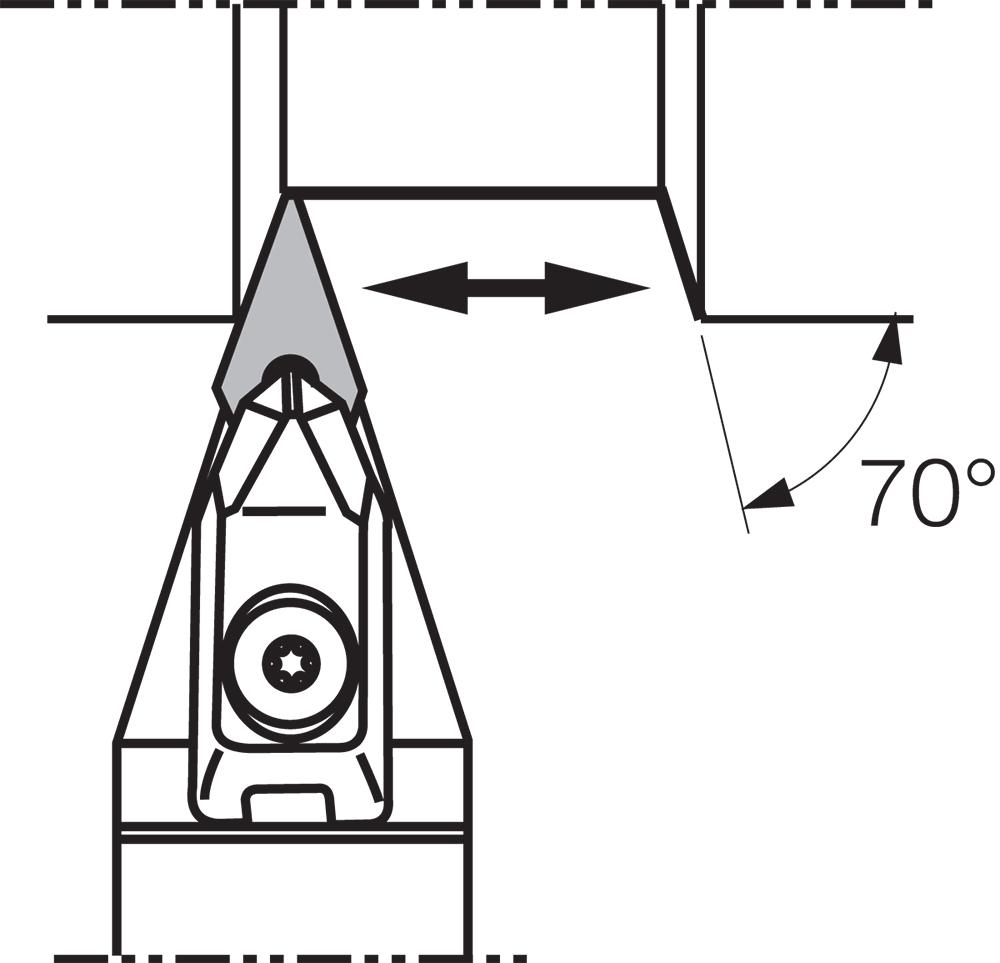

Application: External Turning, Copying

Feature 3:

Double Clamp Insert Holding Design

Feature 4:

Compatible with Neutral VNMG33…, VNMA33…, VNMM33... Style Inserts

Feature 5:

Firmly Clamps the Insert in Two Directions with One Action

Hand:

Neutral

Harmonized Code:

8466.10.0130

ISO Part Number:

DVVNN2020K-16

Material Group / Grade:

GR99

Min Order Qty:

Origin:

KOR

Pack Height:

1.535

Pack Length:

8.268

Pack Width:

1.535

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8828614

Series Description:

Double-Clamp Turning

Series.1:

DBCT

Shipping Weight:

0.8880

Tool Style:

DVVN

Unit (inch/mm):

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

[B] Shank Width (Decimal Inch):

0.7874

[B] Shank Width (mm):

20.00

[H] Shank Height (Decimal Inch):

0.7874

[H] Shank Height (mm):

20.00

[KAPR] Tool Entering Angle (Degree):

72.5
