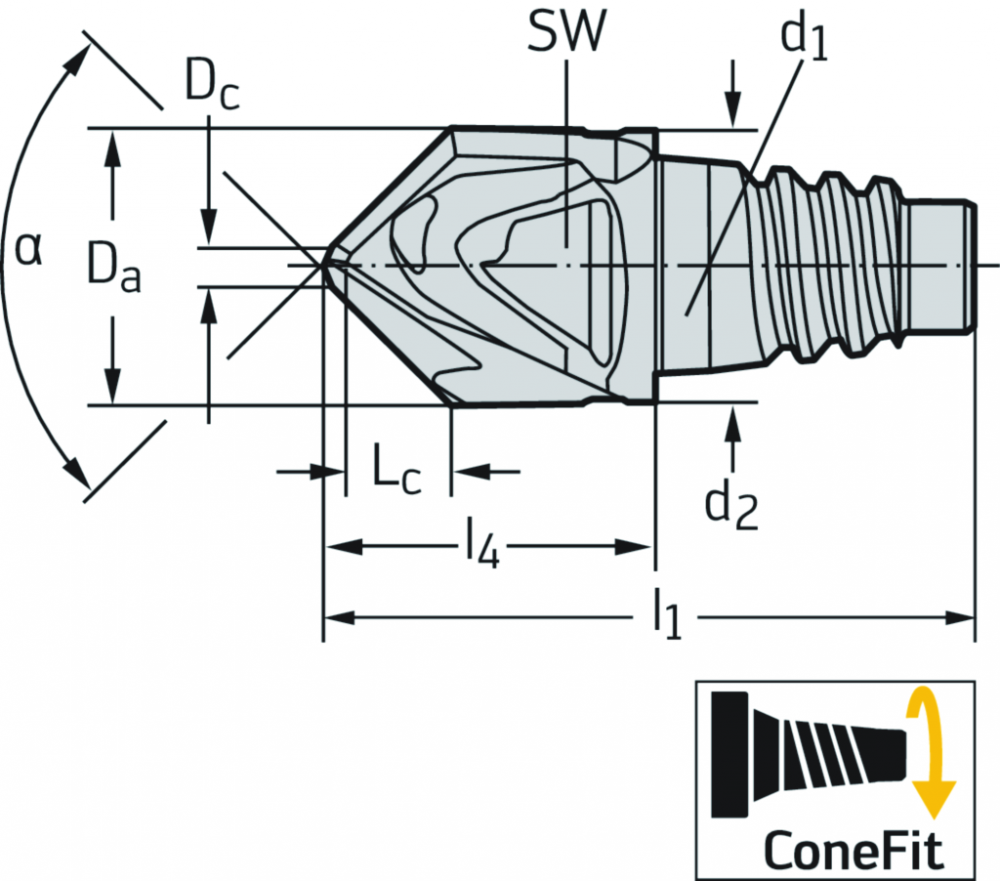

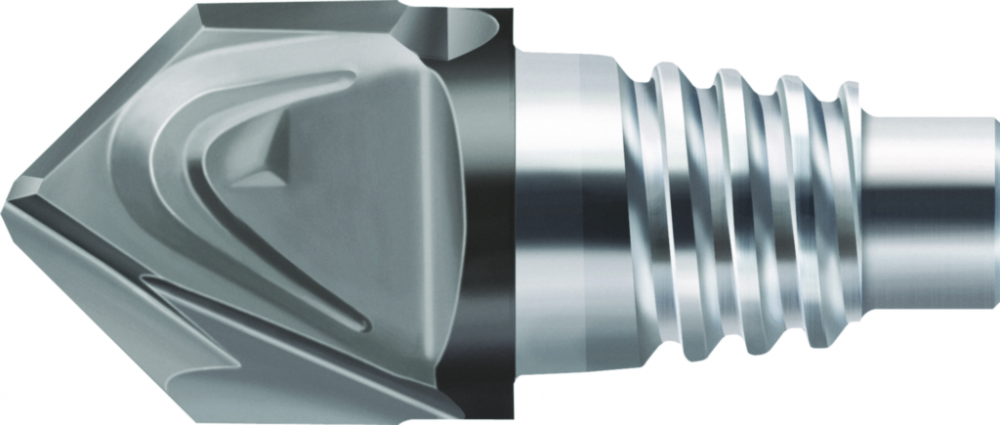

150° solid carbide chamfer mill : 6068769

Category:

Holemaking

Subcategory:

Counter Bore and Counter Sink

Subtype:

Chamfer Mills

A1 Cutting diameter:

1,5 mm

A1_INCH Cutting diameter:

0,0590551181102362 inch

A2 Cutting diameter maximum:

12 mm

A2_INCH Cutting diameter maximum:

0,47244094488189 inch

A3 Body diameter:

11,7 mm

A3_INCH Body diameter:

0,460629921259843 inch

A5 Neck diameter:

11,7 mm

A5_INCH Neck diameter:

0,460629921259843 inch

APMX Depth of cut maximum:

1,6 mm

APMX_INCH Depth of cut maximum:

0,062992125984252 inch

ART_ID_TO type=accessories:

5033121,5613707,5678641

ART_ID_TO type=others:

5634447;5634448;5634449;5634450;5835470;5835471;5930081;5930106;5930110;7171650

B2 Depth of cut maximum:

1,6 mm

B2_INCH Depth of cut maximum:

0,062992125984252 inch

B3 Protruding length:

14 mm

B3_INCH Protruding length:

0,551181102362205 inch

B4 Usable length:

1,6 mm

B4_INCH Usable length:

0,062992125984252 inch

B5 Overall length:

27,8 mm

B5_INCH Overall length:

1,09448818897638 inch

B71 Functional length:

14 mm

B71_INCH Functional length:

0,551181102362205 inch

BD Body diameter:

11,7 mm

BD_INCH Body diameter:

0,460629921259843 inch

BLD Tool style code:

3

BMC Body material code:

H

C11 Connection code type machine side:

SAC

C12 Connection code form at machine side:

4

C14 Connection code unit base machine side:

8

C15 Connection code style machine side:

5

C2 Connection size code machine side:

120

C3 Connection diameter machine side:

11,7 mm

C3_INCH Connection diameter machine side:

0,460629921259843 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

SAC04A0120$$$$

CNSC Coolant entry style code:

0

COATING Coating:

TiAlN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

A

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

120

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,021 kg

D7_INCH Weight of item:

0,0462966 lbs

d1 Connection diameter:

11,7 mm

d2 Body diameter:

11,7 mm

Da Maximum cutting diameter:

12 mm

Dc Cutting edge diameter:

1,5 mm

DC Cutting diameter:

1,5 mm

DCX Cutting diameter maximum:

12 mm

DCX_INCH Cutting diameter maximum:

0,47244094488189 inch

DC_INCH Cutting diameter:

0,0590551181102362 inch

Designation Tool designation:

H1E58018-E12-12

DN Neck diameter:

11,7 mm

DN_INCH Neck diameter:

0,460629921259843 inch

E1 Tool cutting edge angle:

15 °

E2 Rake angle radial:

10 °

E3 Rake angle axial:

0 °

EAN:

4042446221973

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

2

F22 Face effective cutting edge count:

2

F3 Flute helix hand:

N

F4 Flute helix angle:

10 °

FHA Flute helix angle:

10 °

FHH Flute helix hand:

N

FMT Form type machine side:

EXT

GAMF Rake angle radial:

10 °

GAMP Rake angle axial:

0 °

GRADE Grade manufacturer's designation:

TAX

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H3 Grade manufacturer's designation:

TAX

H4 Body material code:

H

H5 Coating:

TiAlN

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

PWZ-NORM

J21 Article number:

H1E58018-E12-12

J3 Company code:

W

J6 Connection code machine side:

SAC04A0120$$$$

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

15 °

KEYWORD:

Solid Cutting Tool|Milling|Protostar^®|Angle milling cutters|1H1E58018

l1 Overall length:

28 mm

l4 Maximum projection length:

14 mm

Lc Cutting edge length:

1,6 mm

LF Functional length:

14 mm

LF_INCH Functional length:

0,551181102362205 inch

MANUFACTURER_AID:

H1E58018-E12-12

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

27,8 mm

OAL_INCH Overall length:

1,09448818897638 inch

OHX Protruding length:

14 mm

OHX_INCH Protruding length:

0,551181102362205 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

2

QUANTITY_MIN:

2

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

150° solid carbide chamfer mill H1E58018 • metric • Protostar^® • ConeFit

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180603

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180603

REFERENCE_FEATURE_GROUP_ID_GTC:

MILCFS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

H1E58018

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

6068769

SUPPLIER_ALT_AID:

6068769

SW Wrench size:

8 mm

TERRITORY:

US

TSYC Tool style code:

H1E58018

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Type chamfer milling cutter 150°

UDX.CATFAM_CODE:

H1E58018

UDX.CATFAM_DESCR:

150° solid carbide chamfer mill

UDX.DISCOUNTGROUP:

MS5

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.0463

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.1811

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.0315

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.1411

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

9.8675

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

1H1E58018

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Additional application

UDX.RANKING_ISO_M:

Additional application

UDX.RANKING_ISO_N:

Additional application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Additional application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight of item:

0,021 kg

WT_INCH Weight of item:

0,0462966 lbs

XYWD xyw plane distance:

-14 mm

XYWD_INCH xyw plane distance:

-0,551181102362205 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

2

ZEFF Face effective cutting edge count:

2

ZEFP Peripheral effective cutting edge count:

2

Type chamfer milling cutter 150°
