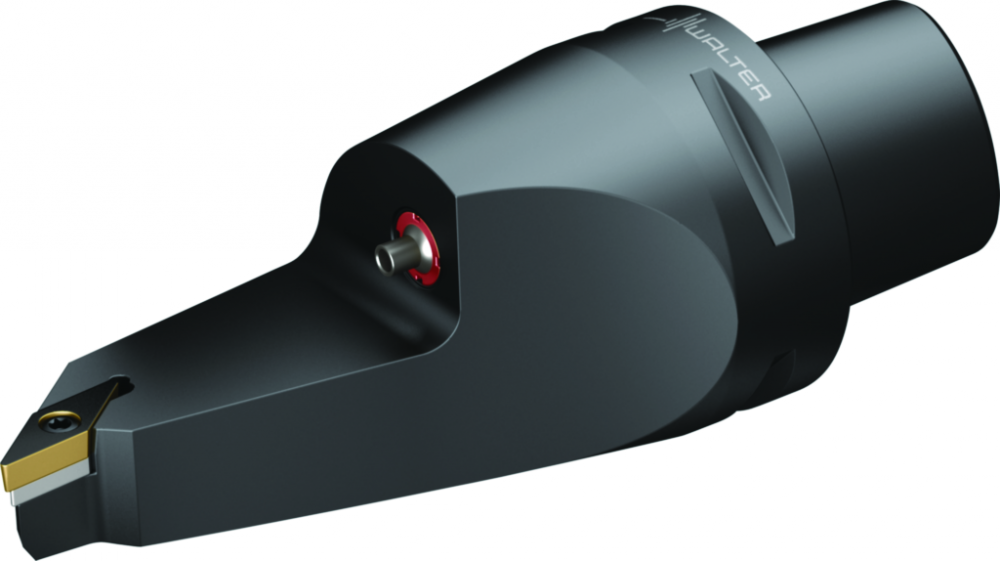

45° turning tools – Screw clamping : 5325932

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

16,5 mm

A1_INCH Cutting edge length:

0,649606299212598 inch

A2 Functional width:

33 mm

A2_INCH Functional width:

1,2992125984252 inch

A3 Functional length:

120 mm

A3_INCH Functional length:

4,7244094488189 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=accessories:

5042271

ART_ID_TO type=consists_of:

5040977,5194525,5194533,5194538

ART_ID_TO type=others:

5025462, ;5025469, ;5194852, ;5025604, ;5198017, ;5619944, ;5619946, ;5619947, ;5848694, ;5848696, ;5848722, ;6313082, ;6406428, ;6440432, ;6440437, ;6440673, ;6440675, ;6462630, ;6462663, ;6465364, ;6465441, ;6465899, ;6484466, ;6484468, ;6488029, ;648805

B3 Protruding length:

158 mm

B3_INCH Protruding length:

6,22047244094488 inch

B5 Overall length:

158 mm

B5_INCH Overall length:

6,22047244094488 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

630

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

630

D7 Weight of item:

1,932 kg

D7_INCH Weight of item:

4,2592872 lbs

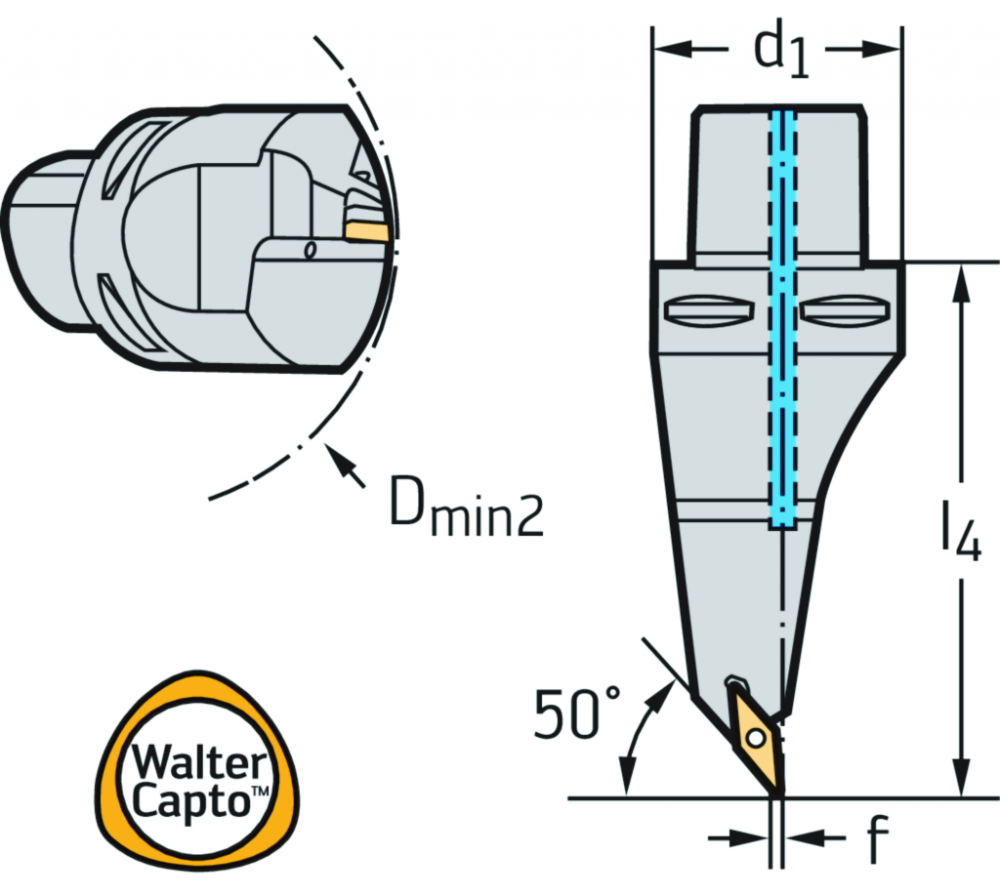

d1 Connection size code:

C6

Dmin2 Minimum diameter:

110 mm

Designation Tool designation:

C6-SVMBL-33120-16

DMIN Minimum bore diameter:

110 mm

DMIN_INCH Minimum bore diameter:

4,33070866141732 inch

E1 Tool cutting edge angle:

95 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

35 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0583354967

f Functional width:

33 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

S

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

16

J1 Standard:

ISO26623-1

J21 Article number:

C6-SVMBL-33120-16

J3 Company code:

W

J41 Insert interface code:

ISO$VB1604003******

J42 Master insert identification:

VBMT 16 04 08

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

95 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61PS

l4 Functional length:

120 mm

LAMS Inclination angle:

0 °

LF Functional length:

120 mm

LF_INCH Functional length:

4,7244094488189 inch

MANUFACTURER_AID:

C6-SVMBL-33120-16

MIID Master insert identification:

VBMT 16 04 08

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

158 mm

OAL_INCH Overall length:

6,22047244094488 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

45° turning tools – Screw clamping C...-SVMB • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=95° • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

SVMBL-CAPTO-AUSSEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

47 °

SC Insert shape code:

V

SSC Insert seat size code:

16

SUPPLIER_AID:

5325932

SUPPLIER_ALT_AID:

5325932

TERRITORY:

US

TSYCISO Tool style code:

SVMBL-CAPTO-AUSSEN

Type Possible indexable inserts:

VB .. 1604 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.BULLETTEXT_2:

Toolholders for turning and milling centres

UDX.CATFAM_CODE:

C...-SVMB

UDX.CATFAM_DESCR:

45° turning tools – Screw clamping

UDX.DESCR_APPLICATION:

First choice for low cutting pressures/small-diameter shafts

UDX.DESCR_BENEFITS:

Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required

UDX.DESCR_TOOL:

For indexable inserts with positive basic shape;Walter Capto^TM tool with screw clamping (S)

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

4.2601

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.4961

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

4.2601

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

49.3377

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61PS

WF Functional width:

33 mm

WF_INCH Functional width:

1,2992125984252 inch

WT Weight of item:

1,932 kg

WT_INCH Weight of item:

4,2592872 lbs

XYWD xyw plane distance:

-120 mm

XYWD_INCH xyw plane distance:

-4,7244094488189 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

33 mm

YZWD_INCH yzw plane distance:

1,2992125984252 inch

γ Orthogonal rake angle:

0 °

λs Inclination angle:

0 °

Toolholders for turning and milling centres

Walter Capto^TM

Walter Capto^TM|Toolholders for turning and milling centres
