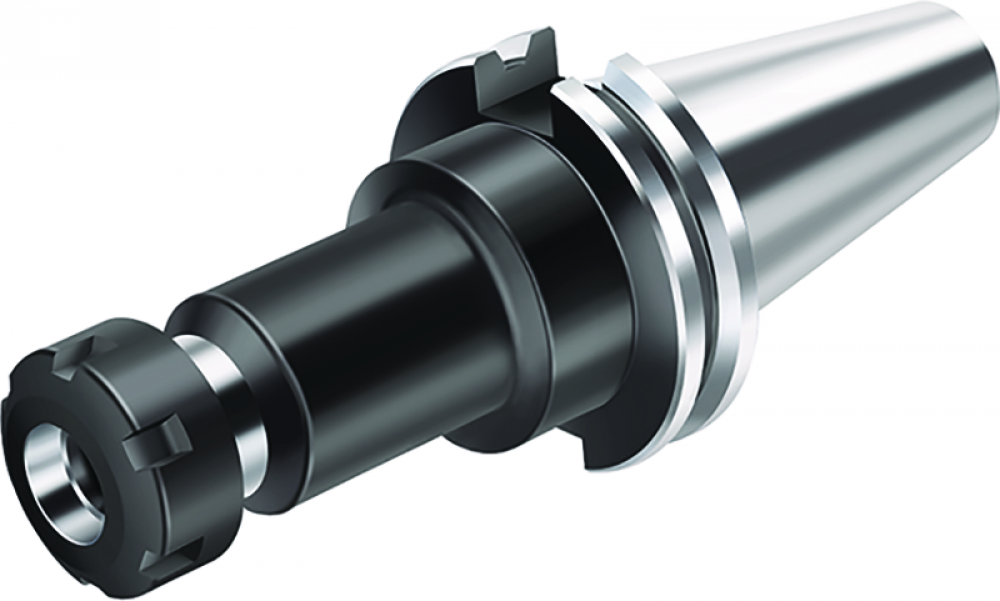

ASME B5.50 ER collet chuck : 6840751

Category:

Tooling Systems

Subcategory:

Collets

Subtype:

Collet Accessories

A1 Body diameter:

62,74 mm

A1_INCH Body diameter:

2,47007874015748 inch

A2 Body diameter 2:

63,55 mm

A2_INCH Body diameter 2:

2,50196850393701 inch

A4 Flange diameter:

63,5 mm

A4_INCH Flange diameter:

2,5 inch

A5 Diameter lock nut:

62,74 mm

A5_INCH Diameter lock nut:

2,47007874015748 inch

B1 Body length 1:

85,6 mm

B1_INCH Body length 1:

3,37007874015748 inch

B2 Length 2:

104,65 mm

B2_INCH Length 2:

4,12007874015748 inch

B3 Protruding length:

104,64 mm

B3_INCH Protruding length:

4,11968503937008 inch

B4 Overall length:

173,04 mm

B4_INCH Overall length:

6,81259842519685 inch

B71 Functional length:

85,739 mm

B71_INCH Functional length:

3,37555118110236 inch

BBD Balanced By Design:

0

BD Body diameter:

62,74 mm

BD_INCH Body diameter:

2,47007874015748 inch

BLD Tool style code:

508011

BMC Body material code:

S

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

37

C13 Connection thread nominal size machine side:

5/8"-11

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

41 mm

C3_INCH Connection diameter machine side:

1,61417322834646 inch

C4 Shank length:

68,4 mm

C4_INCH Shank length:

2,69291338582677 inch

C51 Connection code type workpiece side:

SZD

C52 Connection code form at workpiece side:

2

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

400

CCFMS Connection code form at machine side:

37

CCFWS Connection code form at workpiece side:

2

CCMS Connection code machine side:

SKG37C0400$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

SZD

CCWS Connection code workpiece side:

SZD02C0400****

CNSC Coolant entry style code:

7

Collets Collets:

ER40

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

400

D6 Rotational speed maximum:

18000 1/min

D7 Weight of item:

1,798 kg

D7_INCH Weight of item:

3,9638708 lbs

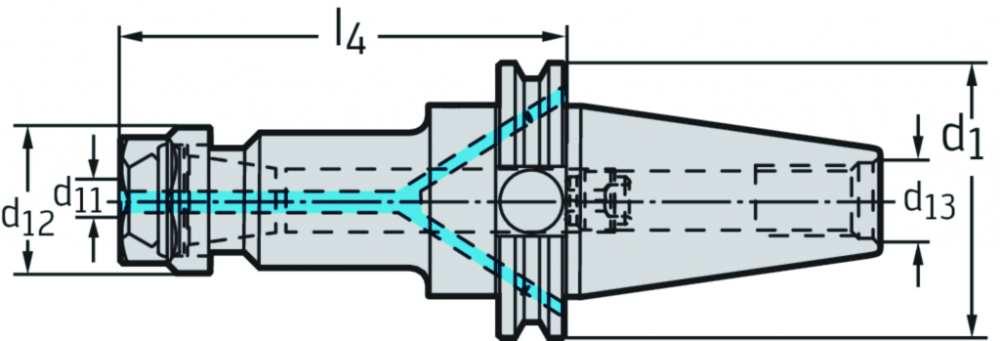

d11 Connection size code:

2-26

d12 Body diameter:

62,7 mm

d13 Pull stud, thread size:

5

d1 Connection size code:

CAT40

Designation Tool designation:

AB009.K40-ER40-105

E2 Kappa:

0 °

EAN:

0798133853

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

7

H22 Coolant exit style code:

1

J1 Standard:

ASME B5.50

J11 Standard letter to the standard number:

AD/

J21 Article number:

AB009.K40-ER40-105

J22 Product designation:

5257

J3 Company code:

W

J4 Connection code workpiece side:

SZD02C0400****

J6 Connection code machine side:

SKG37C0400$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders steep taper shank - Collet chuck SANDVIK Coromant|AB009

l4 Functional length:

104,6 mm

LF Functional length:

85,739 mm

LF_INCH Functional length:

3,37555118110236 inch

LPR Protruding length:

104,64 mm

LPR_INCH Protruding length:

4,11968503937008 inch

LS Shank length:

68,4 mm

LS_INCH Shank length:

2,69291338582677 inch

MANUFACTURER_AID:

AB009.K40-ER40-105

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

173,04 mm

OAL_INCH Overall length:

6,81259842519685 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

ASME B5.50 ER collet chuck AB009.K

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AB009.K

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

18000 1/min

SUPPLIER_AID:

6840751

SUPPLIER_ALT_AID:

6840751

TERRITORY:

US

TSYC Tool style code:

AB009-K

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ER collets in accordance with DIN 6499/ISO15488

UDX.CATFAM_CODE:

AB009.K

UDX.CATFAM_DESCR:

ASME B5.50 ER collet chuck

UDX.DESCR_APPLICATION:

Suitable for all CAT-V spindles

UDX.DESCR_TOOL:

(Tool-8902725);(Tool-8902726);(Tool-8902727);(Tool-8903119);For collets in accordance with DIN 6499

UDX.DISCOUNTGROUP:

076

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

3.9646

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

8.2677

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

4.1763

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

62.7934

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AB009

WT Weight:

1,8 kg

WT Weight of item:

1,798 kg

WT_INCH Weight of item:

3,9638708 lbs

XYWD xyw plane distance:

-85,739 mm

XYWD_INCH xyw plane distance:

-3,37555118110236 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ER collets in accordance with DIN 6499/ISO15488
