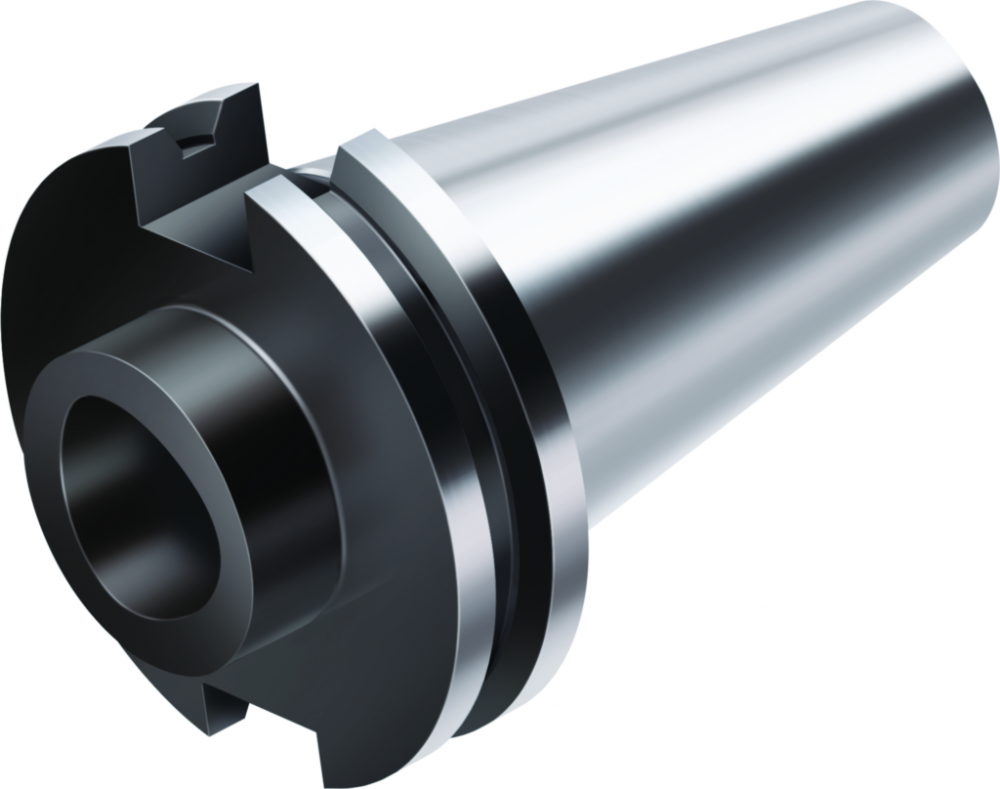

ASME B5.50 master : 6728021

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

63 mm

A1_INCH Body diameter:

2,48031496062992 inch

A4 Flange diameter:

98,42 mm

A4_INCH Flange diameter:

3,8748031496063 inch

B1 Body length 1:

10,9 mm

B1_INCH Body length 1:

0,429133858267717 inch

B3 Protruding length:

30 mm

B3_INCH Protruding length:

1,18110236220472 inch

B4 Overall length:

131,8 mm

B4_INCH Overall length:

5,18897637795276 inch

B71 Functional length:

30 mm

B71_INCH Functional length:

1,18110236220472 inch

BBD Balanced By Design:

0

BD Body diameter:

63 mm

BD_INCH Body diameter:

2,48031496062992 inch

BLD Tool style code:

508107

BMC Body material code:

S

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

37

C13 Connection thread nominal size machine side:

1"-8

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

C3 Connection diameter machine side:

63 mm

C3_INCH Connection diameter machine side:

2,48031496062992 inch

C4 Shank length:

101,75 mm

C4_INCH Shank length:

4,00590551181102 inch

C51 Connection code type workpiece side:

CCS

C52 Connection code form at workpiece side:

3

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

630

CCFMS Connection code form at machine side:

37

CCFWS Connection code form at workpiece side:

3

CCMS Connection code machine side:

SKG37C0500$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

CCS

CCWS Connection code workpiece side:

CCS03C0630****

CNSC Coolant entry style code:

7

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

630

D6 Rotational speed maximum:

12000 1/min

D7 Weight of item:

2,56 kg

D7_INCH Weight of item:

5,643776 lbs

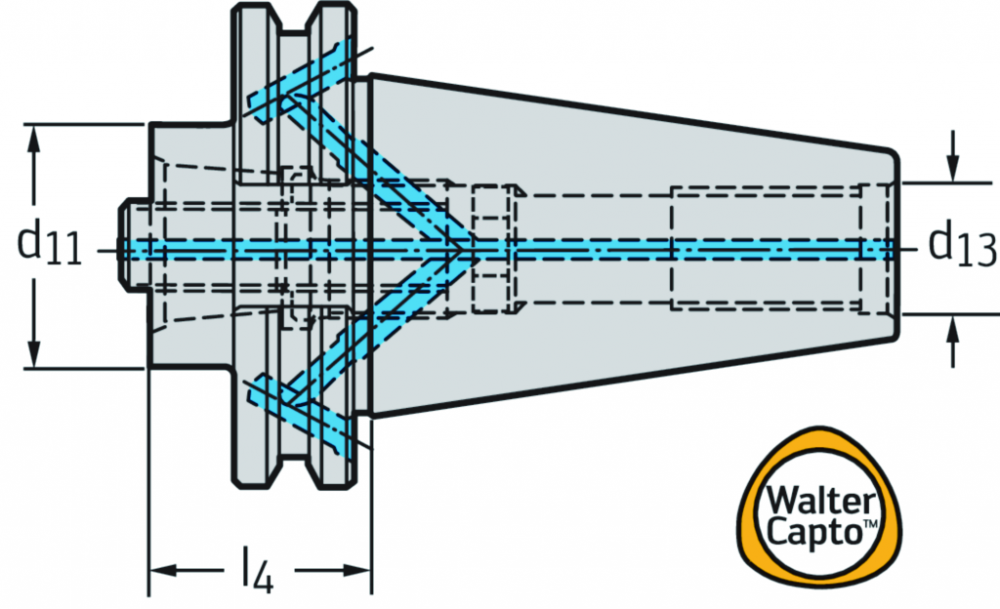

d11 Connection size code:

C6

d13 Pull stud, thread size:

1

d1 Connection size code:

CAT50

Designation Tool designation:

C6-A390B.45-50 030

E2 Kappa:

0 °

EAN:

0772969850

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

7

H22 Coolant exit style code:

1

J1 Standard:

ISO26623-2

J11 Standard letter to the standard number:

AD/

J21 Article number:

C6-A390B.45-50 030

J22 Product designation:

6201

J3 Company code:

W

J4 Connection code workpiece side:

CCS03C0630****

J6 Connection code machine side:

SKG37C0500$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders steep taper shank - Coromant Capto System SANDVIK|A1100

l4 Functional length:

30 mm

LF Functional length:

30 mm

LF_INCH Functional length:

1,18110236220472 inch

LPR Protruding length:

30 mm

LPR_INCH Protruding length:

1,18110236220472 inch

LS Shank length:

101,75 mm

LS_INCH Shank length:

4,00590551181102 inch

MANUFACTURER_AID:

C6-A390B.45-50 030

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

131,8 mm

OAL_INCH Overall length:

5,18897637795276 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

ASME B5.50 master C.-A390B.45 • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A390B.45-CAPTO

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

12000 1/min

SUPPLIER_AID:

6728021

SUPPLIER_ALT_AID:

6728021

TERRITORY:

US

TSYC Tool style code:

A390B.45-CAPTO

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

C.-A390B.45

UDX.CATFAM_DESCR:

ASME B5.50 master

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

5.6448

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.5827

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.2992

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

5.6823

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

112.8402

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

5.0000

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1100

WT Weight:

2,56 kg

WT Weight of item:

2,56 kg

WT_INCH Weight of item:

5,643776 lbs

XYWD xyw plane distance:

-30 mm

XYWD_INCH xyw plane distance:

-1,18110236220472 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
