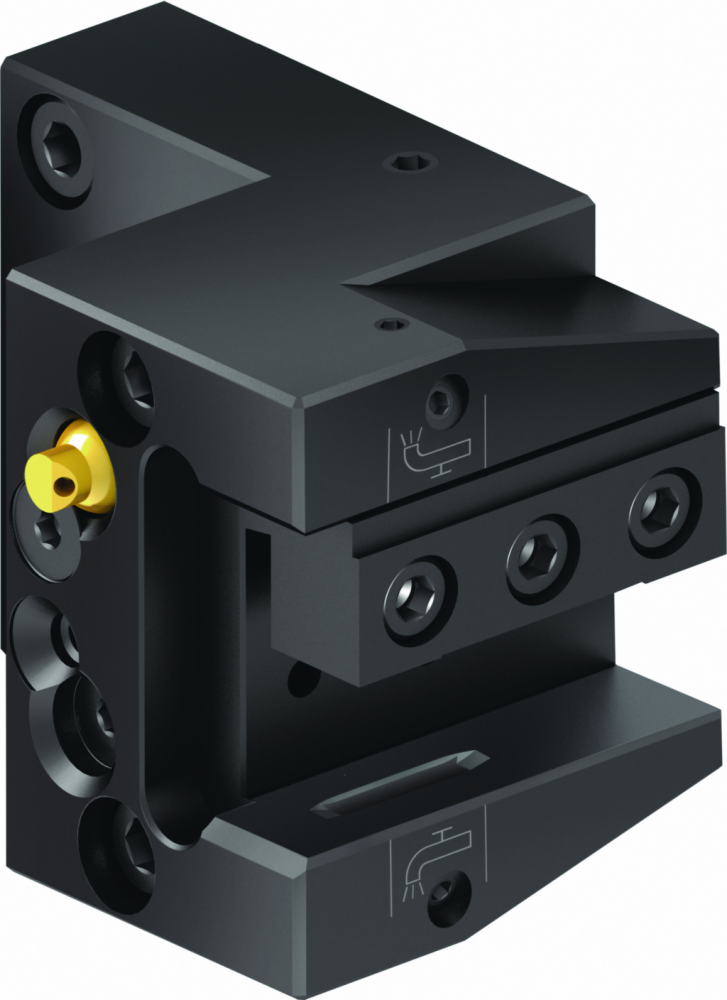

BMT adaptor – shank tools : 7402154

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Adapters

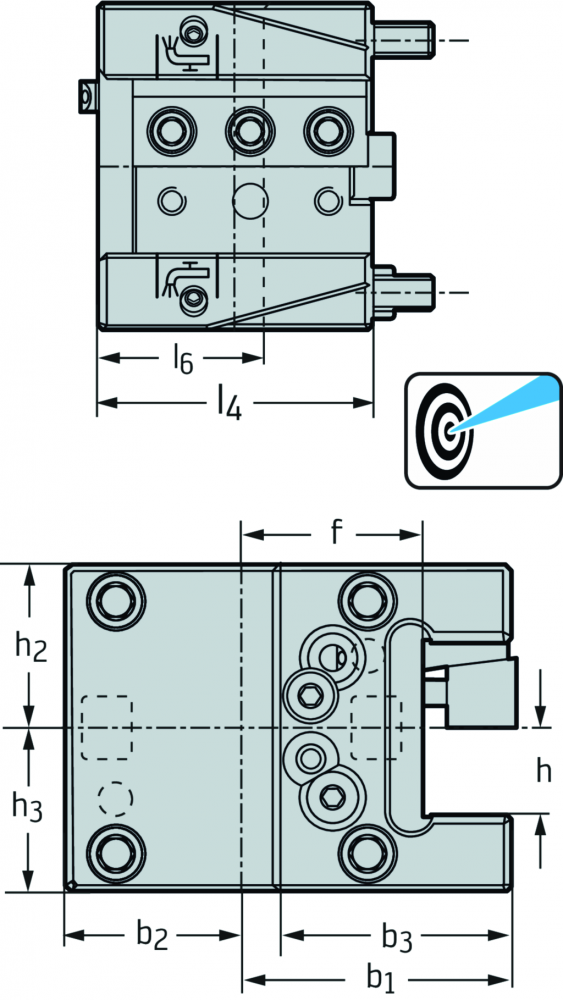

B1 Body length 1:

38 mm

B1_INCH Body length 1:

1,49606299212598 inch

B3 Protruding length:

63 mm

B3_INCH Protruding length:

2,48031496062992 inch

B4 Overall length:

63 mm

B4_INCH Overall length:

2,48031496062992 inch

B71 Functional length:

63 mm

B71_INCH Functional length:

2,48031496062992 inch

B73 Functional width:

34 mm

B73_INCH Functional width:

1,33858267716535 inch

B81 Overall height:

75 mm

B81_INCH Overall height:

2,95275590551181 inch

B91 Overall width:

102 mm

B91_INCH Overall width:

4,01574803149606 inch

b1 Width:

62 mm

b2 Radial width:

40 mm

b3 Functional width:

42 mm

BLD Tool style code:

609012

C11 Connection code type machine side:

FLC

C12 Connection code form at machine side:

2

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

B4AN

C51 Connection code type workpiece side:

VKT

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

2012

C71 Connection diameter min:

201,2 mm

C71_INCH Connection diameter min:

7,92125984251969 inch

C72 Connection diameter max:

202,2 mm

C72_INCH Connection diameter max:

7,96062992125984 inch

CCMS Connection code machine side:

FLC02CB4AN$$$$

CCWS Connection code workpiece side:

VKT01A2012****VKT01A2022****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

A

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

B4AN

CZCWS Connection size code workpiece side:

2012

D7 Weight of item:

2,2 kg

D7_INCH Weight of item:

4,85012 lbs

d1 Shank diameter:

BT45A

Designation Tool designation:

A2120-BT45-20N-063-P

E1 Cutting direction:

N

E2 Kappa:

0 °

EAN:

0902462968

f Functional width:

34 mm

FMT Form type workpiece side:

INT

h Height:

20 mm

H Shank height:

20 mm

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

h2 Height:

38 mm

h3 Height:

38 mm

HAND Cutting direction:

N

H_INCH Shank height:

0,78740157480315 inch

J1 Standard:

-

J21 Article number:

A2120-BT45-20N-063-P

J22 Product designation:

6679

J3 Company code:

W

J4 Connection code workpiece side:

VKT01A2012****VKT01A

J6 Connection code machine side:

FLC02CB4AN$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Flange mounting SANDVIK Coromant - Prism mounting KENNAMETAL|D60AW

l4 Functional length:

63 mm

l6 Length:

38 mm

LF Functional length:

63 mm

LF_INCH Functional length:

2,48031496062992 inch

LPR Protruding length:

63 mm

LPR_INCH Protruding length:

2,48031496062992 inch

MANUFACTURER_AID:

A2120-BT45-20N-063-P

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAH Overall height:

75 mm

OAH_INCH Overall height:

2,95275590551181 inch

OAL Overall length:

63 mm

OAL_INCH Overall length:

2,48031496062992 inch

OAW Overall width:

102 mm

OAW_INCH Overall width:

4,01574803149606 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

BMT adaptor – shank tools A2120-BT...-P • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022006

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A2120-BMT-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

7402154

SUPPLIER_ALT_AID:

7402154

TERRITORY:

US

TSYC Tool style code:

A2120-BMT-P

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Precision cooling

UDX.CATFAM_CODE:

A2120-BT...-P

UDX.CATFAM_DESCR:

BMT adaptor – shank tools

UDX.DESCR_APPLICATION:

Machining of any type of material;Use of coolant-through tools in the plug-and-play method;For use on all machines with BMT interface;Stationary boring bars/adaptors

UDX.DESCR_BENEFITS:

Easy handling thanks to plug-and-play solution;Reduction of downtimes;Fast tool change thanks to lateral operation of the wedge;Increase in the tool life of tool and cutting edge, as well as improved chip formation, because the coolant is guided directly u

UDX.DESCR_TOOL:

Axial adaptors;BMT adaptors for precision-cooled shank tools;Boring bars/adaptors, general

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

4.8510

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

7.4803

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.2835

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

5.6051

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

407.5471

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

7.4803

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D60AW

WB Body width:

62 mm

WB_INCH Body width:

2,44094488188976 inch

WF Functional width:

34 mm

WF_INCH Functional width:

1,33858267716535 inch

WT Weight:

2,2 kg

WT Weight of item:

2,2 kg

WT_INCH Weight of item:

4,85012 lbs

XYWD xyw plane distance:

-63 mm

XYWD_INCH xyw plane distance:

-2,48031496062992 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Precision cooling
