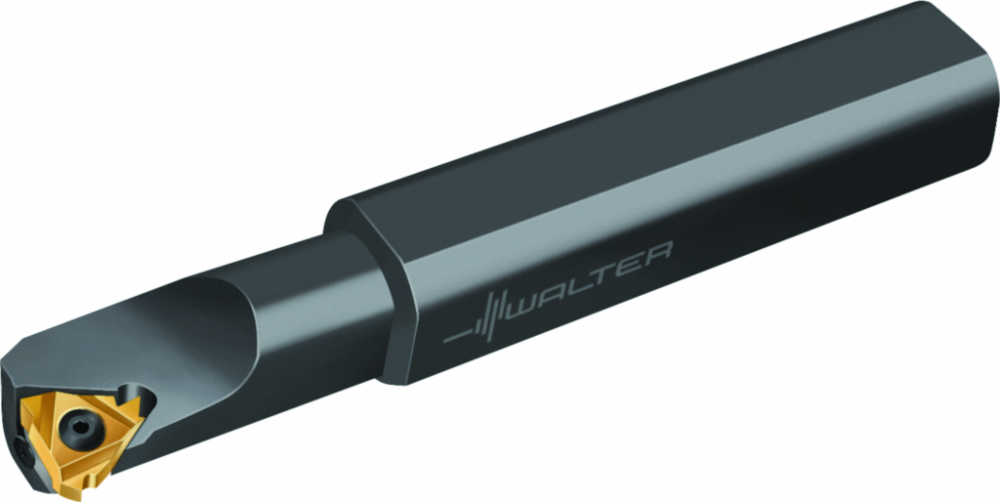

Boring bar – Internal thread : 6039297

Category:

Holemaking

Subcategory:

Boring

Subtype:

Boring Bars

A2 Functional width:

7,4 mm

A2_INCH Functional width:

0,291338582677165 inch

A3 Functional length:

180 mm

A3_INCH Functional length:

7,08661417322835 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

13 mm

A6_INCH Minimum bore diameter:

0,511811023622047 inch

ALP Clearance angle axial:

10 °

ART_ID_TO type=consists_of:

5008716,6039291

ART_ID_TO type=others:

6038270, ;6038272, ;6038274, ;6038277, ;6038279, ;6038322, ;6038324, ;6038326, ;6038363, ;6038366, ;6038368, ;6038390, ;6038392, ;6038558, ;6038690, ;6038692, ;6038694, ;6038696, ;6038698, ;6038700, ;6038707, ;6038832, ;6038836, ;6038838, ;6038851, ;603885

B3 Protruding length:

180 mm

B3_INCH Protruding length:

7,08661417322835 inch

B5 Overall length:

180 mm

B5_INCH Overall length:

7,08661417322835 inch

BD Body diameter:

10 mm

BD_INCH Body diameter:

0,393700787401575 inch

BLD Tool style code:

3

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

22

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

200

C3 Connection diameter machine side:

20 mm

C3_INCH Connection diameter machine side:

0,78740157480315 inch

C4 Shank height:

18 mm

C4_INCH Shank height:

0,708661417322835 inch

CCMS Connection code machine side:

ZYL22G2000$$$$

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

200

D7 Weight of item:

0,371 kg

D7_INCH Weight of item:

0,8179066 lbs

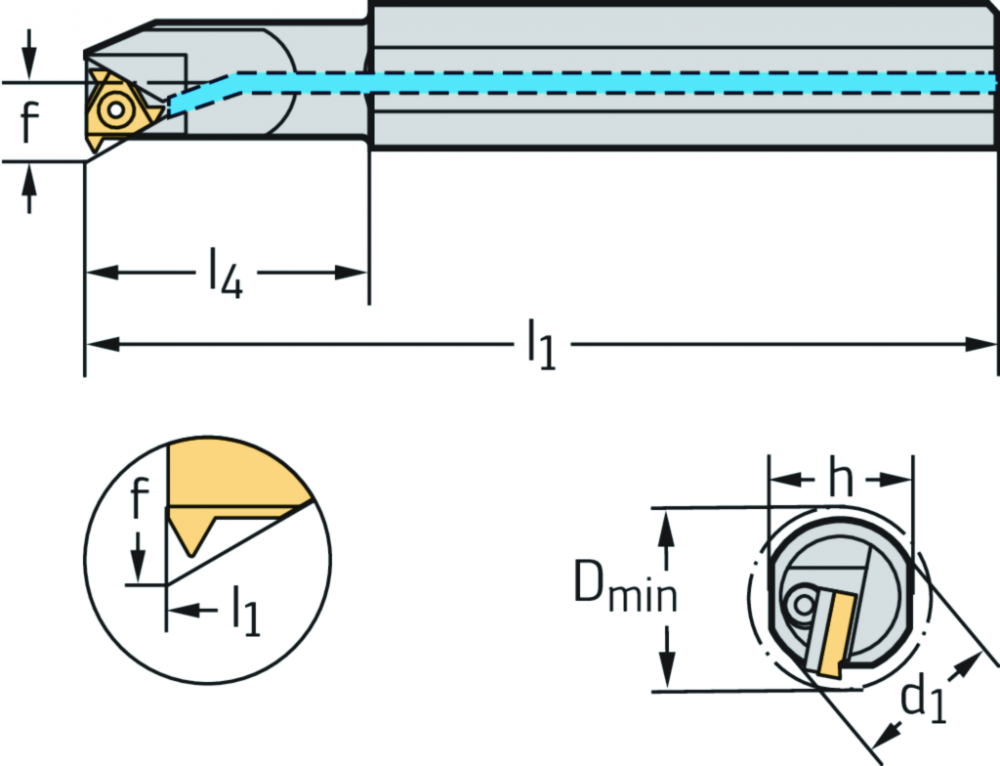

d1 Shank diameter:

20 mm

Dmin Minimum diameter:

13 mm

Designation Tool designation:

A20Q-NTS-IR11-13

DHD Drop head design:

0

DMIN Minimum bore diameter:

13 mm

DMIN_INCH Minimum bore diameter:

0,511811023622047 inch

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

S

EAN:

0612547966

f Functional width:

7,4 mm

F1 Cutting direction:

R

F2 Tool holder shape code:

G

F3 Drop head design:

0

F5 Clamping type code:

S

FMT Form type machine side:

EXT

h Shank height:

18 mm

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

H_INCH Shank height:

0,708661417322835 inch

IIC Insert interface code:

WR$$NTSI11**3R*****

Insert size Insert size:

11

J1 Standard:

-

J21 Article number:

A20Q-NTS-IR11-13

J3 Company code:

W

J41 Insert interface code:

WR$$NTSI11**3R*****

J42 Master insert identification:

NTS-I-11

J6 Connection code machine side:

ZYL22G2000$$$$

J7 Data chip provision:

0

J8 Machining operation:

DGI

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool holders for threading, internal|D72NS

l1 Functional length:

180 mm

l4 Projection length:

25 mm

LF Functional length:

180 mm

LF_INCH Functional length:

7,08661417322835 inch

LPR Protruding length:

180 mm

LPR_INCH Protruding length:

7,08661417322835 inch

LU Usable length:

25 mm

LU_INCH Usable length:

0,984251968503937 inch

MANUFACTURER_AID:

A20Q-NTS-IR11-13

MIID Master insert identification:

NTS-I-11

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

180 mm

OAL_INCH Overall length:

7,08661417322835 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Internal thread A...-NTS-I • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181003

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHII

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

A-NTS-I-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

1,5 °

SC Insert shape code:

T

SSC Insert seat size code:

11

SUPPLIER_AID:

6039297

SUPPLIER_ALT_AID:

6039297

TERRITORY:

US

THDH Thread hand:

R

TSYC Tool style code:

A-NTS-I-11

Type Possible indexable inserts:

NTS-I . -11 ..

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

A...-NTS-I

UDX.CATFAM_DESCR:

Boring bar – Internal thread

UDX.DESCR_APPLICATION:

Internal thread

UDX.DESCR_BENEFITS:

Excellent thread quality thanks to precision-ground indexable insert

UDX.DESCR_TOOL:

A . . . -NTS-I internal thread boring bar;Internal coolant supply on all tools

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.8181

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.1811

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.3622

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.8225

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

10.2703

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.1811

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D72NS

WF Functional width:

7,4 mm

WF_INCH Functional width:

0,291338582677165 inch

WT Weight of item:

0,371 kg

WT_INCH Weight of item:

0,8179066 lbs

XYWD xyw plane distance:

-180 mm

XYWD_INCH xyw plane distance:

-7,08661417322835 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-7,4 mm

YZWD_INCH yzw plane distance:

-0,291338582677165 inch

β Beta:

1,5 °
