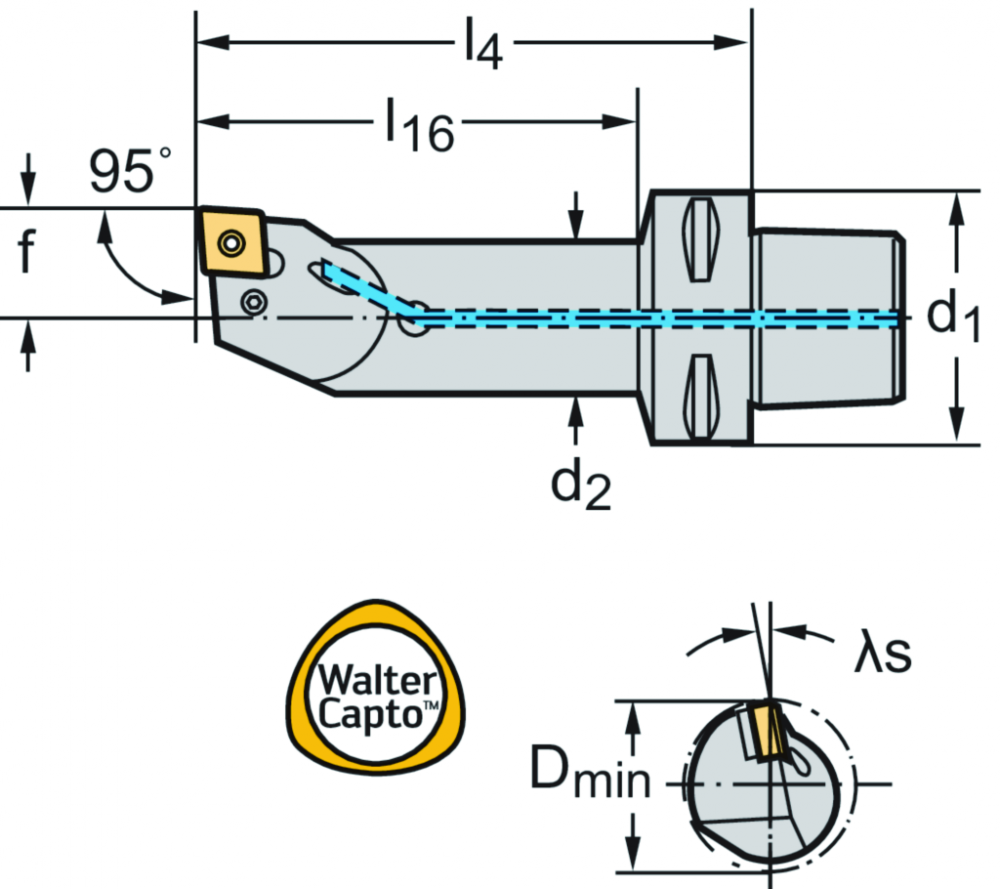

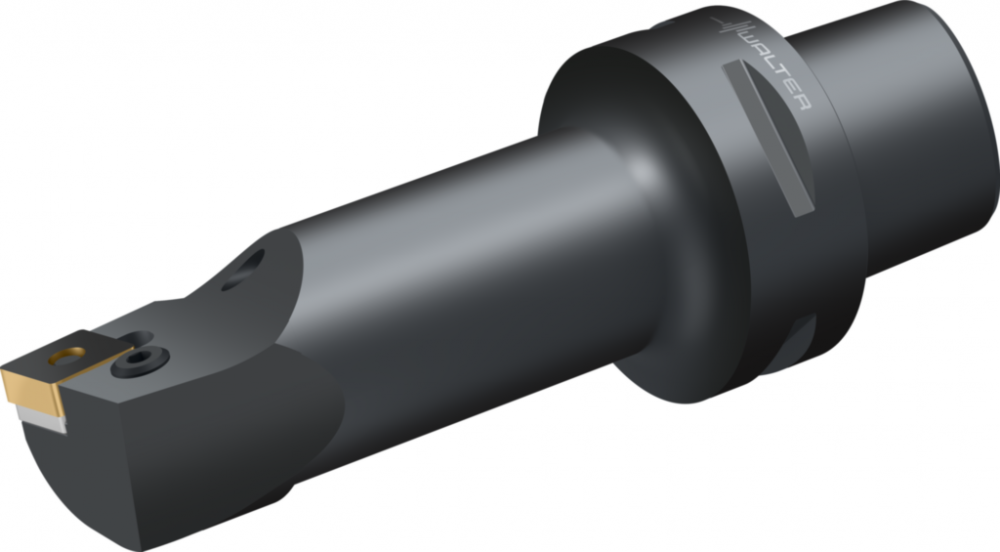

Boring bar – Lever clamping : 5011689

Category:

Turning

Subcategory:

Internal Turning

Subtype:

Indexable Boring Bars

A1 Cutting edge length:

12,9 mm

A1_INCH Cutting edge length:

0,507874015748032 inch

A2 Functional width:

27 mm

A2_INCH Functional width:

1,06299212598425 inch

A3 Functional length:

80 mm

A3_INCH Functional length:

3,1496062992126 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

50 mm

A6_INCH Minimum bore diameter:

1,96850393700787 inch

A9 Body diameter reduced:

40 mm

A9_INCH Body diameter reduced:

1,5748031496063 inch

ART_ID_TO type=accessories:

5038528

ART_ID_TO type=consists_of:

5018871,5038367,5008469,5008462,5008476,5617471,5008480

ART_ID_TO type=others:

5016238, ;5016662, ;5016664, ;5016693, ;5016694, ;5016872, ;5016873, ;5016876, ;5118174, ;5202099, ;5330145, ;5016661, ;5016223, ;5354448, ;5354463, ;5354465, ;5381296, ;5409415, ;5570037, ;5585398, ;5585400, ;5585560, ;5585561, ;5592245, ;5595811, ;569141

B3 Protruding length:

104 mm

B3_INCH Protruding length:

4,09448818897638 inch

B4 Usable length:

60 mm

B4_INCH Usable length:

2,36220472440945 inch

B5 Overall length:

104 mm

B5_INCH Overall length:

4,09448818897638 inch

BLD Tool style code:

10

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CCMS Connection code machine side:

CCS01C0400$$$$

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CW Cutting edge length:

12,9 mm

CW_INCH Cutting edge length:

0,507874015748032 inch

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,722 kg

D7_INCH Weight of item:

1,5917212 lbs

d1 Connection diameter:

C4

d2 Body diameter:

40 mm

Dmin Minimum diameter:

50 mm

Designation Tool designation:

C4-PCLNL-27080-12

E1 Tool cutting edge angle:

95 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

80 °

E4 Rake angle orthogonal:

-6 °

E5 Inclination angle:

-10 °

EAN:

0348505967

f Functional width:

27 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

P

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

IIC Insert interface code:

ISO$CN1204003******

Insert seat size Insert seat size:

12

J1 Standard:

ISO26623-1

J21 Article number:

C4-PCLNL-27080-12

J3 Company code:

W

J41 Insert interface code:

ISO$CN1204002******

J42 Master insert identification:

CNMG 12 04 08

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFI

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, internal|D62NH

l16 Functional length:

60 mm

l4 Projection length:

80 mm

LS Shank length:

24 mm

LS_INCH Shank length:

0,94488188976378 inch

MANUFACTURER_AID:

C4-PCLNL-27080-12

MIID Master insert identification:

CNMG 12 04 08

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

ORDER_UNIT:

PCE

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Lever clamping C...-PCLN • Walter Turn • metric • Walter Capto^TM ISO 26623 • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181010

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGIBI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

PCLNL-CAPTO-INNEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

SSC Insert seat size code:

12

SUPPLIER_AID:

5011689

SUPPLIER_ALT_AID:

5011689

TERRITORY:

US

Type Possible indexable inserts:

CN .. 1204 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.CATFAM_CODE:

C...-PCLN

UDX.CATFAM_DESCR:

Boring bar – Lever clamping

UDX.DESCR_APPLICATION:

First choice for indexable inserts with negative basic shape and for machining large depths of cut;First choice when machining small hole diameters with negative indexable inserts

UDX.DESCR_BENEFITS:

Unobstructed chip evacuation from the bore and therefore an alternative to rigid clamping

UDX.DESCR_TOOL:

Internal coolant supply on all tools;Special shim with border to prevent chip impact and protect the cutting edges on top of it;Round-shank boring bars with three clamping surfaces enable maximum flexibility;Walter Capto^TM tool with toggle clamp

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.5920

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.5276

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.5920

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

17.5443

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D62NH

γ Orthogonal rake angle:

-6 °

λs Inclination angle:

-10 °

Walter Capto^TM
