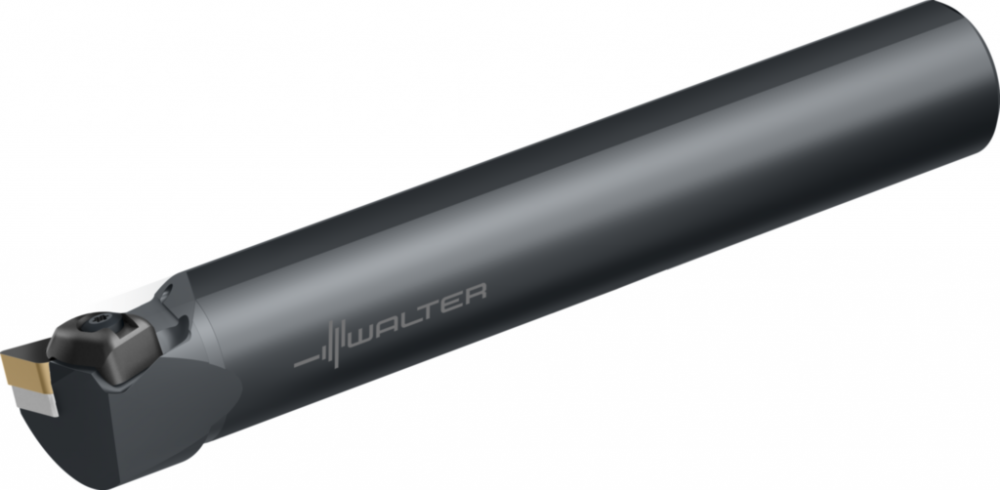

Boring bar – Rigid clamping : 5522830

Category:

Turning

Subcategory:

Internal Turning

Subtype:

Indexable Boring Bars

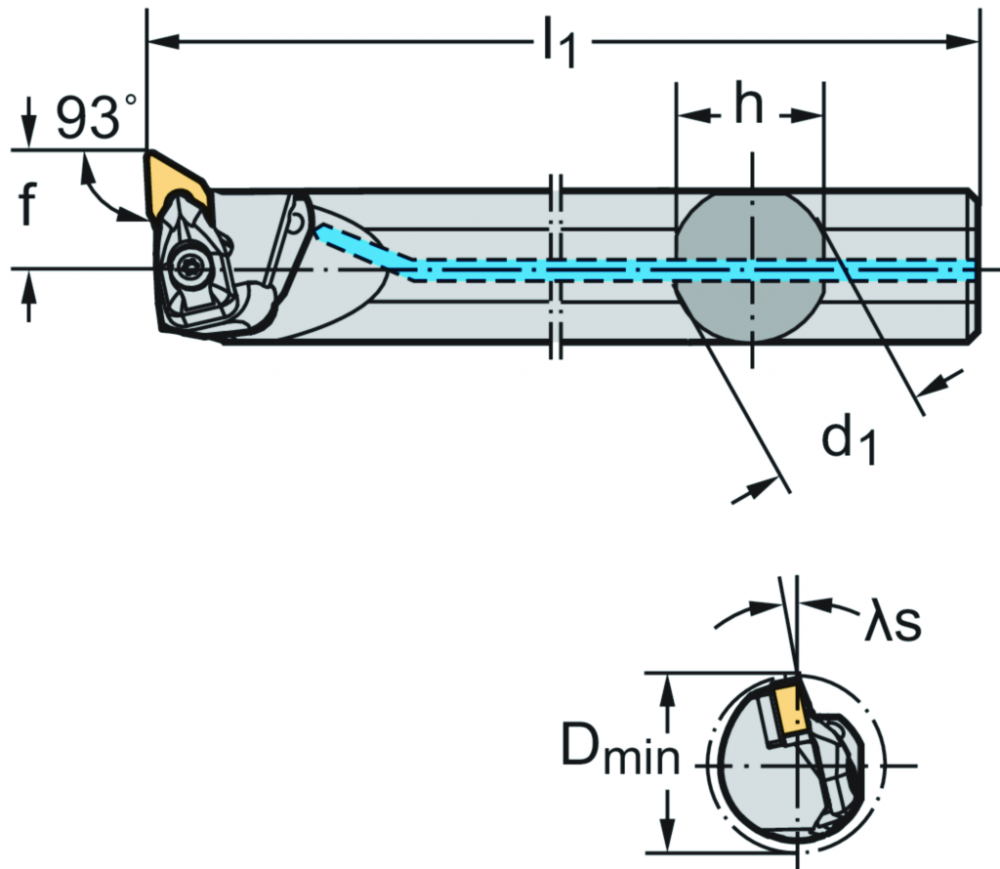

A1 Cutting edge length:

11,6 mm

A1_INCH Cutting edge length:

0,456692913385827 inch

A2 Functional width:

17 mm

A2_INCH Functional width:

0,669291338582677 inch

A3 Functional length:

300 mm

A3_INCH Functional length:

11,8110236220472 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

32 mm

A6_INCH Minimum bore diameter:

1,25984251968504 inch

ART_ID_TO type=accessories:

5097975

ART_ID_TO type=consists_of:

5040978,5041480,5041488,5041492,5041504,5041510,5042165

ART_ID_TO type=others:

5584886, ;5847115, ;6057717, ;6126040, ;6126051, ;6126059, ;6187815, ;6353403, ;6353406, ;6411287, ;6411289, ;6613406, ;6780205, ;6780206, ;6945379, ;6945430, ;6945431, ;6945432, ;6945433, ;7053977, ;7053978, ;7091902, ;7091903, ;7091904, ;7091905, ;709190

B3 Protruding length:

300 mm

B3_INCH Protruding length:

11,8110236220472 inch

B5 Overall length:

300 mm

B5_INCH Overall length:

11,8110236220472 inch

BLD Tool style code:

1

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

22

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

250

C3 Connection diameter machine side:

25 mm

C3_INCH Connection diameter machine side:

0,984251968503937 inch

C4 Shank height:

23 mm

C4_INCH Shank height:

0,905511811023622 inch

CCMS Connection code machine side:

ZYL22G2500$$$$

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CW Cutting edge length:

11,6 mm

CW_INCH Cutting edge length:

0,456692913385827 inch

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

250

D7 Weight of item:

0,958 kg

D7_INCH Weight of item:

2,1120068 lbs

d1 Connection diameter:

25 mm

Dmin Minimum diameter:

32 mm

Designation Tool designation:

A25T-DDUNL11

E1 Tool cutting edge angle:

93 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

55 °

E4 Rake angle orthogonal:

-6 °

E5 Inclination angle:

-12 °

EAN:

0590741912

f Functional width:

17 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

D

FMT Form type machine side:

EXT

H Shank height:

23 mm

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H_INCH Shank height:

0,905511811023622 inch

IIC Insert interface code:

ISO$DN1104002******

Insert seat size Insert seat size:

11

J1 Standard:

-

J21 Article number:

A25T-DDUNL11

J3 Company code:

W

J41 Insert interface code:

ISO$DN1104002******

J42 Master insert identification:

DNMG 11 04 08

J6 Connection code machine side:

ZYL22G2500$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFI

KEYWORD:

Tool Item|Turning|Walter Turn|Tool holders for turning|D21NK

l1 Functional length:

300 mm

LPR Protruding length:

300 mm

LPR_INCH Protruding length:

11,8110236220472 inch

MANUFACTURER_AID:

A25T-DDUNL11

MIID Master insert identification:

DNMG 11 04 08

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

300 mm

OAL_INCH Overall length:

11,8110236220472 inch

ORDER_UNIT:

PCE

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Rigid clamping A...-DDUN • Walter Turn • metric • Parallel shank with clamping surface • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181001

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGIBI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

DDUNL-ISO-INNEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

SSC Insert seat size code:

11

SUPPLIER_AID:

5522830

SUPPLIER_ALT_AID:

5522830

TERRITORY:

US

Type Possible indexable inserts:

DN .. 1104 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

A = Steel version with internal cooling

UDX.CATFAM_CODE:

A...-DDUN

UDX.CATFAM_DESCR:

Boring bar – Rigid clamping

UDX.DESCR_APPLICATION:

Suitable for roughing and finishing applications;First choice for interrupted cuts thanks to stable insert clamping;First choice for machining short-chipping material

UDX.DESCR_BENEFITS:

Functionality is maintained even in "dirty environments", e.g. grey cast iron machining;Reinforced clamps with carbide shoe available for longer clamp tool life;The indexable insert and shim can be replaced using the same wrench

UDX.DESCR_TOOL:

Internal coolant supply on all tools;Round-shank boring bars with three clamping surfaces enable maximum flexibility;Walter Turn boring bar with rigid clamping (D)

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

2.1124

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

12.0079

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

2.1124

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

22.8000

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D21NK

γ Orthogonal rake angle:

-6 °

λs Inclination angle:

-12 °

A = Steel version with internal cooling
