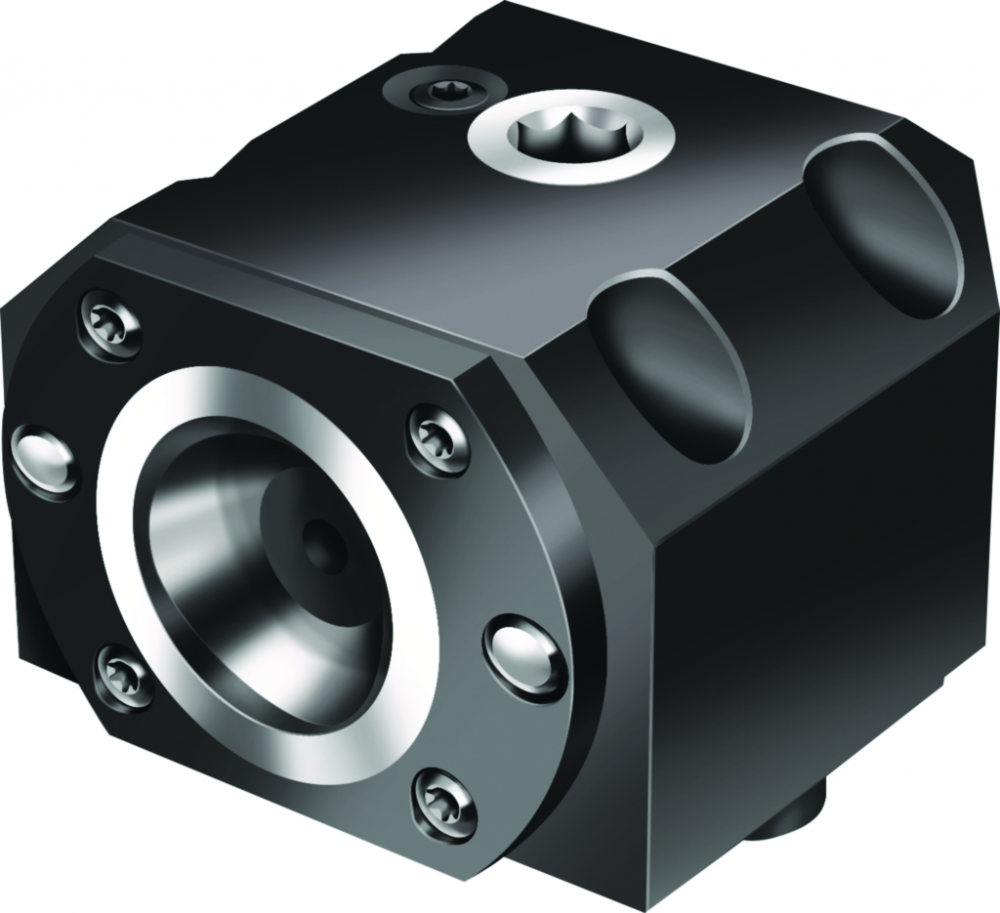

Clamping units : 5012434 | RJW Industrial

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Adapters

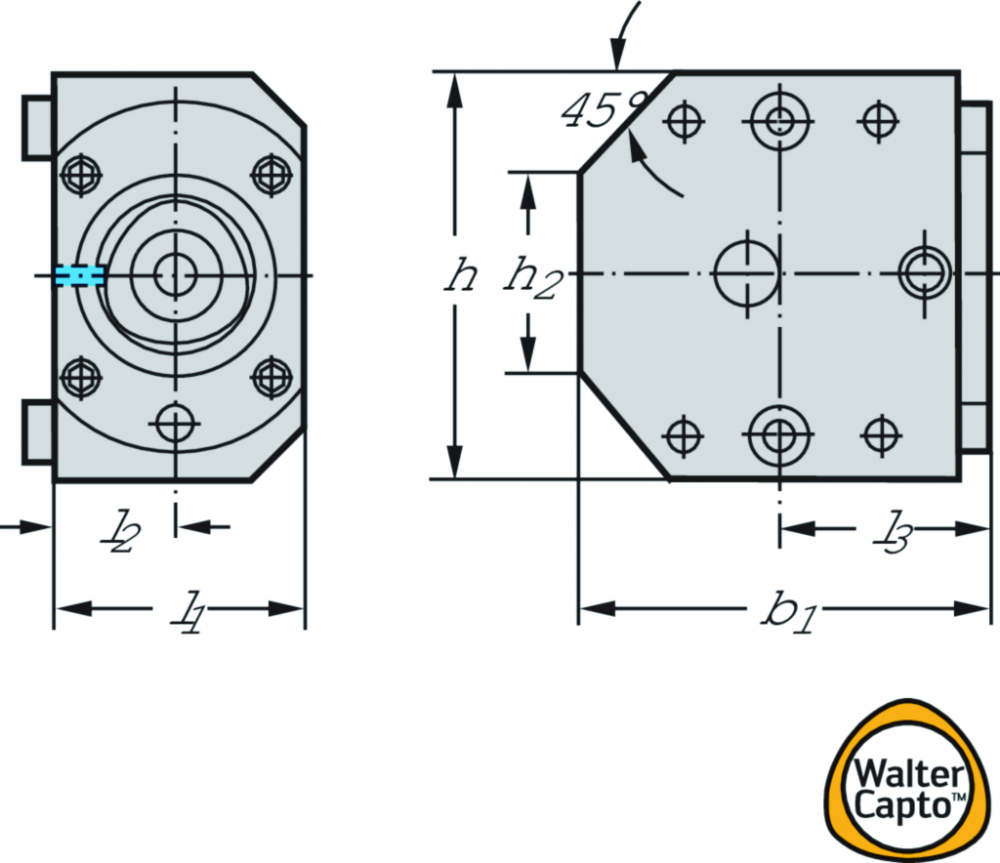

B Shank width:

100 mm

B1 Body length 1:

64 mm

B1_INCH Body length 1:

2,51968503937008 inch

B3 Protruding length:

64 mm

B3_INCH Protruding length:

2,51968503937008 inch

B4 Overall length:

64 mm

B4_INCH Overall length:

2,51968503937008 inch

B71 Functional length:

32 mm

B71_INCH Functional length:

1,25984251968504 inch

B72 Functional height:

0 mm

B72_INCH Functional height:

0 inch

B73 Functional width:

48 mm

B73_INCH Functional width:

1,88976377952756 inch

B81 Overall height:

92 mm

B81_INCH Overall height:

3,62204724409449 inch

B91 Overall width:

100 mm

B91_INCH Overall width:

3,93700787401575 inch

b1 Width:

100 mm

B_INCH Shank width:

3,93700787401575 inch

C11 Connection code type machine side:

FLC

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

2062

C3 Connection diameter machine side:

50 mm

C3_INCH Connection diameter machine side:

1,96850393700787 inch

C51 Connection code type workpiece side:

CCS

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

500

CCMS Connection code machine side:

FLC10C2062$$$$

CCWS Connection code workpiece side:

CCS02C0500****

CNSC Coolant entry style code:

6

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

2

CZCMS Connection size code machine side:

2062

CZCWS Connection size code workpiece side:

500

D7 Weight of item:

3,583 kg

D7_INCH Weight of item:

7,8990818 lbs

Designation Tool designation:

C5-RC2090-32048A

E1 Cutting direction:

R

E2 Kappa:

0 °

EAN:

0349963967

FMT Form type workpiece side:

INT

h Height:

92 mm

H Shank height:

92 mm

H21 Coolant entry style code:

6

H22 Coolant exit style code:

2

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

H_INCH Shank height:

3,62204724409449 inch

J1 Standard:

ISO26623-2

J21 Article number:

C5-RC2090-32048A

J3 Company code:

W

J4 Connection code workpiece side:

CCS01C0500****

J6 Connection code machine side:

FLC10C2062$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Flange mounting SANDVIK Coromant - Coromant Capto System SANDVIK|D67AW

l1 Overall length:

64 mm

l2 Projection length:

32 mm

l3 Usable length:

48 mm

LF Functional length:

32 mm

LF_INCH Functional length:

1,25984251968504 inch

LPR Protruding length:

64 mm

LPR_INCH Protruding length:

2,51968503937008 inch

MANUFACTURER_AID:

C5-RC2090-32048A

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAH Overall height:

92 mm

OAH_INCH Overall height:

3,62204724409449 inch

OAL Overall length:

64 mm

OAL_INCH Overall length:

2,51968503937008 inch

OAW Overall width:

100 mm

OAW_INCH Overall width:

3,93700787401575 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Clamping units TYP 2090 • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21029090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022006

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022006

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

R/LC2090

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

Size Size:

C5

SUPPLIER_AID:

5012434

SUPPLIER_ALT_AID:

5012434

TERRITORY:

US

TSYC Tool style code:

R/LC2090

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Manually actuated

UDX.BULLETTEXT_2:

For special flange-mounting applications

UDX.CATFAM_CODE:

TYP 2090

UDX.CATFAM_DESCR:

Clamping units

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

7.9005

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.9370

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.3150

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

7.9623

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

82.3821

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.9370

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D67AW

WF Functional width:

48 mm

WF_INCH Functional width:

1,88976377952756 inch

WT Weight of item:

3,583 kg

WT_INCH Weight of item:

7,8990818 lbs

XYWD xyw plane distance:

-32 mm

XYWD_INCH xyw plane distance:

-1,25984251968504 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For special flange-mounting applications

Manually actuated

Manually actuated|For special flange-mounting applications
