Combination adaptor

Combination adaptor

Call For Price
  • Part Number: 5007445
  • UPC:
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (16)
Product Overview
Info & Guides

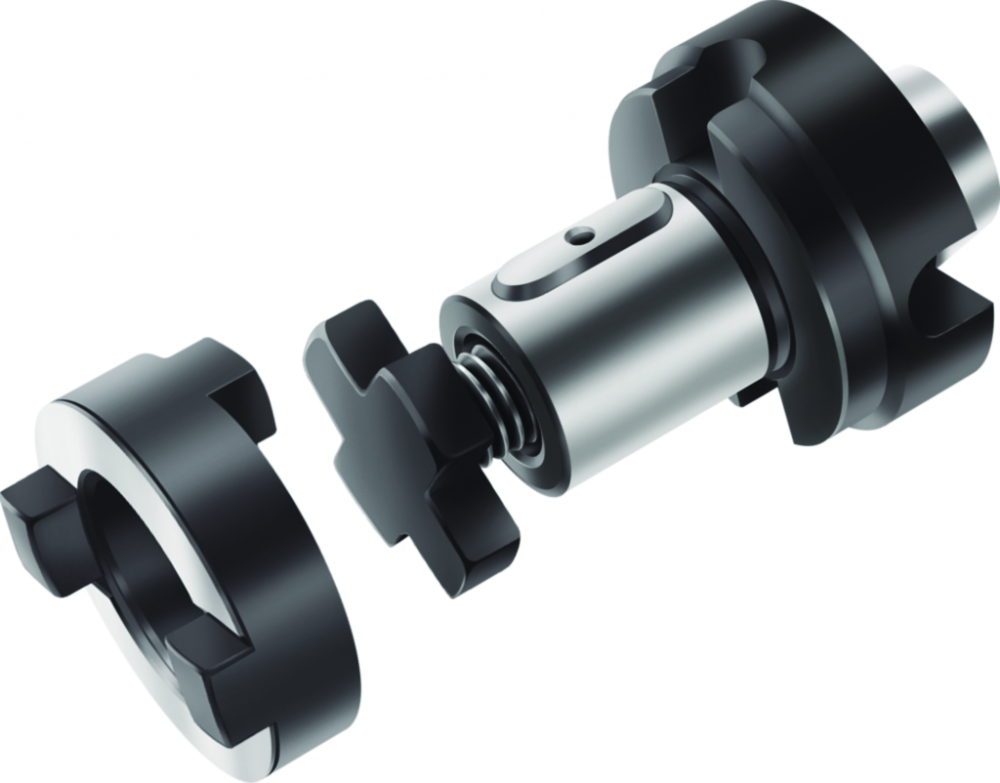

Combination adaptor A150M.0.50.035.27
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
A1 Body diameter:
48 mm
A1_INCH Body diameter:
1,88976377952756 inch
A4 Flange diameter:
50 mm
A4_INCH Flange diameter:
1,96850393700787 inch
ART_ID_TO type=accessories:
5008367,5008385,5008414,5008415,5008416,5008417
ART_ID_TO type=consists_of:
5008373,5008379
ART_ID_TO type=others:
5006959;5006965;5006970;5006987;5006992;5007013;5007018;5007345;5007346;5007354;5007356;5007422;5007436;5007437;5007438;5007439;5021623;5024335;5034433;5034439
B1 Body length 1:
7 mm
B1_INCH Body length 1:
0,275590551181102 inch
B3 Protruding length:
23 mm
B3_INCH Protruding length:
0,905511811023622 inch
B4 Overall length:
68 mm
B4_INCH Overall length:
2,67716535433071 inch
B71 Functional length:
23 mm
B71_INCH Functional length:
0,905511811023622 inch
BBD Balanced By Design:
0
BD Body diameter:
48 mm
BD_INCH Body diameter:
1,88976377952756 inch
BMC Body material code:
S
C11 Connection code type machine side:
NCT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
500
C3 Connection diameter machine side:
50 mm
C3_INCH Connection diameter machine side:
1,96850393700787 inch
C4 Shank length:
33 mm
C4_INCH Shank length:
1,2992125984252 inch
C51 Connection code type workpiece side:
FDA
C52 Connection code form at workpiece side:
12
C54 Connection code unit base workpiece side:
0
C55 Connection code style workpiece side:
0
C6 Connection size code workpiece side:
270
C71 Connection diameter min:
27 mm
C71_INCH Connection diameter min:
1,06299212598425 inch
C81 Clamping length maximum:
33 mm
C81_INCH Clamping length maximum:
1,2992125984252 inch
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
12
CCMS Connection code machine side:
NCT01C0500$$$$
CCTMS Connection code type machine side:
NCT
CCTWS Connection code type workpiece side:
FDA
CCWS Connection code workpiece side:
FDA22G2700****
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
G
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
500
CZCWS Connection size code workpiece side:
270
D6 Rotational speed maximum:
30000 1/min
D7 Weight of item:
0,658 kg
D7_INCH Weight of item:
1,4506268 lbs

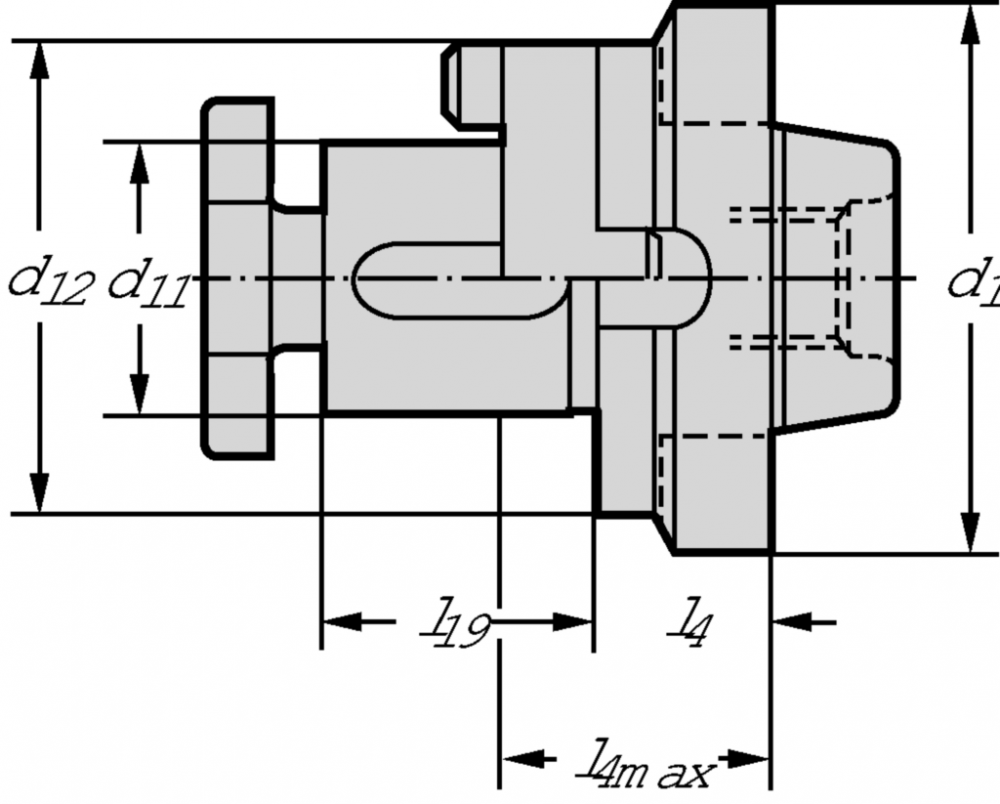

d<sub>11</sub> Connection size code:
27
d<sub>12</sub> Body diameter:
48 mm
d<sub>1</sub> Connection size code:
NCT 50
Designation Tool designation:
A150M.0.50.035.27
E2 Kappa:
0 °
EAN:
0250184852
FMT Form type workpiece side:
EXT
G35 Mounting hole count:
1
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
J1 Standard:
-
J21 Article number:
A150M.0.50.035.27
J3 Company code:
W
J4 Connection code workpiece side:
FDA12G2700****
J6 Connection code machine side:
NCT01C0500$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Novex-NC-Tools WALTER - Milling arbor mounting|A1300
l<sub>19</sub> Shank length:
33 mm
l<sub>4</sub> Functional length:
23 mm
l<sub>4max</sub> Functional length:
35 mm
LF Functional length:
23 mm
LF_INCH Functional length:
0,905511811023622 inch
LPR Protruding length:
23 mm
LPR_INCH Protruding length:
0,905511811023622 inch
LS Shank length:
33 mm
LSC Clamping length maximum:
33 mm
LSC_INCH Clamping length maximum:
1,2992125984252 inch
LS_INCH Shank length:
1,2992125984252 inch
MANUFACTURER_AID:
A150M.0.50.035.27
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
68 mm
OAL_INCH Overall length:
2,67716535433071 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Combination adaptor A150M • metric • For tools in accordance with DIN 841 and DIN 1880 • For tools in accordance with DIN 842 and DIN 1830
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022003
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
A150M.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
30000 1/min
SUPPLIER_AID:
5007445
SUPPLIER_ALT_AID:
5007445
TERRITORY:
US
TSYC Tool style code:
A150M.0
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For tools in accordance with DIN 842 and DIN 1830
UDX.BULLETTEXT_2:
For tools in accordance with DIN 841 and DIN 1880
UDX.CATFAM_CODE:
A150M
UDX.CATFAM_DESCR:
Combination adaptor
UDX.DISCOUNTGROUP:
070
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
1.4509
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.3622
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
3.3071
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.4597
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
18.4536
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.3622
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1300
WT Weight:
0,66 kg
WT Weight of item:
0,658 kg
WT_INCH Weight of item:
1,4506268 lbs
XYWD xyw plane distance:
-23 mm
XYWD_INCH xyw plane distance:
-0,905511811023622 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Other Details
For tools in accordance with DIN 841 and DIN 1880
For tools in accordance with DIN 842 and DIN 1830
For tools in accordance with DIN 842 and DIN 1830|For tools in accordance with DIN 841 and DIN 1880
