Copy milling cutters : 5050718

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

A1 Cutting diameter:

50,8 mm

A1_INCH Cutting diameter:

2 inch

A3 Body diameter:

45 mm

A3_INCH Body diameter:

1,77165354330709 inch

APMX Depth of cut maximum:

40 mm

APMX_INCH Depth of cut maximum:

1,5748031496063 inch

ART_ID_TO type=accessories:

5006462,5032832,5032834,5033123,5107621,5107625

ART_ID_TO type=consists_of:

5006828

ART_ID_TO type=others:

5943801, ;8201951, ;8201960, 5015993;5015994;5016052;5016086;5016087;5016088;5016110;5016127;5016128;5016129;5016130;5032763;5032780;5032781;5032782;5041003;5049973;5049986;5049993;5049994;5049995;5055738;5055743;5055748;5055752;5055757;5055761;5095431;509

B2 Depth of cut maximum:

40 mm

B2_INCH Depth of cut maximum:

1,5748031496063 inch

B3 Protruding length:

60 mm

B3_INCH Protruding length:

2,36220472440945 inch

B4 Usable length:

40 mm

B4_INCH Usable length:

1,5748031496063 inch

B5 Overall length:

75 mm

B5_INCH Overall length:

2,95275590551181 inch

B6 Head length:

60 mm

B6_INCH Head length:

2,36220472440945 inch

BD Body diameter:

45 mm

BD_INCH Body diameter:

1,77165354330709 inch

BLD Tool style code:

10

BMC Body material code:

S

C11 Connection code type machine side:

SAW

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

450

C3 Connection diameter machine side:

45 mm

C3_INCH Connection diameter machine side:

1,77165354330709 inch

CCFMS Connection code form at machine side:

1

CCMS Connection code machine side:

SAW01C0450$$$$

CCTMS Connection code type machine side:

SAW

CICT Cutting item count:

2

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

C

CURRENCY:

USD

CXSC Coolant exit style code:

3

D11 Mill tool type ISO:

L

D6 Rotational speed maximum:

13800 1/min

D7 Weight of item:

0,456 kg

D7_INCH Weight of item:

1,0052976 lbs

D9 Adjustment property:

0

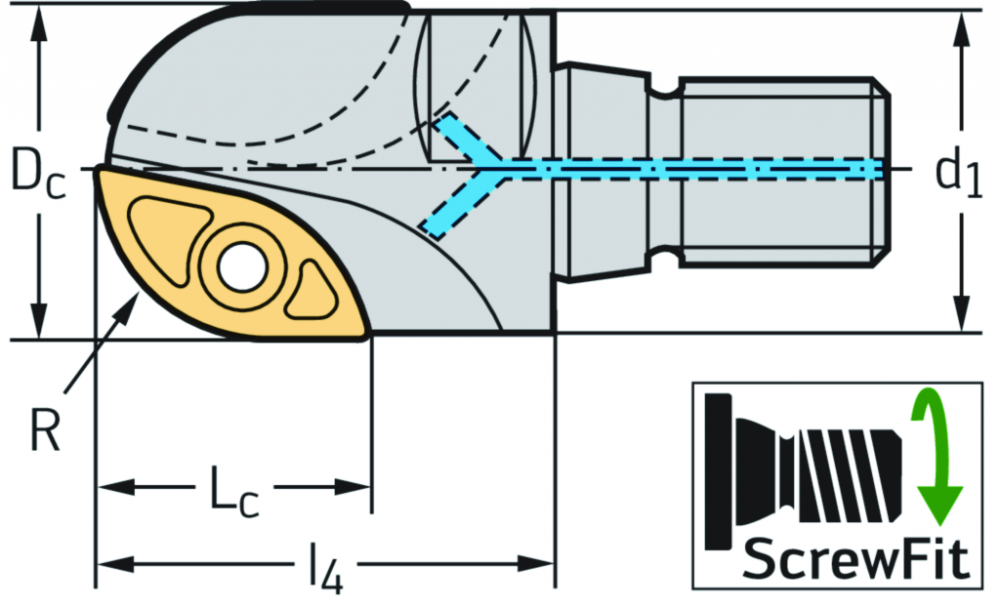

d1 Connection diameter:

1,772 inch

Dc Cutting edge diameter:

2 inch

DC Cutting diameter:

50,8 mm

DC_INCH Cutting diameter:

2 inch

Designation Tool designation:

F2339.UT45.051.Z02.40

EAN:

0780815727

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

2

F22 Face effective cutting edge count:

2

F23 Number of insert mounting levels:

1

F24 Number of inserts per mounting level:

2

G13 Face mounted insert count:

2

G21 Clamping type code:

S

G22 Cutting item type count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

IFS Insert mounting style code:

3

IIC Insert interface code:

WR$$XD4012253R*BI**

J1 Standard:

-

J21 Article number:

F2339.UT45.051.Z02.40

J3 Company code:

W

J41 Insert interface code:

WR$$XD4012253R*BI**

J6 Connection code machine side:

SAW01C0450$$$$

J7 Data chip provision:

0

J8 Machining operation:

FFO

KAP Kappa:

0 °

KEYWORD:

Tool Item|Milling||Profile milling cutters|F2339

l4 Maximum projection length:

2,362 inch

LB Body length:

60 mm

LB_INCH Body length:

2,36220472440945 inch

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

LPR Protruding length:

60 mm

LPR_INCH Protruding length:

2,36220472440945 inch

LU Usable length:

40 mm

LU_INCH Usable length:

1,5748031496063 inch

MANUFACTURER_AID:

F2339.UT45.051.Z02.40

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-87

OAL Overall length:

75 mm

OAL_INCH Overall length:

2,95275590551181 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

R Radius:

0,992 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Copy milling cutters F2339 • DIN 1835 B shank • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180810

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180810

REFERENCE_FEATURE_GROUP_ID_GTC:

MILBNSI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

F2339-UT-FORMA

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

0 °

RPMX Rotational speed maximum:

13800 1/min

S Insert thickness:

12,5 mm

SC Insert shape code:

X

SUPPLIER_AID:

5050718

SUPPLIER_ALT_AID:

6769844

S_INCH Insert thickness:

0,492125984251969 inch

TERRITORY:

US

TSYC Tool style code:

10

Type Possible indexable inserts:

XD . 4009250R

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

2 cutting edges per indexable insert

UDX.BULLETTEXT_2:

With anti-twist protection

UDX.CATFAM_CODE:

F2339

UDX.CATFAM_DESCR:

Copy milling cutters

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.0055

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.7008

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.1554

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

28.1075

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

F2339

UDX.RANKING_ISO_H:

Additional application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

W1 Insert width:

22,5 mm

W1_INCH Insert width:

0,885826771653543 inch

WT Weight:

1,005 lbs

WT Weight of item:

0,456 kg

WT_INCH Weight of item:

1,0052976 lbs

XYWD xyw plane distance:

-40 mm

XYWD_INCH xyw plane distance:

-1,5748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

2

ZEFF Face effective cutting edge count:

2

ZEFP Peripheral effective cutting edge count:

2

2 cutting edges per indexable insert

2 cutting edges per indexable insert|With anti-twist protection

With anti-twist protection
