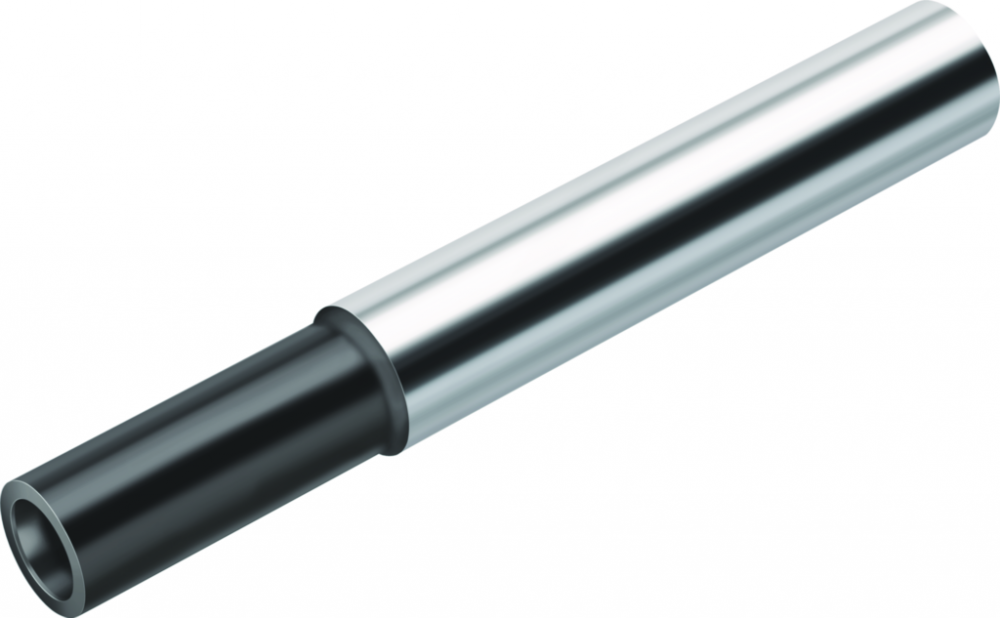

DIN 1835 A adaptor : 6266152

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

28 mm

A1_INCH Body diameter:

1,10236220472441 inch

ART_ID_TO type=others:

6381079;6381127;6381181;6852048;8698250;8698260;8698270;8698274;8698287;8698290;8698310;8698394;8698395;8698396;8698435;8698436;8698437;8698485;8698486;8698487;8698527;8698528;8698529;8698530;8698579;8698580;8698619;8698620;8698621;8698622

B1 Body length 1:

60 mm

B1_INCH Body length 1:

2,36220472440945 inch

B3 Protruding length:

283 mm

B3_INCH Protruding length:

11,1417322834646 inch

B4 Overall length:

345 mm

B4_INCH Overall length:

13,5826771653543 inch

B71 Functional length:

283 mm

B71_INCH Functional length:

11,1417322834646 inch

BBD Balanced By Design:

0

BD Body diameter:

28 mm

BD_INCH Body diameter:

1,10236220472441 inch

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

320

C3 Connection diameter machine side:

32 mm

C3_INCH Connection diameter machine side:

1,25984251968504 inch

C4 Shank length:

60 mm

C4_INCH Shank length:

2,36220472440945 inch

C51 Connection code type workpiece side:

SAW

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

280

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

ZYL01G3200$$$$

CCTMS Connection code type machine side:

ZYL

CCTWS Connection code type workpiece side:

SAW

CCWS Connection code workpiece side:

SAW01C0280****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

G

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

320

CZCWS Connection size code workpiece side:

280

D6 Rotational speed maximum:

45000 1/min

D7 Weight of item:

2,583 kg

D7_INCH Weight of item:

5,6944818 lbs

d11 Connection size code:

T28

d1 Connection size code:

32

Designation Tool designation:

AK512.Z32.T28.283

E2 Kappa:

0 °

EAN:

0671576851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AK512.Z32.T28.283

J3 Company code:

W

J4 Connection code workpiece side:

SAW01C0280****

J6 Connection code machine side:

ZYL01G3200$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Screw mounting SANDVIK Coromant|A1200

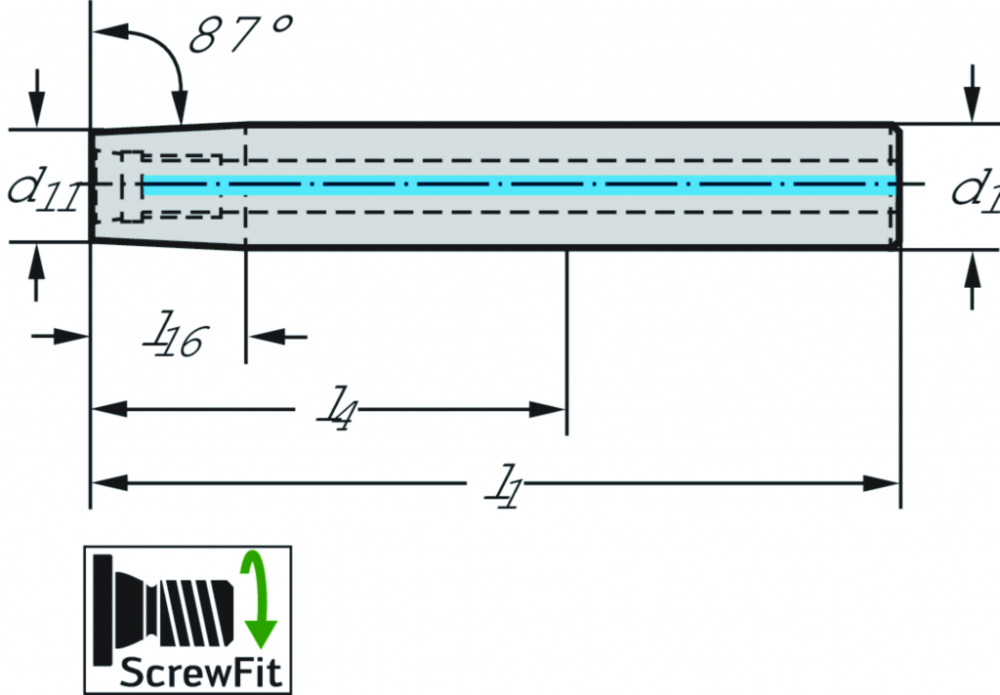

l16 Usable length:

60 mm

l1 Overall length:

345 mm

l4 Functional length:

283 mm

LF Functional length:

283 mm

LF_INCH Functional length:

11,1417322834646 inch

LPR Protruding length:

283 mm

LPR_INCH Protruding length:

11,1417322834646 inch

LS Shank length:

60 mm

LS_INCH Shank length:

2,36220472440945 inch

MANUFACTURER_AID:

AK512.Z32.T28.283

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

345 mm

OAL_INCH Overall length:

13,5826771653543 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

DIN 1835 A adaptor AK512 • metric • For ScrewFit front pieces • Steel shank with solid carbide core

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022001

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK512.Z-B

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

45000 1/min

SUPPLIER_AID:

6266152

SUPPLIER_ALT_AID:

6266152

TERRITORY:

US

TSYC Tool style code:

AK512.Z-B

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Steel shank with solid carbide core

UDX.BULLETTEXT_2:

For ScrewFit front pieces

UDX.CATFAM_CODE:

AK512

UDX.CATFAM_DESCR:

DIN 1835 A adaptor

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

5.6955

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.4567

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

13.8976

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

5.7837

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

29.4902

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.4567

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1200

WT Weight:

2,58 kg

WT Weight of item:

2,583 kg

WT_INCH Weight of item:

5,6944818 lbs

XYWD xyw plane distance:

-283 mm

XYWD_INCH xyw plane distance:

-11,1417322834646 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ScrewFit front pieces

Steel shank with solid carbide core

Steel shank with solid carbide core|For ScrewFit front pieces
