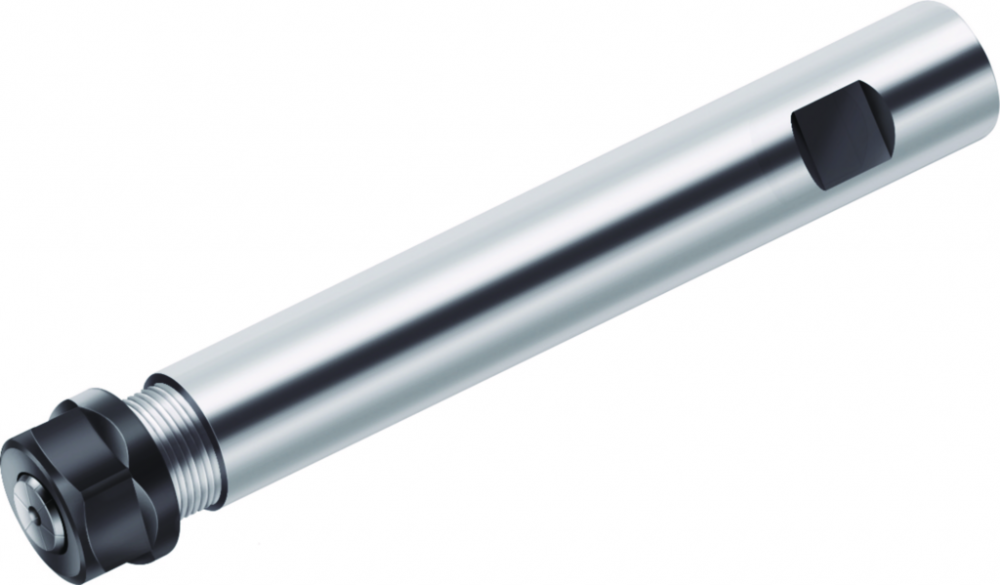

DIN 1835 B ER collet chuck : 5007507

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Drill Chucks and Adapters

A1 Body diameter:

28 mm

A1_INCH Body diameter:

1,10236220472441 inch

A5 Diameter lock nut:

28 mm

A5_INCH Diameter lock nut:

1,10236220472441 inch

ART_ID_TO type=consists_of:

5040692

ART_ID_TO type=others:

5007117;5007127;5007380;5007383;5012633;5012642;5033140;5034321;5034501;5040075;5043224;5043228;5043230;5043234;5043236;5043648;5887145;6257847;6257864;6257930;6257936;6261587;6261633;6261641;6261650;6264784;6264968;6265004;6265009;6265129;6265183;6362392;

B1 Body length 1:

124 mm

B1_INCH Body length 1:

4,88188976377953 inch

B3 Protruding length:

124 mm

B3_INCH Protruding length:

4,88188976377953 inch

B4 Overall length:

180 mm

B4_INCH Overall length:

7,08661417322835 inch

B71 Functional length:

138 mm

B71_INCH Functional length:

5,43307086614173 inch

BBD Balanced By Design:

0

BD Body diameter:

28 mm

BD_INCH Body diameter:

1,10236220472441 inch

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

0

C15 Connection code style machine side:

5

C2 Connection size code machine side:

250

C3 Connection diameter machine side:

25 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,984251968503937 inch

C4 Shank length:

56 mm

C4_INCH Shank length:

2,20472440944882 inch

C51 Connection code type workpiece side:

SZD

C52 Connection code form at workpiece side:

2

C54 Connection code unit base workpiece side:

8

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

160

C711 ISO-tolerance class connection bore diameter:

h6

C81 Clamping length maximum:

56 mm

C81_INCH Clamping length maximum:

2,20472440944882 inch

CCFMS Connection code form at machine side:

10

CCFWS Connection code form at workpiece side:

2

CCMS Connection code machine side:

ZYL10G2500h$06

CCTMS Connection code type machine side:

ZYL

CCTWS Connection code type workpiece side:

SZD

CCWS Connection code workpiece side:

SZD02C0160****

CNSC Coolant entry style code:

0

Collets Collets:

ER16

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

G

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

250

CZCWS Connection size code workpiece side:

160

D6 Rotational speed maximum:

50000 1/min

D7 Weight of item:

0,523 kg

D7_INCH Weight of item:

1,1530058 lbs

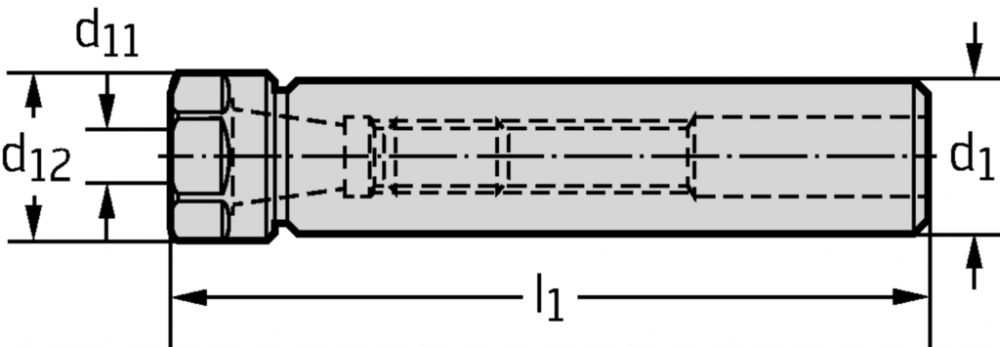

d11 Connection size code:

1-10

d12 Body diameter:

28 mm

d1 Connection size code:

25

Designation Tool designation:

A305.0.25.180.10

E2 Kappa:

0 °

EAN:

0197974853

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H Shank height:

23 mm

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H_INCH Shank height:

0,905511811023622 inch

J1 Standard:

ISO3338-2

J11 Standard letter to the standard number:

WE

J21 Article number:

A305.0.25.180.10

J3 Company code:

W

J4 Connection code workpiece side:

SZD02C0160****

J6 Connection code machine side:

ZYL10G2500h$06

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Collet chuck SANDVIK Coromant|E1100

l1 Overall length:

180 mm

l4 Functional length:

124 mm

LF Functional length:

138 mm

LF_INCH Functional length:

5,43307086614173 inch

LPR Protruding length:

124 mm

LPR_INCH Protruding length:

4,88188976377953 inch

LS Shank length:

56 mm

LSC Clamping length maximum:

56 mm

LSC_INCH Clamping length maximum:

2,20472440944882 inch

LS_INCH Shank length:

2,20472440944882 inch

MANUFACTURER_AID:

A305.0.25.180.10

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

180 mm

OAL_INCH Overall length:

7,08661417322835 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

DIN 1835 B ER collet chuck A305 • metric • For ER collets in accordance with DIN 6499/ISO15488

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21020302

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21020302

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21020302

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21020302

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21020302

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21020302

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A305.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

50000 1/min

SUPPLIER_AID:

5007507

SUPPLIER_ALT_AID:

5007507

TERRITORY:

US

TSYC Tool style code:

A305.0

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ER collets in accordance with DIN 6499/ISO15488

UDX.CATFAM_CODE:

A305

UDX.CATFAM_DESCR:

DIN 1835 B ER collet chuck

UDX.DISCOUNTGROUP:

077

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

1.1532

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.4173

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.1260

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.2150

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

14.3147

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.4173

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

E1100

WT Weight:

0,52 kg

WT Weight of item:

0,523 kg

WT_INCH Weight of item:

1,1530058 lbs

XYWD xyw plane distance:

-170 mm

XYWD_INCH xyw plane distance:

-6,69291338582677 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ER collets in accordance with DIN 6499/ISO15488
