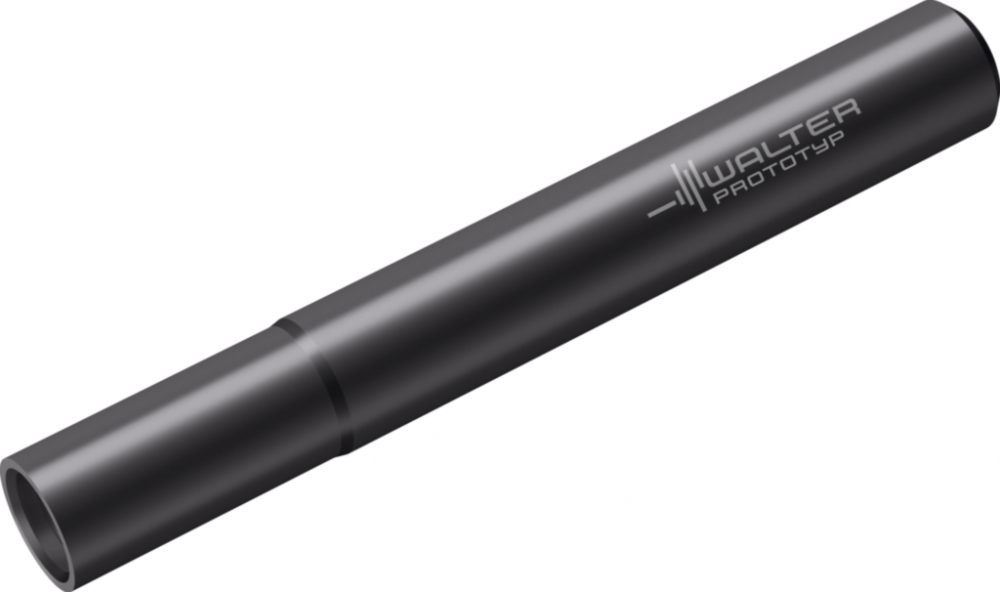

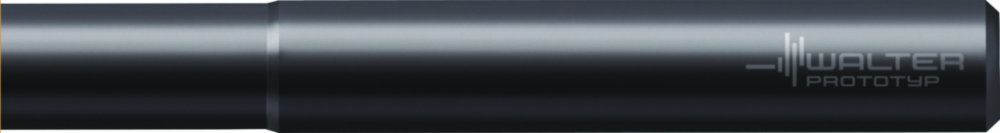

DIN 6535 HA adaptor : 5634451

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Modular Tool Holding System Adapters

A1 Body diameter:

12,2 mm

A1_INCH Body diameter:

0,480314960629921 inch

A2 Body diameter 2:

12,2 mm

A2_INCH Body diameter 2:

0,480314960629921 inch

ART_ID_TO type=others:

6381038;6381039;6381079;6381125;6381126;6381127;6381129;6381180;6381181;6852043;6852047;6852048;6852122;6852124;7415079;7415103;8156069;8156076;8156082;8156088;8698238;8698250;8698258;8698260;8698268;8698270;8698273;8698274;8698280;8698286;8698287;8698289;

B1 Body length 1:

6,35 mm

B1_INCH Body length 1:

0,25 inch

B2 Length 2:

6,6 mm

B2_INCH Length 2:

0,259842519685039 inch

B3 Protruding length:

30,9 mm

B3_INCH Protruding length:

1,21653543307087 inch

B4 Overall length:

76,2 mm

B4_INCH Overall length:

3 inch

B71 Functional length:

76,2 mm

B71_INCH Functional length:

3 inch

BBD Balanced By Design:

0

BD Body diameter:

12,2 mm

BD_INCH Body diameter:

0,480314960629921 inch

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

3

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

C3 Connection diameter machine side:

12,7 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,5 inch

C4 Shank length:

80 mm

C4_INCH Shank length:

3,1496062992126 inch

C51 Connection code type workpiece side:

SAC

C52 Connection code form at workpiece side:

4

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

120

C711 ISO-tolerance class connection bore diameter:

h6

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

4

CCMS Connection code machine side:

ZYL01R5000h$06

CCTMS Connection code type machine side:

ZYL

CCTWS Connection code type workpiece side:

SAC

CCWS Connection code workpiece side:

SAC04B0120****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

100 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

R

CUBPWS Connection unit base precision workpiece si:

B

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

120

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,079 kg

D7_INCH Weight of item:

0,1741634 lbs

d11 Connection size code:

E12

d1 Connection size code:

0.500

Designation Tool designation:

AK610.UZ13.E12.006

E2 Kappa:

0 °

EAN:

4042446190149

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AK610.UZ13.E12.006

J3 Company code:

W

J4 Connection code workpiece side:

SAC04B0120****

J6 Connection code machine side:

ZYL01R5000h$06

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Screw mounting SANDVIK Coromant|1AK610

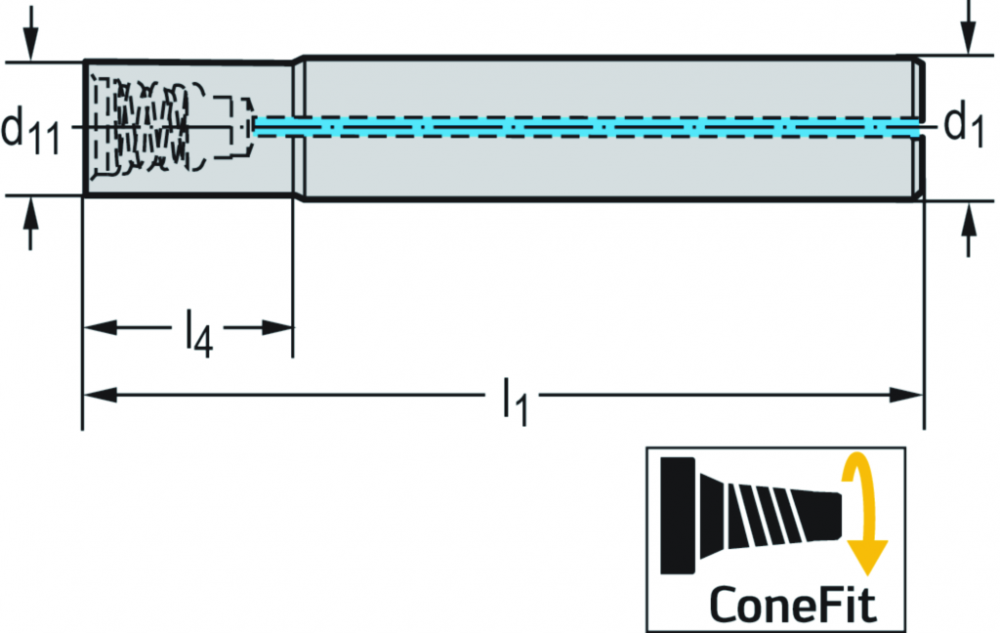

l1 Overall length:

3 inch

l4 Functional length:

0,25 inch

LF Functional length:

76,2 mm

LF_INCH Functional length:

3 inch

LPR Protruding length:

30,9 mm

LPR_INCH Protruding length:

1,21653543307087 inch

LS Shank length:

80 mm

LS_INCH Shank length:

3,1496062992126 inch

MANUFACTURER_AID:

AK610.UZ13.E12.006

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

76,2 mm

OAL_INCH Overall length:

3 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

DIN 6535 HA adaptor AK610 • inch • For ConeFit milling cutter heads

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022001

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK610-UA

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

5634451

SUPPLIER_ALT_AID:

5634451

TERRITORY:

US

TQ Torque:

15 Nm

TQ_INCH Torque:

132,761187 lbf in

TSYC Tool style code:

AK610-UA

UDX.APPAREA:

Holding

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

For ConeFit milling cutter heads

UDX.CATFAM_CODE:

AK610

UDX.CATFAM_DESCR:

DIN 6535 HA adaptor

UDX.DISCOUNTGROUP:

MA1

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

.1742

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.4646

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.1764

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

6.5784

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

1AK610

WT Weight:

0,174 lbs

WT Weight of item:

0,079 kg

WT_INCH Weight of item:

0,1741634 lbs

XYWD xyw plane distance:

-76,2 mm

XYWD_INCH xyw plane distance:

-3 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ConeFit milling cutter heads
