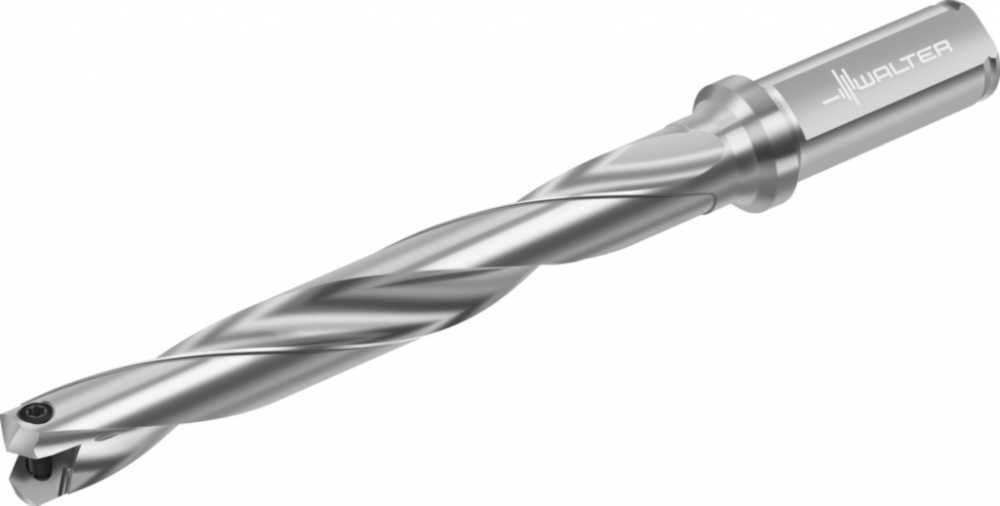

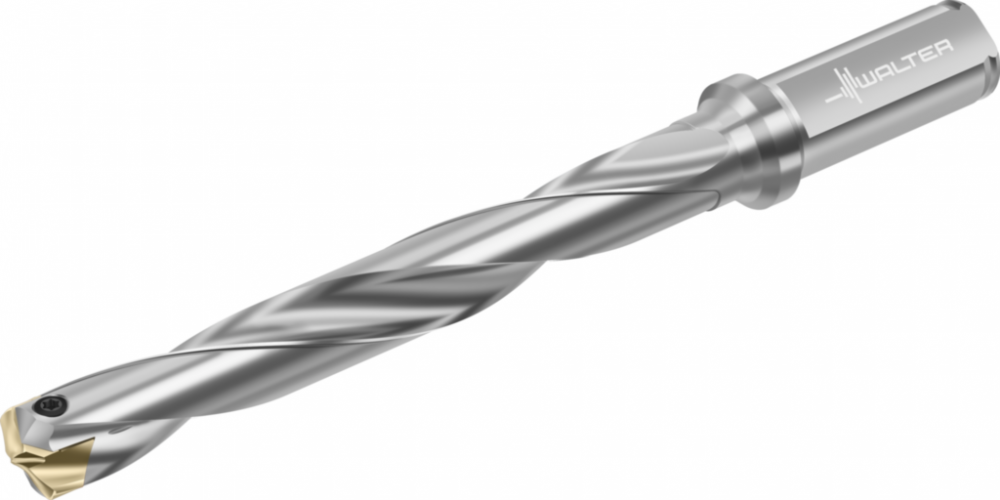

Exchangeable-tip drills : 7169841

Category:

Holemaking

Subcategory:

Indexable Cutting Tools

Subtype:

Replaceable Tip Drills

A11 Cutting diameter 1st step minimum:

15 mm

A11_INCH Cutting diameter 1st step minimum:

0,590551181102362 inch

A12 Cutting diameter 1st step maximum:

15 mm

A12_INCH Cutting diameter 1st step maximum:

0,590551181102362 inch

ART_ID_TO type=accessories:

5043209,5050322,5050331

ART_ID_TO type=consists_of:

5038118

ART_ID_TO type=others:

6305377, ;6521250, ;6521251, ;6521252, ;6521254, ;6305378, ;6521255, ;6521256, ;6521257, ;6521258, ;5656140, ;6254973, ;6254974, ;6254976, ;6254990, ;6254978, ;5656141, ;6254992, ;5833850, ;6254993, ;5833851, ;5656250, ;5656251, ;6838116, ;6838117, ;683811

B3 Protruding length:

140 mm

B3_INCH Protruding length:

5,51181102362205 inch

B4 Usable length:

108 mm

B4_INCH Usable length:

4,25196850393701 inch

B5 Overall length:

188 mm

B5_INCH Overall length:

7,40157480314961 inch

B6 Length chip flute:

120 mm

B6_INCH Length chip flute:

4,7244094488189 inch

B7 Point length:

2,73 mm

B71 Functional length:

137,27 mm

B71_INCH Functional length:

5,40433070866142 inch

B7_INCH Point length:

0,10748031496063 inch

BLD Tool style code:

10

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

11

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

160

C3 Connection diameter machine side:

16 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,62992125984252 inch

C4 Shank length:

48 mm

C4_INCH Shank length:

1,88976377952756 inch

CCMS Connection code machine side:

ZYL11G1600h$06

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

160

D11 Effective cutting edge count 1st step:

2

D6 Rotational speed maximum:

7420 1/min

D7 Weight of item:

0,198 kg

D7_INCH Weight of item:

0,4365108 lbs

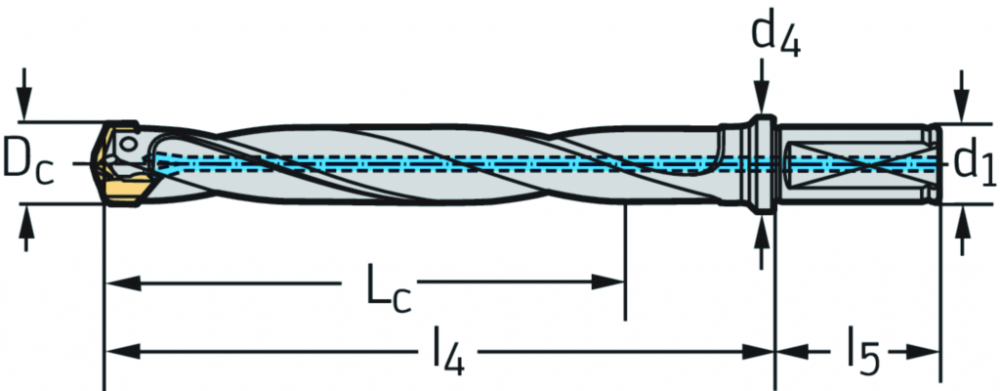

d1 Connection diameter:

16 mm

d4 Flange diameter:

20 mm

Dc Cutting edge diameter:

15 mm

Designation Tool designation:

D4140-07-15.00F16-B

E1 Point angle 1st step:

140 °

EAN:

0860189766

F1 Cutting direction:

R

FHA Flute helix angle:

20 °

FHH Flute helix hand:

R

Flute_Helix Flute helix angle:

20 °

Flute_Helix_Direction Flute helix hand:

R

FMT Form type machine side:

EXT

G11 Clamping type code 1st step:

C

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

D4140-07-15.00F16-B

J22 Product designation:

8063

J3 Company code:

W

J43 Connection code workpiece side:

WR$$CB14B$***R*****

J44 Insert interface code:

WR$$CB14B$***R*****

J45 Master insert identification:

P6001-D15

J52 Master insert identification, outside cutting:

P6001-D15

J6 Connection code machine side:

ZYL11G1600h$06

J7 Data chip provision:

0

J8 Machining operation:

BVB

J91 Insert interface code:

WR$$CB14B$***R*****

KAP Kappa:

0 °

KEYWORD:

Tool Item|Drilling|Drion·tec^®|Body for insertable drill heads|D4140

l4 Functional length:

140 mm

l5 Shank length:

48 mm

Lc Cutting edge length:

108 mm

LCF Length chip flute:

120 mm

LCF_INCH Length chip flute:

4,7244094488189 inch

LF Functional length:

137,27 mm

LF_INCH Functional length:

5,40433070866142 inch

LPR Protruding length:

140 mm

LPR_INCH Protruding length:

5,51181102362205 inch

LS Shank length:

48 mm

LSC Clamping length:

48 mm

LSC_INCH Clamping length:

1,88976377952756 inch

LS_INCH Shank length:

1,88976377952756 inch

LU Usable length:

108 mm

LU_INCH Usable length:

4,25196850393701 inch

MANUFACTURER_AID:

D4140-07-15.00F16-B

No. of inserts Number of indexable inserts:

1

NOI Insert index count:

20

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-86

OAL Overall length:

188 mm

OAL_INCH Overall length:

7,40157480314961 inch

OHX Protruding length:

140 mm

OHX_INCH Protruding length:

5,51181102362205 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PL Point length:

2,73 mm

PL_INCH Point length:

0,10748031496063 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Exchangeable-tip drills D4140 • Drion·tec™ • Cylindrical shank with flat • metric • 7xD • point angle 140° • Z=2

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180201

REFERENCE_FEATURE_GROUP_ID_GTC:

DRLFIS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23291502

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23291502

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171609

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153301

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171609

REFERENCE_FEATURE_GROUP_ID_Walter:

D4140-07-F

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

7420 1/min

Seat size Seat size:

B

STDNO Standard:

-

SUPPLIER_AID:

7169841

SUPPLIER_ALT_AID:

7169841

TERRITORY:

US

TSYC Tool style code:

D4140-07-F

Type Possible indexable inserts:

P600 . -D15, ..

UDX.APPAREA:

Drilling

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

D4140

UDX.CATFAM_DESCR:

Exchangeable-tip drills

UDX.DESCR_APPLICATION:

ISO materials P, M, K, N, S;Areas of use: General mechanical engineering, mould and die making, energy and automotive industries;Drilling from solid, suitable for stack drilling, inclined inlet and outlet up to 5°

UDX.DESCR_BENEFITS:

Maximum process reliability and tool life due to coolant outlet directly on the cutting edge;Reliable chip evacuation due to polished flutes;Protection against friction and long tool life for the drilling body due to hardened and polished surface;Simple in

UDX.DESCR_TOOL:

D4140 exchangeable-tip drill

UDX.DISCOUNTGROUP:

054

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.4366

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.5748

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.6378

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.4608

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

18.9418

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.5748

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D4140

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Additional application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Additional application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

7,2

WT Weight:

0,2 kg

WT Weight of item:

0,198 kg

WT_INCH Weight of item:

0,4365108 lbs

XYWD xyw plane distance:

-137,27 mm

XYWD_INCH xyw plane distance:

-5,40433070866142 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
