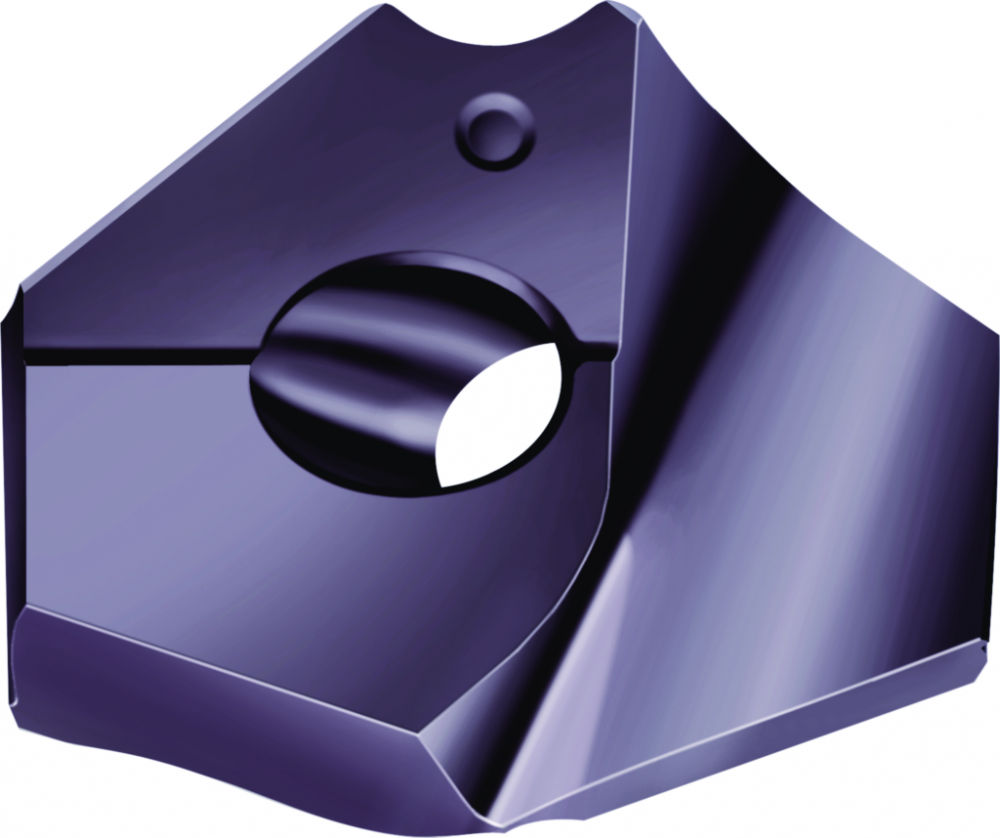

Exchangeable tip : 6254956

Category:

Cutting Tools

Subcategory:

Inserts

Subtype:

Indexable Cutting Tools

Category Level 4:

Replaceable Drill Tips

A1 Cutting diameter:

14,2 mm

A1_INCH Cutting diameter:

0,559055118110236 inch

B3 Protruding length:

11,39 mm

B3_INCH Protruding length:

0,448425196850394 inch

B5 Overall length:

11,39 mm

B5_INCH Overall length:

0,448425196850394 inch

B7 Point length:

2,584 mm

B71 Functional length:

8,806 mm

B71_INCH Functional length:

0,346692913385827 inch

B7_INCH Point length:

0,101732283464567 inch

BLD Tool style code:

2

CEDC Cutting edge count:

1

COATING Coating:

TiAlN

CONTENT_UNIT:

PCE

CURRENCY:

USD

D1 Fixing hole diameter:

3 mm

D1 Flute count:

1

D1_INCH Fixing hole diameter:

0,118110236220472 inch

D7 Weight of item:

0,012 kg

D7_INCH Weight of item:

0,0264552 lbs

d<sub>1</sub> Hole diameter:

3 mm

D<sub>c</sub> Cutting edge diameter:

14,2 mm

DC Cutting diameter:

14,2 mm

DC_INCH Cutting diameter:

0,559055118110236 inch

Designation Tool designation:

P6003-D14,20R WMP35

E1 Point angle 1st step:

140 °

EAN:

0940595787

F1 Cutting direction:

R

G4 Insert thickness total:

4 mm

G4_INCH Insert thickness total:

0,15748031496063 inch

GAMO Rake angle orthogonal:

10 °

GRADE Grade manufacturer's designation:

WMP35

GRDPRIO Standard designation of the grade, main ap:

-

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H3 Grade manufacturer's designation:

WMP35

H5 Coating:

TiAlN

HAND Insert hand:

R

IIC Insert interface code:

WR$$CB14A$$$0R$$$$$

J1 Standard:

-

J21 Article number:

P6003-D14,20R WMP35

J3 Company code:

W

J6 Connection code machine side:

WR$$CB14A$$$0R$$$$$

J8 Machining operation:

BVB

KAP Kappa:

0 °

KEYWORD:

Insert|Drilling||Drilling Inserts (Drill Head), Flat Type|P6003

LF Functional length:

8,806 mm

LF_INCH Functional length:

0,346692913385827 inch

MANUFACTURER_AID:

P6003-D14,20R WMP35

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-171

Number of cutting edges Number of cutting edges:

1

OAL Overall length:

11,39 mm

OAL_INCH Overall length:

0,448425196850394 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PL Point length:

2,584 mm

PL_INCH Point length:

0,101732283464567 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Exchangeable tip P6003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010101

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010101

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010101

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21182302

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21182302

REFERENCE_FEATURE_GROUP_ID_GTC:

INSCDRL

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171606

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171606

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171606

REFERENCE_FEATURE_GROUP_ID_Walter:

P6003

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

s Insert thickness:

4 mm

S1 Insert thickness total:

4 mm

S1_INCH Insert thickness total:

0,15748031496063 inch

Seat size:

B

STDNO Standard:

-

SUPPLIER_AID:

6254956

SUPPLIER_ALT_AID:

7566651

S_INCH Insert thickness:

0,15748031496063 inch

TERRITORY:

US

TSYC Tool style code:

P6003

UDX.APPAREA:

Drilling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Use with D4140 - Exchangeable tip drill

UDX.CATFAM_CODE:

P6003

UDX.CATFAM_DESCR:

Exchangeable tip

UDX.DESCR_APPLICATION:

Drilling from solid and stack drilling with the D4140 exchangeable-tip drill

UDX.DISCOUNTGROUP:

018

UDX.ITEMTYPE:

Insert

UDX.NET_WEIGHT:

.0265

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.6299

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

1.7717

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.0265

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.9772

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.7717

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

P6003

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

unfavourable

UDX.WORKING_CONDITION_ISO_S:

moderate

WT Weight of item:

0,012 kg

WT_INCH Weight of item:

0,0264552 lbs

XYWD xyw plane distance:

0 mm

XYWD_INCH xyw plane distance:

0 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Use with D4140 - Exchangeable tip drill
