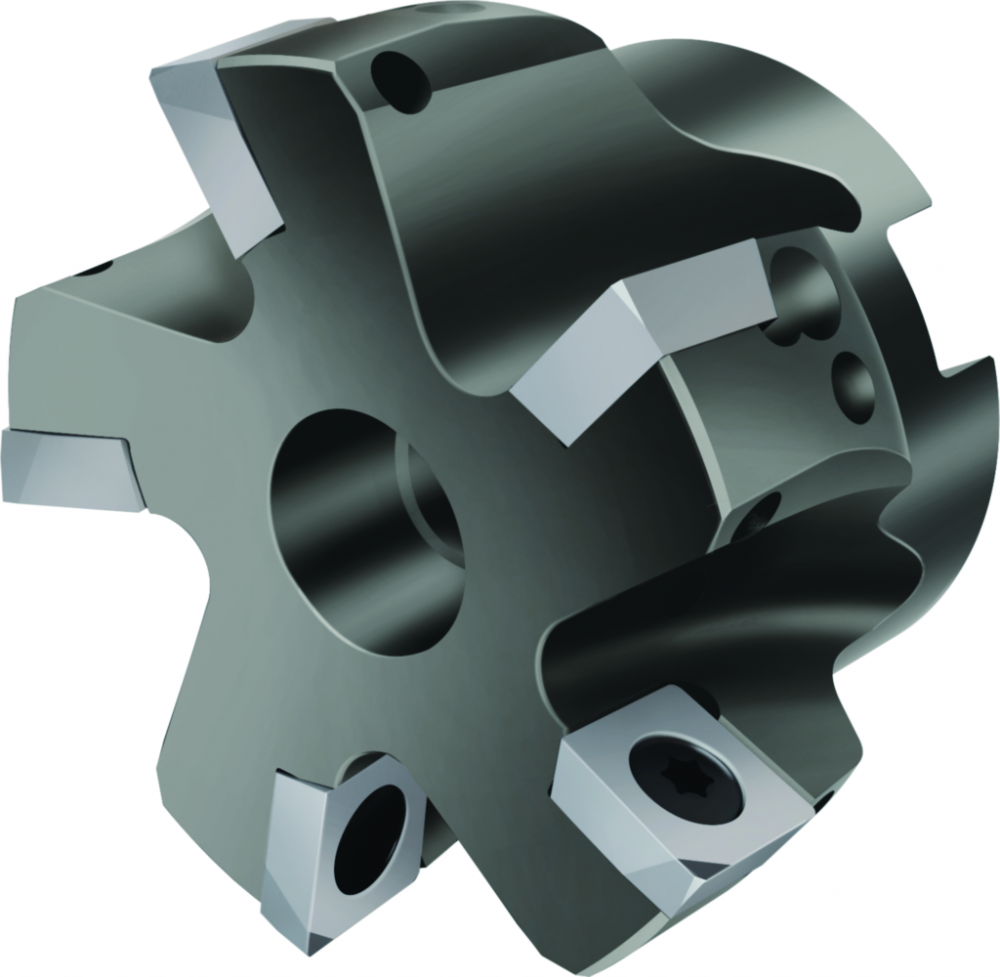

Face milling cutters for light metals F2250.B22.063.Z05.03
Specifications
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable Face Mills
A1 Cutting diameter:
63 mm
A1_INCH Cutting diameter:
2,48031496062992 inch
A2 Cutting diameter maximum:
63 mm
A2_INCH Cutting diameter maximum:
2,48031496062992 inch
A3 Body diameter:
61,6 mm
A3_INCH Body diameter:
2,4251968503937 inch
A4 Hub diameter:
45 mm
A4_INCH Hub diameter:
1,77165354330709 inch
A5 Counterbore diameter connection bore:
16,35 mm
A5_INCH Counterbore diameter connection bore:
0,643700787401575 inch
APMX Depth of cut maximum:
3 mm
APMX_INCH Depth of cut maximum:
0,118110236220472 inch
ART_ID_TO type=accessories:
5006455,5617470
ART_ID_TO type=consists_of:
5006808,5006824,5006706
ART_ID_TO type=others:
5004057, ;5004058, ;5004059, 5007101;5007105;5007489;5007491;5041189;5041192;6256943;6257540;6257546;6257630;6257736;6257770;6257808;6257820;6257821;7834973;7834975;7835000;7835002;7835007;7835008;7835013;7835015;8648970;8648975;8651370;8651371;8651372;865
B2 Cutting depth maximum:
3 mm
B2_INCH Cutting depth maximum:
0,118110236220472 inch
B5 Overall length:
40 mm
B5_INCH Overall length:
1,5748031496063 inch
B6 Counterbore depth connection bore:
12 mm
B6_INCH Counterbore depth connection bore:
0,47244094488189 inch
B71 Functional length:
40 mm
B71_INCH Functional length:
1,5748031496063 inch
BD Body diameter:
61,6 mm
BD_INCH Body diameter:
2,4251968503937 inch
BLD Tool style code:
1
BMC Body material code:
S
C11 Connection code type machine side:
FDA
C12 Connection code form at machine side:
12
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
0
C2 Connection size code machine side:
220
C3 Connection diameter machine side:
22 mm
C3_INCH Connection diameter machine side:
0,866141732283465 inch
CCMS Connection code machine side:
FDA12G2200$$$$
CICT (F) Face mounted insert count:
5
CICT Cutting item count:
5
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CXSC Coolant exit style code:
3
CZCMS Connection size code machine side:
220
D4 Adjustment property:
0
D6 Rotational speed maximum:
22000 1/min
D7 Weight of item:
0,434 kg
D7_INCH Weight of item:
0,9567964 lbs

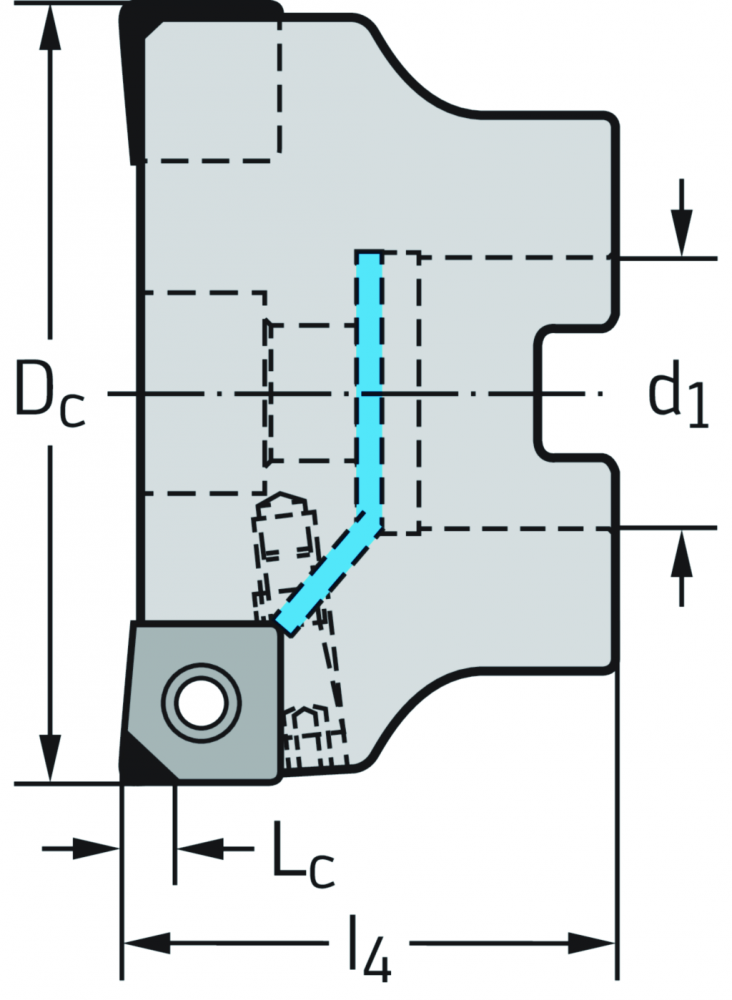

d<sub>1</sub> Connection diameter:
22 mm
D<sub>c</sub> Cutting edge diameter:
63 mm
DC Cutting diameter:
63 mm
DCX Cutting diameter maximum:
63 mm
DCX_INCH Cutting diameter maximum:
2,48031496062992 inch
DC_INCH Cutting diameter:
2,48031496062992 inch
Designation Tool designation:
F2250.B22.063.Z05.03
E1 Tool cutting edge angle:
90 °
E2 Rake angle radial:
0 °
E3 Rake angle axial:
0 °
E4 Ramping angle maximum:
0 °
E5 Plunge depth maximum:
0,9 mm
E5_INCH Plunge depth maximum:
0,0354330708661417 inch
EAN:
0543994728
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
5
F22 Face effective cutting edge count:
5
F23 Number of insert mounting levels:
1
F24 Number of inserts per mounting level:
5
FMT Form type machine side:
INT
G13 Face mounted insert count:
5
G21 Clamping type code:
S
G22 Cutting item type count:
1
H21 Coolant entry style code:
1
H22 Coolant exit style code:
3
H4 Body material code:
S
HAND Cutting direction:
R
J1 Standard:
-
J21 Article number:
F2250.B22.063.Z05.03
J3 Company code:
W
J41 Insert interface code:
WR$$SP1204**3R**D**
J6 Connection code machine side:
FDA12G2200$$$$
J7 Data chip provision:
0
J8 Machining operation:
FPL
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Milling||Face milling cutters|F2250
l<sub>4</sub> Functional length:
40 mm
L<sub>c</sub> Cutting edge length:
3 mm
LB Body length:
40 mm
LB_INCH Body length:
1,5748031496063 inch
LF Functional length:
40 mm
LF_INCH Functional length:
1,5748031496063 inch
MANUFACTURER_AID:
F2250.B22.063.Z05.03
No. of inserts Number of indexable inserts:
5
NOI Insert index count:
140
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-88
OAL Overall length:
40 mm
OAL_INCH Overall length:
1,5748031496063 inch
OHX Protruding length:
40 mm
OHX_INCH Protruding length:
1,5748031496063 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Face milling cutters for light metals F2250 • Parallel bore DIN 138 transverse keyway • κ=90° • inch
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180901
REFERENCE_FEATURE_GROUP_ID_GTC:
MILFI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241625
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241625
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
F2250-B1-WCD
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
0 °
RPMX Rotational speed maximum:
22000 1/min
SC Insert shape code:
S
SUPPLIER_AID:
5118901
SUPPLIER_ALT_AID:
5118901
TERRITORY:
US
TSYC Tool style code:
F2250-B1-WCD
Type Possible indexable inserts:
SPH . 1204 . DR
UDX.APPAREA:
Milling
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
1 cutting edge per indexable insert
UDX.BULLETTEXT_2:
Adjustable runout
UDX.CATFAM_CODE:
F2250
UDX.CATFAM_DESCR:
Face milling cutters for light metals
UDX.DISCOUNTGROUP:
048
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.9570
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
3.7402
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.9570
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
28.4066
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
F2250
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
No application
UDX.RANKING_ISO_M:
No application
UDX.RANKING_ISO_N:
Main application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
No application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
ULDR Usable length diameter ratio:
1,7
WT Weight:
0,43 kg
WT Weight of item:
0,434 kg
WT_INCH Weight of item:
0,9567964 lbs
XYWD xyw plane distance:
-40 mm
XYWD_INCH xyw plane distance:
-1,5748031496063 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Z Number of teeth:
5
ZEFF Face effective cutting edge count:
5
ZEFP Peripheral effective cutting edge count:
5
Other Details
1 cutting edge per indexable insert
1 cutting edge per indexable insert|Adjustable runout
Adjustable runout
