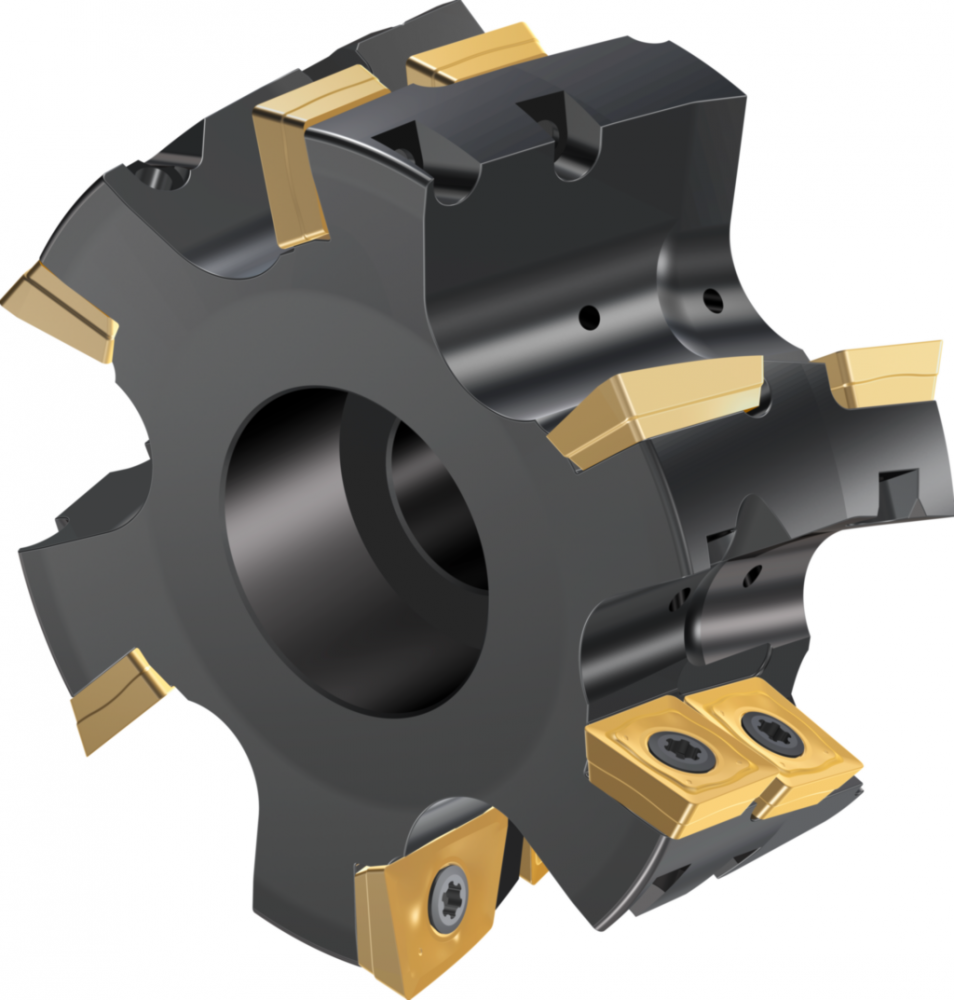

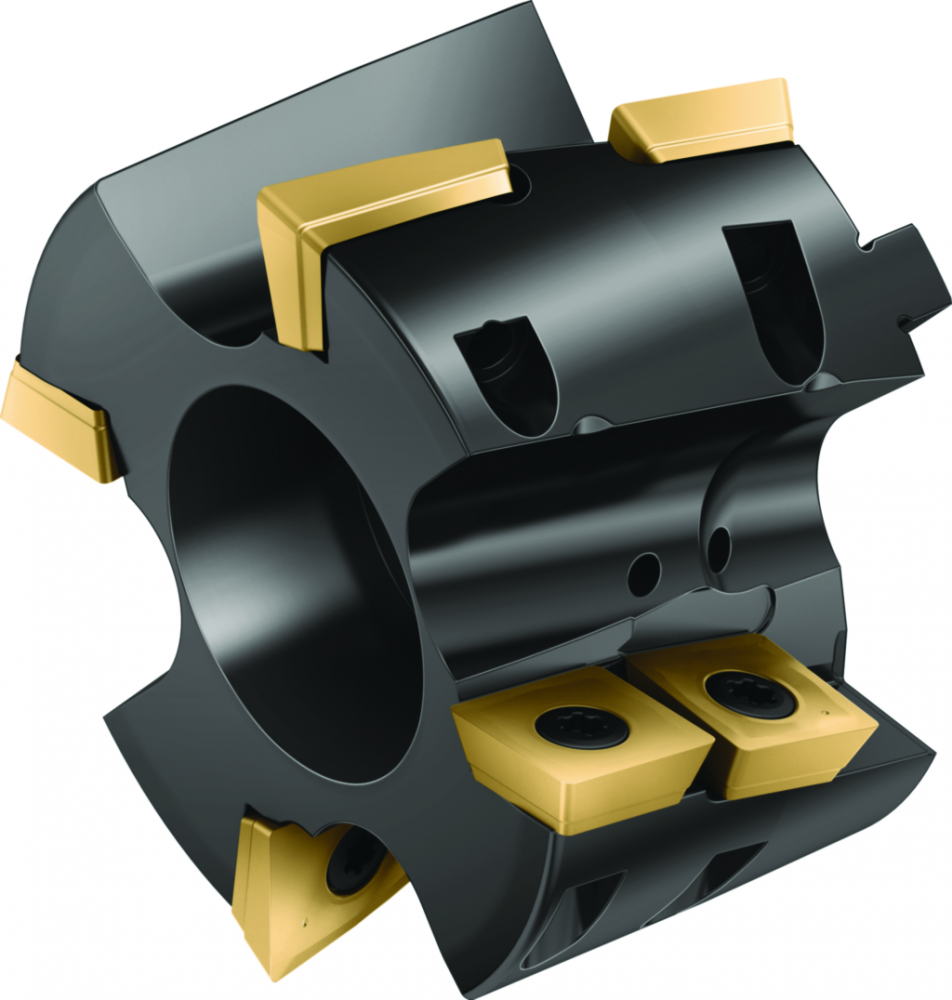

Front piece helical cutter : 7457943

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

A1 Cutting diameter:

80 mm

A1_INCH Cutting diameter:

3,1496062992126 inch

APMX Depth of cut maximum:

35 mm

APMX_INCH Depth of cut maximum:

1,37795275590551 inch

ART_ID_TO type=accessories:

5043211,5050322,5050333,6421702

ART_ID_TO type=consists_of:

5039025

ART_ID_TO type=others:

6796069, ;6796071, ;6796072, ;6796077, ;6796078, ;6796147, ;6796149, ;6796150, ;6796155, ;6796156, ;7169066, ;7170537, ;7170544, ;7170556, ;7170593, ;7170602, ;7170608, ;7170614, ;7651466, ;7924310, ;7924311, ;7924312, ;8112857, ;8112858, ;8112859, ;820191

B2 Depth of cut maximum:

35 mm

B2_INCH Depth of cut maximum:

1,37795275590551 inch

B3 Protruding length:

35,1 mm

B3_INCH Protruding length:

1,38188976377953 inch

B4 Usable length:

35,1 mm

B4_INCH Usable length:

1,38188976377953 inch

B5 Overall length:

39,4 mm

B5_INCH Overall length:

1,5511811023622 inch

BLD Tool style code:

6

BMC Body material code:

S

CICT (F) Face mounted insert count:

3

CICT (S) Peripheral mounted insert count:

9

CICT Cutting item count:

9

CNSC Coolant entry style code:

0

CONTENT_UNIT:

PCE

CURRENCY:

USD

CXSC Coolant exit style code:

3

D6 Rotational speed maximum:

12900 1/min

D7 Weight of item:

0,62 kg

D7_INCH Weight of item:

1,366852 lbs

D9 Adjustment property:

0

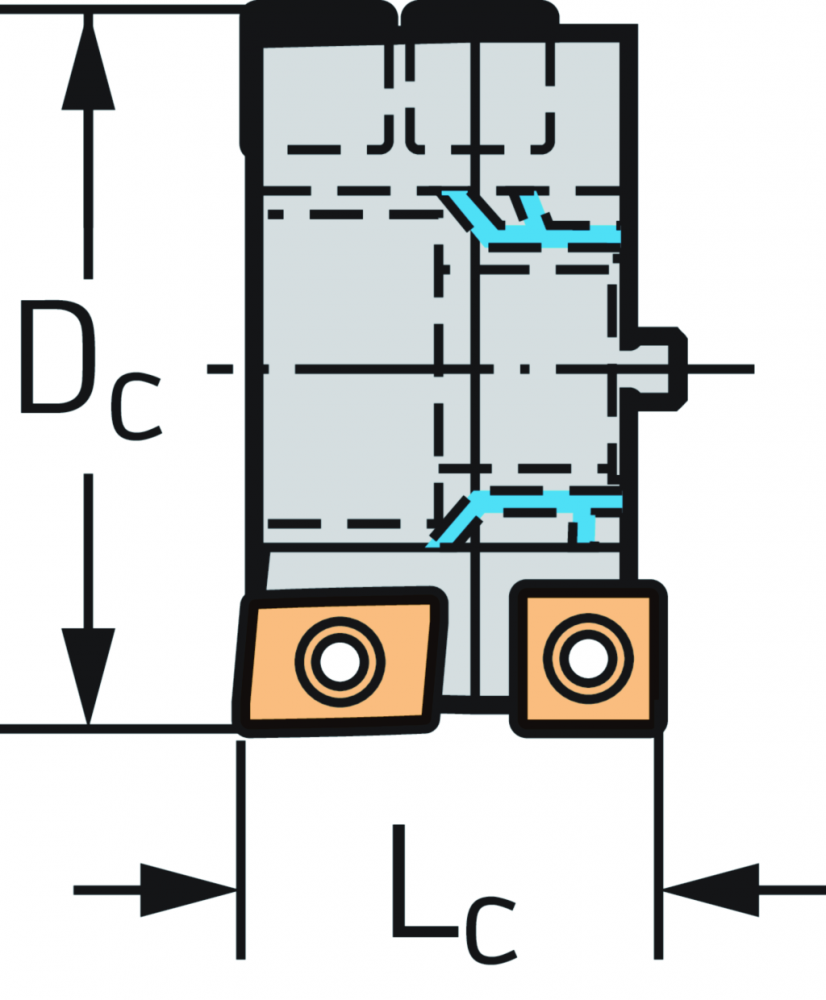

Dc Cutting edge diameter:

80 mm

DC Cutting diameter:

80 mm

DCX Cutting diameter maximum:

80 mm

DCX_INCH Cutting diameter maximum:

3,1496062992126 inch

DC_INCH Cutting diameter:

3,1496062992126 inch

Designation Tool designation:

M4258-080-P40-03-36-F

E1 Tool cutting edge angle:

90 °

E2 Rake angle radial:

0 °

E3 Rake angle axial:

0 °

E4 Ramping angle maximum:

0 °

EAN:

0915668724

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

3

F22 Face effective cutting edge count:

3

F23 Number of insert mounting levels:

2

F24 Number of inserts per mounting level:

3

G13 Face mounted insert count:

3

G15 Peripheral mounted insert count:

9

G21 Clamping type code:

S

G22 Cutting item type count:

2

H21 Coolant entry style code:

0

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

M4258-080-P40-03-36-F

J22 Product designation:

6832

J3 Company code:

W

J41 Insert interface code:

WR$$LD1704083R***12

J51 Insert interface code:

WR$$SD1204083R***08

J7 Data chip provision:

0

J8 Machining operation:

FEC

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Tool Item|Milling||End mills, multi insert flute|M4258

l4 Maximum projection length:

35,1 mm

Lc Cutting edge length:

35 mm

LF Functional length:

35,1 mm

LF_INCH Functional length:

1,38188976377953 inch

LPR Protruding length:

35,1 mm

LPR_INCH Protruding length:

1,38188976377953 inch

LU Usable length:

35,1 mm

LU_INCH Usable length:

1,38188976377953 inch

MANUFACTURER_AID:

M4258-080-P40-03-36-F

No. of inserts Number of indexable inserts:

9

NOI Insert index count:

300

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-87

OAL Overall length:

39,4 mm

OAL_INCH Overall length:

1,5511811023622 inch

OHX Protruding length:

35,1 mm

OHX_INCH Protruding length:

1,38188976377953 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Front piece helical cutter M4258 • κ=90° • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180806

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241624

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241624

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

M4258-C-FRONT

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

0 °

RPMX Rotational speed maximum:

12900 1/min

SC Insert shape code:

S

SUPPLIER_AID:

7457943

SUPPLIER_ALT_AID:

7457943

TERRITORY:

US

TSYC Tool style code:

M4258-C-FRONT

Type Possible indexable inserts:

SDM . 120408

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Half effective design with corner front piece

UDX.BULLETTEXT_2:

2 or 4 cutting edges per indexable insert

UDX.CATFAM_CODE:

M4258

UDX.CATFAM_DESCR:

Front piece helical cutter

UDX.DESCR_APPLICATION:

For shoulder and slot milling;For steel, cast iron, stainless steel and materials with difficult cutting properties

UDX.DESCR_BENEFITS:

Modular design: The front piece can be replaced when the face of the body is worn;High level of process reliability thanks to an internal coolant supply – even in the front piece;Concept requiring minimum resources;High cost-efficiency thanks to four or

UDX.DESCR_TOOL:

Modular design: Replaceable front piece;Square system inserts from the M4000 milling system can be used as the leading insert in helical milling cutters;Rhombic indexable inserts, can be used as face inserts in helical milling cutters;M4258 half effective

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.3671

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.5391

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

37.8353

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

M4258

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight:

0,62 kg

WT Weight of item:

0,62 kg

WT_INCH Weight of item:

1,366852 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

3

ZEFF Face effective cutting edge count:

3

ZEFP Peripheral effective cutting edge count:

3

2 or 4 cutting edges per indexable insert

Half effective design with corner front piece

Half effective design with corner front piece|2 or 4 cutting edges per indexable insert
