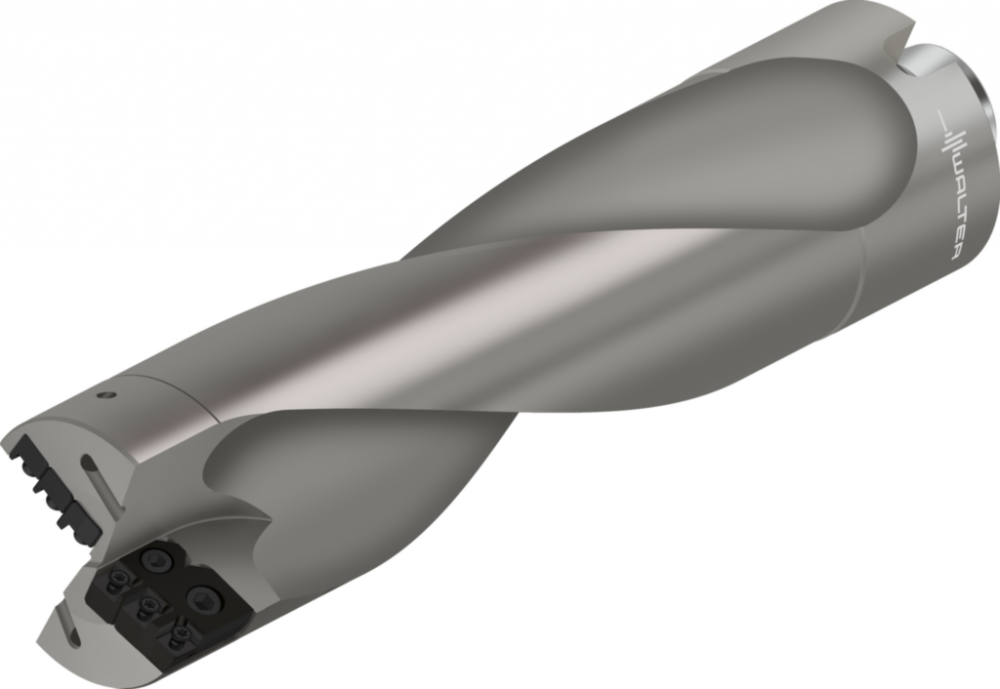

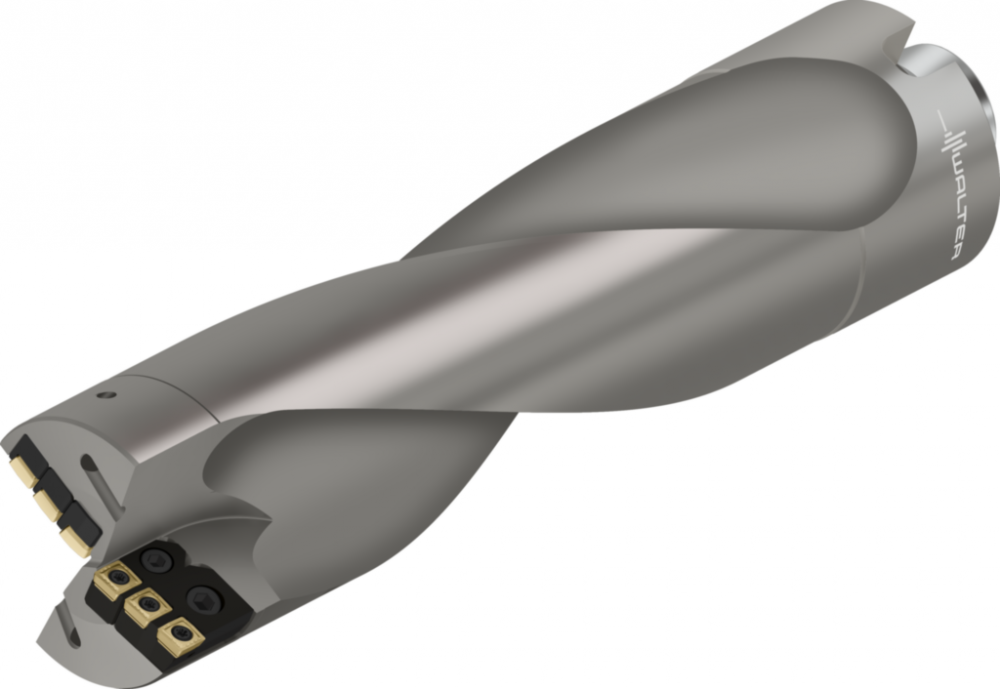

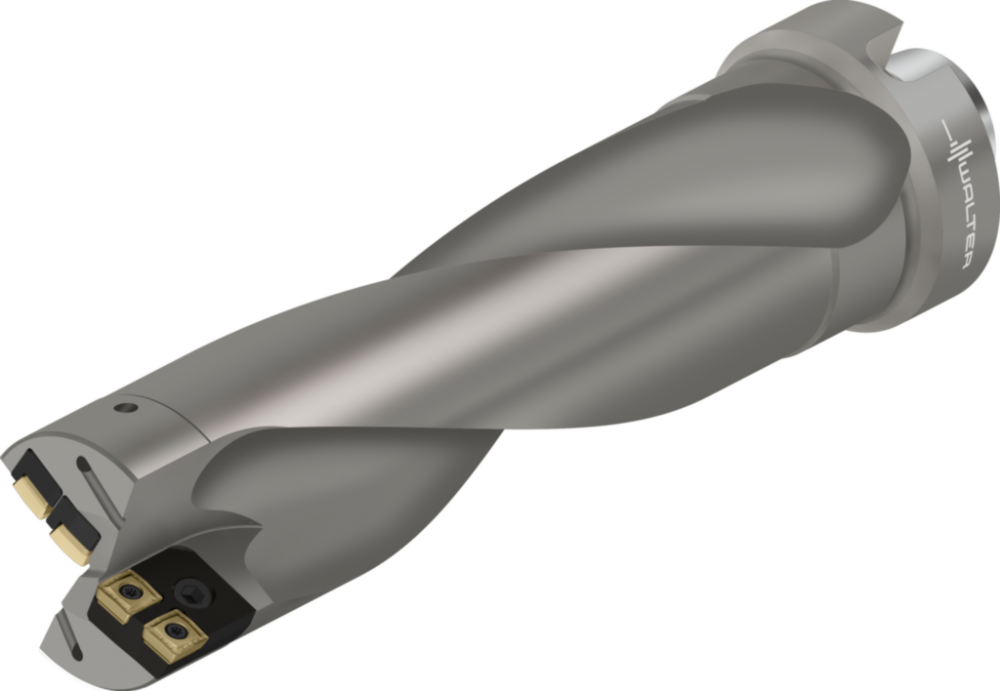

Indexable insert drill with cartridge : 6929526

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Indexable Insert Drills

A11 Cutting diameter 1st step minimum:

80 mm

A11_INCH Cutting diameter 1st step minimum:

3,1496062992126 inch

A12 Cutting diameter 1st step maximum:

80 mm

A12_INCH Cutting diameter 1st step maximum:

3,1496062992126 inch

ADJLN Adjustment limit minimum:

0 mm

ADJLN_INCH Adjustment limit minimum:

0 inch

ART_ID_TO type=accessories:

5043211,5050322,5050333,5617472,5653710,6421702

ART_ID_TO type=consists_of:

5006811,5006869,5039025,5885490,5885491,5885492

ART_ID_TO type=others:

6154461, ;6154484, ;6154590, ;6168948, ;6169017, ;6169067, ;6169102, ;6169131, ;6169848, ;6169997, ;6170421, ;6170450, ;6171336, ;6171425, ;6171456, ;6171469, ;7968836, ;7968894, ;7968902, ;7968910, ;7968918, ;7968926, ;7968934, ;7968942, ;8087884, ;808789

B3 Protruding length:

290 mm

B3_INCH Protruding length:

11,4173228346457 inch

B4 Usable length:

240 mm

B4_INCH Usable length:

9,4488188976378 inch

B5 Overall length:

308 mm

B5_INCH Overall length:

12,1259842519685 inch

B6 Length chip flute:

269,7 mm

B6_INCH Length chip flute:

10,6181102362205 inch

B7 Point length:

1,8 mm

B71 Functional length:

288,2 mm

B71_INCH Functional length:

11,3464566929134 inch

B7_INCH Point length:

0,0708661417322835 inch

BLD Tool style code:

1

BMC Body material code:

S

C11 Connection code type machine side:

NCT

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

800

C3 Connection diameter machine side:

80 mm

C3_INCH Connection diameter machine side:

3,1496062992126 inch

C4 Shank length:

18 mm

C4_INCH Shank length:

0,708661417322835 inch

CCMS Connection code machine side:

NCT01C0800$$$$

CICT Cutting item count:

5

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CZCMS Connection size code machine side:

800

D11 Effective cutting edge count 1st step:

1

D6 Rotational speed maximum:

1940 1/min

D7 Weight of item:

6,33 kg

D7_INCH Weight of item:

13,955118 lbs

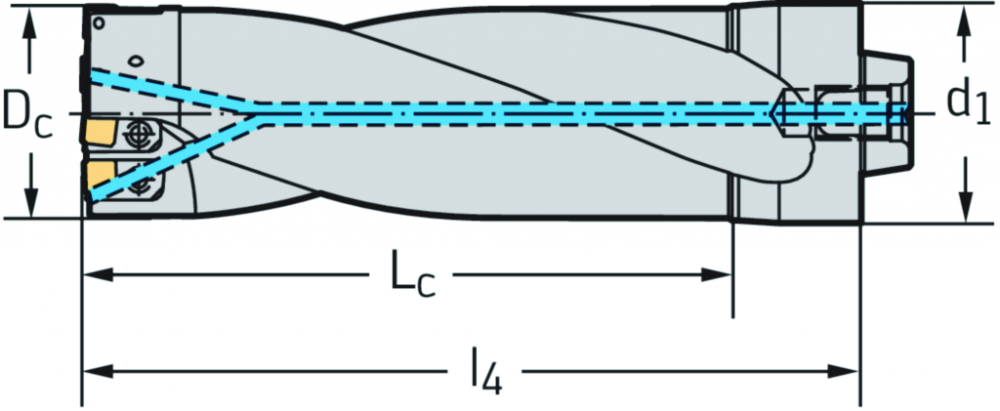

d1 Connection diameter:

80 mm

d1 Connection size code:

NCT 80

Dc Cutting edge diameter:

80 mm

Designation Tool designation:

D4170-03-80.00N8-P45

E1 Point angle 1st step:

176 °

EAN:

0818339766

F1 Cutting direction:

R

FHA Flute helix angle:

21 °

FHH Flute helix hand:

R

Flute_Helix Flute helix angle:

21 °

Flute_Helix_Direction Flute helix hand:

R

FMT Form type machine side:

EXT

G11 Clamping type code 1st step:

S

GAMO Rake angle orthogonal:

4 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

D4170-03-80.00N8-P45

J22 Product designation:

8064

J3 Company code:

W

J41 Insert interface code:

WR$$P48405**3R*C***

J42 Master insert identification, inside cutting e:

P4840C-5R-A57

J44 Insert interface code:

WR$$P48405**3R*P***

J45 Master insert identification:

P4840P-5R-A57

J51 Insert interface code:

WR$$P48405**3R*P***

J52 Master insert identification, outside cutting:

P4840P-5R-A57

J6 Connection code machine side:

NCT01C0800$$$$

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

88 °

KEYWORD:

Tool Item|Drilling|Drion·tec^®|Insert Drills|D4170

l4 Maximum projection length:

290 mm

Lc Cutting edge length:

240 mm

LAMS Inclination angle:

0 °

LF Functional length:

288,2 mm

LF_INCH Functional length:

11,3464566929134 inch

LS Shank length:

18 mm

LS_INCH Shank length:

0,708661417322835 inch

LU Usable length:

240 mm

LU_INCH Usable length:

9,4488188976378 inch

MANUFACTURER_AID:

D4170-03-80.00N8-P45

No. of inserts Number of indexable inserts:

1

NOI Insert index count:

200

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-86

OAL Overall length:

308 mm

OAL_INCH Overall length:

12,1259842519685 inch

OHX Protruding length:

290 mm

OHX_INCH Protruding length:

11,4173228346457 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PL Point length:

1,8 mm

PL_INCH Point length:

0,0708661417322835 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Indexable insert drill with cartridge D4170 • 3xD • Modular NCT adaptor • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180201

REFERENCE_FEATURE_GROUP_ID_GTC:

DRLFIA

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171609

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153301

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171609

REFERENCE_FEATURE_GROUP_ID_Walter:

D4170-03-NCT

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

1940 1/min

SC Insert shape code:

S

STDNO Standard:

-

SUPPLIER_AID:

6929526

SUPPLIER_ALT_AID:

6929526

TERRITORY:

US

TSYC Tool style code:

D4170-03-NCT

Type Possible indexable inserts:

P484 . C-5R- ..

UDX.APPAREA:

Drilling

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

D4170

UDX.CATFAM_DESCR:

Indexable insert drill with cartridge

UDX.DISCOUNTGROUP:

050

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

13.9577

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

12.9921

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

14.1407

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

138.7295

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D4170

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

3

WT Weight:

6,33 kg

WT Weight of item:

6,33 kg

WT_INCH Weight of item:

13,955118 lbs

XYWD xyw plane distance:

-288,2 mm

XYWD_INCH xyw plane distance:

-11,3464566929134 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
