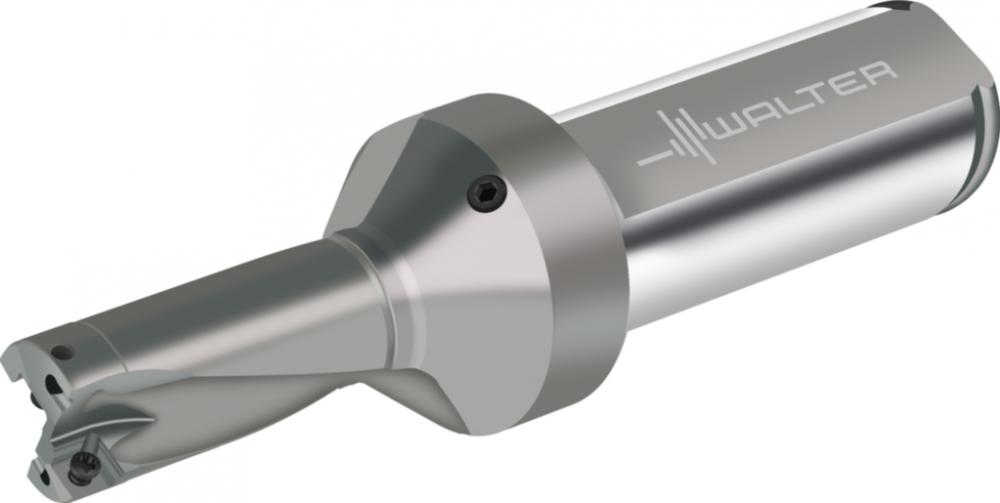

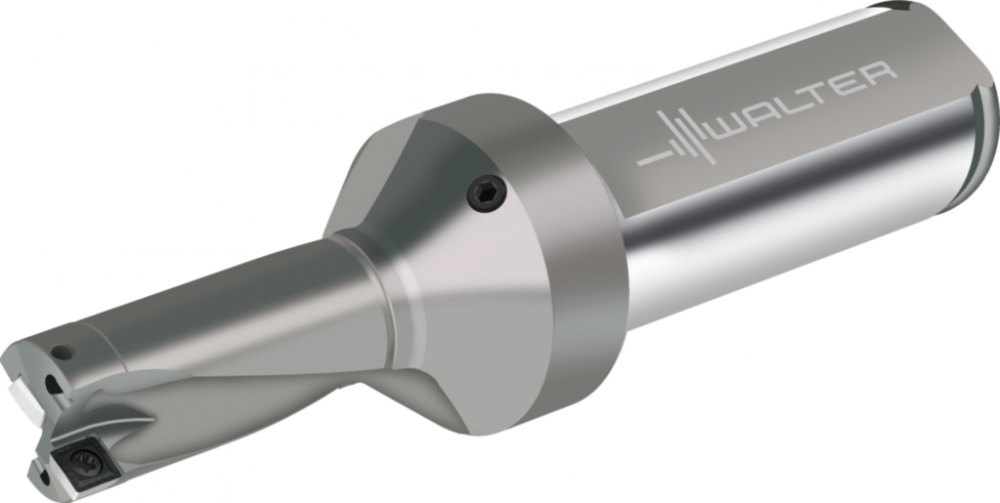

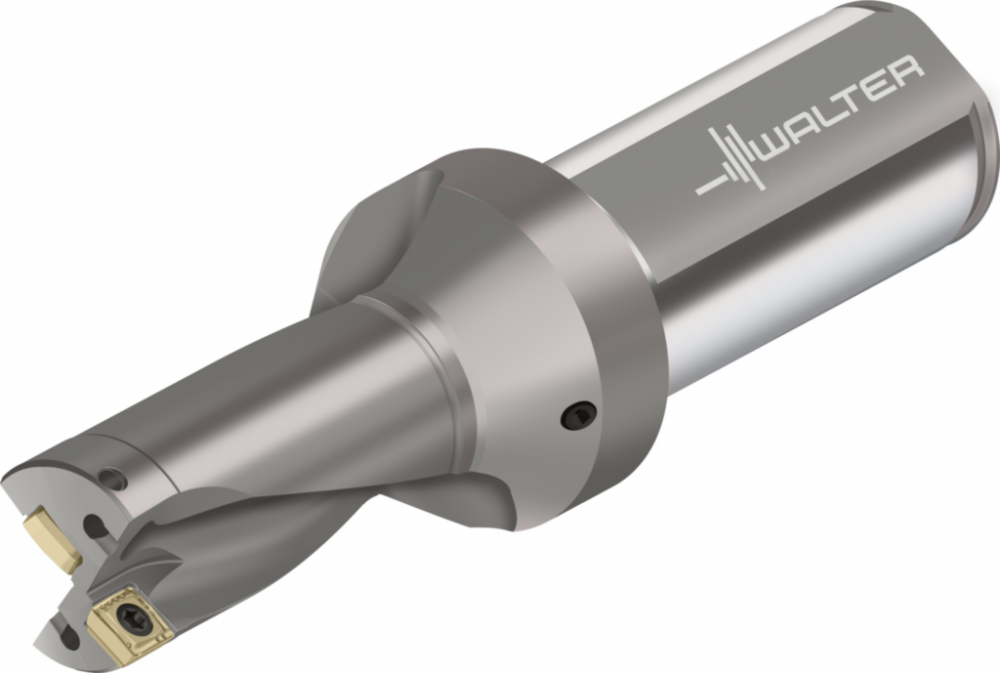

Indexable insert drills : 6929546

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Indexable Insert Drills

A11 Cutting diameter 1st step minimum:

17,45 mm

A11_INCH Cutting diameter 1st step minimum:

0,687007874015748 inch

A12 Cutting diameter 1st step maximum:

17,45 mm

A12_INCH Cutting diameter 1st step maximum:

0,687007874015748 inch

ART_ID_TO type=accessories:

5050321,5050330,5334285

ART_ID_TO type=consists_of:

5032918,5520227,5547995

ART_ID_TO type=others:

6154405, ;6154469, ;6154554, ;6168818, ;6169013, ;6169063, ;6169088, ;6169107, ;6169249, ;6169992, ;6170404, ;6170426, ;6171333, ;6171422, ;6171453, ;6171465, ;7968833, ;7968891, ;7968899, ;7968907, ;7968915, ;7968923, ;7968931, ;7968939, ;8087881, ;808788

B3 Protruding length:

60,2 mm

B3_INCH Protruding length:

2,37007874015748 inch

B4 Usable length:

34,9 mm

B4_INCH Usable length:

1,3740157480315 inch

B5 Overall length:

118,14 mm

B5_INCH Overall length:

4,65118110236221 inch

B6 Length chip flute:

54,8 mm

B6_INCH Length chip flute:

2,15748031496063 inch

B7 Point length:

0,302 mm

B71 Functional length:

59,898 mm

B71_INCH Functional length:

2,35818897637795 inch

B7_INCH Point length:

0,0118897637795276 inch

BLD Tool style code:

1

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

11

C14 Connection code unit base machine side:

3

C15 Connection code style machine side:

5

C2 Connection size code machine side:

1000

C3 Connection diameter machine side:

25,4 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

1 inch

C4 Shank length:

57,94 mm

C4_INCH Shank length:

2,28110236220472 inch

CCMS Connection code machine side:

ZYL11S1000h$06

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

N

CUBPMS Connection unit base precision machine side:

S

CURRENCY:

USD

CZCMS Connection size code machine side:

1000

D11 Effective cutting edge count 1st step:

1

D6 Rotational speed maximum:

9300 1/min

D7 Weight of item:

0,348 kg

D7_INCH Weight of item:

0,7672008 lbs

d1 Connection diameter:

1 inch

d4 Flange diameter:

1,375 inch

Dc Cutting edge diameter:

0,687 inch

Designation Tool designation:

D4120.02-17.45F26-P42

E1 Point angle 1st step:

176 °

EAN:

0818350766

F1 Cutting direction:

R

FHA Flute helix angle:

35 °

FHH Flute helix hand:

R

Flute_Helix Flute helix angle:

35 °

Flute_Helix_Direction Flute helix hand:

R

FMT Form type machine side:

EXT

G11 Clamping type code 1st step:

S

GAMO Rake angle orthogonal:

0 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

D4120.02-17.45F26-P42

J3 Company code:

W

J41 Insert interface code:

WR$$P48402**3R*C***

J42 Master insert identification, inside cutting e:

P4840P-2R-A57

J51 Insert interface code:

WR$$P48402**3R*P***

J6 Connection code machine side:

ZYL11S1000h$06

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

88 °

KEYWORD:

Tool Item|Drilling|Drion·tec^®|Insert Drills|D4120

l4 Maximum projection length:

2,37 inch

l5 Shank length:

2,281 inch

Lc Cutting edge length:

1,374 inch

LAMS Inclination angle:

0 °

LF Functional length:

59,898 mm

LF_INCH Functional length:

2,35818897637795 inch

LS Shank length:

57,94 mm

LSC Clamping length:

57,94 mm

LSC_INCH Clamping length:

2,28110236220472 inch

LS_INCH Shank length:

2,28110236220472 inch

LU Usable length:

34,9 mm

LU_INCH Usable length:

1,3740157480315 inch

MANUFACTURER_AID:

D4120.02-17.45F26-P42

No. of inserts Number of indexable inserts:

1

NOI Insert index count:

50

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-86

OAL Overall length:

118,14 mm

OAL_INCH Overall length:

4,65118110236221 inch

OHX Protruding length:

60,2 mm

OHX_INCH Protruding length:

2,37007874015748 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PL Point length:

0,302 mm

PL_INCH Point length:

0,0118897637795276 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Indexable insert drills D4120 • Drion·tec™ • 2xD • Parallel shank with flat • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180201

REFERENCE_FEATURE_GROUP_ID_GTC:

DRLFIA

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171609

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153301

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171609

REFERENCE_FEATURE_GROUP_ID_Walter:

D4120.02-F-PG2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

9300 1/min

SC Insert shape code:

S

STDNO Standard:

-

SUPPLIER_AID:

6929546

SUPPLIER_ALT_AID:

6929546

TERRITORY:

US

TSYC Tool style code:

D4120.02-F-PG2

Type Possible indexable inserts:

P484 . C-2R- ..

UDX.APPAREA:

Drilling

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

D4120

UDX.CATFAM_DESCR:

Indexable insert drills

UDX.DESCR_APPLICATION:

Drilling from solid with precision and consistent hole diameter;Drilling from solid in difficult machining operations, such as cross holes, chain drilling, inclined inlet and outlet;ISO materials P, M, K, N, S;Areas of use: General mechanical engineering,

UDX.DESCR_BENEFITS:

High precision in bore diameter thanks to precise balancing of the cutting forces between the centre and outer insert;Excellent surface quality due to wiper cutting edge;Maximum process reliability thanks to easy chip removal;Hardened and polished surfaces

UDX.DESCR_TOOL:

D4120 indexable insert drill;Two optimised coolant channels;Hardened surface;Polished flutes

UDX.DISCOUNTGROUP:

050

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.7673

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.6929

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.7673

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

25.9351

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D4120

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

2

WT Weight:

0,767 lbs

WT Weight of item:

0,348 kg

WT_INCH Weight of item:

0,7672008 lbs

XYWD xyw plane distance:

-59,898 mm

XYWD_INCH xyw plane distance:

-2,35818897637795 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
