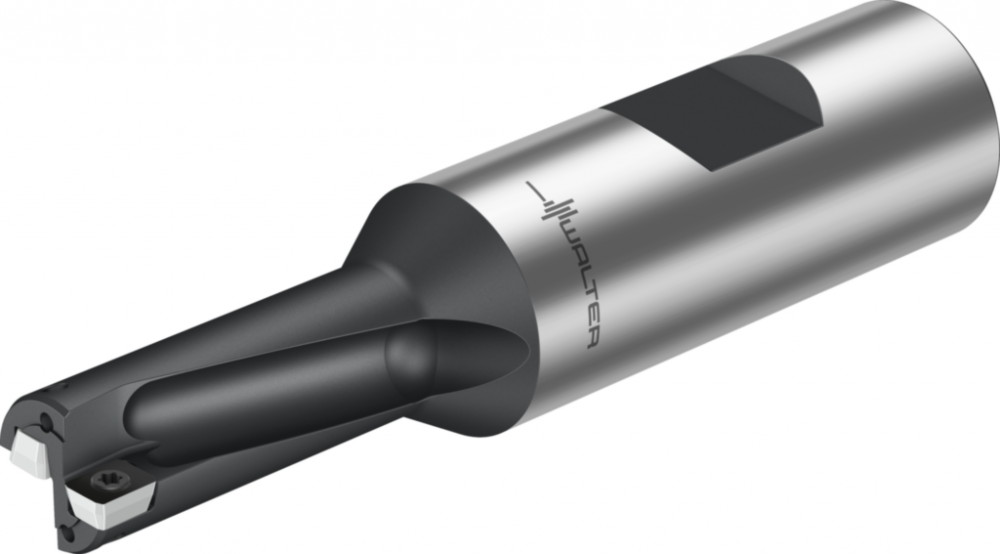

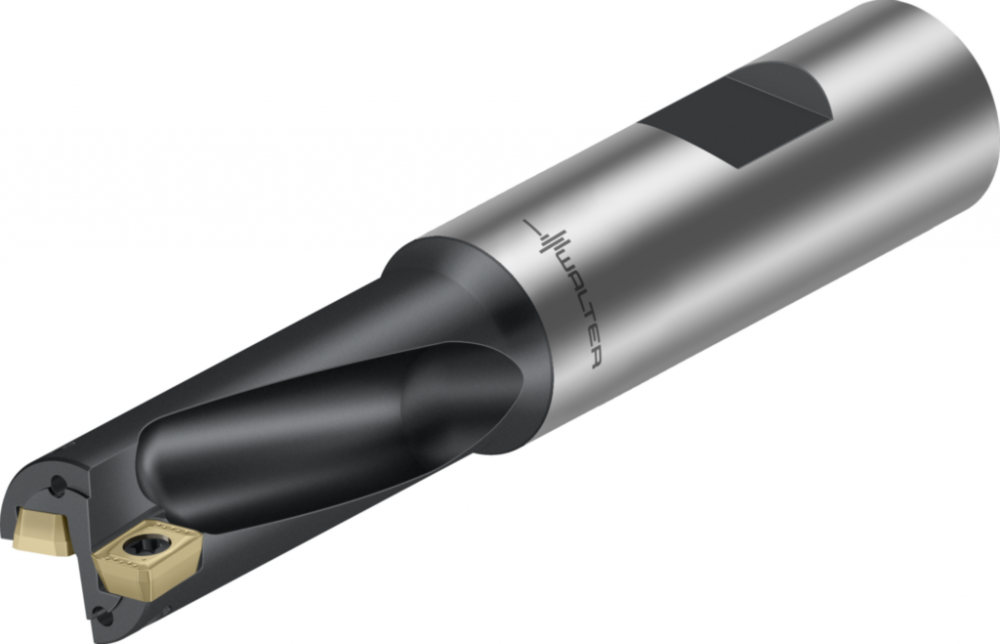

Insert drills : 5027524 | RJW Industrial

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Indexable Insert Drills

A11 Cutting diameter 1st step minimum:

9,93 mm

A11_INCH Cutting diameter 1st step minimum:

0,390944881889764 inch

A12 Cutting diameter 1st step maximum:

9,93 mm

A12_INCH Cutting diameter 1st step maximum:

0,390944881889764 inch

ADJLN Adjustment limit minimum:

0 mm

ADJLN_INCH Adjustment limit minimum:

0 inch

ART_ID_TO type=accessories:

5050321,5050324,5006514

ART_ID_TO type=consists_of:

5006805

ART_ID_TO type=others:

5020940, ;5020941, ;5020942, ;6864028, ;6864029, ;6864082, ;6864086, ;6864087, ;6864088, ;7969105, ;7969107, ;7969109, ;8087903, ;8272939, 6381079;6381127;6381181;6852048;7415105;8698250;8698260;8698270;8698274;8698287;8698290;8698310

B3 Protruding length:

31,22 mm

B3_INCH Protruding length:

1,22913385826772 inch

B4 Usable length:

19,86 mm

B4_INCH Usable length:

0,781889763779528 inch

B5 Overall length:

80,44 mm

B5_INCH Overall length:

3,16692913385827 inch

B6 Length chip flute:

30 mm

B6_INCH Length chip flute:

1,18110236220472 inch

B7 Point length:

0,65 mm

B71 Functional length:

30,57 mm

B71_INCH Functional length:

1,20354330708661 inch

B7_INCH Point length:

0,0255905511811024 inch

BLD Tool style code:

1

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

11

C14 Connection code unit base machine side:

3

C15 Connection code style machine side:

5

C2 Connection size code machine side:

750

C3 Connection diameter machine side:

19,05 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,75 inch

C4 Shank length:

50 mm

C4_INCH Shank length:

1,96850393700787 inch

CCMS Connection code machine side:

ZYL11R7500h$06

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

N

CUBPMS Connection unit base precision machine side:

R

CURRENCY:

USD

CZCMS Connection size code machine side:

750

D11 Effective cutting edge count 1st step:

1

D6 Rotational speed maximum:

22200 1/min

D7 Weight of item:

0,129 kg

D7_INCH Weight of item:

0,2843934 lbs

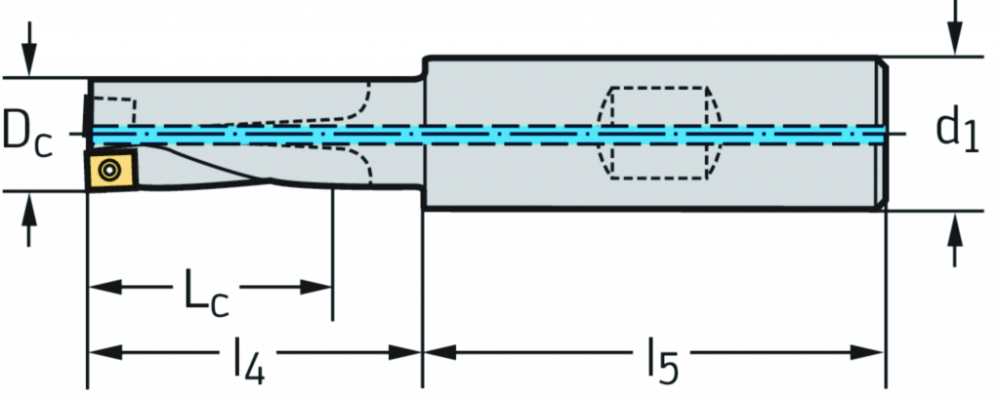

d1 Connection diameter:

0,75 inch

Dc Cutting edge diameter:

0,391 inch

Designation Tool designation:

B3212.U3F.0099.Z01.20R

E1 Point angle 1st step:

176 °

EAN:

0465381766

F1 Cutting direction:

R

FHA Flute helix angle:

0 °

FHH Flute helix hand:

R

Flute_Helix Flute helix angle:

0 °

Flute_Helix_Direction Flute helix hand:

R

FMT Form type machine side:

EXT

G11 Clamping type code 1st step:

S

GAMO Rake angle orthogonal:

4 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

B3212.U3F.0099.Z01.20R

J3 Company code:

W

J41 Insert interface code:

WR$$BC0502**3R*****

J42 Master insert identification, inside cutting e:

LCMX050203-B57

J51 Insert interface code:

WR$$BC0502**3R*****

J6 Connection code machine side:

ZYL11R7500h$06

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

88 °

KEYWORD:

Tool Item|Drilling||Insert Drills|B3212

l4 Maximum projection length:

1,229 inch

l5 Clamping length:

1,969 inch

Lc Cutting edge length:

0,782 inch

LAMS Inclination angle:

0 °

LF Functional length:

30,57 mm

LF_INCH Functional length:

1,20354330708661 inch

LPR Protruding length:

31,22 mm

LPR_INCH Protruding length:

1,22913385826772 inch

LS Shank length:

50 mm

LSC Clamping length:

50 mm

LSC_INCH Clamping length:

1,96850393700787 inch

LS_INCH Shank length:

1,96850393700787 inch

LU Usable length:

19,86 mm

LU_INCH Usable length:

0,781889763779528 inch

MANUFACTURER_AID:

B3212.U3F.0099.Z01.20R

No. of inserts Number of indexable inserts:

1

NOI Insert index count:

50

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-86

OAL Overall length:

80,44 mm

OAL_INCH Overall length:

3,16692913385827 inch

OHX Protruding length:

31,22 mm

OHX_INCH Protruding length:

1,22913385826772 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PL Point length:

0,65 mm

PL_INCH Point length:

0,0255905511811024 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Insert drills B3212 • 2xD • Parallel shank with flat • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010111

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180201

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180201

REFERENCE_FEATURE_GROUP_ID_GTC:

DRLFIA

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23291503

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171609

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153301

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171609

REFERENCE_FEATURE_GROUP_ID_Walter:

B3212-UDF

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

22200 1/min

SC Insert shape code:

L

STDNO Standard:

-

SUPPLIER_AID:

5027524

SUPPLIER_ALT_AID:

5027524

TERRITORY:

US

TSYC Tool style code:

B3212-UDF

Type Possible indexable inserts:

LCMX050203- ..

UDX.APPAREA:

Drilling

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

B3212

UDX.CATFAM_DESCR:

Insert drills

UDX.DISCOUNTGROUP:

050

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.2844

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.0236

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.1732

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.3815

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

4.3727

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.0236

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

B3212

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

2

WT Weight:

0,284 lbs

WT Weight of item:

0,129 kg

WT_INCH Weight of item:

0,2843934 lbs

XYWD xyw plane distance:

-30,57 mm

XYWD_INCH xyw plane distance:

-1,20354330708661 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
