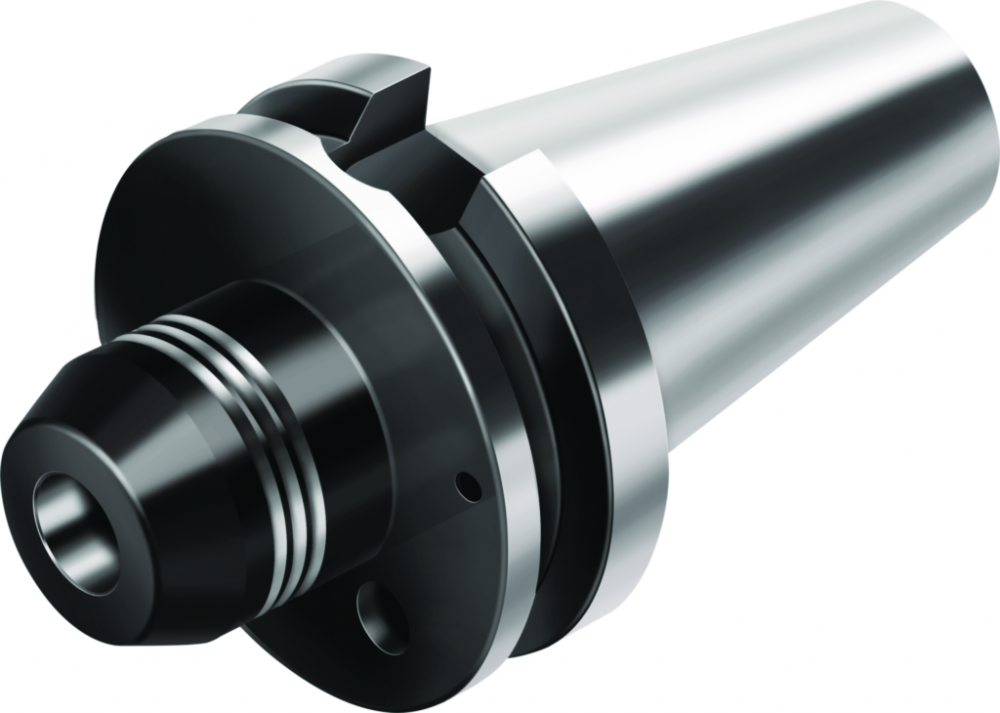

MAS-BT JIS B 6339 hydraulic expansion chuck : 6381181

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Chucks

A1 Body diameter:

58,5 mm

A1_INCH Body diameter:

2,30314960629921 inch

A2 Body diameter 2:

72 mm

A2_INCH Body diameter 2:

2,83464566929134 inch

A4 Flange diameter:

100 mm

A4_INCH Flange diameter:

3,93700787401575 inch

ART_ID_TO type=accessories:

6362284,6362285,6362287,6362289,6362307,6362308,6362309,6362340,6362341,6362342,6362344,6362345,6362346,6362347,6362349,6362390,6362391,6362392

B1 Body length 1:

18,3 mm

B1_INCH Body length 1:

0,720472440944882 inch

B2 Length 2:

52 mm

B2_INCH Length 2:

2,04724409448819 inch

B3 Protruding length:

90 mm

B3_INCH Protruding length:

3,54330708661417 inch

B4 Overall length:

191,8 mm

B4_INCH Overall length:

7,55118110236221 inch

B71 Functional length:

29 mm

B71_INCH Functional length:

1,14173228346457 inch

BBD Balanced By Design:

0

BD Body diameter:

58,5 mm

BD_INCH Body diameter:

2,30314960629921 inch

BMC Body material code:

S

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

51

C13 Connection thread nominal size machine side:

M24

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

C3 Connection diameter machine side:

32 mm

C3_INCH Connection diameter machine side:

1,25984251968504 inch

C4 Shank length:

101,8 mm

C4_INCH Shank length:

4,00787401574803 inch

C51 Connection code type workpiece side:

ZYL

C52 Connection code form at workpiece side:

13

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

320

C71 Connection diameter min:

32 mm

C71_INCH Connection diameter min:

1,25984251968504 inch

C81 Clamping length maximum:

61 mm

C81_INCH Clamping length maximum:

2,40157480314961 inch

C82 Clamping length minimum:

51 mm

C82_INCH Clamping length minimum:

2,00787401574803 inch

CCFMS Connection code form at machine side:

51

CCFWS Connection code form at workpiece side:

13

CCMS Connection code machine side:

SKG51C0500$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

ZYL

CCWS Connection code workpiece side:

ZYL20S1259****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

G

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

320

D6 Rotational speed maximum:

12000 1/min

D7 Weight of item:

4,666 kg

D7_INCH Weight of item:

10,2866636 lbs

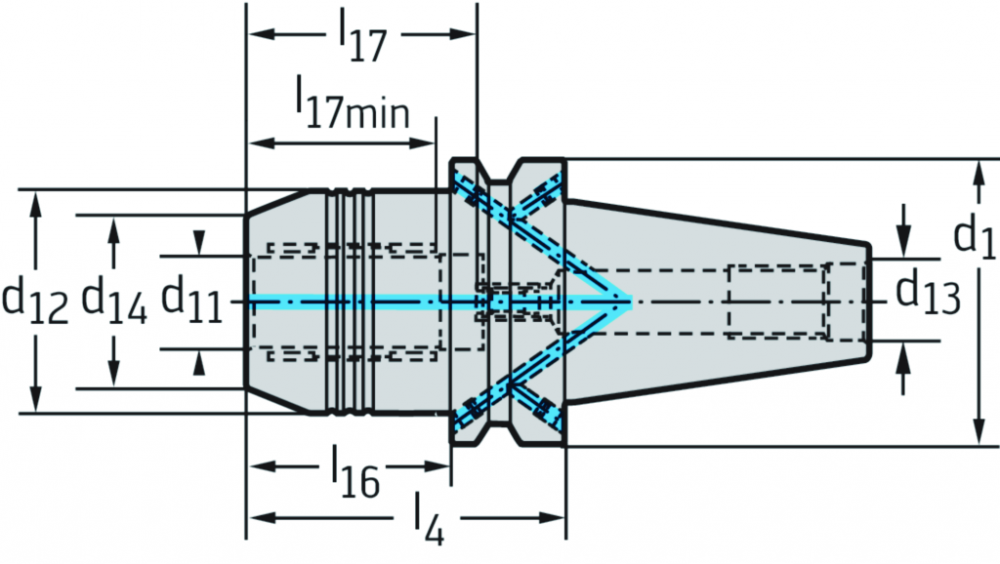

d11 Connection size code:

32

d12 Body diameter:

72 mm

d13 Pull stud, thread size:

M24

d14 Connection diameter:

58,5 mm

d1 Connection size code:

BT50

Designation Tool designation:

AK182.BT50.090.32

E2 Kappa:

0 °

EAN:

0697852851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

MAS403-BT

J11 Standard letter to the standard number:

AD

J21 Article number:

AK182.BT50.090.32

J3 Company code:

W

J4 Connection code workpiece side:

ZYL13G3200****

J6 Connection code machine side:

SKG51C0500$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders steep taper shank - XXX|A1200

l16 Usable length:

52 mm

l17 Clamping diameter depth:

61 mm

l17min Min. clamping diameter depth:

51 mm

l4 Functional length:

90 mm

LF Functional length:

29 mm

LF_INCH Functional length:

1,14173228346457 inch

LPR Protruding length:

90 mm

LPR_INCH Protruding length:

3,54330708661417 inch

LS Shank length:

101,8 mm

LSC Clamping length maximum:

61 mm

LSC_INCH Clamping length maximum:

2,40157480314961 inch

LS_INCH Shank length:

4,00787401574803 inch

MANUFACTURER_AID:

AK182.BT50.090.32

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

191,8 mm

OAL_INCH Overall length:

7,55118110236221 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

MAS-BT JIS B 6339 hydraulic expansion chuck AK182.BT • metric • For tools with shank in accordance with DIN 1835 Form A • ISO 7388-2

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK182-BT

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

12000 1/min

SUPPLIER_AID:

6381181

SUPPLIER_ALT_AID:

6381181

TERRITORY:

US

TSYC Tool style code:

AK182-BT

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

ISO 7388-2

UDX.BULLETTEXT_2:

For tools with shank in accordance with DIN 1835 Form A

UDX.CATFAM_CODE:

AK182.BT

UDX.CATFAM_DESCR:

MAS-BT JIS B 6339 hydraulic expansion chuck

UDX.DISCOUNTGROUP:

076

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

10.2885

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

5.0394

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.6772

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

10.5179

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

194.9635

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

5.0394

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1200

WT Weight:

4,67 kg

WT Weight of item:

4,666 kg

WT_INCH Weight of item:

10,2866636 lbs

XYWD xyw plane distance:

-90 mm

XYWD_INCH xyw plane distance:

-3,54330708661417 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For tools with shank in accordance with DIN 1835 Form A

ISO 7388-2

ISO 7388-2|For tools with shank in accordance with DIN 1835 Form A
