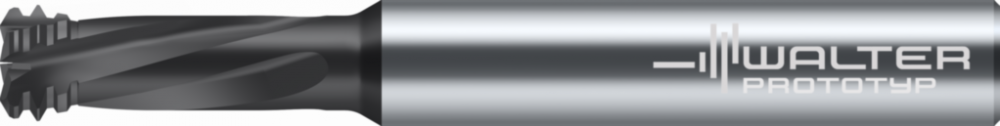

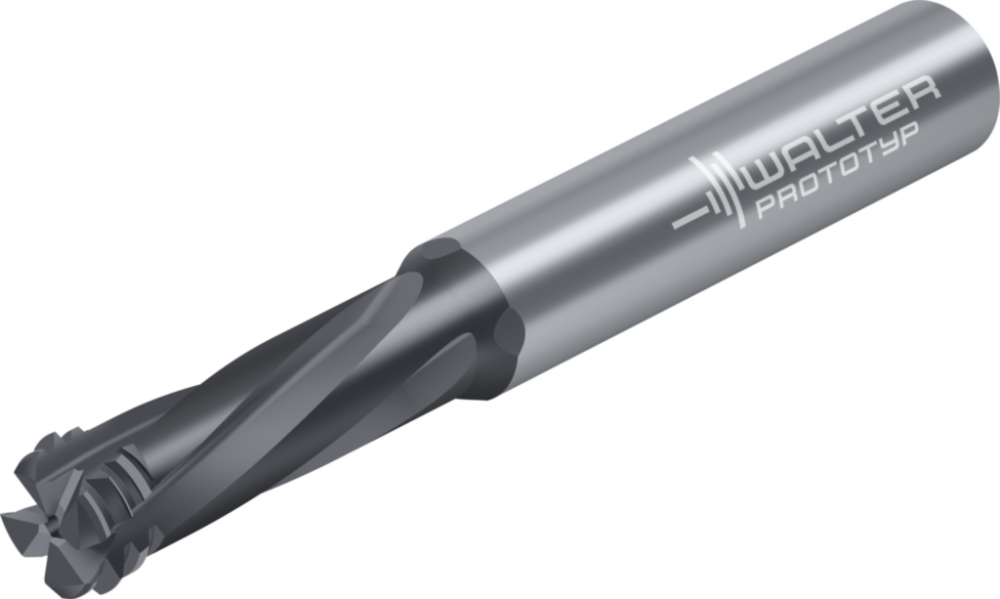

Orbital thread mill drill : 8378419

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Solid Threading Mills

A2 Cutting diameter maximum:

6,2 mm

A2_INCH Cutting diameter maximum:

0,244094488188976 inch

A5 Neck diameter:

4,69 mm

A5_INCH Neck diameter:

0,184645669291339 inch

APMX Depth of cut maximum:

3,89 mm

APMX_INCH Depth of cut maximum:

0,153149606299213 inch

ART_ID_TO type=others:

5007212;6358211;6358346;6362285;6380959;6381038;6381039;6381079;6381121;6381125;6381126;6381127;6381128;6381129;6381180;6381181;6852042;6852043;6852047;6852048;6852121;6852122;6852123;6852124;8156063;8156066;8156069;8156071;8156073;8156076;8156078;8156080;

B2 Depth of cut maximum:

3,89 mm

B2_INCH Depth of cut maximum:

0,153149606299213 inch

B3 Protruding length:

27 mm

B3_INCH Protruding length:

1,06299212598425 inch

B4 Usable length:

16 mm

B4_INCH Usable length:

0,62992125984252 inch

B5 Overall length:

63 mm

B5_INCH Overall length:

2,48031496062992 inch

B71 Functional length:

62,51 mm

B71_INCH Functional length:

2,46102362204724 inch

BD Body diameter:

4,69 mm

BD_INCH Body diameter:

0,184645669291339 inch

BLD Tool style code:

10

BMC Body material code:

H

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

80

C3 Connection diameter machine side:

8 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,31496062992126 inch

C4 Shank length:

36 mm

C4_INCH Shank length:

1,41732283464567 inch

CCMS Connection code machine side:

ZYL01F8000h$06

CNSC Coolant entry style code:

1

COATING Coating:

AlTiN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

F

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

80

D11 Mill tool type ISO:

T

D31 Thread form type:

M

D32 Thread pitch:

1,25 mm

D32_INCH Thread pitch:

0,0492125984251969 inch

D38 Thread diameter size maximum:

12,028

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,04 kg

D7_INCH Weight of item:

0,088184 lbs

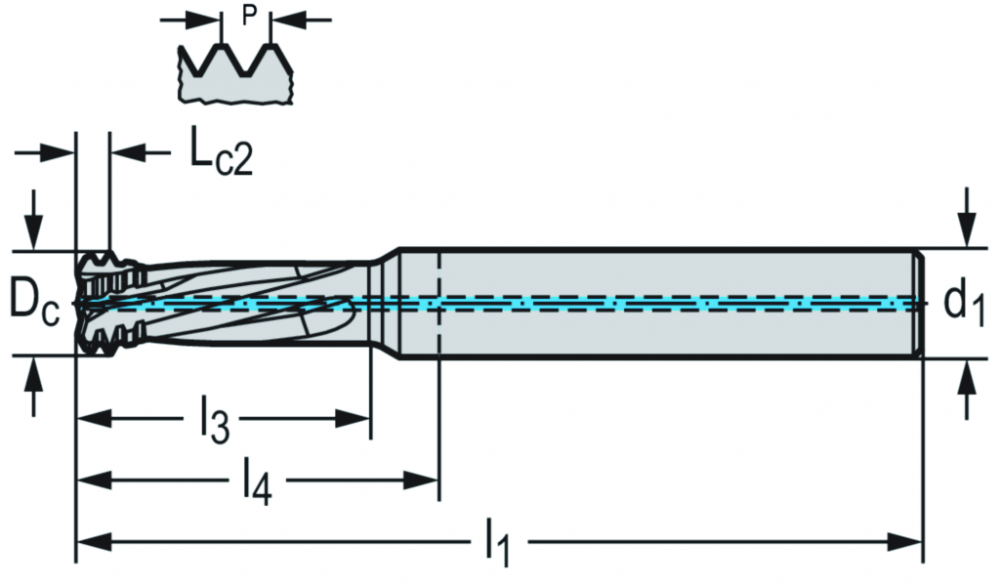

d1 Connection diameter:

8 mm

Dc Cutting edge diameter:

6,2 mm

DN Thread size:

M 8

DC Cutting diameter:

6,2 mm

DC_INCH Cutting diameter:

0,244094488188976 inch

Designation Tool designation:

TC645-M8-A1D-WB10TJ

DN Neck diameter:

4,69 mm

DN_INCH Neck diameter:

0,184645669291339 inch

E2 Rake angle radial:

-3,5 °

EAN:

4063465116422

F1 Cutting direction:

L

F21 Peripheral effective cutting edge count:

4

F3 Flute helix hand:

L

F4 Flute helix angle:

20 °

FHA Flute helix angle:

20 °

FHH Flute helix hand:

L

FMT Form type machine side:

EXT

G3 Corner chamfer angle:

30 °

GAMF Rake angle radial:

-3,5 °

GRADE Grade manufacturer's designation:

WB10TJ

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

H3 Grade manufacturer's designation:

WB10TJ

H4 Body material code:

H

H5 Coating:

AlTiN

HAND Cutting direction:

L

IEP Interupted edge property:

0

J1 Standard:

PWZ-NORM

J11 Standard letter to the standard number:

HA

J21 Article number:

TC645-M8-A1D-WB10TJ

J3 Company code:

W

J6 Connection code machine side:

ZYL01F8000h$06

J7 Data chip provision:

0

J8 Machining operation:

FPR

KAP Kappa:

0 °

KEYWORD:

Solid Cutting Tool|Threading|Thrill∙tec™|Thread milling cutters|TC645

l1 Overall length:

63 mm

l3 Usable length:

16 mm

l4 Maximum overhang:

27 mm

Lc2 Non-usable thread depth:

2,01 mm

LB Body length:

17,9 mm

LB_INCH Body length:

0,704724409448819 inch

LF Functional length:

62,51 mm

LF_INCH Functional length:

2,46102362204724 inch

LS Shank length:

36 mm

LS_INCH Shank length:

1,41732283464567 inch

LU Usable length:

16 mm

LU_INCH Usable length:

0,62992125984252 inch

MANUFACTURER_AID:

TC645-M8-A1D-WB10TJ

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

63 mm

OAL_INCH Overall length:

2,48031496062992 inch

ORDER_UNIT:

PCE

P Thread pitch:

1,25 mm

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Orbital thread mill drill TC645 • Thrill∙tec™ • Supreme • M60 • WB10TJ • ≤2xD • DIN 6535 HA shank • coolant exit style code: axial concentric exit

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180610

REFERENCE_FEATURE_GROUP_ID_GTC:

MILTHGS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

TC645-M-A1D

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

8378419

SUPPLIER_ALT_AID:

8378419

TERRITORY:

US

TG Taper ratio:

0

THFT Thread form type:

M

TP Thread pitch:

1,25 mm

TPT Thread profile type:

F

TP_INCH Thread pitch:

0,0492125984251969 inch

TSYC Tool style code:

TC645-M-A1D

TTP Thread type:

I

UDX.APPAREA:

Threading

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Chamfer, core hole and thread in one operation

UDX.BULLETTEXT_2:

Orbital drill thread milling cutters for universal application

UDX.CATFAM_CODE:

TC645

UDX.CATFAM_DESCR:

Orbital thread mill drill

UDX.DESCR_APPLICATION:

Can be used universally with ISO P, M, K, N and S up to 48 HRC;Thread depths of 2 and 2.5 × D_N;Blind-hole and through-hole threads

UDX.DESCR_BENEFITS:

Maximum process reliability;Universal use;Very low cost per thread (high tool life quantity, fast machining time);Reduces the number of tool positions and the tool change time

UDX.DESCR_TOOL:

IMPORTANT: Left-hand cutting tool;Orbital drill/thread mill for universal machining;Creation of core hole and thread in one operation;Can also be used for chamfering

UDX.DISCOUNTGROUP:

TSM

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.0882

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.5906

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.0948

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.2357

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.5906

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

TC645

UDX.PRODUCTLINE:

Supreme

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

moderate

UDX.WORKING_CONDITION_ISO_K:

moderate

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

moderate

UDX.WORKING_CONDITION_ISO_O:

moderate

UDX.WORKING_CONDITION_ISO_P:

moderate

UDX.WORKING_CONDITION_ISO_S:

moderate

WT Weight of item:

0,04 kg

WT_INCH Weight of item:

0,088184 lbs

XYWD xyw plane distance:

-61,75 mm

XYWD_INCH xyw plane distance:

-2,43110236220472 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

4

ZEFP Peripheral effective cutting edge count:

4

Chamfer, core hole and thread in one operation

Chamfer, core hole and thread in one operation|Orbital drill thread milling cutters for universal application

Orbital drill thread milling cutters for universal application
