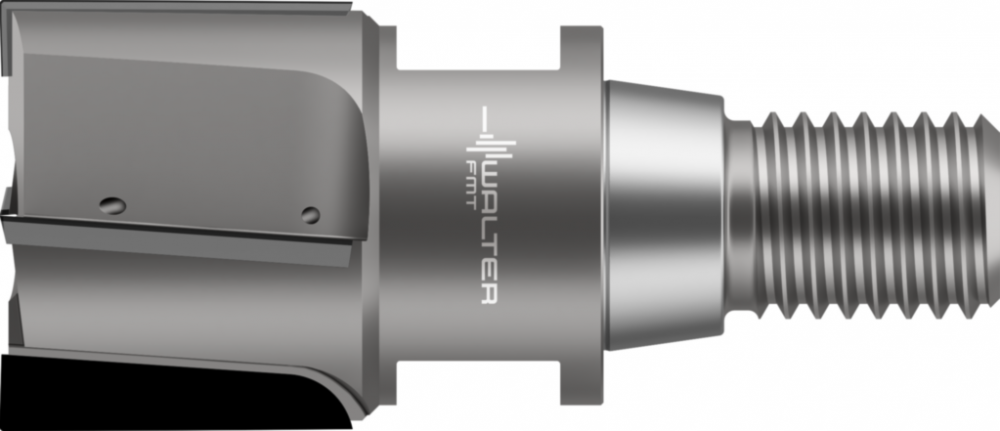

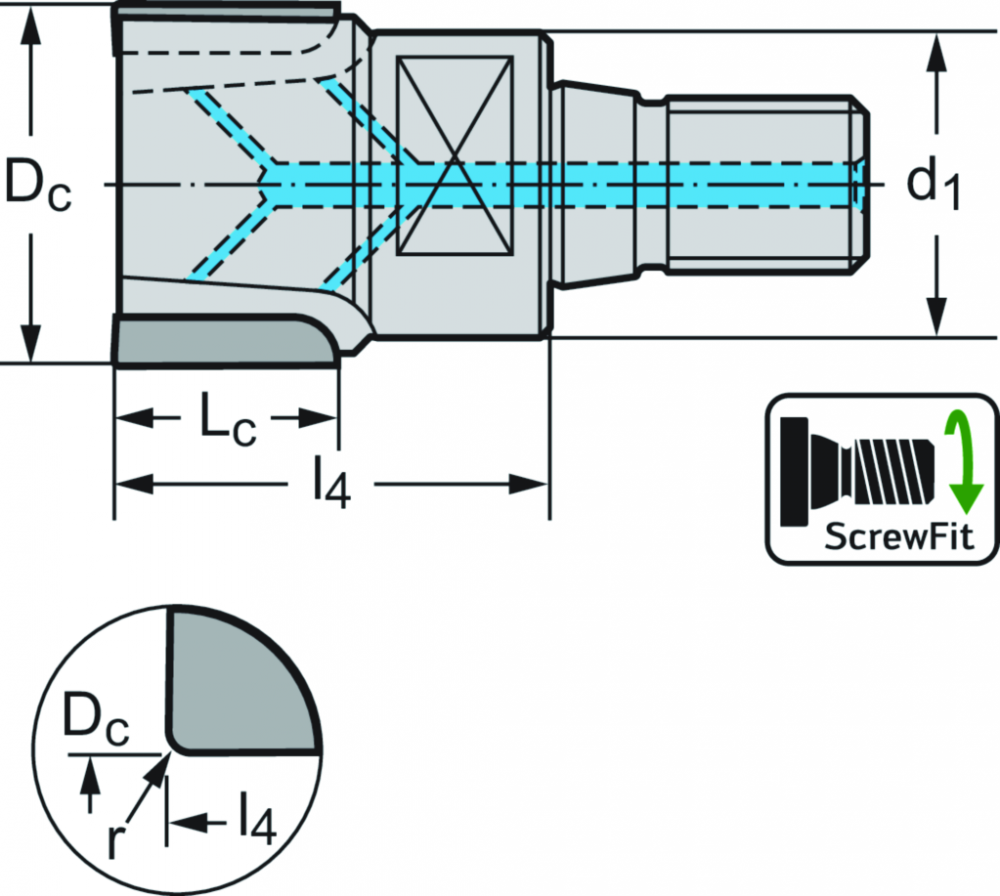

PCD shoulder milling cutters : 7938976

Category:

Milling

Subcategory:

Solid

Subtype:

Square End Mills

A1 Cutting diameter:

40 mm

A1_INCH Cutting diameter:

1,5748031496063 inch

A5 Neck diameter:

36 mm

A5_INCH Neck diameter:

1,41732283464567 inch

APMX Depth of cut maximum:

20 mm

APMX_INCH Depth of cut maximum:

0,78740157480315 inch

ART_ID_TO type=others:

5015989;5015990;5015991;5015992;5016049;5016050;5016081;5016082;5016083;5016084;5016106;5016107;5016108;5016122;5016123;5016124;5016125;5017265;5032760;5032761;5032774;5032775;5032776;5032777;5041002;5041008;5049969;5049970;5049971;5049981;5049982;5049983;

B2 Depth of cut maximum:

20 mm

B2_INCH Depth of cut maximum:

0,78740157480315 inch

B3 Protruding length:

40 mm

B3_INCH Protruding length:

1,5748031496063 inch

B4 Usable length:

40 mm

B4_INCH Usable length:

1,5748031496063 inch

B5 Overall length:

75 mm

B5_INCH Overall length:

2,95275590551181 inch

B6 Head length:

40 mm

B6_INCH Head length:

1,5748031496063 inch

B71 Functional length:

40 mm

B71_INCH Functional length:

1,5748031496063 inch

B9 Neck length:

40

BD Body diameter:

36 mm

BD_INCH Body diameter:

1,41732283464567 inch

BLD Tool style code:

1

BMC Body material code:

S

C11 Connection code type machine side:

SAW

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

360

C3 Connection diameter machine side:

36 mm

C3_INCH Connection diameter machine side:

1,41732283464567 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

SAW01C0360$$$$

CNSC Coolant entry style code:

1

COATING Coating:

PKD

CONTENT_UNIT:

PCE

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

360

D6 Rotational speed maximum:

28000 1/min

D7 Weight of item:

0,37 kg

D7_INCH Weight of item:

0,815702 lbs

d1 Shank diameter:

T36

Dc Cutting edge diameter:

40 mm

DC Cutting diameter:

40 mm

DC_INCH Cutting diameter:

1,5748031496063 inch

Designation Tool designation:

MP160-040T04P WDN20

DN Neck diameter:

36 mm

DN_INCH Neck diameter:

1,41732283464567 inch

E2 Rake angle radial:

0 °

E3 Rake angle axial:

4 °

E4 Ramping angle maximum:

0,4 °

EAN:

0632112744

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

4

F22 Face effective cutting edge count:

4

F3 Flute helix hand:

R

F4 Flute helix angle:

4 °

FHA Flute helix angle:

4 °

FHH Flute helix hand:

R

FMT Form type machine side:

EXT

G1 Corner radius:

0,2 mm

G1_INCH Corner radius:

0,0078740157480315 inch

GAMF Rake angle radial:

0 °

GAMP Rake angle axial:

4 °

GRADE Grade manufacturer's designation:

WDN20

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H3 Grade manufacturer's designation:

WDN20

H4 Body material code:

S

H5 Coating:

PKD

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

-

J21 Article number:

MP160-040T04P WDN20

J3 Company code:

W

J6 Connection code machine side:

SAW01C0360$$$$

J7 Data chip provision:

0

J8 Machining operation:

FPL

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Solid Cutting Tool|Milling||End milling cutters|MP160

l4 Functional length:

40 mm

Lc Cutting edge length:

20 mm

LB Body length:

40 mm

LB_INCH Body length:

1,5748031496063 inch

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

LU Usable length:

40 mm

LU_INCH Usable length:

1,5748031496063 inch

MANUFACTURER_AID:

MP160-040T04P WDN20

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

75 mm

OAL_INCH Overall length:

2,95275590551181 inch

OHX Protruding length:

40 mm

OHX_INCH Protruding length:

1,5748031496063 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

r Corner radius:

0,2 mm

RE Corner radius:

0,2 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

PCD shoulder milling cutters MP160 • ScrewFit • metric • flute helix angle 4°

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180601

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MP160-T

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,0078740157480315 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

0,4 °

RPMX Rotational speed maximum:

28000 1/min

SUPPLIER_AID:

7938976

SUPPLIER_ALT_AID:

7938976

TERRITORY:

US

TSYC Tool style code:

MP160-T

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

MP160

UDX.CATFAM_DESCR:

PCD shoulder milling cutters

UDX.DESCR_APPLICATION:

Non-ferrous metals (e.g. aluminium, Al-Si alloys, magnesium and magnesium-based alloys), as well as plastics and fibre-reinforced plastics;Areas of use: Automotive industry, aerospace industry, general mechanical engineering;Milling operations with the hig

UDX.DESCR_BENEFITS:

Cost-effective, precise machining;Tool life increased by 20 to 200 times (compared to conventional solid carbide tools on the market);Reduced cutting forces and minimal vibration tendency due to optimised geometries;Low cutting tool material costs due to e

UDX.DESCR_TOOL:

MP160 shoulder milling cutter with cylindrical shank and ScrewFit adaption; dia. 16–40 mm

UDX.DISCOUNTGROUP:

044

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.8159

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.9528

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.4961

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.8159

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

71.7410

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.7402

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

MP160

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

moderate

UDX.WORKING_CONDITION_ISO_O:

moderate

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

1

WT Weight:

0,37 kg

WT Weight of item:

0,37 kg

WT_INCH Weight of item:

0,815702 lbs

XYWD xyw plane distance:

-40 mm

XYWD_INCH xyw plane distance:

-1,5748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

4

ZEFF Face effective cutting edge count:

4

ZEFP Peripheral effective cutting edge count:

4
