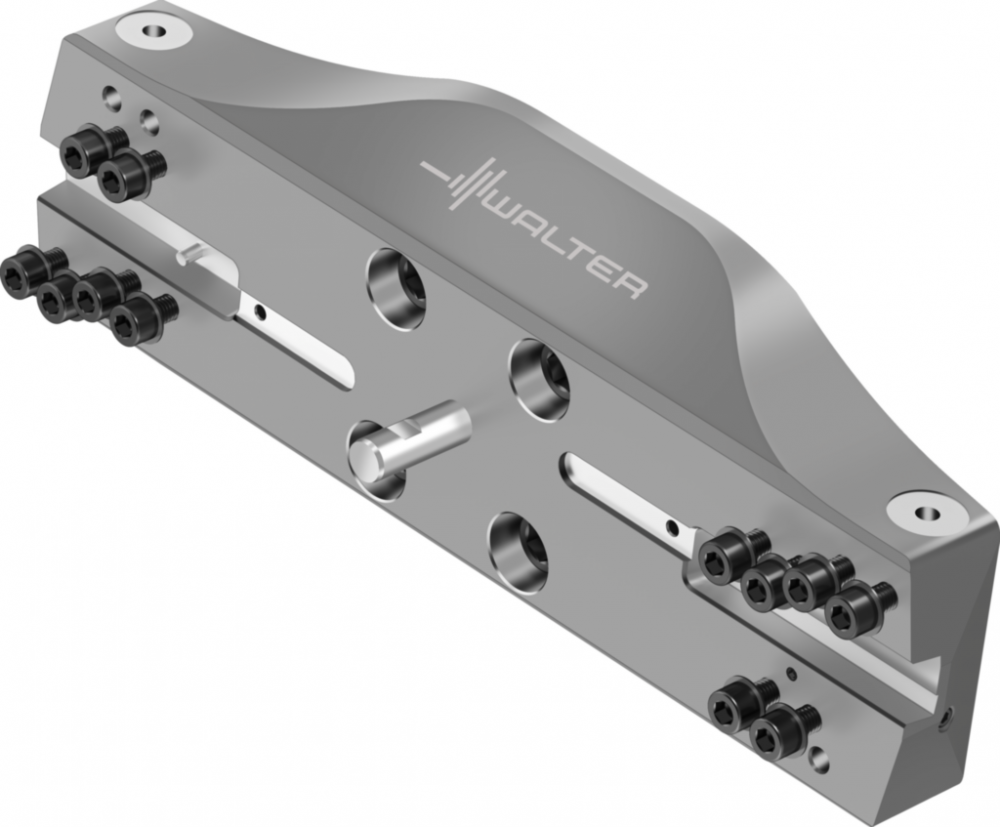

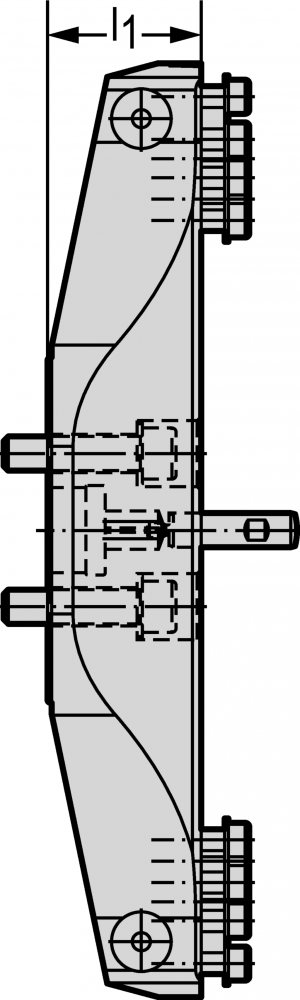

Precision XT and Boring XT - Bridge : 8217300

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Boring Bar Holders & Adapters

ADJLN Adjustment limit minimum:

0 mm

ADJLN_INCH Adjustment limit minimum:

0 inch

ART_ID_TO type=consists_of:

8261770,8261772,8261775,8261777,8261778,8261782

B71 Functional length:

77 mm

B71_INCH Functional length:

3,03149606299213 inch

B91 Overall width:

518 mm

B91_INCH Overall width:

20,3937007874016 inch

BLD Tool style code:

16

BMC Body material code:

L

C11 Connection code type machine side:

SPK

C12 Connection code form at machine side:

2

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

3

C2 Connection size code machine side:

1016

C3 Connection diameter machine side:

40 mm

C3_INCH Connection diameter machine side:

1,5748031496063 inch

C51 Connection code type workpiece side:

CBC

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

240

CCFMS Connection code form at machine side:

2

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

SPK02A1016$$$$

CCTMS Connection code type machine side:

SPK

CCTWS Connection code type workpiece side:

CBC

CCWS Connection code workpiece side:

CBC01C0240****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

70 MPa

CUB Connection unit basis:

C

CURRENCY:

USD

CXSC Coolant exit style code:

4

D7 Weight of item:

11,5 kg

D7_INCH Weight of item:

25,3529 lbs

d<sub>1</sub> Connection size code:

40

Designation Tool designation:

EB734

EAN:

4063464325801

F1 Cutting direction:

R

H21 Coolant entry style code:

1

H22 Coolant exit style code:

4

H4 Body material code:

L

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

J21 Article number:

EB734

J3 Company code:

W

J4 Connection code workpiece side:

CBC01C0240****

J6 Connection code machine side:

SPK02A1016$$$$

J8 Machining operation:

BAB

KAP Kappa:

180 °

KEYWORD:

Assembly Item|Boring||Base slides with master adapter|EB100

LF Functional length:

77 mm

LF_INCH Functional length:

3,03149606299213 inch

LPR Protruding length:

77 mm

LPR_INCH Protruding length:

3,03149606299213 inch

MANUFACTURER_AID:

EB734

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-84

OAL Overall length:

77 mm

OAL_INCH Overall length:

3,03149606299213 inch

OAW Overall width:

518 mm

OAW_INCH Overall width:

20,3937007874016 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Precision XT and Boring XT - Bridge EB700

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181290

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPBORBR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241601

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241601

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171619

REFERENCE_FEATURE_GROUP_ID_Walter:

EB700-BRIDGE

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

8217300

SUPPLIER_ALT_AID:

8217300

TERRITORY:

US

TSYC Tool style code:

16

UDX.APPAREA:

Boring

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

EB700

UDX.CATFAM_DESCR:

Precision XT and Boring XT - Bridge

UDX.DISCOUNTGROUP:

052

UDX.ITEMTYPE:

Assembly Item

UDX.NET_WEIGHT:

25.3575

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

7.8740

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

23.6220

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

27.9550

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

2892.5255

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

15.5512

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

EB100

WF Functional width:

188,5 mm

WF_INCH Functional width:

7,42125984251969 inch

WT Weight of item:

11,5 kg

WT_INCH Weight of item:

25,3529 lbs

XYWD xyw plane distance:

-77 mm

XYWD_INCH xyw plane distance:

-3,03149606299213 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
