Precision XT Lightweight boring tool – Basic body : 8217245

Category:

Holemaking

Subcategory:

Boring

Subtype:

Boring Heads

ART_ID_TO type=consists_of:

8261757,8261763,8261768

ART_ID_TO type=others:

5012376;5012378;5012379;5012384;5012387;5012388;5012389;5012394;5012395;5012398;5012399;5012400;5012406;5012410;5012411;5012434;5012659;5012660;5012665;5012668;5029309;5029312;5040087;6418704;6418705;6418725;6418726;6424434;6424435;6424472;6424474;6424836;

B47 Body length:

146 mm

B47_INCH Body length:

5,74803149606299 inch

B71 Functional length:

127 mm

B71_INCH Functional length:

5 inch

BD Body diameter:

63 mm

BD_INCH Body diameter:

2,48031496062992 inch

BLD Tool style code:

13

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

2

CCMS Connection code machine side:

CCS01C0500$$$$

CCTMS Connection code type machine side:

CCS

CCTWS Connection code type workpiece side:

CCB

CCWS Connection code workpiece side:

CCB02C0030****

CNSC Coolant entry style code:

3

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

30

D7 Weight of item:

1,552 kg

D7_INCH Weight of item:

3,4215392 lbs

D93 Adjustment increment axial:

0,001

D95 Adjustment increment radial:

0,001

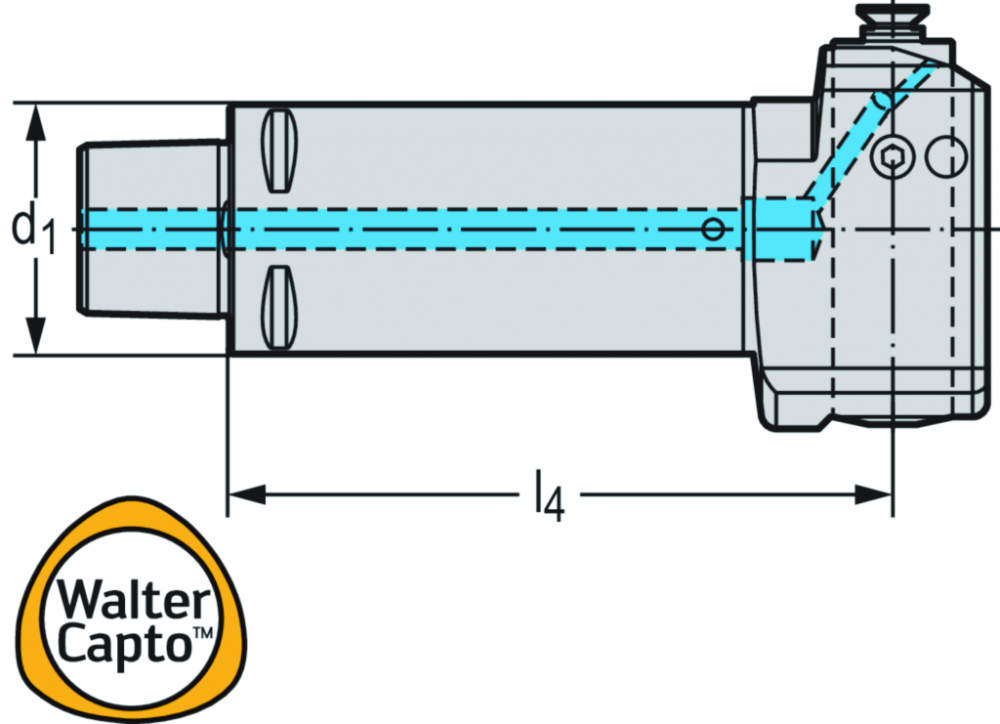

d<sub>1</sub> Connection size code:

C5

Designation Tool designation:

B5125-069-087-C5-B

EAN:

4063464325252

F1 Cutting direction:

R

FMT Form type workpiece side:

INT

H21 Coolant entry style code:

3

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J21 Article number:

B5125-069-087-C5-B

J3 Company code:

W

J4 Connection code workpiece side:

CCB02C0030****

J6 Connection code machine side:

CCS01C0500$$$$

J8 Machining operation:

BAB

KAP Kappa:

0 °

KEYWORD:

Tool Item|Boring|Walter Precision XT|Fine boring tool bodies|B5125

l<sub>4</sub> Functional length:

127 mm

LF Functional length:

127 mm

LF_INCH Functional length:

5 inch

LPR Protruding length:

146 mm

LPR_INCH Protruding length:

5,74803149606299 inch

LS Shank length:

30 mm

LS_INCH Shank length:

1,18110236220472 inch

MANUFACTURER_AID:

B5125-069-087-C5-B

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-84

OAL Overall length:

176 mm

OAL_INCH Overall length:

6,92913385826772 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Lightweight boring tool – Basic body B5125 • Walter Capto^TM ISO 26623

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010190

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21019103

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181290

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181290

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241601

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241601

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171619

REFERENCE_FEATURE_GROUP_ID_Walter:

B5125-C-GK

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

8217245

SUPPLIER_ALT_AID:

8217245

TERRITORY:

US

TQ Torque:

6 Nm

TQ_INCH Torque:

53,1044748 lbf in

TSYC Tool style code:

B5125-C-GK

UDX.APPAREA:

Boring

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Weight reduced (LWS)

UDX.BULLETTEXT_2:

Diameter adjustment for mm and inch measurement unit

UDX.CATFAM_CODE:

B5125

UDX.CATFAM_DESCR:

Precision XT Lightweight boring tool – Basic body

UDX.DISCOUNTGROUP:

052

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

3.4839

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.6772

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

3.4839

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

81.9766

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

B5125

UDX.RANKING_ISO_H:

Additional application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WF Functional width:

24,5 mm

WF_INCH Functional width:

0,964566929133858 inch

WT Weight of item:

1,552 kg

WT_INCH Weight of item:

3,4215392 lbs

XYWD xyw plane distance:

-127 mm

XYWD_INCH xyw plane distance:

-5 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-24,5 mm

YZWD_INCH yzw plane distance:

-0,964566929133858 inch

Diameter adjustment for mm and inch measurement unit

Weight reduced (LWS)

Weight reduced (LWS)|Diameter adjustment for mm and inch measurement unit
