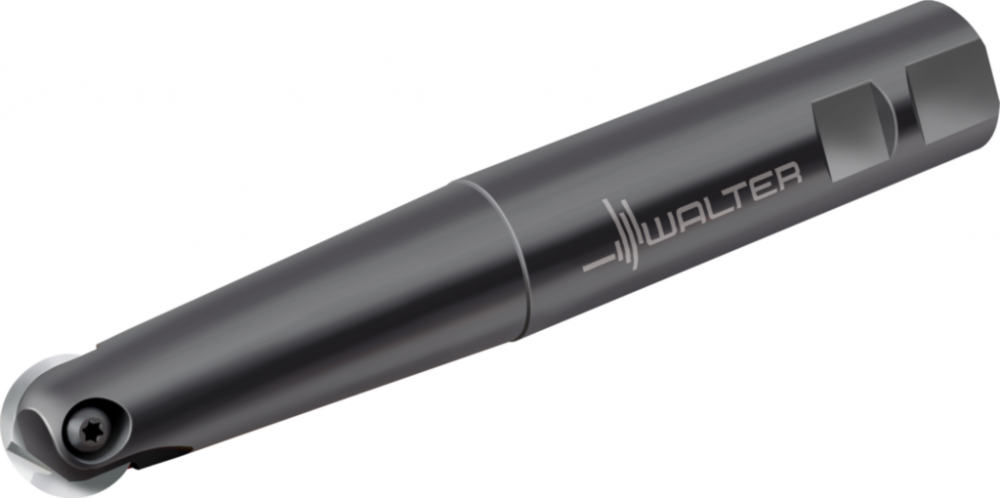

Profile milling cutters : 5026561

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

A1 Cutting diameter:

19,05 mm

A1_INCH Cutting diameter:

0,75 inch

A3 Body diameter:

18,001 mm

A3_INCH Body diameter:

0,708700787401575 inch

APMX Depth of cut maximum:

10 mm

APMX_INCH Depth of cut maximum:

0,393700787401575 inch

ART_ID_TO type=accessories:

5006455

ART_ID_TO type=consists_of:

5024326

ART_ID_TO type=others:

5052103, ;5092016, ;5092244, ;5591808, ;5591809, ;5591854, ;5591855, ;7960091, ;7960099, ;7960107, ;7960144, ;8091631, ;8091639, ;8675839, ;8675876, 5029511;5029518;5033140;5034322;5034501;5040075;5043224;5043228;5043230;5043234;5043236;5043648;6261587;626

B2 Depth of cut maximum:

10 mm

B2_INCH Depth of cut maximum:

0,393700787401575 inch

B3 Protruding length:

76 mm

B3_INCH Protruding length:

2,99212598425197 inch

B4 Usable length:

18 mm

B4_INCH Usable length:

0,708661417322835 inch

B5 Overall length:

190 mm

B5_INCH Overall length:

7,48031496062992 inch

B6 Head length:

16,002 mm

B6_INCH Head length:

0,63 inch

BD Body diameter:

18,001 mm

BD_INCH Body diameter:

0,708700787401575 inch

BLD Tool style code:

11

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

2

C15 Connection code style machine side:

5

C2 Connection size code machine side:

1000

C3 Connection diameter machine side:

25,4 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

1 inch

CCFMS Connection code form at machine side:

10

CCMS Connection code machine side:

ZYL10S1000h$06

CCTMS Connection code type machine side:

ZYL

CICT Cutting item count:

1

CNSC Coolant entry style code:

0

CONTENT_UNIT:

PCE

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

N

CURRENCY:

USD

CXSC Coolant exit style code:

0

D11 Mill tool type ISO:

L

D6 Rotational speed maximum:

12300 1/min

D7 Weight of item:

0,67 kg

D7_INCH Weight of item:

1,477082 lbs

D9 Adjustment property:

0

d1 Connection diameter:

1 inch

Dc Cutting edge diameter:

0,75 inch

DC Cutting diameter:

19,05 mm

DC_INCH Cutting diameter:

0,75 inch

Designation Tool designation:

F2139.U5.26.190.20

EAN:

0584343727

F1 Cutting direction:

R

F22 Face effective cutting edge count:

2

F23 Number of insert mounting levels:

1

F24 Number of inserts per mounting level:

1

G13 Face mounted insert count:

1

G21 Clamping type code:

S

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H4 Body material code:

S

HAND Cutting direction:

R

IFS Insert mounting style code:

3

IIC Insert interface code:

WR$$P32020**3R*****

J1 Standard:

ISO3338-2

J11 Standard letter to the standard number:

WE

J21 Article number:

F2139.U5.26.190.20

J3 Company code:

W

J41 Insert interface code:

WR$$P32020**3R*****

J6 Connection code machine side:

ZYL10S1000h$06

J7 Data chip provision:

0

J8 Machining operation:

FFO

KAP Kappa:

0 °

KEYWORD:

Tool Item|Milling||Die-milling cutters|F2139

l4 Maximum projection length:

2,992 inch

LB Body length:

75,997 mm

LB_INCH Body length:

2,99200787401575 inch

LF Functional length:

161,028 mm

LF_INCH Functional length:

6,33968503937008 inch

LPR Protruding length:

76 mm

LU Usable length:

18 mm

MANUFACTURER_AID:

F2139.U5.26.190.20

MHD Mounting hole distance:

28,972 mm

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-87

OAL Overall length:

190 mm

OAL_INCH Overall length:

7,48031496062992 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

R Radius:

0,375 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Profile milling cutters F2139 • DIN 1835 B shank • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180811

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180811

REFERENCE_FEATURE_GROUP_ID_GTC:

MILBNRI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

F2139-UW

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

0 °

RPMX Rotational speed maximum:

12300 1/min

s Insert thickness:

3 mm

SUPPLIER_AID:

5026561

SUPPLIER_ALT_AID:

5834032

TERRITORY:

US

TSYC Tool style code:

F2139-UW

Type Possible indexable inserts:

P320 . -D19.05; P320 . -D20

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For HSC machining

UDX.CATFAM_CODE:

F2139

UDX.CATFAM_DESCR:

Profile milling cutters

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

.0000

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

F2139

UDX.RANKING_ISO_H:

Main application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight:

1,477 lbs

WT Weight of item:

0,67 kg

WT_INCH Weight of item:

1,477082 lbs

XYWD xyw plane distance:

-190 mm

XZWD xzw plane distance:

0 mm

YZWD yzw plane distance:

0 mm

Z Number of teeth:

2 EA

ZEFF Face effective cutting edge count:

2

ZEFP Peripheral effective cutting edge count:

2

For HSC machining
