QuadFit Large Adaptor : 7955718

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Modular Tool Holding System Adapters

A4 Flange diameter:

60 mm

A4_INCH Flange diameter:

2,36220472440945 inch

ART_ID_TO type=accessories:

7821305,7821308

ART_ID_TO type=consists_of:

7821302

ART_ID_TO type=others:

7956068;7956069;7956083;7956084;7956085;7956086;7956087;7956090;7956091;7956092;8458017

B1 Body length 1:

21,5 mm

B1_INCH Body length 1:

0,846456692913386 inch

B3 Protruding length:

27 mm

B3_INCH Protruding length:

1,06299212598425 inch

B4 Overall length:

50,4 mm

B4_INCH Overall length:

1,98425196850394 inch

B71 Functional length:

27 mm

B71_INCH Functional length:

1,06299212598425 inch

B72 Functional height:

0 mm

B72_INCH Functional height:

0 inch

B73 Functional width:

10 mm

B73_INCH Functional width:

0,393700787401575 inch

BMC Body material code:

S

C11 Connection code type machine side:

SAW

C12 Connection code form at machine side:

3

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

600

C3 Connection diameter machine side:

60 mm

C3_INCH Connection diameter machine side:

2,36220472440945 inch

C51 Connection code type workpiece side:

SGL

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

500

CCMS Connection code machine side:

SAW03C0600$$$$

CCWS Connection code workpiece side:

SGL01A0500****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

A

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

600

CZCWS Connection size code workpiece side:

500

D7 Weight of item:

0,892 kg

D7_INCH Weight of item:

1,9665032 lbs

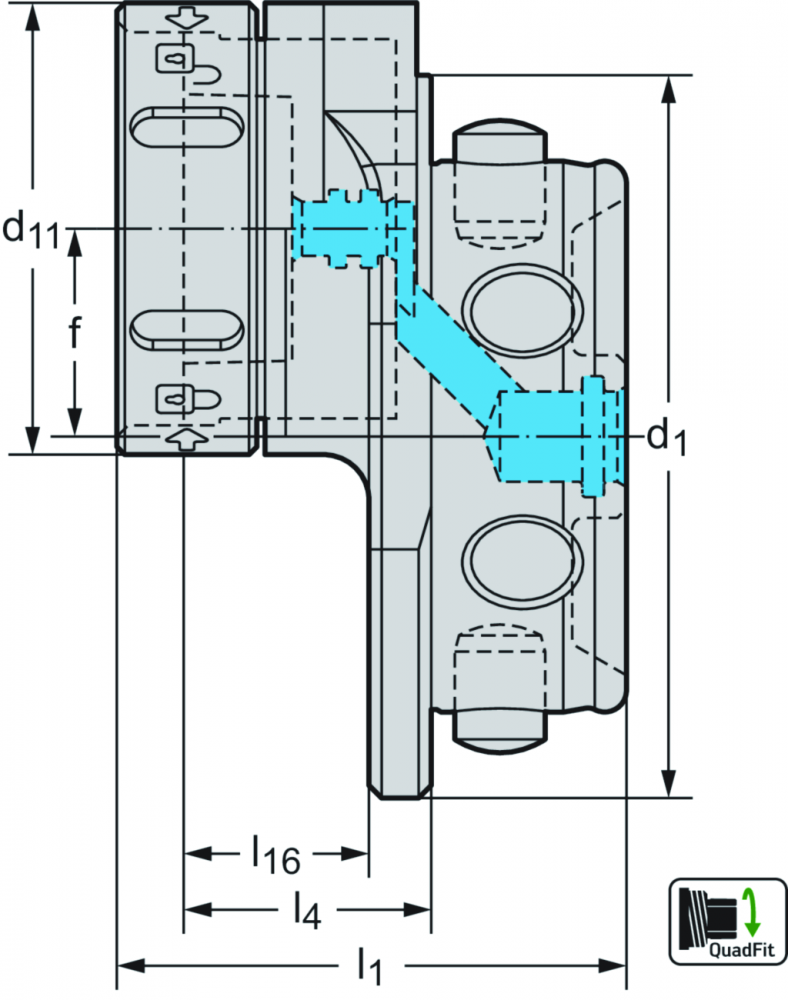

d11 Connection size code:

Q50

d1 Connection size code:

QL60

Designation Tool designation:

A2201-QL60-10-27-Q50

E1 Cutting direction:

N

E2 Kappa:

0 °

EAN:

0637369963

f Functional width:

10 mm

FMT Form type workpiece side:

INT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

N

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

J1 Standard:

-

J21 Article number:

A2201-QL60-10-27-Q50

J3 Company code:

W

J4 Connection code workpiece side:

SGL01A0500****

J6 Connection code machine side:

SAW03C0600$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Turning|Accure·tec^®|Basic Holders XXX - XXX|A2201

l16 Usable length:

21,5 mm

l1 Overall length:

50,4 mm

l4 Maximum overhang:

27 mm

LF Functional length:

27 mm

LF_INCH Functional length:

1,06299212598425 inch

LPR Protruding length:

27 mm

LPR_INCH Protruding length:

1,06299212598425 inch

MANUFACTURER_AID:

A2201-QL60-10-27-Q50

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

50,4 mm

OAL_INCH Overall length:

1,98425196850394 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

QuadFit Large Adaptor A2201 • metric • QuadFit

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022003

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A2201-QL

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

7955718

SUPPLIER_ALT_AID:

7955718

TERRITORY:

US

TSYC Tool style code:

A2201-QL

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For A3001 Accure·tec boring bars

UDX.BULLETTEXT_2:

QuadFit

UDX.CATFAM_CODE:

A2201

UDX.CATFAM_DESCR:

QuadFit Large Adaptor

UDX.DISCOUNTGROUP:

073

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

1.9669

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

11.5354

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

2.2050

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

87.6118

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A2201

WF Functional width:

10 mm

WF_INCH Functional width:

0,393700787401575 inch

WT Weight:

0,9 kg

WT Weight of item:

0,892 kg

WT_INCH Weight of item:

1,9665032 lbs

XYWD xyw plane distance:

-27 mm

XYWD_INCH xyw plane distance:

-1,06299212598425 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For A3001 Accure·tec boring bars

For A3001 Accure·tec boring bars|QuadFit

QuadFit
