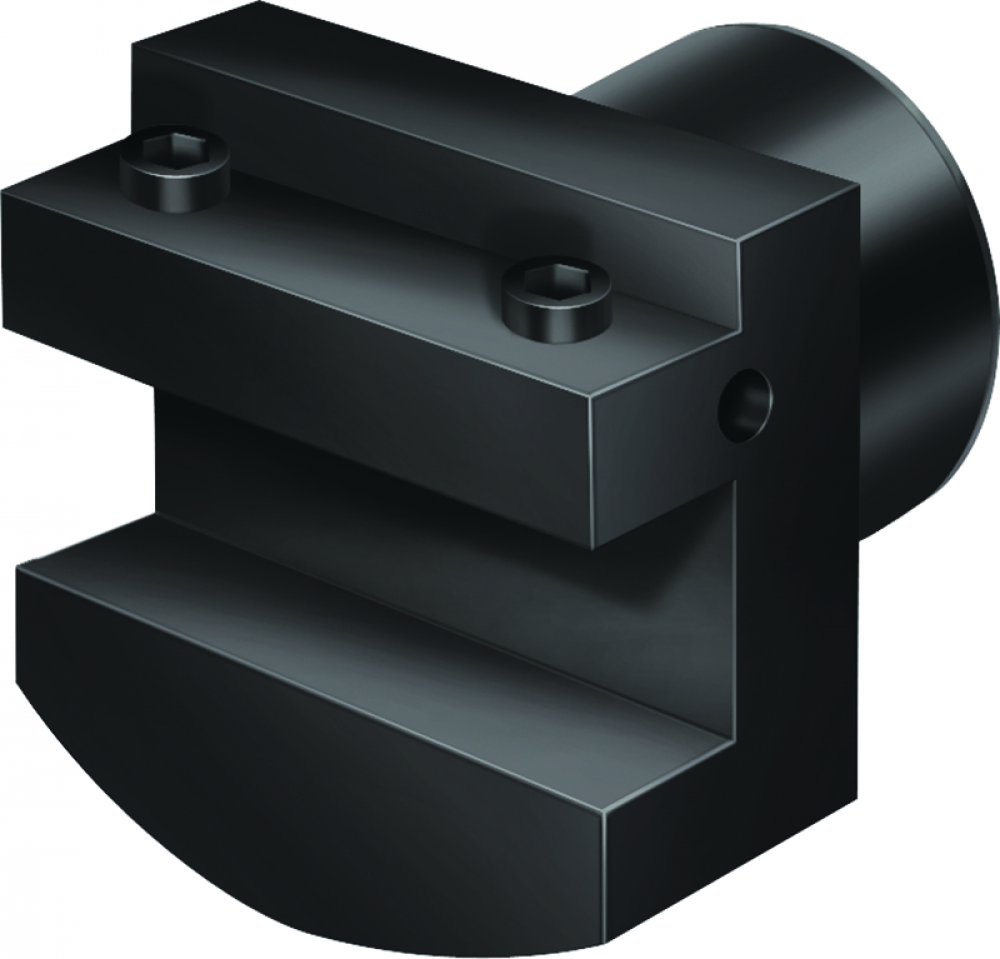

Radial adaptor : 5893077 | RJW Industrial

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Adapters

ART_ID_TO type=consists_of:

5043613,5043616

ART_ID_TO type=others:

5012390;5012391;5012402;5012403;5012436;5012437;5012661;5012662;5040088;5887232;6418707;6418717;6418728;6424436;6424438;6424475;6424837;6426218;6425676;6424833;6728021;6728022;6728031;5887230;5887231;8463584

B3 Protruding length:

71 mm

B3_INCH Protruding length:

2,79527559055118 inch

B4 Overall length:

109 mm

B4_INCH Overall length:

4,29133858267717 inch

B71 Functional length:

45 mm

B71_INCH Functional length:

1,77165354330709 inch

B72 Functional height:

32 mm

B72_INCH Functional height:

1,25984251968504 inch

B73 Functional width:

50 mm

B73_INCH Functional width:

1,96850393700787 inch

B81 Overall height:

96,6 mm

B81_INCH Overall height:

3,80314960629921 inch

B82 Radial height:

65 mm

B82_INCH Radial height:

2,55905511811024 inch

B91 Overall width:

100 mm

B91_INCH Overall width:

3,93700787401575 inch

B92 Radial width:

50 mm

B92_INCH Radial width:

1,96850393700787 inch

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

630

C3 Connection diameter machine side:

63 mm

C3_INCH Connection diameter machine side:

2,48031496062992 inch

C4 Shank length:

38 mm

C4_INCH Shank length:

1,49606299212598 inch

C51 Connection code type workpiece side:

VKT

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

3220

C71 Connection diameter min:

322 mm

C71_INCH Connection diameter min:

12,6771653543307 inch

C72 Connection diameter max:

322,7 mm

C72_INCH Connection diameter max:

12,7047244094488 inch

CCMS Connection code machine side:

CCS01C0630$$$$

CCWS Connection code workpiece side:

VKT01A3220****VKT01A3227****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

A

CURRENCY:

USD

CXSC Coolant exit style code:

6

CZCMS Connection size code machine side:

630

CZCWS Connection size code workpiece side:

3220

D7 Weight of item:

3,265 kg

D7_INCH Weight of item:

7,198019 lbs

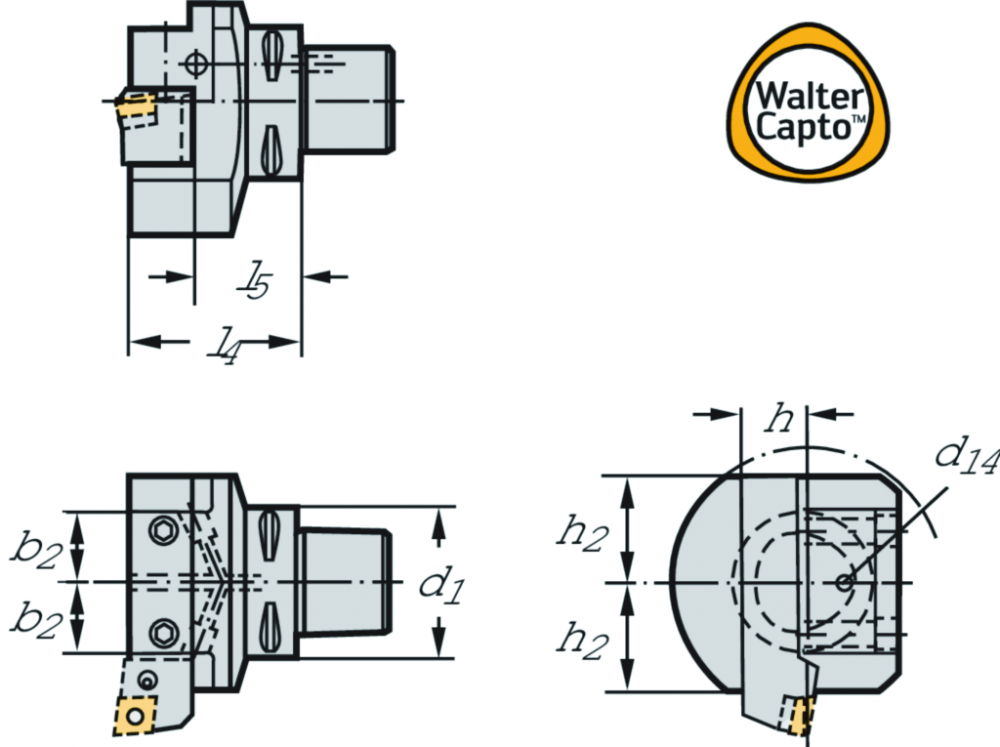

d14 Mounting diameter:

130 mm

d1 Mounting diameter:

63 mm

Designation Tool designation:

C6-ASHA-50071-32M

DIX Tool changer interf dia max:

130 mm

DIX_INCH Tool changer interf dia max:

5,11811023622047 inch

E1 Cutting direction:

N

E2 Kappa:

0 °

EAN:

0583433968

FMT Form type workpiece side:

INT

h Height:

32 mm

H21 Coolant entry style code:

1

H22 Coolant exit style code:

6

h2 Height:

50 mm

HAND Cutting direction:

N

HF Functional height:

32 mm

HF_INCH Functional height:

1,25984251968504 inch

J1 Standard:

ISO26623-1

J21 Article number:

C6-ASHA-50071-32M

J3 Company code:

W

J4 Connection code workpiece side:

VKT01A3220****VKT01A3227****

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Coromant Capto System SANDVIK - Prism mounting KENNAMETAL|D68AW

l4 Functional length:

71 mm

l5 Shank length:

45 mm

LF Functional length:

45 mm

LF_INCH Functional length:

1,77165354330709 inch

LPR Protruding length:

71 mm

LPR_INCH Protruding length:

2,79527559055118 inch

LS Shank length:

38 mm

LS_INCH Shank length:

1,49606299212598 inch

MANUFACTURER_AID:

C6-ASHA-50071-32M

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAH Overall height:

96,6 mm

OAH_INCH Overall height:

3,80314960629921 inch

OAL Overall length:

109 mm

OAL_INCH Overall length:

4,29133858267717 inch

OAW Overall width:

100 mm

OAW_INCH Overall width:

3,93700787401575 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

RADH Radial height:

65 mm

RADH_INCH Radial height:

2,55905511811024 inch

RADW Radial width:

50 mm

RADW_INCH Radial width:

1,96850393700787 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Radial adaptor C.-ASHA • metric • Walter Capto^TM ISO 26623

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022003

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

ASH-RADIAL-1-CAPTO

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

5893077

SUPPLIER_ALT_AID:

5893077

TERRITORY:

US

TSYC Tool style code:

ASH-RADIAL-1-CAPTO

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For shank tools

UDX.BULLETTEXT_2:

ISO 26623

UDX.CATFAM_CODE:

C.-ASHA

UDX.CATFAM_DESCR:

Radial adaptor

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

7.2545

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

4.5669

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.7323

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

7.2545

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

144.0456

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

4.6850

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D68AW

WF Functional width:

50 mm

WF_INCH Functional width:

1,96850393700787 inch

WT Weight:

3,27 kg

WT Weight of item:

3,265 kg

WT_INCH Weight of item:

7,198019 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

For shank tools

For shank tools|ISO 26623

ISO 26623
