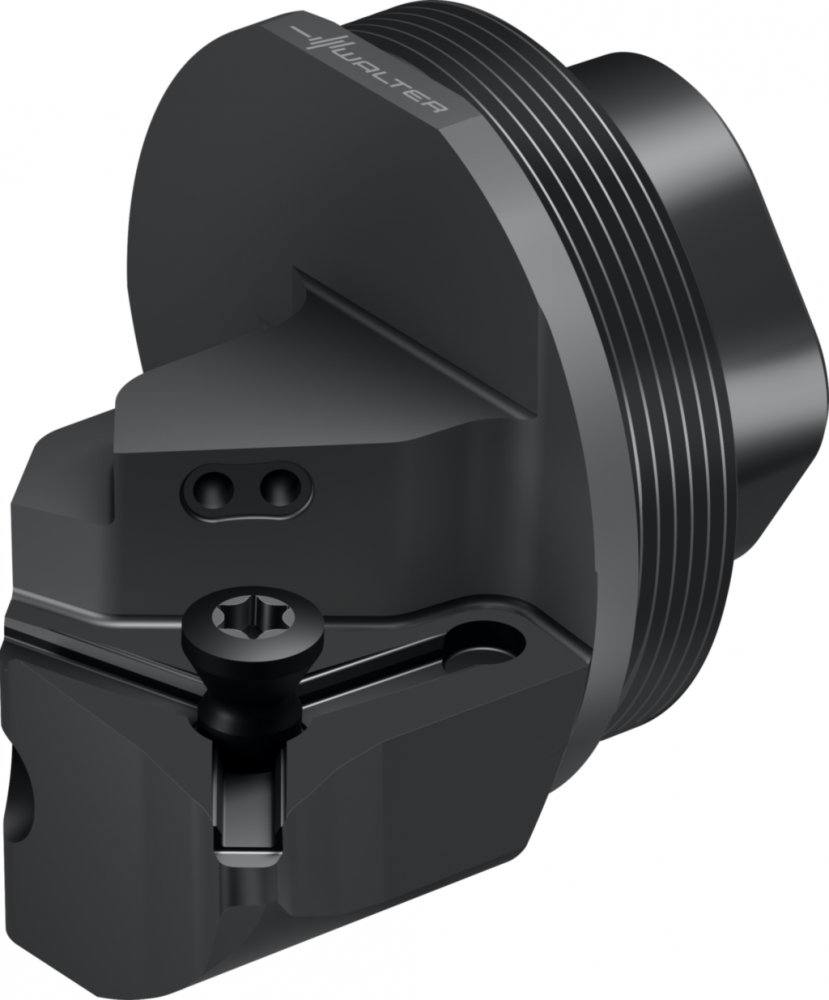

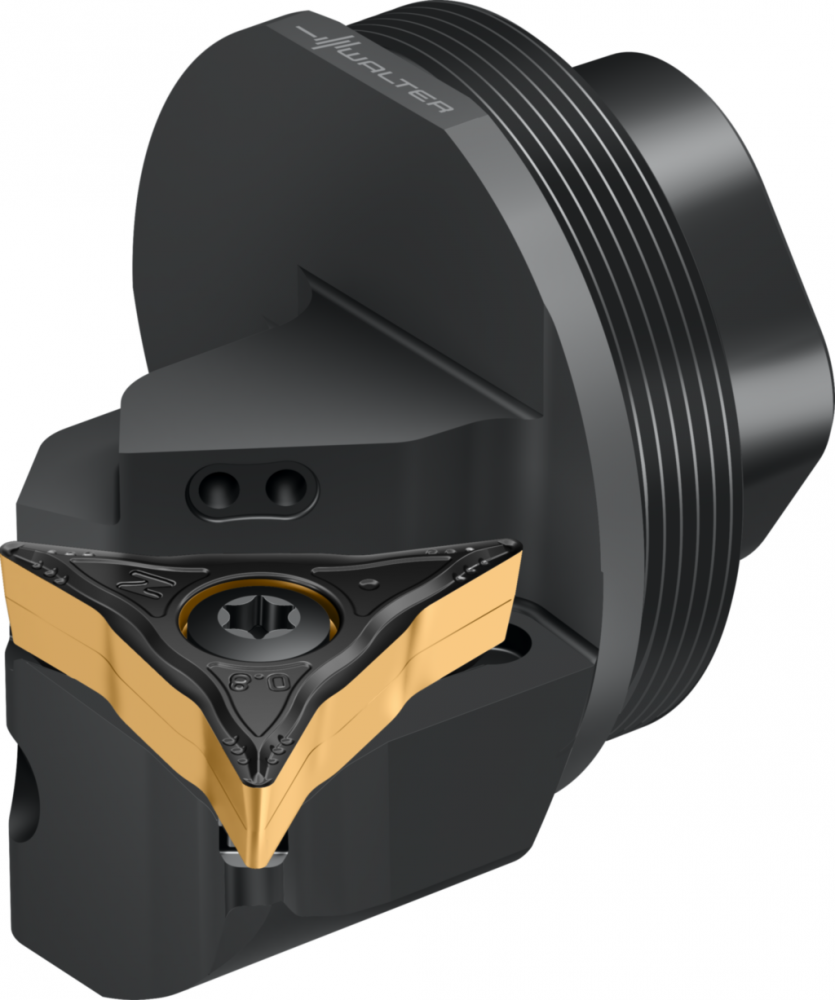

Replaceable head – Copy turning system : 8320906

Category:

Turning

Subcategory:

Internal Turning

Subtype:

Indexable Boring Bars

A2 Functional width:

34 mm

A2_INCH Functional width:

1,33858267716535 inch

A3 Functional length:

46,5 mm

A3_INCH Functional length:

1,83070866141732 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

63 mm

A6_INCH Minimum bore diameter:

2,48031496062992 inch

ART_ID_TO type=consists_of:

5040976,5163249,5096941

ART_ID_TO type=others:

7960231, ;7960232, ;7960243, ;7960244, ;7960245, ;7960246, ;7960247, ;7960248, ;7960249, ;7960250, ;7960251, ;7960252, ;7960253, ;7960255, ;7960256, ;7960258, ;7960259, ;7960262, ;7960263, ;7960264, ;7960266, ;7960267, ;7960268, ;8012495, ;8012496, ;801251

B3 Protruding length:

46,5 mm

B3_INCH Protruding length:

1,83070866141732 inch

B5 Overall length:

46,5 mm

B5_INCH Overall length:

1,83070866141732 inch

BLD Tool style code:

10

C11 Connection code type machine side:

SGL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

CCMS Connection code machine side:

SGL01A0500$$$$

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

A

CURRENCY:

USD

CXSC Coolant exit style code:

7

CZCMS Connection size code machine side:

500

D7 Weight of item:

0,307 kg

D7_INCH Weight of item:

0,6768122 lbs

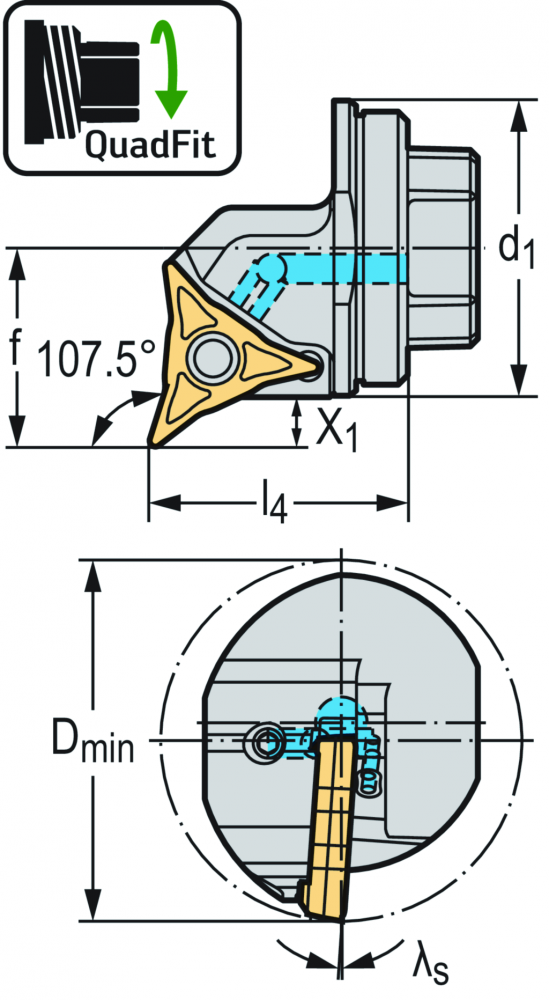

d1 QuadFit size:

Q50

Dmin Minimum hole diameter:

63 mm

Designation Tool designation:

W1211-Q50R-WL25

E1 Tool cutting edge angle:

142,5 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

35 °

E4 Rake angle orthogonal:

-1,8 °

E5 Inclination angle:

-3,7 °

EAN:

4063464862139

f Functional width:

34 mm

F1 Cutting direction:

R

F2 Tool holder shape code:

G

F5 Clamping type code:

S

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

7

IIC Insert interface code:

WR$$WL2504**3******

Insert seat size Insert seat size:

25

J1 Standard:

-

J21 Article number:

W1211-Q50R-WL25

J22 Product designation:

8102

J3 Company code:

W

J41 Insert interface code:

WR$$WL2504**3******

J42 Master insert identification:

WL25-VC0708N-MM4

J6 Connection code machine side:

SGL01A0500$$$$

J7 Data chip provision:

0

J8 Machining operation:

DDI

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, internal|W1211

l4 Maximum projection length:

35 mm

MANUFACTURER_AID:

W1211-Q50R-WL25

MIID Master insert identification:

WL25-VC0708N-MM4

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

ORDER_UNIT:

PCE

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Replaceable head – Copy turning system W1211-Q... • Walter Turn • metric • QuadFit • Right • Precision cooling

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181010

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGIBI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

W1211-QUADFIT-R-WL25-INNEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

SSC Insert seat size code:

25

SUPPLIER_AID:

8320906

SUPPLIER_ALT_AID:

8320906

TERRITORY:

US

Type Possible indexable inserts:

WL25..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Additional coolant hole for blind hole machining

UDX.BULLETTEXT_2:

Double internal coolant supply

UDX.CATFAM_CODE:

W1211-Q...

UDX.CATFAM_DESCR:

Replaceable head – Copy turning system

UDX.DESCR_APPLICATION:

Internal copying turning, facing and axial grooving;Profiling angle of up to 50°;Replacement for ISO VBMT, VCMT, DCMTindexable inserts;High-precision components

UDX.DESCR_BENEFITS:

Long tool life when copy turning;Highly cost-efficient thanks to lower tool costs due to three cutting edges;High level of dimensional stability and indexing accuracy due to positive-locking, robust WL connection

UDX.DESCR_TOOL:

Right-hand/left-hand versionmax.50° profiling angle

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.6703

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.8004

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

26.9115

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

W1211

γ Orthogonal rake angle:

-1,8 °

λs Inclination angle:

-3,7 °

Additional coolant hole for blind hole machining

Additional coolant hole for blind hole machining|Double internal coolant supply

Double internal coolant supply
