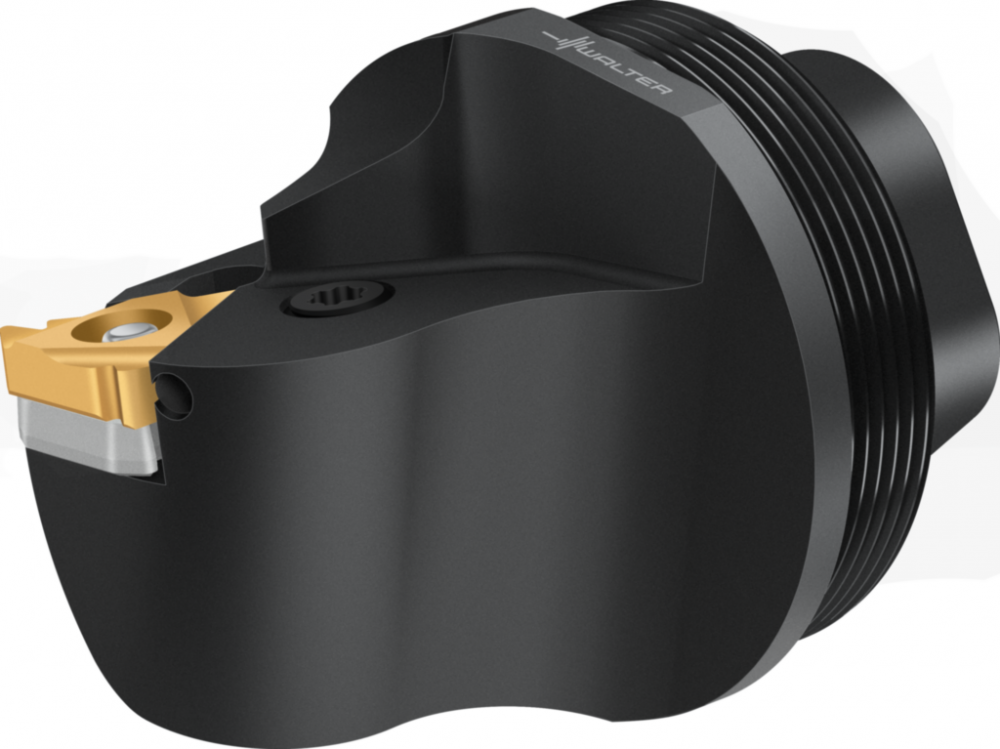

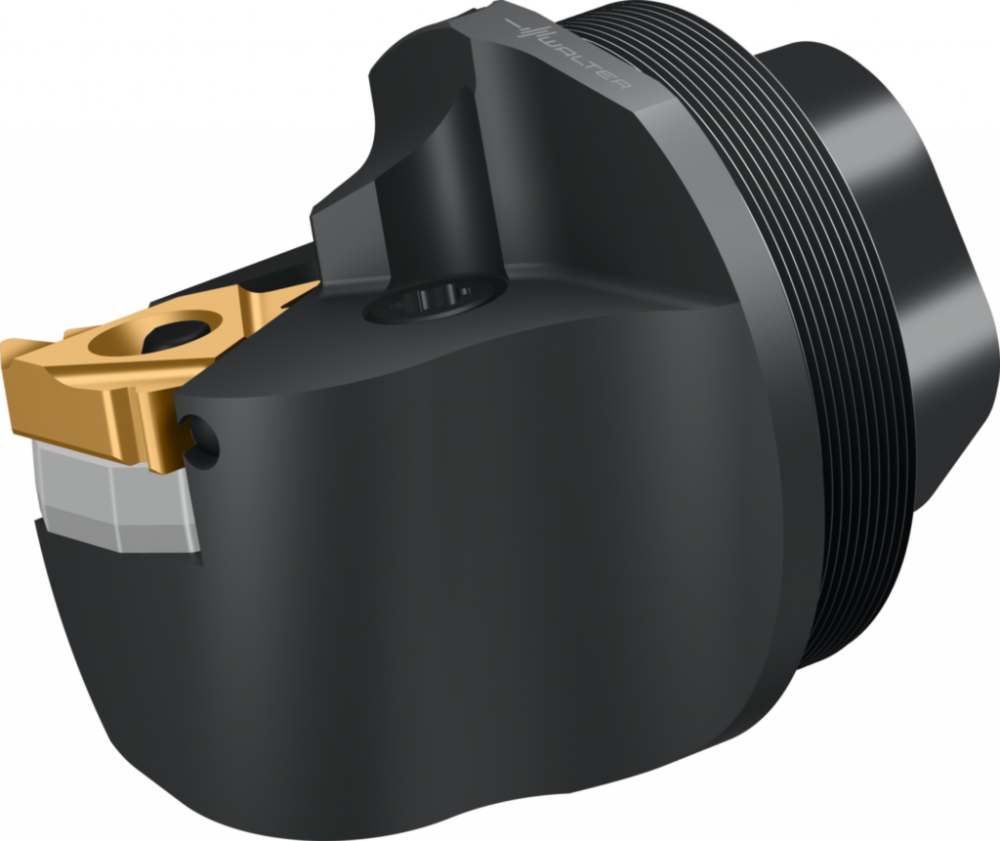

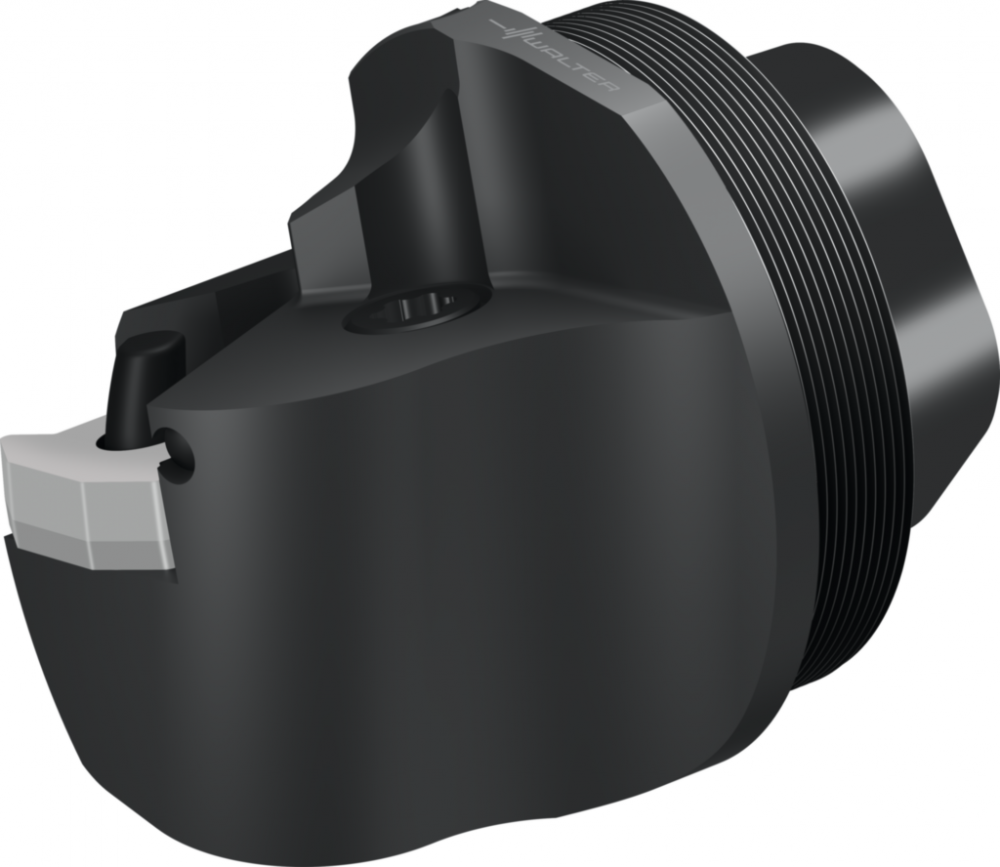

Replaceable head – Internal thread : 7965740

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

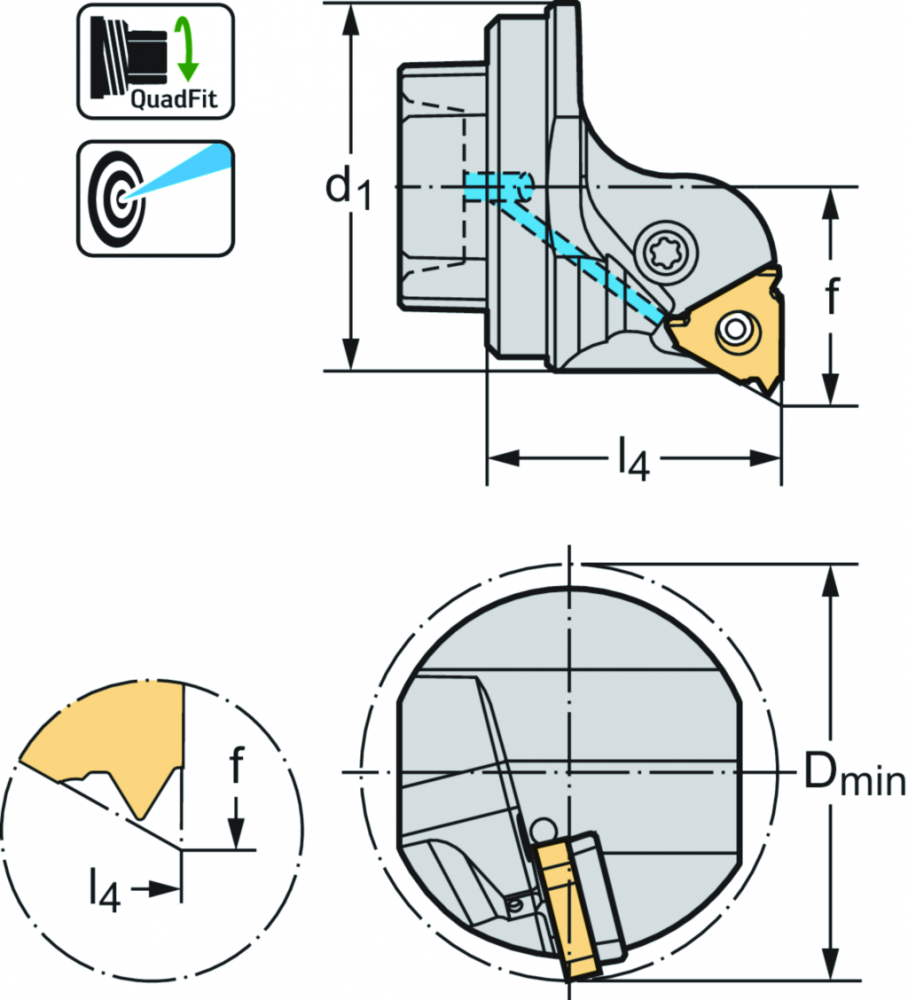

A2 Functional width:

25,3 mm

A2_INCH Functional width:

0,996062992125984 inch

A3 Functional length:

32 mm

A3_INCH Functional length:

1,25984251968504 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

46 mm

A6_INCH Minimum bore diameter:

1,81102362204724 inch

ALP Clearance angle axial:

13,414 °

ART_ID_TO type=accessories:

7981378,7981379,7981410,7981411,7981412,7981413

ART_ID_TO type=consists_of:

5115145,7967938,7968100,7968102,7968104

ART_ID_TO type=others:

5012847, ;5012853, ;5012859, ;7981378, ;7981379, ;7981410, ;7981411, ;7981412, ;7981413, 7816963;7816964;7816965;7816972;7816973;7816974;7816980;7816981;7816987;7816988;7816995;7816996;7816997;7940076;7940077;7940087;7940088;8458015

B3 Protruding length:

41,5 mm

B3_INCH Protruding length:

1,63385826771654 inch

B5 Overall length:

41,5 mm

B5_INCH Overall length:

1,63385826771654 inch

BD Body diameter:

40 mm

BD_INCH Body diameter:

1,5748031496063 inch

BLD Tool style code:

11

BMC Body material code:

S

C11 Connection code type machine side:

SGL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CCMS Connection code machine side:

SGL01A0400$$$$

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

150 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

A

CURRENCY:

USD

CXSC Coolant exit style code:

7

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,25 kg

D7_INCH Weight of item:

0,55115 lbs

d1 Connection size code:

Q40

Dmin Minimum hole diameter:

46 mm

Designation Tool designation:

T1820-Q40L-22I-P

DHD Drop head design:

0

DMIN Minimum bore diameter:

46 mm

DMIN_INCH Minimum bore diameter:

1,81102362204724 inch

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

S

EAN:

0638577912

f Functional width:

25,3 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F3 Drop head design:

0

F5 Clamping type code:

P

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

7

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

IIC Insert interface code:

WR$$NTSI22**3L*****

Insert size Insert size:

22

J1 Standard:

-

J21 Article number:

T1820-Q40L-22I-P

J3 Company code:

W

J41 Insert interface code:

WR$$NTSI22**2L*****

J42 Master insert identification:

NTS-I-22

J6 Connection code machine side:

SGL01A0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DGI

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool heads for threading, internal|T1820

l4 Functional length:

32 mm

LF Functional length:

32 mm

LF_INCH Functional length:

1,25984251968504 inch

LPR Protruding length:

41,5 mm

LPR_INCH Protruding length:

1,63385826771654 inch

MANUFACTURER_AID:

T1820-Q40L-22I-P

MIID Master insert identification:

NTS-I-22

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

41,5 mm

OAL_INCH Overall length:

1,63385826771654 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Replaceable head – Internal thread T1820-Q...-P • QuadFit • Precision cooling • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181011

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHII

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

T1820-QUADFIT-L-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

-1 °

SC Insert shape code:

T

SSC Insert seat size code:

22

SUPPLIER_AID:

7965740

SUPPLIER_ALT_AID:

7965740

TERRITORY:

US

THDH Thread hand:

RH

TSYC Tool style code:

T1820-QUADFIT-L-P

Type Possible indexable inserts:

NTS-I . -22 ..

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

QuadFit

UDX.BULLETTEXT_2:

Precision cooling

UDX.CATFAM_CODE:

T1820-Q...-P

UDX.CATFAM_DESCR:

Replaceable head – Internal thread

UDX.DESCR_APPLICATION:

Internal thread;For Accure·tec A3000 boring bars with patented vibration-damping technology;Can be used up to a coolant pressure of 150 bar

UDX.DESCR_BENEFITS:

Unobstructed chip evacuation from the bore;Optimum cooling increases tool life by 30–150%;Short chips thanks to precision cooling;Quick and precise tool change (±0.002 mm)

UDX.DESCR_TOOL:

Internal coolant supply on all tools;Only one cap nut for clamping the exchangeable head;Locating face for setting the centre height;QuadFit quick-change head for thread turning with precision cooling T1820-P

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.5513

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.5513

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

26.9115

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

T1820

WF Functional width:

25,3 mm

WF_INCH Functional width:

0,996062992125984 inch

WT Weight of item:

0,25 kg

WT_INCH Weight of item:

0,55115 lbs

XYWD xyw plane distance:

-32 mm

XYWD_INCH xyw plane distance:

-1,25984251968504 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

25,3 mm

YZWD_INCH yzw plane distance:

0,996062992125984 inch

β Beta:

1 °

Precision cooling

QuadFit

QuadFit|Precision cooling
