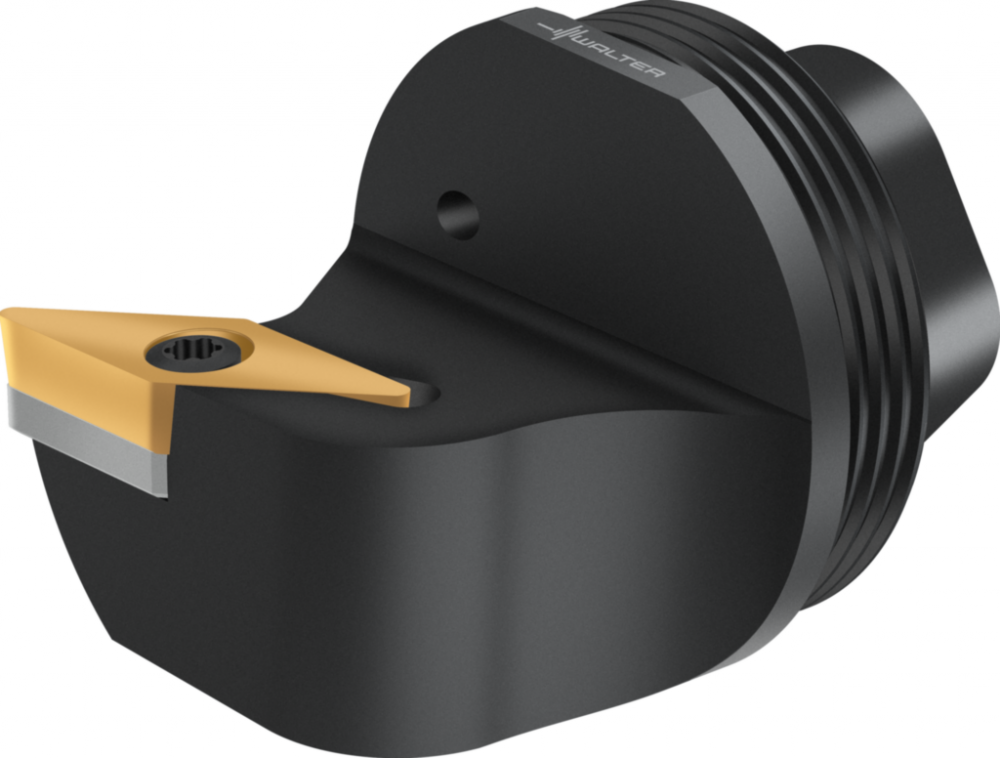

Replaceable head – screw clamping : 7796398

Category:

Turning

Subcategory:

Internal Turning

Subtype:

Indexable Boring Bars

A1 Cutting edge length:

16,5 mm

A1_INCH Cutting edge length:

0,649606299212598 inch

A2 Functional width:

22 mm

A2_INCH Functional width:

0,866141732283465 inch

A3 Functional length:

32 mm

A3_INCH Functional length:

1,25984251968504 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

40 mm

A6_INCH Minimum bore diameter:

1,5748031496063 inch

ART_ID_TO type=consists_of:

5040977,5194528,5194533,5194538

ART_ID_TO type=others:

5025462, ;5025469, ;5619944, ;5619946, ;5619947, ;5848694, ;5848696, ;6313082, ;6406428, ;6440432, ;6440437, ;6440673, ;6440675, ;6462630, ;6462663, ;6465364, ;6465441, ;6465899, ;6484466, ;6484468, ;6488029, ;6488051, ;6498356, ;6498357, ;6498445, ;663630

B3 Protruding length:

38,5 mm

B3_INCH Protruding length:

1,51574803149606 inch

B5 Overall length:

38,5 mm

B5_INCH Overall length:

1,51574803149606 inch

BLD Tool style code:

10

C11 Connection code type machine side:

SGL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

320

CCMS Connection code machine side:

SGL01A0320$$$$

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

A

CURRENCY:

USD

CW Cutting edge length:

16,5 mm

CW_INCH Cutting edge length:

0,649606299212598 inch

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

320

D7 Weight of item:

0,106 kg

D7_INCH Weight of item:

0,2336876 lbs

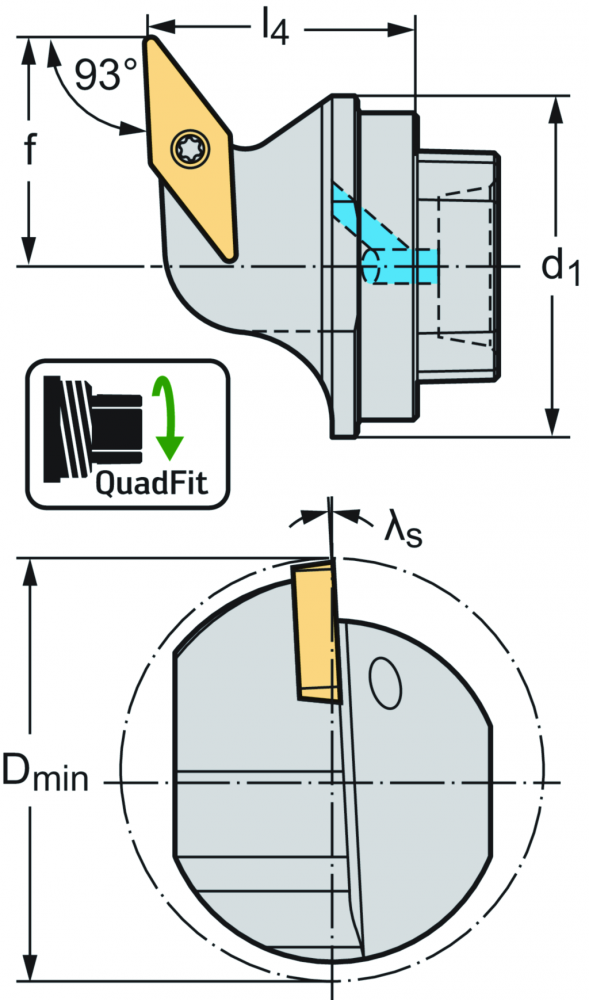

d1 Connection diameter:

Q32

Dmin Minimum diameter:

40 mm

Designation Tool designation:

Q32-SVUBL-22032-16

E1 Tool cutting edge angle:

93 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

35 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

-3 °

EAN:

0560345914

f Functional width:

22 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

S

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

IIC Insert interface code:

ISO$VC1604003******

Insert seat size Insert seat size:

16

J1 Standard:

-

J21 Article number:

Q32-SVUBL-22032-16

J3 Company code:

W

J41 Insert interface code:

ISO$VB1604003******

J42 Master insert identification:

VBMT 16 04 08

J6 Connection code machine side:

SGL01A0320$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFI

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, internal|D81PS

l4 Projection length:

32 mm

MANUFACTURER_AID:

Q32-SVUBL-22032-16

MIID Master insert identification:

VBMT 16 04 08

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

ORDER_UNIT:

PCE

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Replaceable head – screw clamping Q...-SVUB • Walter Turn • metric • QuadFit • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181010

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181010

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGIBI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

SVUBL-QUADFIT-INNEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

SSC Insert seat size code:

16

SUPPLIER_AID:

7796398

SUPPLIER_ALT_AID:

7796398

TERRITORY:

US

Type Possible indexable inserts:

VB .. 1604 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

QuadFit

UDX.BULLETTEXT_2:

For Accure·tec boring bars

UDX.CATFAM_CODE:

Q...-SVUB

UDX.CATFAM_DESCR:

Replaceable head – screw clamping

UDX.DESCR_APPLICATION:

Suitable for roughing and finishing applications;Counterboring and internal copy turning of long bores;For Accure·tec A3000 boring bars with patented vibration-damping technology

UDX.DESCR_BENEFITS:

Unobstructed chip evacuation from the bore;Quick and precise tool change (±0.002 mm);Less non-productive time due to fast tool changes

UDX.DESCR_TOOL:

Internal coolant supply on all tools;Only one cap nut for clamping the exchangeable head;Locating face for setting the centre height;QuadFit quick-change head with screw clamping (S)

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.2337

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.3241

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

13.7303

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D81PS

γ Orthogonal rake angle:

0 °

λs Inclination angle:

-3 °

For Accure·tec boring bars

QuadFit

QuadFit|For Accure·tec boring bars
