Routing cutters : 6866262 | RJW Industrial

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

A1 Cutting diameter:

31,75 mm

A1_INCH Cutting diameter:

1,25 inch

A3 Body diameter:

31,2 mm

A3_INCH Body diameter:

1,22834645669291 inch

APMX Depth of cut maximum:

20,8 mm

APMX_INCH Depth of cut maximum:

0,818897637795276 inch

ART_ID_TO type=accessories:

5050323,6421702,6550406,6550407

ART_ID_TO type=consists_of:

6550405

ART_ID_TO type=others:

6556174, ;6556175, ;6556200, ;6556201, ;6796131, ;6796132, ;6796134, ;6796135, ;6796140, ;6796141, ;6807395, ;6807396, ;7169067, ;7170514, ;7170562, ;7170567, ;7170577, ;7170603, ;7170604, ;7170611, ;7220872, ;7676887, ;7924300, ;7924301, ;7924302, ;792430

B2 Depth of cut maximum:

20,8 mm

B2_INCH Depth of cut maximum:

0,818897637795276 inch

B3 Protruding length:

54 mm

B3_INCH Protruding length:

2,1259842519685 inch

B4 Usable length:

54 mm

B4_INCH Usable length:

2,1259842519685 inch

B5 Overall length:

111,938 mm

B5_INCH Overall length:

4,40700787401575 inch

B6 Head length:

54 mm

B6_INCH Head length:

2,1259842519685 inch

BD Body diameter:

31,2 mm

BD_INCH Body diameter:

1,22834645669291 inch

BLD Tool style code:

6

BMC Body material code:

S

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

3

C15 Connection code style machine side:

5

C2 Connection size code machine side:

1250

C3 Connection diameter machine side:

31,75 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

1,25 inch

CCMS Connection code machine side:

ZYL10S1250h$06

CICT (F) Face mounted insert count:

2

CICT (S) Peripheral mounted insert count:

1

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

N

CUBPMS Connection unit base precision machine side:

S

CURRENCY:

USD

CWX Cutting width maximum:

15,3 mm

CWX_INCH Cutting width maximum:

0,602362204724409 inch

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

1250

D11 Mill tool type ISO:

H

D6 Rotational speed maximum:

7200 1/min

D7 Weight of item:

0,562 kg

D7_INCH Weight of item:

1,2389852 lbs

D9 Adjustment property:

0

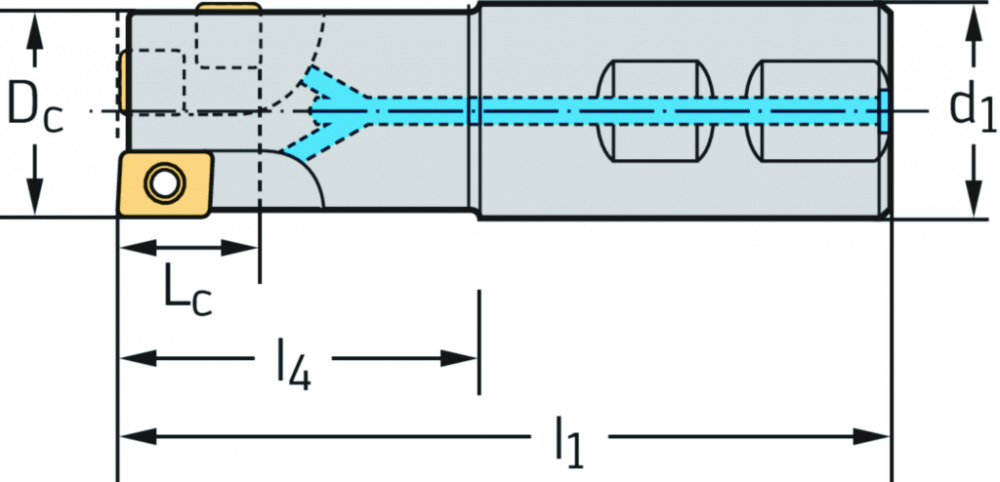

d1 Connection diameter:

1,25 inch

Dc Cutting edge diameter:

1,25 inch

DC Cutting diameter:

31,75 mm

DC_INCH Cutting diameter:

1,25 inch

Designation Tool designation:

M4792.031-W31-01-20

E1 Tool cutting edge angle:

90 °

E2 Rake angle radial:

0 °

E3 Rake angle axial:

0 °

E4 Ramping angle maximum:

25 °

E5 Plunge depth maximum:

0,9 mm

E5_INCH Plunge depth maximum:

0,0354330708661417 inch

EAN:

0803718724

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

1

F22 Face effective cutting edge count:

1

F23 Number of insert mounting levels:

2

F24 Number of inserts per mounting level:

1

FMT Form type machine side:

EXT

G13 Face mounted insert count:

2

G15 Peripheral mounted insert count:

1

G21 Clamping type code:

S

G22 Cutting item type count:

3

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

ISO3338-2

J11 Standard letter to the standard number:

WE

J21 Article number:

M4792.031-W31-01-20

J3 Company code:

W

J41 Insert interface code:

WR$$LD14T3083R***08

J51 Insert interface code:

WR$$SD09T3043R***08

J6 Connection code machine side:

ZYL10S1250h$06

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Tool Item|Milling||End mills, multi insert flute|M4792

l1 Overall length:

4,407 inch

l4 Maximum projection length:

2,126 inch

Lc Cutting edge length:

0,819 inch

LB Body length:

54 mm

LB_INCH Body length:

2,1259842519685 inch

LF Functional length:

82,966 mm

LF_INCH Functional length:

3,26637795275591 inch

LU Usable length:

54 mm

LU_INCH Usable length:

2,1259842519685 inch

MANUFACTURER_AID:

M4792.031-W31-01-20

No. of inserts Number of indexable inserts:

1

NOI Insert index count:

200

NO_CU_PER_OU:

1

OAL Overall length:

111,938 mm

OAL_INCH Overall length:

4,40700787401575 inch

OHX Protruding length:

54 mm

OHX_INCH Protruding length:

2,1259842519685 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Routing cutters M4792 • DIN 1835 B shank • κ=90° • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180806

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180806

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241624

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241624

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

M4792-UW

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

25 °

RPMX Rotational speed maximum:

7200 1/min

SC Insert shape code:

S

SUPPLIER_AID:

6866262

SUPPLIER_ALT_AID:

6866262

TERRITORY:

US

TSYC Tool style code:

M4792-UW

Type Possible indexable inserts:

SDM . 09T308

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

2 or 4 cutting edges per indexable insert

UDX.CATFAM_CODE:

M4792

UDX.CATFAM_DESCR:

Routing cutters

UDX.DESCR_APPLICATION:

For slot milling in all steel and cast iron workpieces, stainless steels and difficult-to-cut materials

UDX.DESCR_BENEFITS:

High level of cost-efficiency;Cost-effective procurement and inventory thanks to universal use of system insert;Four or two cutting edges per indexable insert;Concept requiring minimum resources;Low power requirement thanks to highly positive geometries;CO

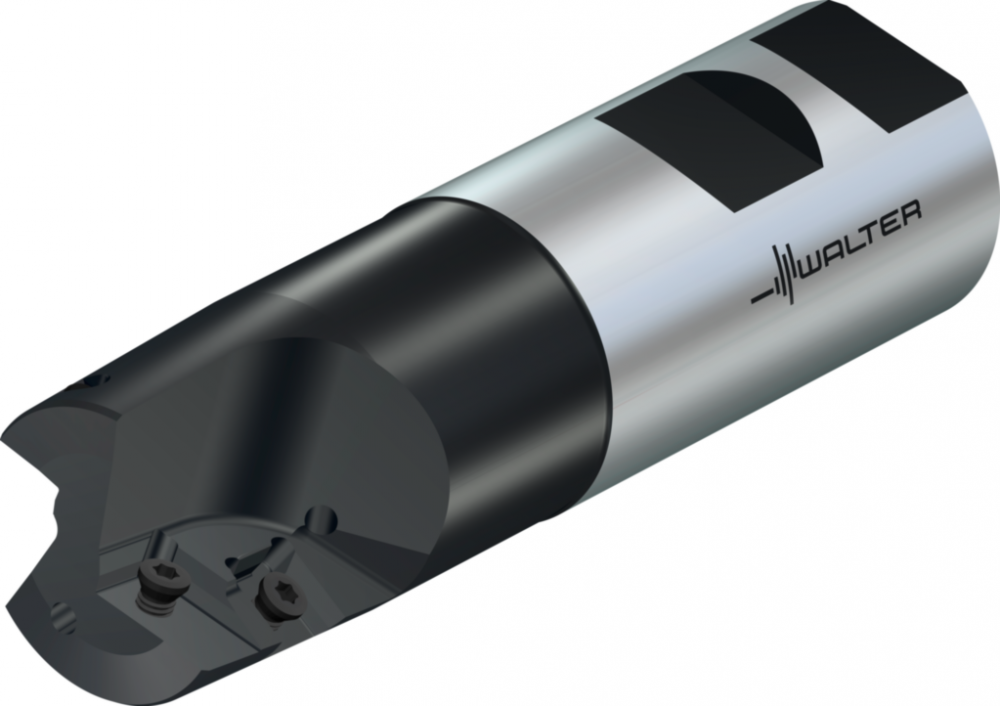

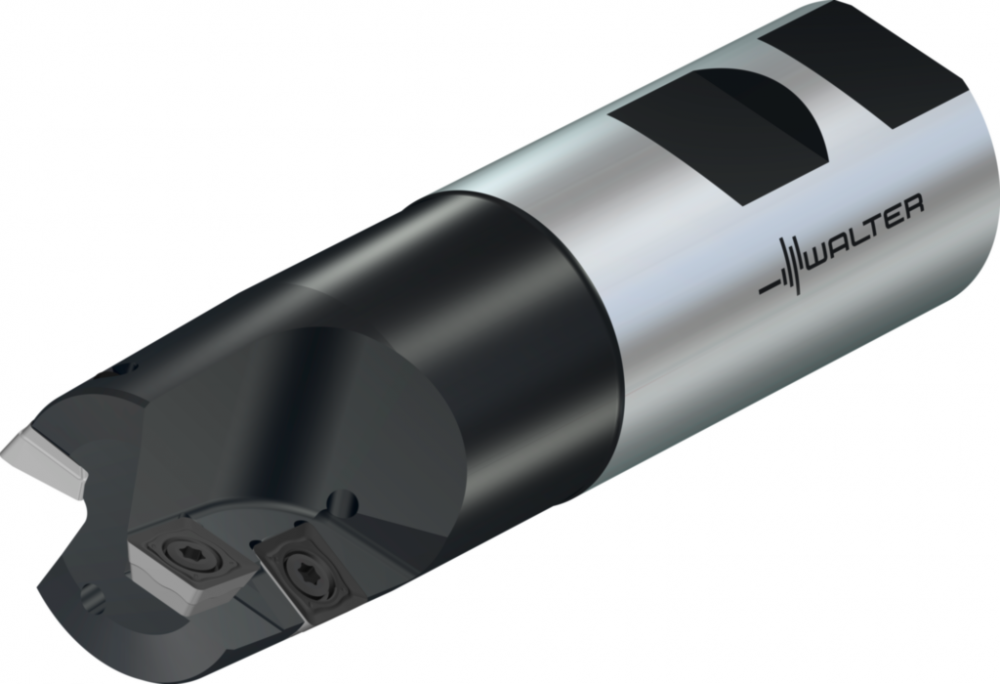

UDX.DESCR_TOOL:

Walter M4792 routing cutter;Routing cutter with square system insert at the circumference and in the centre and also with rhombic face insert;With centre cut;With internal coolant for reliable chip evacuation by compressed air or coolant

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.2392

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.2598

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.2992

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.2965

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

9.9981

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.2598

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

M4792

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight:

1,239 lbs

WT Weight of item:

0,562 kg

WT_INCH Weight of item:

1,2389852 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

1

ZEFF Face effective cutting edge count:

1

ZEFP Peripheral effective cutting edge count:

1

2 or 4 cutting edges per indexable insert
