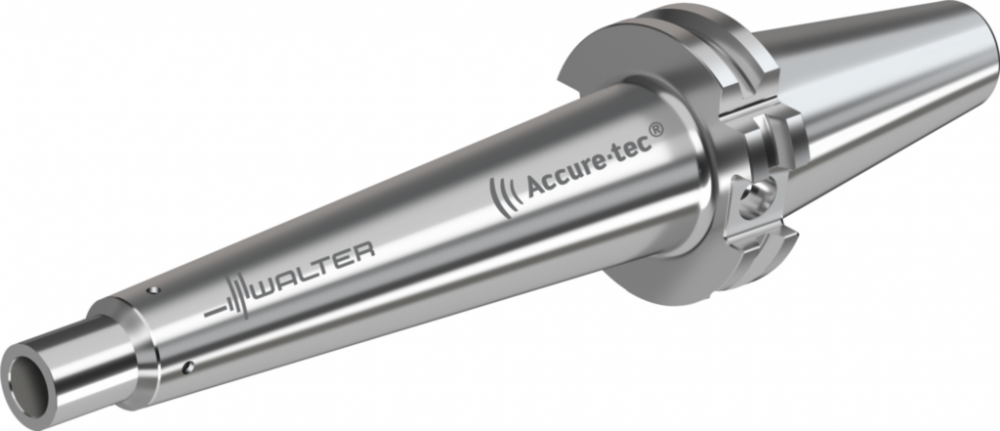

SK adaptor – Vibration-damped : 7975774

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

28 mm

A1_INCH Body diameter:

1,10236220472441 inch

A2 Body diameter 2:

37 mm

A2_INCH Body diameter 2:

1,45669291338583 inch

A4 Flange diameter:

63,55 mm

A4_INCH Flange diameter:

2,50196850393701 inch

B1 Body length 1:

20 mm

B1_INCH Body length 1:

0,78740157480315 inch

B2 Length 2:

24 mm

B2_INCH Length 2:

0,94488188976378 inch

B3 Protruding length:

235 mm

B3_INCH Protruding length:

9,25196850393701 inch

B4 Overall length:

303,4 mm

B4_INCH Overall length:

11,9448818897638 inch

B71 Functional length:

235 mm

B71_INCH Functional length:

9,25196850393701 inch

BBD Balanced By Design:

0

BD Body diameter 3:

53,61 mm

BD_INCH Body diameter 3:

2,11062992125984 inch

BLD Tool style code:

508124

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

17

C13 Connection thread nominal size machine side:

M16

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

28 mm

C3_INCH Connection diameter machine side:

1,10236220472441 inch

C4 Shank length:

68,4 mm

C4_INCH Shank length:

2,69291338582677 inch

C51 Connection code type workpiece side:

SAW

C52 Connection code form at workpiece side:

1

C53 Connection thread nominal size workpiece side:

M16

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

280

CCFMS Connection code form at machine side:

17

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

SKG17C0400$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

SAW

CCWS Connection code workpiece side:

SAW01C0280****

CNSC Coolant entry style code:

7

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

280

D6 Rotational speed maximum:

8000 1/min

D7 Weight of item:

3,7 kg

D7_INCH Weight of item:

8,15702 lbs

d11 Connection size code:

T28

d13 Pull stud, thread size:

M16

d14 Connection diameter:

28 mm

d1 Connection size code:

SK40

Designation Tool designation:

AC060-S40-T28-235

E2 Kappa:

0 °

EAN:

0641262851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

8

H21 Coolant entry style code:

7

H22 Coolant exit style code:

1

J1 Standard:

ISO7388-1

J11 Standard letter to the standard number:

AD/

J21 Article number:

AC060-S40-T28-235

J22 Product designation:

7652

J3 Company code:

W

J4 Connection code workpiece side:

SAW01C0280****

J6 Connection code machine side:

SKG17C0400$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders steep taper shank - Screw mounting SANDVIK Coromant|AC060

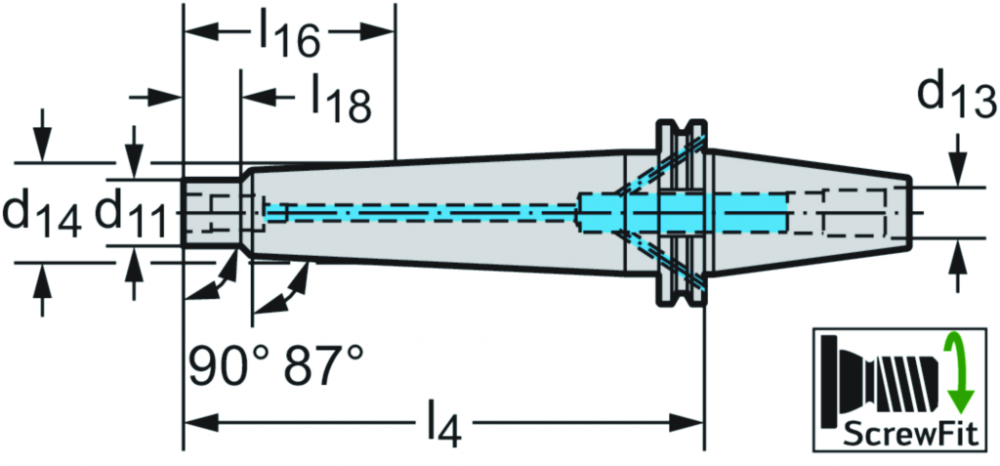

l16 Usable length:

24 mm

l18 Body length:

20 mm

l4 Functional length:

235 mm

LB Length Body diameter 3:

200 mm

LB_INCH Length Body diameter 3:

7,8740157480315 inch

LF Functional length:

235 mm

LF_INCH Functional length:

9,25196850393701 inch

LPR Protruding length:

235 mm

LPR_INCH Protruding length:

9,25196850393701 inch

LS Shank length:

68,4 mm

LS_INCH Shank length:

2,69291338582677 inch

MANUFACTURER_AID:

AC060-S40-T28-235

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

303,4 mm

OAL_INCH Overall length:

11,9448818897638 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

SK adaptor – Vibration-damped AC060-S • metric • For ScrewFit front pieces • With preset vibration damping

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AC060-S

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

8000 1/min

SUPPLIER_AID:

7975774

SUPPLIER_ALT_AID:

7975774

TERRITORY:

US

TSYC Tool style code:

AC060-S

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ScrewFit front pieces

UDX.BULLETTEXT_2:

With preset vibration damping

UDX.CATFAM_CODE:

AC060-S

UDX.CATFAM_DESCR:

SK adaptor – Vibration-damped

UDX.DISCOUNTGROUP:

073

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

8.1585

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

4.7244

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

16.3386

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

8.1585

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

364.6779

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

4.7244

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AC060

WT Weight:

3,7 kg

WT Weight of item:

3,7 kg

WT_INCH Weight of item:

8,15702 lbs

XYWD xyw plane distance:

-235 mm

XYWD_INCH xyw plane distance:

-9,25196850393701 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ScrewFit front pieces

For ScrewFit front pieces|With preset vibration damping

With preset vibration damping
