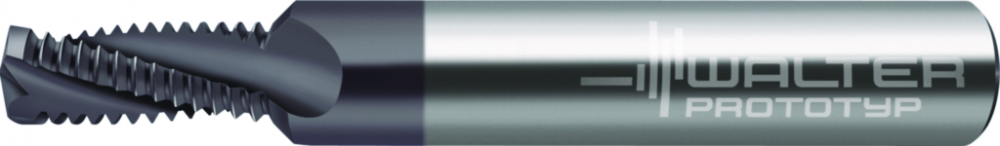

Solid carbide drill thread milling cutters : 5910480

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Solid Threading Mills

A2 Cutting diameter maximum:

6,42 mm

A2_INCH Cutting diameter maximum:

0,252755905511811 inch

A6 Drilling diameter:

6,75 mm

A6_INCH Drilling diameter:

0,265748031496063 inch

APMX Depth of cut maximum:

13,75 mm

APMX_INCH Depth of cut maximum:

0,541338582677165 inch

ART_ID_TO type=others:

5007213;6358348;6362287;6381038;6381039;6381079;6381125;6381126;6381127;6381129;6381180;6381181;6852043;6852047;6852048;6852122;6852124;8156065;8156069;8156072;8156076;8156079;8156082;8156085;8156088;8698233;8698238;8698250;8698253;8698258;8698260;8698264;

B2 Depth of cut maximum:

13,75 mm

B2_INCH Depth of cut maximum:

0,541338582677165 inch

B3 Protruding length:

34 mm

B3_INCH Protruding length:

1,33858267716535 inch

B4 Usable length:

17,68 mm

B4_INCH Usable length:

0,696062992125984 inch

B5 Overall length:

74 mm

B5_INCH Overall length:

2,91338582677165 inch

B71 Functional length:

72,78 mm

B71_INCH Functional length:

2,86535433070866 inch

BD Body diameter:

10 mm

BD_INCH Body diameter:

0,393700787401575 inch

BLD Tool style code:

12

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

100

C3 Connection diameter machine side:

10 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,393700787401575 inch

C4 Shank length:

40 mm

C4_INCH Shank length:

1,5748031496063 inch

CCMS Connection code machine side:

ZYL01G1000h$06

COATING Coating:

NHC

CONTENT_UNIT:

PCE

CURRENCY:

USD

CXSC Coolant exit style code:

3

D31 Thread form type:

M

D32 Thread pitch:

1,25 mm

D32_INCH Thread pitch:

0,0492125984251969 inch

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,066 kg

D7_INCH Weight of item:

0,1455036 lbs

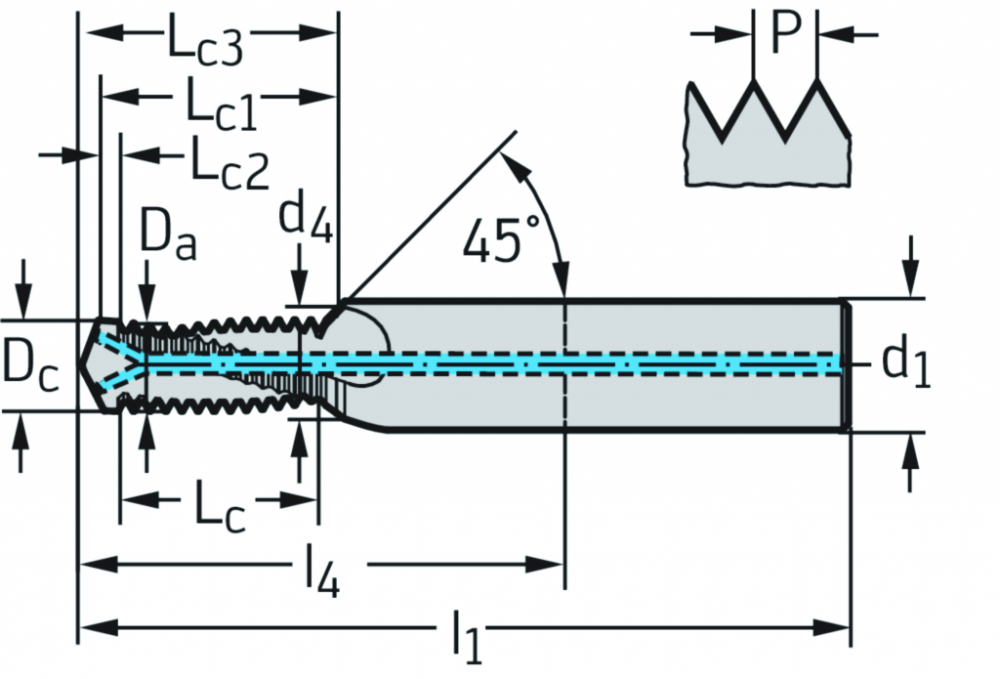

d1 Connection diameter:

10 mm

d4 Flange diameter:

8,3 mm

Da Body diameter:

6,42 mm

Dc Body diameter:

6,8 mm

DC Cutting diameter:

8,3 mm

DCX Cutting diameter maximum:

6,42 mm

DCX_INCH Cutting diameter maximum:

0,252755905511811 inch

DC_INCH Cutting diameter:

0,326771653543307 inch

Designation Tool designation:

H5075011-M8

E2 Rake angle radial:

1,5 °

EAN:

4042446199036

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

3

F22 Face effective cutting edge count:

3

F3 Flute helix hand:

R

F4 Flute helix angle:

27 °

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H3 Grade manufacturer's designation:

NHC

H4 Body material code:

H

H5 Coating:

NHC

HAND Cutting direction:

R

J1 Standard:

DIN6535

J11 Standard letter to the standard number:

HA

J21 Article number:

H5075011-M8

J3 Company code:

W

J6 Connection code machine side:

ZYL01G1000h$06

J7 Data chip provision:

0

J8 Machining operation:

BVB

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

70 °

KEYWORD:

Solid Cutting Tool|Threading|TMD|Drill thread milling cutters|1H5075011

l1 Overall length:

74 mm

l4 Maximum length:

34 mm

Lc1 Shank diameter length:

17,7 mm

Lc2 Shank diameter length:

1,25 mm

Lc3 Usable length:

18,9 mm

Lc Cutting depth maximum:

13,8 mm

LF Functional length:

72,78 mm

LF_INCH Functional length:

2,86535433070866 inch

LPR Protruding length:

34 mm

LPR_INCH Protruding length:

1,33858267716535 inch

LU Usable length:

17,68 mm

LU_INCH Usable length:

0,696062992125984 inch

MANUFACTURER_AID:

H5075011-M8

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

74 mm

OAL_INCH Overall length:

2,91338582677165 inch

ORDER_UNIT:

PCE

P Thread pitch:

1,25 mm

PHI Phi:

0 °

PL Point length:

1,22 mm

PL_INCH Point length:

0,0480314960629921 inch

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide drill thread milling cutters • TMD • M • NHC • ≤2xD • DIN 6535 HA shank • coolant exit style code: axial inclined exit

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180612

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180612

REFERENCE_FEATURE_GROUP_ID_GTC:

MILTHDCS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23291800

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242106

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23172005

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23172013

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23172005

REFERENCE_FEATURE_GROUP_ID_Walter:

H5075011

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

5910480

SUPPLIER_ALT_AID:

5910480

TERRITORY:

US

THFT Thread form type:

M

TP Thread pitch:

1,25 mm

TP_INCH Thread pitch:

0,0492125984251969 inch

TSYC Tool style code:

H5075011

UDX.APPAREA:

Threading

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Drill thread milling cutters

UDX.BULLETTEXT_2:

Drilling, countersinking and thread milling in one operation

UDX.CATFAM_DESCR:

Solid carbide drill thread milling cutters

UDX.DESCR_APPLICATION:

Blind-hole and through-hole threads;Cutting edge length and countersink step tailored to a thread depth of ≤ 2 × D_N;ISO N: Cast aluminium from an Si content of 7%; short-chipping Mg and Cu alloys;ISO K: Short-chipping materials, such as grey

UDX.DESCR_BENEFITS:

Increase in productivity thanks to reduced process times;Reduces the number of spaces in the tool cartridge;Precise positioning of core hole and thread

UDX.DESCR_TOOL:

TiAlN coating;Shank in accordance with DIN 6535 HA;Drill thread milling cutter;Drilling, countersinking and thread milling in one operation;Three teeth;NHC coating

UDX.DISCOUNTGROUP:

TSM

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.1455

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.7087

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.1455

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.7795

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.7087

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

1H5075011

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight of item:

0,066 kg

WT_INCH Weight of item:

0,1455036 lbs

Z Number of teeth:

3

ZEFP Peripheral effective cutting edge count:

3

Drill thread milling cutters

Drill thread milling cutters|Drilling, countersinking and thread milling in one operation

Drilling, countersinking and thread milling in one operation
