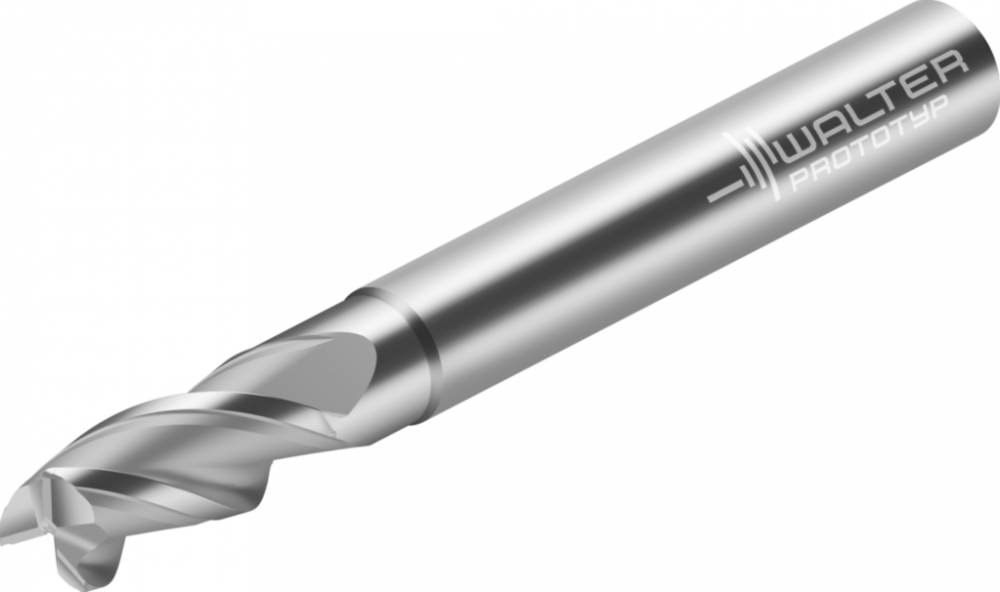

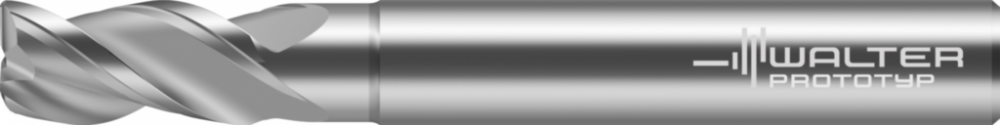

Solid carbide shoulder/slot mills : 8416157

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

A1 Cutting diameter:

9,525 mm

A1_INCH Cutting diameter:

0,375 inch

APMX Depth of cut maximum:

50,8 mm

APMX_INCH Depth of cut maximum:

2 inch

ART_ID_TO type=others:

5006402;5007506;5007507;5033135;5033136;5033137;5033138;5033139;5033140;5034292;5034306;5034501;5035305;5040063;5012458;5029303;5040066;5040067;5029304;5040069;5040070;5029305;5040072;5029306;5040074;5040075;5040684;5043218;5043219;5043220;5043221;5043222;

B2 Depth of cut maximum:

50,8 mm

B2_INCH Depth of cut maximum:

2 inch

B3 Protruding length:

68,6 mm

B3_INCH Protruding length:

2,7007874015748 inch

B4 Usable length:

50,8 mm

B4_INCH Usable length:

2 inch

B5 Overall length:

101,6 mm

B5_INCH Overall length:

4 inch

B6 Head length:

68,6 mm

B6_INCH Head length:

2,7007874015748 inch

B71 Functional length:

101,6 mm

B71_INCH Functional length:

4 inch

B9 Neck length:

50,8

BD Body diameter:

9,525 mm

BD_INCH Body diameter:

0,375 inch

BLD Tool style code:

2

BMC Body material code:

H

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

2

C15 Connection code style machine side:

5

C2 Connection size code machine side:

375

C3 Connection diameter machine side:

9,525 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,375 inch

C4 Shank length:

33 mm

C4_INCH Shank length:

1,2992125984252 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

ZYL01R3750h$06

CNSC Coolant entry style code:

0

COATING Coating:

ZrN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

N

CUBPMS Connection unit base precision machine side:

R

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

375

D6 Rotational speed maximum:

40622 1/min

D7 Weight of item:

0,087 kg

D7_INCH Weight of item:

0,1918002 lbs

d1 Shank diameter:

0,375 inch

Dc Cutting edge diameter:

3

DC Cutting diameter:

9,525 mm

DC_INCH Cutting diameter:

0,375 inch

Designation Tool designation:

MA267.9.53A3L038X-WJ30CD

E2 Rake angle radial:

12 °

E3 Rake angle axial:

5 °

E4 Ramping angle maximum:

10 °

EAN:

4063465298975

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

3

F22 Face effective cutting edge count:

3

F3 Flute helix hand:

R

F4 Flute helix angle:

39 °

FHA Flute helix angle:

39 °

FHH Flute helix hand:

R

FMT Form type machine side:

EXT

G1 Corner radius:

0,381 mm

G1_INCH Corner radius:

0,015 inch

GAMF Rake angle radial:

12 °

GAMP Rake angle axial:

5 °

GRADE Grade manufacturer's designation:

WJ30CD

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H3 Grade manufacturer's designation:

WJ30CD

H4 Body material code:

H

H5 Coating:

ZrN

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

P-NORM L

J21 Article number:

MA267.9.53A3L038X-WJ30CD

J3 Company code:

W

J6 Connection code machine side:

ZYL01R3750h$06

J7 Data chip provision:

0

J8 Machining operation:

FPL

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Solid Cutting Tool|Milling||Slotting and milling cutters|MA267

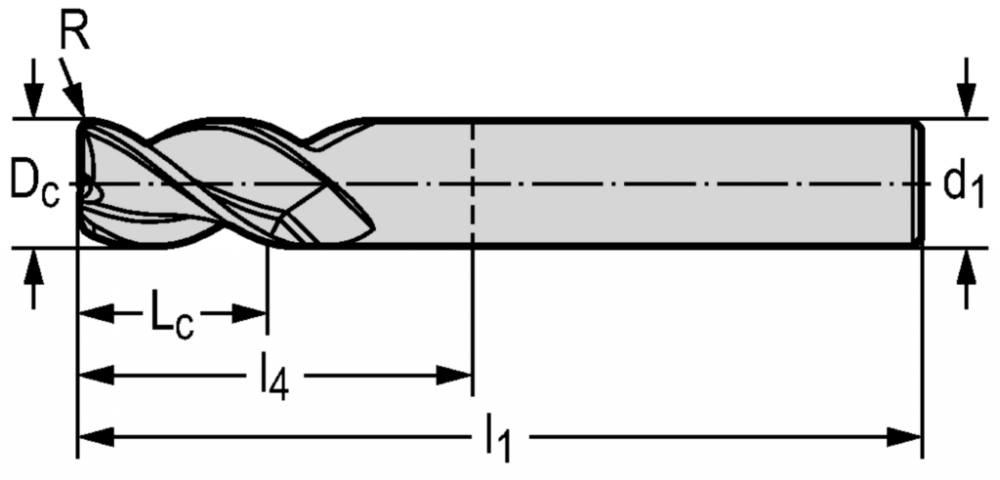

l1 Overall length:

4 inch

l4 Functional length:

2,701 inch

Lc Cutting edge length:

2 inch

LF Functional length:

101,6 mm

LF_INCH Functional length:

4 inch

LPR Protruding length:

68,6 mm

LPR_INCH Protruding length:

2,7007874015748 inch

LS Shank length:

33 mm

LS_INCH Shank length:

1,2992125984252 inch

LU Usable length:

50,8 mm

LU_INCH Usable length:

2 inch

MANUFACTURER_AID:

MA267.9.53A3L038X-WJ30CD

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

101,6 mm

OAL_INCH Overall length:

4 inch

OHX Protruding length:

68,6 mm

OHX_INCH Protruding length:

2,7007874015748 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

R Corner radius:

0,015 inch

RE Corner radius:

0,381 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide shoulder/slot mills MA267 • Advance • inch • Parallel shank • flute helix angle 39° • center cutting capability

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180602

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MA267.A-3-R

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,015 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

10 °

RPMX Rotational speed maximum:

40622 1/min

SUPPLIER_AID:

8416157

SUPPLIER_ALT_AID:

8416157

TERRITORY:

US

TSYC Tool style code:

MA267.A-3-R

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.CATFAM_CODE:

MA267

UDX.CATFAM_DESCR:

Solid carbide shoulder/slot mills

UDX.DISCOUNTGROUP:

M20

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.1918

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.6693

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.3307

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.1918

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.9399

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.6693

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

MA267

UDX.PRODUCTLINE:

Advance

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

good

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

5,333

WT Weight of item:

0,087 kg

WT_INCH Weight of item:

0,1918002 lbs

XYWD xyw plane distance:

-101,6 mm

XYWD_INCH xyw plane distance:

-4 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

3

ZEFF Face effective cutting edge count:

3

ZEFP Peripheral effective cutting edge count:

3
