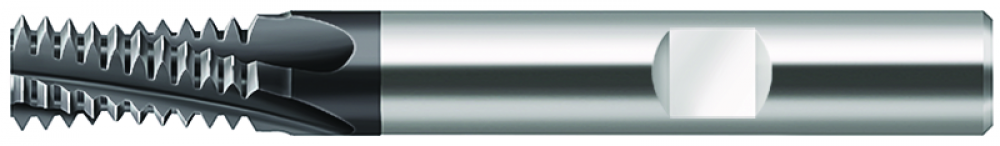

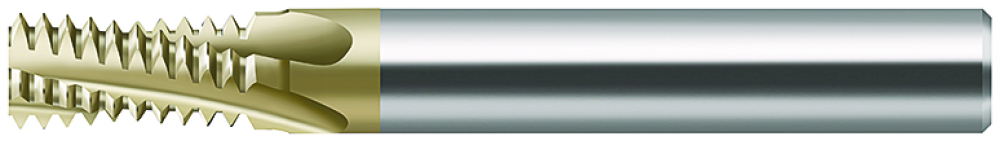

Solid carbide thread milling cutters : 6580341

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Solid Threading Mills

A2 Cutting diameter maximum:

14 mm

A2_INCH Cutting diameter maximum:

0,551181102362205 inch

APMX Depth of cut maximum:

24 mm

APMX_INCH Depth of cut maximum:

0,94488188976378 inch

ART_ID_TO type=others:

5012623;5012629;5012638;6258425;6358362;6362347;6381038;6381039;6381079;6381125;6381126;6381127;6381129;6381180;6381181;6852043;6852047;6852048;6852122;6852124;8156067;8156069;8156074;8156076;8156082;8156088;8648982;8651412;8651413;8651414;8651437;8651438;

B2 Depth of cut maximum:

24 mm

B2_INCH Depth of cut maximum:

0,94488188976378 inch

B3 Protruding length:

38 mm

B3_INCH Protruding length:

1,49606299212598 inch

B4 Usable length:

24 mm

B4_INCH Usable length:

0,94488188976378 inch

B5 Overall length:

83 mm

B5_INCH Overall length:

3,26771653543307 inch

B6 Head length:

38 mm

B6_INCH Head length:

1,49606299212598 inch

B71 Functional length:

60,5 mm

B71_INCH Functional length:

2,38188976377953 inch

BD Body diameter:

14 mm

BD_INCH Body diameter:

0,551181102362205 inch

BLD Tool style code:

10

BMC Body material code:

H

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

0

C15 Connection code style machine side:

5

C2 Connection size code machine side:

140

C3 Connection diameter machine side:

14 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,551181102362205 inch

C4 Shank length:

45 mm

C4_INCH Shank length:

1,77165354330709 inch

CCMS Connection code machine side:

ZYL10G1400h$06

CNSC Coolant entry style code:

0

COATING Coating:

AlTiN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

140

D11 Mill tool type ISO:

T

D31 Thread form type:

M

D32 Thread pitch:

1,5 mm

D32_INCH Thread pitch:

0,0590551181102362 inch

D37 Thread diameter nominal:

14

D38 Thread diameter size maximum:

14

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,164 kg

D7_INCH Weight of item:

0,3615544 lbs

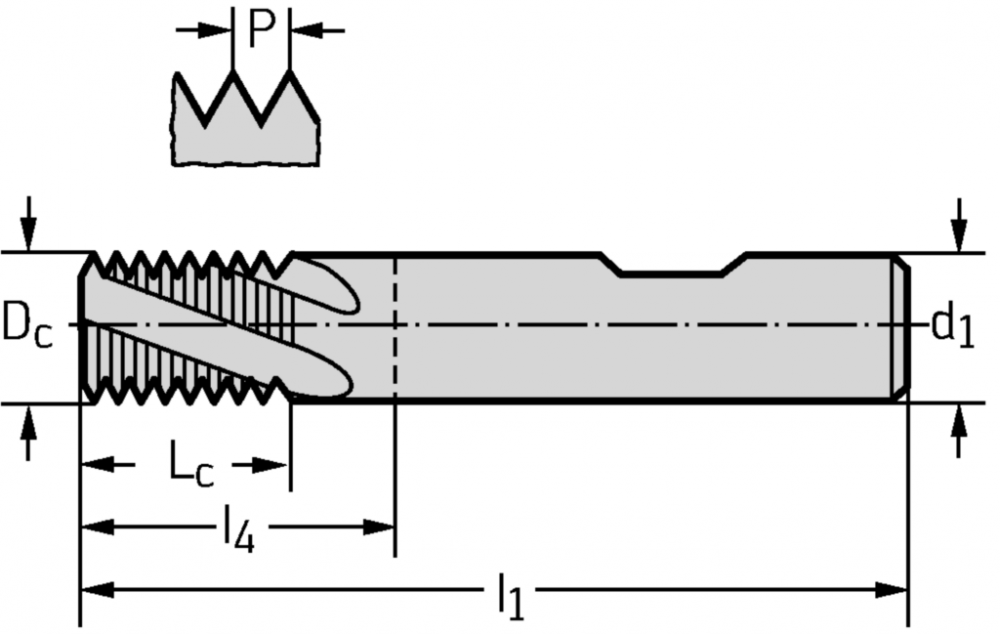

d1 Connection diameter:

14 mm

Dc Cutting edge diameter:

14 mm

DN Thread size:

MF 16X1.5

DC Cutting diameter:

14 mm

DC_INCH Cutting diameter:

0,551181102362205 inch

Designation Tool designation:

TC610-M16X1.5-W0-WJ30RC

E2 Rake angle radial:

1,5 °

EAN:

4042446256586

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

6

F3 Flute helix hand:

R

F4 Flute helix angle:

20 °

FHA Flute helix angle:

20 °

FHH Flute helix hand:

R

FMT Form type machine side:

EXT

GAMF Rake angle radial:

1,5 °

GRADE Grade manufacturer's designation:

WJ30RC

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H3 Grade manufacturer's designation:

WJ30RC

H4 Body material code:

H

H5 Coating:

AlTiN

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

PWZ-NORM

J11 Standard letter to the standard number:

WE

J21 Article number:

TC610-M16X1.5-W0-WJ30RC

J3 Company code:

W

J6 Connection code machine side:

ZYL10G1400h$06

J7 Data chip provision:

0

J8 Machining operation:

FSC

KAP Kappa:

0 °

KEYWORD:

Solid Cutting Tool|Threading||Thread milling cutters|TC610

l1 Overall length:

83 mm

l4 Functional length:

38 mm

Lc Max. depth of cut:

24 mm

LF Functional length:

60,5 mm

LF_INCH Functional length:

2,38188976377953 inch

LS Shank length:

45 mm

LSC Clamping length:

45 mm

LSC_INCH Clamping length:

1,77165354330709 inch

LS_INCH Shank length:

1,77165354330709 inch

LU Usable length:

24 mm

LU_INCH Usable length:

0,94488188976378 inch

MANUFACTURER_AID:

TC610-M16X1.5-W0-WJ30RC

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

83 mm

OAL_INCH Overall length:

3,26771653543307 inch

ORDER_UNIT:

PCE

P Thread pitch:

1,5 mm

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide thread milling cutters TC610 • Supreme • M60 • WJ30RC • ≤1,5xD • DIN 6535 HB shank

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180610

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180610

REFERENCE_FEATURE_GROUP_ID_GTC:

MILTHGS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

TC610-MF-W0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

6580341

SUPPLIER_ALT_AID:

6580341

TERRITORY:

US

TG Taper ratio:

0

THFT Thread form type:

M

TP Thread pitch:

1,5 mm

TPT Thread profile type:

F

TP_INCH Thread pitch:

0,0590551181102362 inch

TSYC Tool style code:

TC610-MF-W0

TTP Thread type:

I

UDX.APPAREA:

Threading

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Universal thread milling cutters

UDX.CATFAM_CODE:

TC610

UDX.CATFAM_DESCR:

Solid carbide thread milling cutters

UDX.DESCR_APPLICATION:

Blind-hole and through-hole threads;Thread depth ≤ 1.5 × D_N;ISO materials P, M, K, N and S up to 48 HRC

UDX.DESCR_BENEFITS:

Universal use;Short machining time;High cutting edge stability

UDX.DESCR_TOOL:

Shank in accordance with DIN 6535 HB;High number of teeth;Universal thread milling cutter;Robust design

UDX.DISCOUNTGROUP:

TSM

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.3616

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.9843

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.0551

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.3969

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

3.9284

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.9843

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

TC610

UDX.PRODUCTLINE:

Supreme

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

moderate

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

moderate

UDX.WORKING_CONDITION_ISO_O:

moderate

UDX.WORKING_CONDITION_ISO_P:

moderate

UDX.WORKING_CONDITION_ISO_S:

moderate

WT Weight of item:

0,164 kg

WT_INCH Weight of item:

0,3615544 lbs

XYWD xyw plane distance:

-83 mm

XYWD_INCH xyw plane distance:

-3,26771653543307 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

6

ZEFP Peripheral effective cutting edge count:

6

Universal thread milling cutters
