Synchronised quick-change collet : 8463705

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Tapping Adapters

A1 Body diameter:

25 mm

A1_INCH Body diameter:

0,984251968503937 inch

B3 Protruding length:

23 mm

B3_INCH Protruding length:

0,905511811023622 inch

B5 Overall length:

47,2 mm

B5_INCH Overall length:

1,85826771653543 inch

B71 Functional length:

23 mm

B71_INCH Functional length:

0,905511811023622 inch

BBD Balanced By Design:

0

BD Body diameter:

25 mm

BD_INCH Body diameter:

0,984251968503937 inch

BLD Tool style code:

1

C11 Connection code type machine side:

SWB

C12 Connection code form at machine side:

9

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

190

C3 Connection diameter machine side:

19 mm

C3_INCH Connection diameter machine side:

0,748031496062992 inch

C51 Connection code type workpiece side:

ZYL

C52 Connection code form at workpiece side:

21

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

60

CCFMS Connection code form at machine side:

9

CCFWS Connection code form at workpiece side:

21

CCMS Connection code machine side:

SWB09C0190$$$$

CCTMS Connection code type machine side:

SWB

CCTWS Connection code type workpiece side:

ZYL

CCWS Connection code workpiece side:

ZYL21R2362****

CNSC Coolant entry style code:

1

Collet size Collet size:

19

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

F

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

190

CZCWS Connection size code workpiece side:

60

D7 Weight of item:

0,073 kg

D7_INCH Weight of item:

0,1609358 lbs

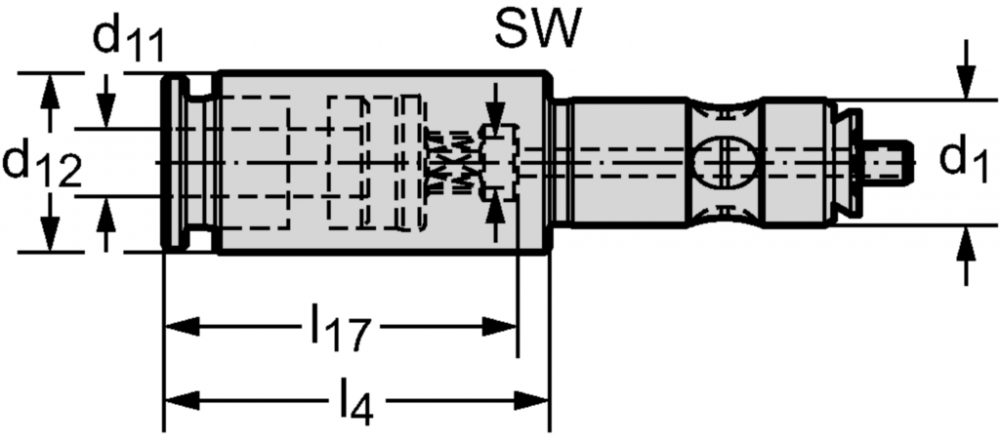

d11 Mounting diameter:

6 mm

d12 Body diameter:

25 mm

d1 Connection diameter:

19 mm

Designation Tool designation:

AB735-ER32-R060-008

EAN:

4063465530624

FMT Form type workpiece side:

INT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AB735-ER32-R060-008

J3 Company code:

W

J4 Connection code workpiece side:

ZYL21F6000****

J6 Connection code machine side:

SWB09C0190$$$$

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Quick change adapter insert with driving square for collets|AB735

l17 Clamping diameter depth:

32 mm

l4 Maximum projection length:

23 mm

LF Functional length:

23 mm

LF_INCH Functional length:

0,905511811023622 inch

LPR Protruding length:

23 mm

LPR_INCH Protruding length:

0,905511811023622 inch

MANUFACTURER_AID:

AB735-ER32-R060-008

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-94

OAL Overall length:

47,2 mm

OAL_INCH Overall length:

1,85826771653543 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Synchronised quick-change collet AB735-ER-R • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022201

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022201

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022201

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021102

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021102

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021102

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21021090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21021090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21021090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022201

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022201

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022201

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AB735-ER32-R

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

8000 1/min

SUPPLIER_AID:

8463705

SUPPLIER_ALT_AID:

8463705

SW Wrench size:

4,9 mm

TERRITORY:

US

TSYC Tool style code:

AB735-ER32-R

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

AB735-ER-R

UDX.CATFAM_DESCR:

Synchronised quick-change collet

UDX.DESCR_APPLICATION:

Compensating synchronisation errors;Avoiding high axial forces;Minimising load on thread flanks;Sleek design – therefore requires less space

UDX.DESCR_BENEFITS:

Low investment costs thanks to modular design;Increased tool life and process reliability;Higher productivity thanks to fast tool changes;Low-maintenance, reduced risk of tool breakage;Saves costs as fewer tools required

UDX.DESCR_TOOL:

AB735 synchronous threaded insert for axial movement and pressure compensation;Can be used in all common ER collet adaptors;In sizes ER16 to ER32;For tools with and without internal cooling

UDX.DISCOUNTGROUP:

075

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

.1610

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.5748

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

2.9528

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.1940

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

8.2382

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.7717

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AB735

WT Weight:

0,07 kg

WT Weight of item:

0,073 kg

WT_INCH Weight of item:

0,1609358 lbs

XYWD xyw plane distance:

-23 mm

XYWD_INCH xyw plane distance:

-0,905511811023622 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
