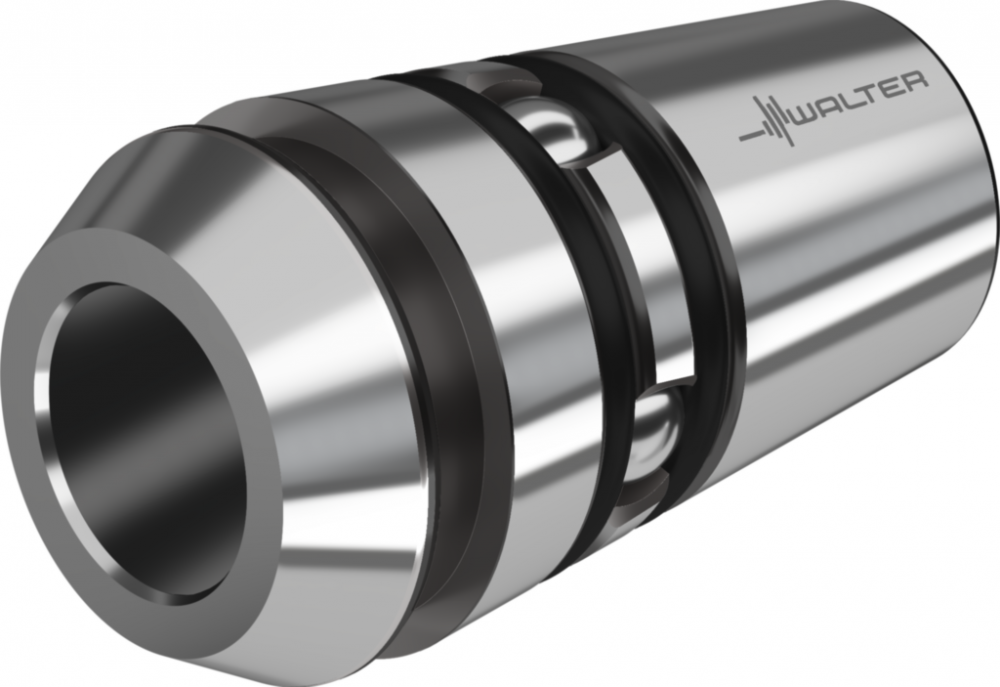

Synchronised quick-change ER collet : 7847932

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Tapping Adapters

A5 Functional diameter:

32 mm

A5_INCH Functional diameter:

1,25984251968504 inch

ART_ID_TO type=others:

5043222;5043233;5043235;5043639;5043642;5043646;5043647;6258784;6258821;6261605;6261647;6264783;6265003;6265063;6265182;6426309;6426331;6840719;6840750;6840754;8651466;8651467;8651468;8651469;8651470;8651487;8651488;8651489;8651490;8651653;8651654;8651655;

B5 Overall length:

40 mm

B5_INCH Overall length:

1,5748031496063 inch

BLD Tool style code:

1

C11 Connection code type machine side:

SZD

C12 Connection code form at machine side:

2

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

320

C51 Connection code type workpiece side:

SWB

C52 Connection code form at workpiece side:

9

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

190

CCFMS Connection code form at machine side:

2

CCFWS Connection code form at workpiece side:

9

CCMS Connection code machine side:

SZD02C0320$$$$

CCTMS Connection code type machine side:

SZD

CCTWS Connection code type workpiece side:

SWB

CCWS Connection code workpiece side:

SWB09C0190****

CNSC Coolant entry style code:

1

Collets Collets:

ER32

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

320

CZCWS Connection size code workpiece side:

190

D7 Weight of item:

0,112 kg

D7_INCH Weight of item:

0,2469152 lbs

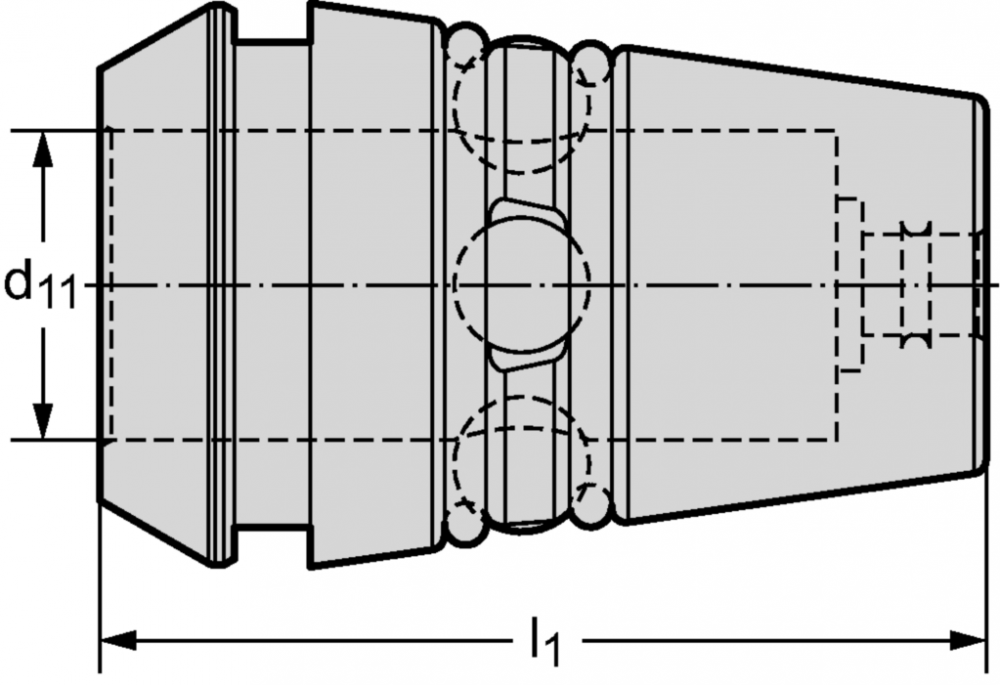

d<sub>11</sub> Connection diameter:

19 mm

Designation Tool designation:

AB735-ER32

EAN:

0607437853

FMT Form type workpiece side:

INT

J1 Standard:

-

J21 Article number:

AB735-ER32

J3 Company code:

W

J4 Connection code workpiece side:

SWB09C0190****

J6 Connection code machine side:

SZD02C0320$$$$

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Double angle collet|AB735

l<sub>1</sub> Overall length:

40 mm

LF Functional length:

0 mm

LF_INCH Functional length:

0 inch

LPR Protruding length:

0 mm

LPR_INCH Protruding length:

0 inch

MANUFACTURER_AID:

AB735-ER32

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-93

OAL Overall length:

40 mm

OAL_INCH Overall length:

1,5748031496063 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Synchronised quick-change ER collet AB735-ER • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022101

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022101

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022101

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021101

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021101

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021101

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022190

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022190

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022190

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022101

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022101

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022101

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112808

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112808

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112808

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112808

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112808

REFERENCE_FEATURE_GROUP_ID_Walter:

AB735-ER32

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

7847932

SUPPLIER_ALT_AID:

7847932

TERRITORY:

US

TSYC Tool style code:

AB735-ER32

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

AB735-ER

UDX.CATFAM_DESCR:

Synchronised quick-change ER collet

UDX.DESCR_APPLICATION:

Compensating synchronisation errors;Avoiding high axial forces;Minimising load on thread flanks;Sleek design – therefore requires less space

UDX.DESCR_BENEFITS:

Low investment costs thanks to modular design;Increased tool life and process reliability;Higher productivity thanks to fast tool changes;Low-maintenance, reduced risk of tool breakage;Saves costs as fewer tools required

UDX.DESCR_TOOL:

AB735 synchronous threaded insert for axial movement and pressure compensation;Can be used in all common ER collet adaptors;In sizes ER16 to ER32;For all tool types with and without internal coolant

UDX.DISCOUNTGROUP:

075

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

.2470

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.7717

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

1.7717

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.2756

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

5.5608

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.7717

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AB735

WT Weight:

0,11 kg

WT Weight of item:

0,112 kg

WT_INCH Weight of item:

0,2469152 lbs

XYWD xyw plane distance:

0 mm

XYWD_INCH xyw plane distance:

0 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch
