Thread milling inserts - M, MF, UNC, UNF, UN : 8414226

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Indexable Threadmill Inserts

A1 Profile form:

-

A5 Thread form type:

VP60J

A61 Thread pitch minimum:

1,4 mm

A61_INCH Thread pitch minimum:

0,0551181102362205 inch

A62 Thread pitch maximum:

2,9 mm

A62_INCH Thread pitch maximum:

0,114173228346457 inch

A71 Threads per inch minimum:

9

A72 Threads per inch maximum:

18

A9 Profile distance X:

0 mm

A91 Profile distance ey:

0,1 mm

A91_INCH Profile distance ey:

0,00393700787401575 inch

A9_INCH Profile distance X:

0 inch

AN Clearance angle major:

7 °

B5 Profile included angle:

60 °

B6 Profile angle right hand:

30 °

B7 Profile angle left hand:

30 °

BLD Tool style code:

8

C8 Spot radius:

0,1 mm

C8_INCH Spot radius:

0,00393700787401575 inch

CBMD Chip breaker manufacturers designation:

D67

CECC Cutting edge condition code:

E

CEDC Flute count:

3

CNC Corner count:

3

COATING Coating:

TiAlN+Al2O3+(ZrN)

CONTENT_UNIT:

PCE

CURRENCY:

USD

D1 Fixing hole diameter:

2,15 mm

D1_INCH Fixing hole diameter:

0,0846456692913386 inch

D75 Weight of item:

0,001 kg

D75_INCH Weight of item:

0,0022046 lbs

Designation Tool designation:

P26300-0601-D67 WSM37G

E1 Clearance angle major:

7 °

E41 Cutting edge condition code:

E

E6 Chip breaker face count:

1

E7 Insert hand:

R

E9 Chip breaker manufacturers designation:

D67

EAN:

4063465281991

EPSR Insert included angle:

60 °

F1 Thread type:

I

F2 Flute count:

3

F3 Tooth count:

1

F4 Thread profile type:

F

G3 Inscribed circle diameter:

3,97 mm

G3_INCH Inscribed circle diameter:

0,156299212598425 inch

G4 Insert thickness total:

1,98 mm

G4_INCH Insert thickness total:

0,0779527559055118 inch

G5 Insert mounting style code:

3

G6 Fixing hole diameter:

2,15 mm

G6_INCH Fixing hole diameter:

0,0846456692913386 inch

G7 Insert thickness:

1,98 mm

G7_INCH Insert thickness:

0,0779527559055118 inch

G8 Insert included angle:

60 °

GRADE Grade manufacturer's designation:

WSM37G

GRDPRIO Standard designation of the grade, main ap:

-

H11 Standard designation of the grade, main applic:

-

H3 Grade manufacturer's designation:

WSM37G

H5 Coating:

TiAlN+Al2O3+(ZrN)

H6 Tipped cutting edge code:

S

HAND Insert hand:

R

IC Inscribed circle diameter:

3,97 mm

IC_INCH Inscribed circle diameter:

0,156299212598425 inch

IIC Insert interface code:

WR$$TC06T1013RB$$01

J1 Standard:

-

J21 Article number:

P26300-0601-D67 WSM37G

J3 Company code:

W

J6 Connection code machine side:

WR$$TC06T1013RB$$01

J8 Machining operation:

FSC

KAP Kappa:

0 °

KEYWORD:

Insert|Threading||Tiger·tec^® Gold|Profile form 8|P26300

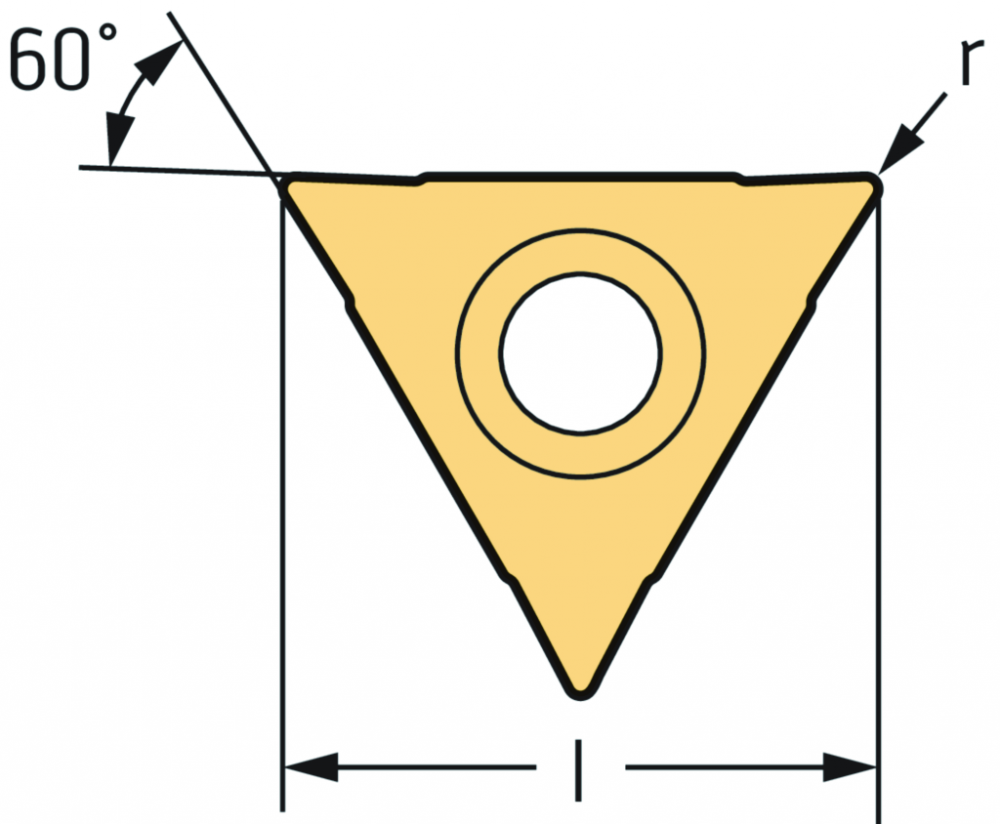

l Cutting edge length:

6,73 mm

Lead (TPI) P threads per inch:

18–9

MANUFACTURER_AID:

P26300-0601-D67 WSM37G

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-77

NT Tooth count:

1

Number of cutting edges Number of cutting edges:

3

ORDER_UNIT:

PCE

PAL Profile angle left hand:

30 °

PAR Profile angle right hand:

30 °

PDX Profile distance X:

0 mm

PDX_INCH Profile distance X:

0 inch

PDY Profile distance ey:

0,1 mm

PDY_INCH Profile distance ey:

0,00393700787401575 inch

PHI Phi:

0 °

Pitch (P) Pitch:

1.40–2.9 mm

PNA Profile included angle:

60 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

10

QUANTITY_MIN:

10

r Corner radius:

0,1 mm

RE Corner radius:

0,1 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Thread milling inserts - M, MF, UNC, UNF, UN P26300

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21182108

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21182108

REFERENCE_FEATURE_GROUP_ID_GTC:

INSCPRFTHF

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171618

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153309

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171618

REFERENCE_FEATURE_GROUP_ID_Walter:

P26300-D67

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,00393700787401575 inch

RHO Rho:

0 °

S Insert thickness:

1,98 mm

S1 Insert thickness total:

1,98 mm

S1_INCH Insert thickness total:

0,0779527559055118 inch

SC Insert shape code:

T

Size Size:

6

SSC Insert seat size code:

6

SUPPLIER_AID:

8414226

SUPPLIER_ALT_AID:

8414226

S_INCH Insert thickness:

0,0779527559055118 inch

TCE Tipped cutting edge code:

S

TERRITORY:

US

THFT Thread form type:

VP60J

TP Thread pitch minimum:

1,4 mm

TPI Threads per inch minimum:

9

TPN_INCH Thread pitch minimum:

0,0551181102362205 inch

TPT Thread profile type:

F

TP_INCH Thread pitch minimum:

0,0551181102362205 inch

TSYC Tool style code:

P26300-D67

TTP Thread type:

I

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For high cutting speeds and high feeds per tooth

UDX.BULLETTEXT_2:

D67 geometry: Maximum tool life / D61 geometry: Best operational smoothness

UDX.CATFAM_CODE:

P26300

UDX.CATFAM_DESCR:

Thread milling inserts - M, MF, UNC, UNF, UN

UDX.DESCR_BENEFITS:

Low cutting forces and excellent dimensional accuracy

UDX.DESCR_TOOL:

Universal geometry for maximum tool life quantity;Easy-cutting indexable insert with three cutting edges;60° flank angle;Defined corner radii for standard threads

UDX.DISCOUNTGROUP:

TII

UDX.ITEMTYPE:

Insert

UDX.NET_WEIGHT:

.0022

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.4331

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.8583

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.0397

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

2.6313

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.5748

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

P26300

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

moderate

UDX.WORKING_CONDITION_ISO_K:

moderate

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

moderate

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

moderate

UDX.WORKING_CONDITION_ISO_S:

moderate

WT Weight of item:

0,001 kg

WT_INCH Weight of item:

0,0022046 lbs

XYWD xyw plane distance:

0 mm

XYWD_INCH xyw plane distance:

0 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

D67 geometry: Maximum tool life / D61 geometry: Best operational smoothness

For high cutting speeds and high feeds per tooth

For high cutting speeds and high feeds per tooth|D67 geometry: Maximum tool life / D61 geometry: Best operational smoothness
