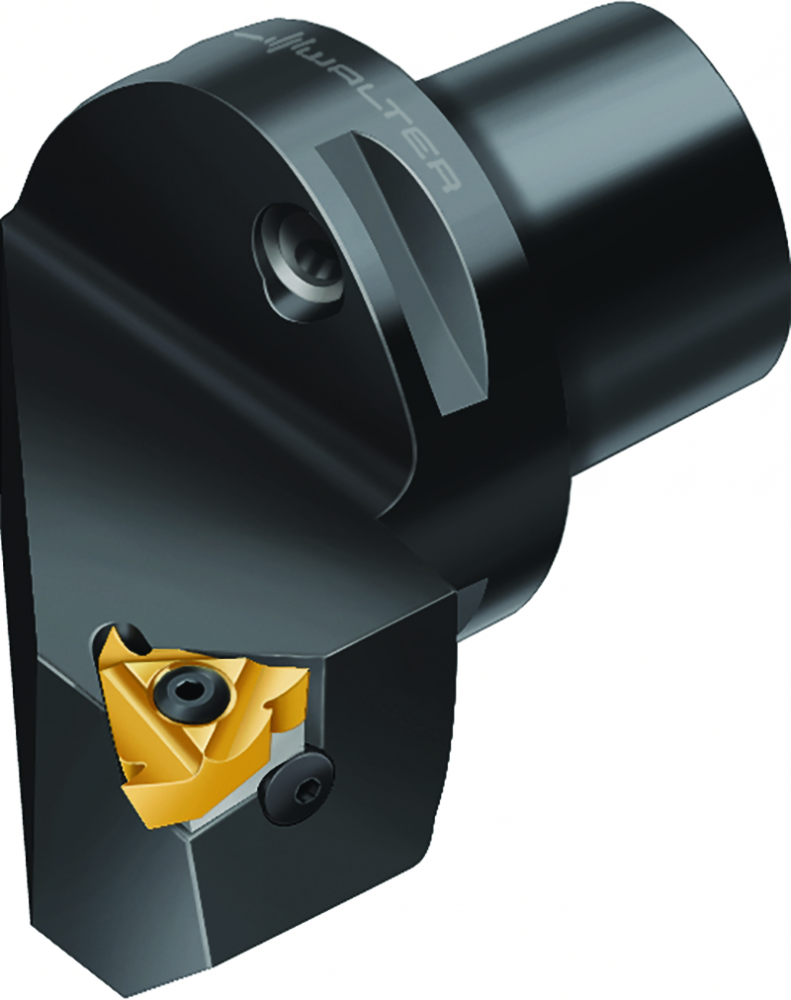

Turning tools – External thread : 5011585

Category:

Turning

Subcategory:

External Turning

Subtype:

External Threading Toolholders

A2 Functional width:

35 mm

A2_INCH Functional width:

1,37795275590551 inch

A3 Functional length:

60 mm

A3_INCH Functional length:

2,36220472440945 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ALP Clearance angle axial:

10 °

ART_ID_TO type=consists_of:

5010083,5013402,5168260,6039278,6050515

ART_ID_TO type=others:

5010087, ;5010091, ;5010095, ;5010099, ;5010103, ;5010107, ;5010111, ;5012733, ;5894296, ;5894298, ;8643162, ;8643163, ;8643164, ;8643165, ;8643166, ;8643167, ;8643168, 5012376;5012378;5012379;5012384;5012387;5012388;5012389;5012394;5012395;5012398;5012399

B3 Protruding length:

90 mm

B3_INCH Protruding length:

3,54330708661417 inch

B5 Overall length:

90 mm

B5_INCH Overall length:

3,54330708661417 inch

BLD Tool style code:

9

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

CCMS Connection code machine side:

CCS01C0500$$$$

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

10 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

500

D7 Weight of item:

0,89 kg

D7_INCH Weight of item:

1,962094 lbs

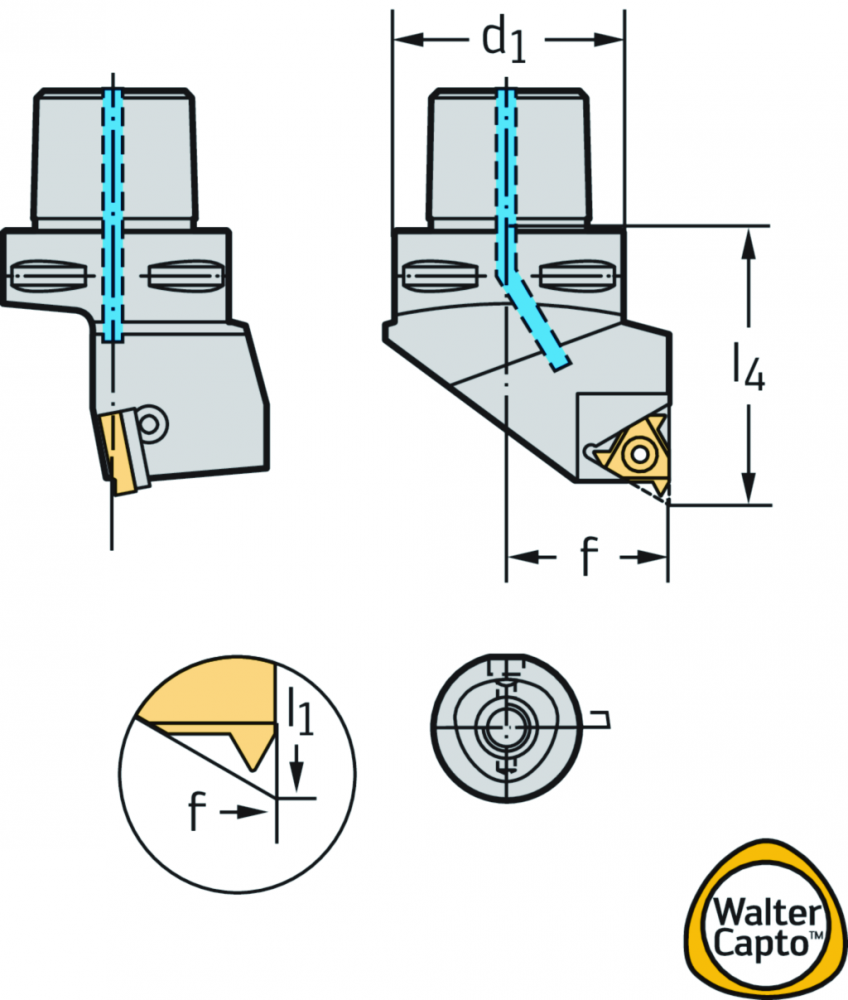

d<sub>1</sub> Connection size code:

C5

Designation Tool designation:

C5-NTS-SEL35060-22

DHD Drop head design:

0

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

E

EAN:

0357252965

f Functional width:

35 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F3 Drop head design:

0

F5 Clamping type code:

S

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

IIC Insert interface code:

WR$$NTSE22**3L*****

Insert size Insert size:

22

J1 Standard:

ISO26623-1

J21 Article number:

C5-NTS-SEL35060-22

J3 Company code:

W

J41 Insert interface code:

WR$$NTSE22**3L*****

J42 Master insert identification:

NTS-E-22

J6 Connection code machine side:

CCS01C0500$$$$

J7 Data chip provision:

0

J8 Machining operation:

DGA

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool heads, tap turning ext.|D73NS

l<sub>4</sub> Projection length:

60 mm

LF Functional length:

60 mm

LF_INCH Functional length:

2,36220472440945 inch

LPR Protruding length:

90 mm

LPR_INCH Protruding length:

3,54330708661417 inch

MANUFACTURER_AID:

C5-NTS-SEL35060-22

MIID Master insert identification:

NTS-E-22

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

90 mm

OAL_INCH Overall length:

3,54330708661417 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – External thread C...-NTS-SE • Walter Capto^TM • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181009

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

NTS-SE-22-CAPTO

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

-1,5 °

SC Insert shape code:

T

SSC Insert seat size code:

22

SUPPLIER_AID:

5011585

SUPPLIER_ALT_AID:

5011585

TERRITORY:

US

THDH Thread hand:

R

TSYC Tool style code:

NTS-SE-22-CAPTO

Type Possible indexable inserts:

TS22-E

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.CATFAM_CODE:

C...-NTS-SE

UDX.CATFAM_DESCR:

Turning tools – External thread

UDX.DESCR_APPLICATION:

External thread

UDX.DESCR_BENEFITS:

Excellent thread quality thanks to precision-ground indexable insert

UDX.DESCR_TOOL:

Standard inclination angle 1.5°;C . . . -NTS-SE Walter Capto^TM external thread holder

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.9625

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.7402

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.9625

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

39.9373

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D73NS

WT Weight of item:

0,89 kg

WT_INCH Weight of item:

1,962094 lbs

XYWD xyw plane distance:

-60 mm

XYWD_INCH xyw plane distance:

-2,36220472440945 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

35 mm

YZWD_INCH yzw plane distance:

1,37795275590551 inch

Walter Capto^TM
