Turning tools – Lever clamping : 5011925

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

16,1 mm

A1_INCH Cutting edge length:

0,633858267716536 inch

A2 Functional width:

27 mm

A2_INCH Functional width:

1,06299212598425 inch

A3 Functional length:

50 mm

A3_INCH Functional length:

1,96850393700787 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=accessories:

5038527

ART_ID_TO type=consists_of:

5038529,5042272,5008471,5008464,5008477,5617471,5008481

ART_ID_TO type=others:

5016882, ;5584718, ;5638367, ;5907880, ;6138785, ;6138983, ;6144817, ;6341918, ;6342040, ;6353366, ;6353368, ;6353369, ;6407662, ;6408083, ;6409244, ;6409247, ;6412077, ;6412078, ;6435158, ;6435159, ;6613528, ;6824893, ;6824894, ;6824895, ;6824896, ;693000

B3 Protruding length:

74 mm

B3_INCH Protruding length:

2,91338582677165 inch

B5 Overall length:

74 mm

B5_INCH Overall length:

2,91338582677165 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

6

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,423 kg

D7_INCH Weight of item:

0,9325458 lbs

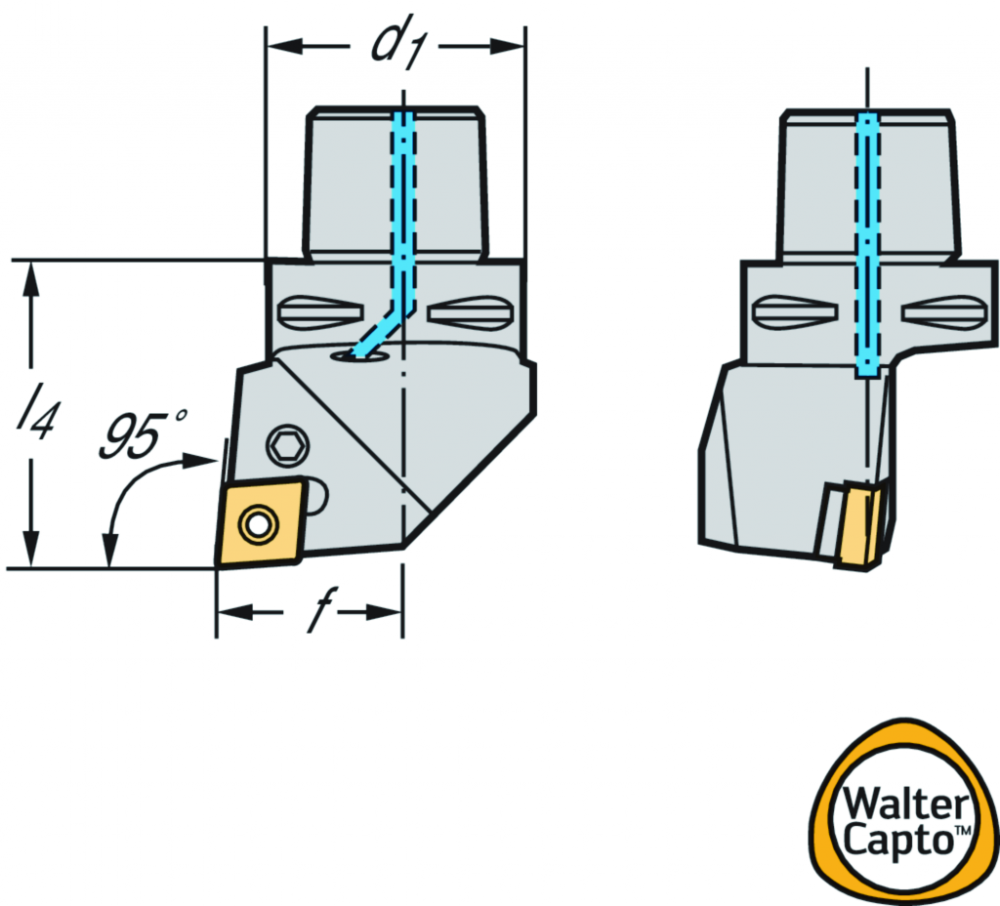

d1 Connection size code:

C4

Dmin2 Minimum diameter:

140 mm

Dmin Minimum diameter:

80 mm

Designation Tool designation:

C4-PCLNL-27050-16

DMIN Minimum bore diameter:

80 mm

DMIN_INCH Minimum bore diameter:

3,1496062992126 inch

E1 Tool cutting edge angle:

95 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

80 °

E4 Rake angle orthogonal:

-6 °

E5 Inclination angle:

-6 °

EAN:

0587015967

f Functional width:

27 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

P

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

-6 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

6

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

16

J1 Standard:

ISO26623-1

J21 Article number:

C4-PCLNL-27050-16

J22 Product designation:

124

J3 Company code:

W

J41 Insert interface code:

ISO$CN1606003******

J42 Master insert identification:

CNMG 16 06 12

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

95 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61NH

l4 Functional length:

50 mm

LAMS Inclination angle:

-6 °

LF Functional length:

50 mm

LF_INCH Functional length:

1,96850393700787 inch

LPR Protruding length:

74 mm

LPR_INCH Protruding length:

2,91338582677165 inch

MANUFACTURER_AID:

C4-PCLNL-27050-16

MIID Master insert identification:

CNMG 16 06 12

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

74 mm

OAL_INCH Overall length:

2,91338582677165 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – Lever clamping C...-PCLN • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=95° • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

PCLNL-CAPTO-AUSSEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SC Insert shape code:

C

SSC Insert seat size code:

16

SUPPLIER_AID:

5011925

SUPPLIER_ALT_AID:

5634417

TERRITORY:

US

TQ Torque:

5 Nm

TQ_INCH Torque:

44,253729 lbf in

TSYCISO Tool style code:

PCLNL-CAPTO-AUSSEN

Type Possible indexable inserts:

CN .. 1606 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.CATFAM_CODE:

C...-PCLN

UDX.CATFAM_DESCR:

Turning tools – Lever clamping

UDX.DESCR_APPLICATION:

First choice for single-sided negative indexable inserts, e.g. SNMM for heavy-duty roughing;First choice for indexable inserts with negative basic shape and for machining large depths of cut

UDX.DESCR_BENEFITS:

Unobstructed chip evacuation from the bore and therefore an alternative to rigid clamping;Clamping screw also operable from above when used overhead

UDX.DESCR_TOOL:

Special shim with border to prevent chip impact and protect the cutting edges on top of it;Walter Capto^TM tool with toggle clamp (P);Universal system enabling easy replacement of indexable inserts

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.9327

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.9437

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

13.7303

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61NH

WF Functional width:

27 mm

WF_INCH Functional width:

1,06299212598425 inch

WT Weight of item:

0,423 kg

WT_INCH Weight of item:

0,9325458 lbs

XYWD xyw plane distance:

-50 mm

XYWD_INCH xyw plane distance:

-1,96850393700787 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

27 mm

YZWD_INCH yzw plane distance:

1,06299212598425 inch

γ Orthogonal rake angle:

-6 °

λs Inclination angle:

-6 °

Walter Capto^TM
