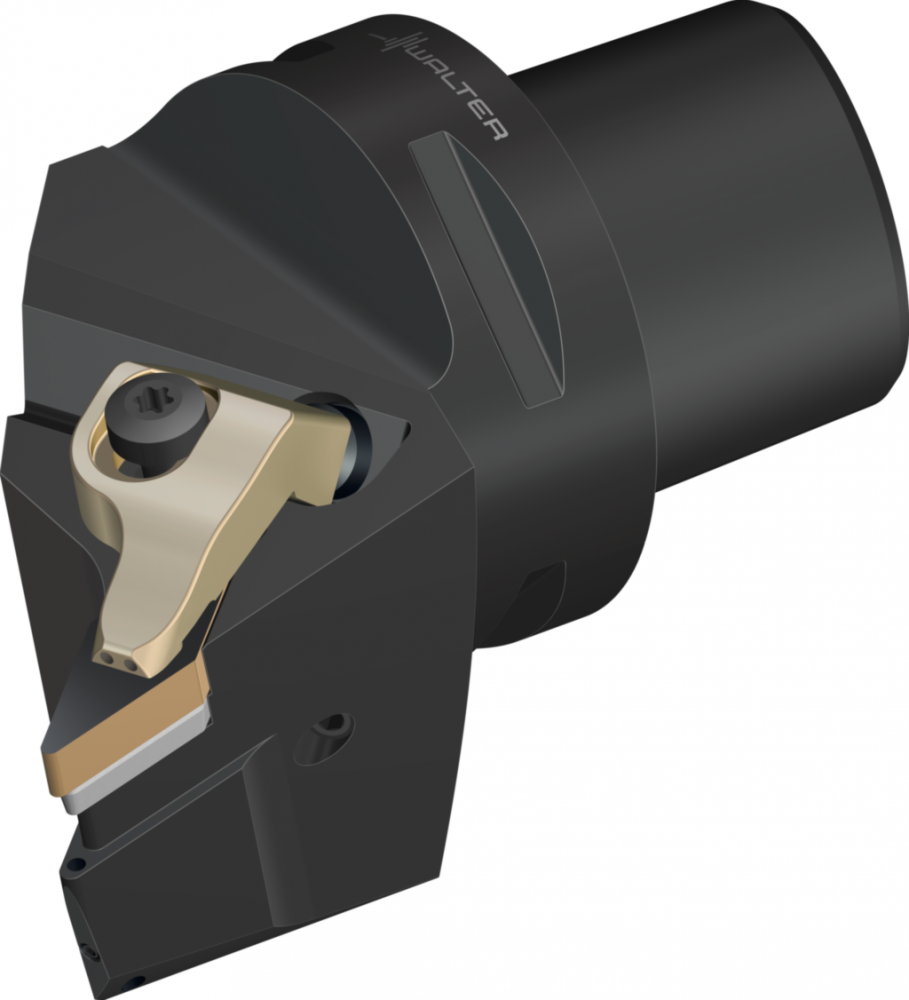

Turning tools – Rigid clamping : 7512208

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

16,5 mm

A1_INCH Cutting edge length:

0,649606299212598 inch

A2 Functional width:

27 mm

A2_INCH Functional width:

1,06299212598425 inch

A3 Functional length:

62 mm

A3_INCH Functional length:

2,44094488188976 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=accessories:

6953174

ART_ID_TO type=consists_of:

5032918,5040977,5041500,5041508,5042262,6313956,6822734,6860616

ART_ID_TO type=others:

5638566, ;5640947, ;5829390, ;5829391, ;5908284, ;6060078, ;6150420, ;6150787, ;6152369, ;6249340, ;6252577, ;6361397, ;6361399, ;6361491, ;6406858, ;6408234, ;6411281, ;6411284, ;6890829, ;6890840, ;6890878, ;6890879, ;7021462, ;7021463, ;7021464, ;705386

B3 Protruding length:

86 mm

B3_INCH Protruding length:

3,38582677165354 inch

B5 Overall length:

86 mm

B5_INCH Overall length:

3,38582677165354 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CICT Cutting item count:

1

CNSC Coolant entry style code:

3

CONTENT_UNIT:

PCE

CP Coolant pressure:

150 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

7

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,5 kg

D7_INCH Weight of item:

1,1023 lbs

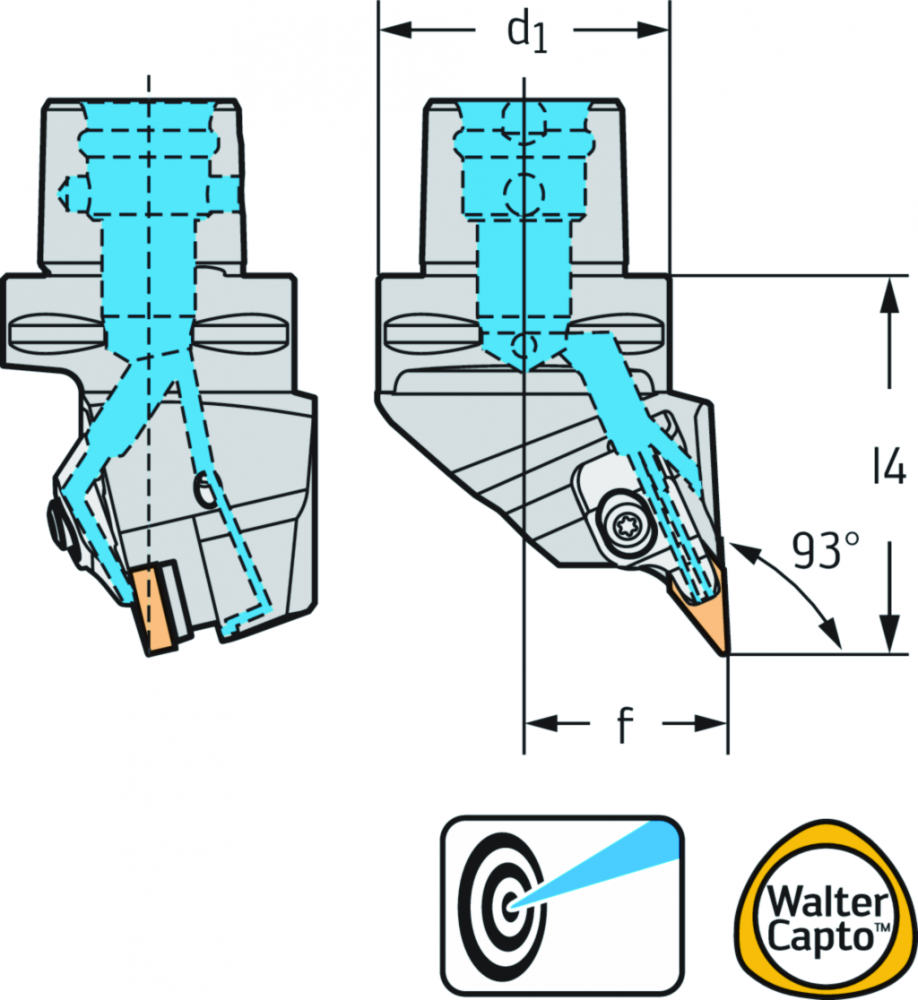

d1 Connection size code:

C4

Dmin2 Minimum diameter:

125 mm

Dmin Minimum diameter:

500 mm

Designation Tool designation:

C4-DVJNR-27062-16-P

DMIN Minimum bore diameter:

500 mm

DMIN_INCH Minimum bore diameter:

19,6850393700787 inch

E1 Tool cutting edge angle:

93 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

35 °

E4 Rake angle orthogonal:

-4 °

E5 Inclination angle:

-13 °

EAN:

0928243967

f Functional width:

27 mm

F1 Cutting direction:

R

F2 Tool holder shape code:

G

F5 Clamping type code:

D

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

-4 °

H21 Coolant entry style code:

3

H22 Coolant exit style code:

7

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

16

J1 Standard:

ISO26623-1

J21 Article number:

C4-DVJNR-27062-16-P

J22 Product designation:

6941

J3 Company code:

W

J41 Insert interface code:

ISO$VN1604002******

J42 Master insert identification:

VNMG 16 04 08

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

93 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61NP

l4 Functional length:

62 mm

LAMS Inclination angle:

-13 °

LF Functional length:

62 mm

LF_INCH Functional length:

2,44094488188976 inch

LPR Protruding length:

86 mm

LPR_INCH Protruding length:

3,38582677165354 inch

MANUFACTURER_AID:

C4-DVJNR-27062-16-P

MIID Master insert identification:

VNMG 16 04 08

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

86 mm

OAL_INCH Overall length:

3,38582677165354 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – Rigid clamping C...-DVJN...-P • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=93° • Right • Precision cooling

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

DVJNR-CAPTO-AUSSEN-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

44 °

SC Insert shape code:

V

SSC Insert seat size code:

16

SUPPLIER_AID:

7512208

SUPPLIER_ALT_AID:

7512208

TERRITORY:

US

TSYCISO Tool style code:

DVJNR-CAPTO-AUSSEN-P

Type Possible indexable inserts:

VN .. 1604 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.BULLETTEXT_2:

Precision cooling

UDX.CATFAM_CODE:

C...-DVJN...-P

UDX.CATFAM_DESCR:

Turning tools – Rigid clamping

UDX.DESCR_APPLICATION:

First choice for machining stainless steels (ISO M), high-temperature alloys (ISO S) and steel (ISO P);Flexible coolant connection: Direct coolant transfer between shank tool and tool adaptor (A2120-P/A2121-P) or via coolant hose set with G1/8" thread

UDX.DESCR_BENEFITS:

Optimum cooling increases tool life by 30–150%;Higher cutting speeds and longer tool life thanks to flank face cooling;Short chips thanks to precision cooling

UDX.DESCR_TOOL:

Walter Capto^TM tool – rigid clamping with precision cooling (D. . . -P);Coolant supplied directly through the clamp and along the flank face;Rigid clamping for high process reliability;The precision cooling brings the coolant as close and flat

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.1025

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.0866

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.1575

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.1400

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

23.3028

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.1654

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61NP

WF Functional width:

27 mm

WF_INCH Functional width:

1,06299212598425 inch

WT Weight of item:

0,5 kg

WT_INCH Weight of item:

1,1023 lbs

XYWD xyw plane distance:

-62 mm

XYWD_INCH xyw plane distance:

-2,44094488188976 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-27 mm

YZWD_INCH yzw plane distance:

-1,06299212598425 inch

γ Orthogonal rake angle:

-4 °

λs Inclination angle:

-13 °

Precision cooling

Walter Capto^TM

Walter Capto^TM|Precision cooling
