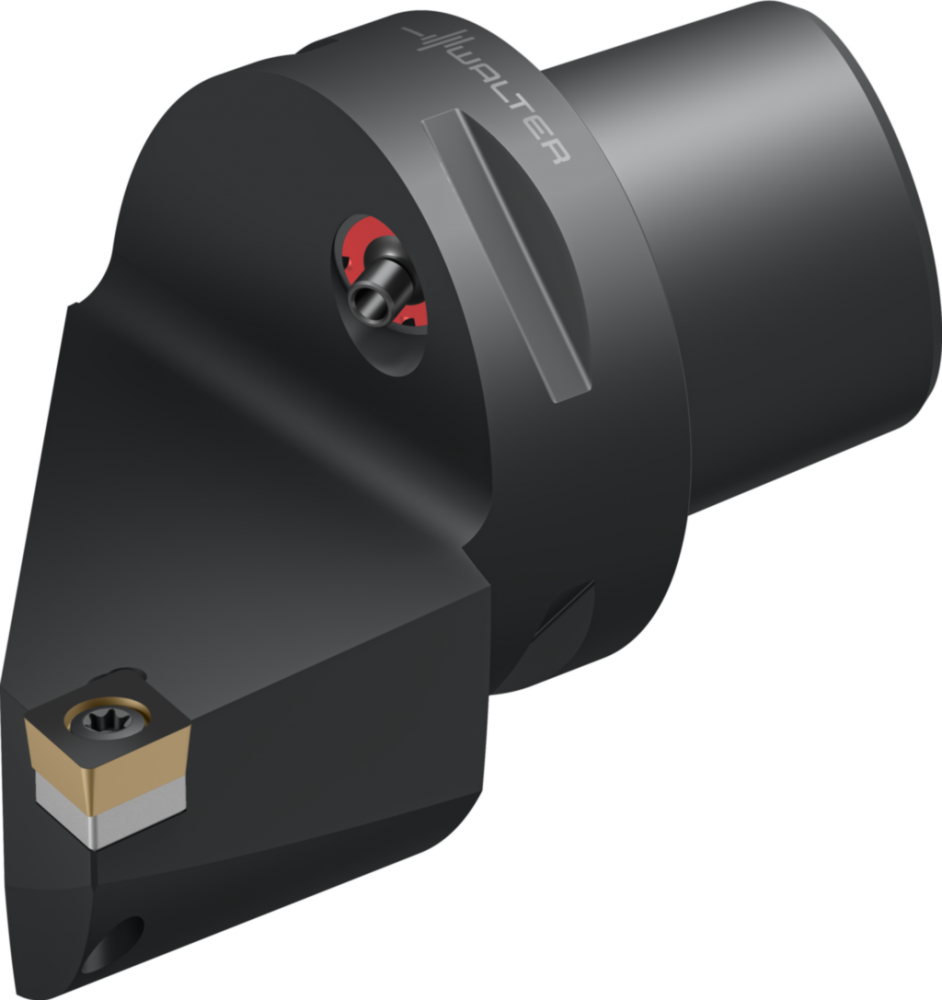

Turning tools – Screw clamping : 5335956

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

12,9 mm

A1_INCH Cutting edge length:

0,507874015748032 inch

A2 Functional width:

27 mm

A2_INCH Functional width:

1,06299212598425 inch

A3 Functional length:

50 mm

A3_INCH Functional length:

1,96850393700787 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=consists_of:

5042272,5169053,5194530,5194534,5194536

ART_ID_TO type=others:

5025575, ;5025576, ;5022101, ;5022077, ;5356962, ;6363939, ;6449162, ;6449163, ;6461776, ;6461793, ;6485355, ;6485382, ;6485498, ;6485500, ;6650916, ;6650917, ;6650918, ;6650919, ;6650920, ;6650921, ;6651539, ;6651540, ;6674530, ;6674531, ;6707925, ;673397

B3 Protruding length:

74 mm

B3_INCH Protruding length:

2,91338582677165 inch

B5 Overall length:

74 mm

B5_INCH Overall length:

2,91338582677165 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

6

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,398 kg

D7_INCH Weight of item:

0,8774308 lbs

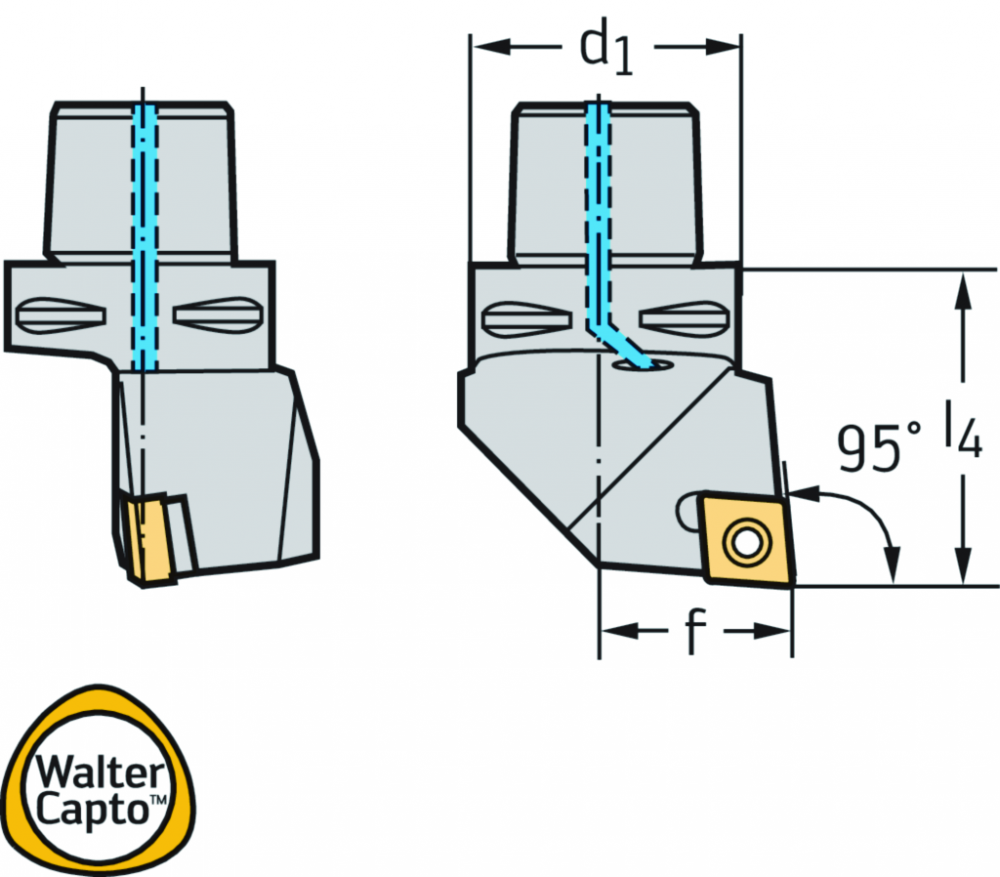

d1 Connection size code:

C4

Dmin2 Minimum diameter:

140 mm

Dmin Minimum diameter:

125 mm

Designation Tool designation:

C4-SCLCR-27050-12

DMIN Minimum bore diameter:

140 mm

DMIN_INCH Minimum bore diameter:

5,51181102362205 inch

E1 Tool cutting edge angle:

95 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

80 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0590289967

f Functional width:

27 mm

F1 Cutting direction:

R

F2 Tool holder shape code:

G

F5 Clamping type code:

S

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

6

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

12

J1 Standard:

ISO26623-1

J21 Article number:

C4-SCLCR-27050-12

J3 Company code:

W

J41 Insert interface code:

ISO$CC1204003******

J42 Master insert identification:

CCMT 12 04 08

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

95 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61PS

l4 Functional length:

50 mm

LAMS Inclination angle:

0 °

LF Functional length:

50 mm

LF_INCH Functional length:

1,96850393700787 inch

MANUFACTURER_AID:

C4-SCLCR-27050-12

MIID Master insert identification:

CCMT 12 04 08

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

74 mm

OAL_INCH Overall length:

2,91338582677165 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – Screw clamping C...-SCLC • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=95° • Right

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

SCLCR-CAPTO-AUSSEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SC Insert shape code:

C

SSC Insert seat size code:

12

SUPPLIER_AID:

5335956

SUPPLIER_ALT_AID:

5335956

TERRITORY:

US

TQ Torque:

3 Nm

TQ_INCH Torque:

26,5522374 lbf in

TSYCISO Tool style code:

SCLCR-CAPTO-AUSSEN

Type Possible indexable inserts:

CC .. 1204 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.CATFAM_CODE:

C...-SCLC

UDX.CATFAM_DESCR:

Turning tools – Screw clamping

UDX.DESCR_APPLICATION:

First choice for low cutting pressures/small-diameter shafts

UDX.DESCR_BENEFITS:

Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required

UDX.DESCR_TOOL:

For indexable inserts with positive basic shape;Walter Capto^TM tool with screw clamping (S)

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.8776

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.6614

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.8776

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

14.1880

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61PS

WF Functional width:

27 mm

WF_INCH Functional width:

1,06299212598425 inch

WT Weight of item:

0,398 kg

WT_INCH Weight of item:

0,8774308 lbs

XYWD xyw plane distance:

-50 mm

XYWD_INCH xyw plane distance:

-1,96850393700787 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-27 mm

YZWD_INCH yzw plane distance:

-1,06299212598425 inch

γ Orthogonal rake angle:

0 °

λs Inclination angle:

0 °

Walter Capto^TM
