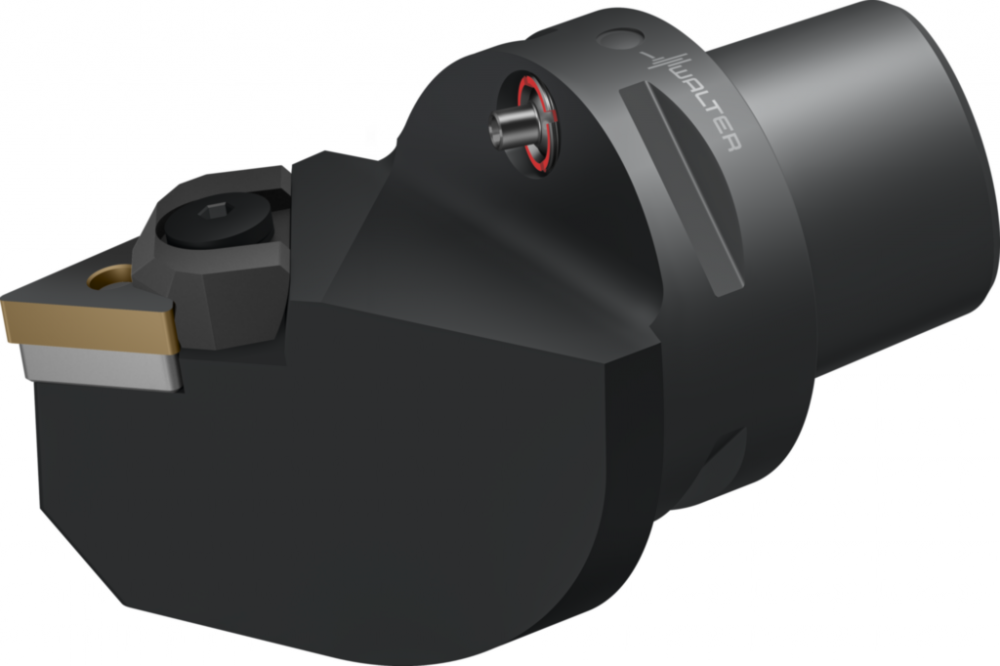

Turning tools – Wedge clamping : 5012013

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

22 mm

A1_INCH Cutting edge length:

0,866141732283465 inch

A2 Functional width:

45 mm

A2_INCH Functional width:

1,77165354330709 inch

A3 Functional length:

65 mm

A3_INCH Functional length:

2,55905511811024 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=accessories:

5008483

ART_ID_TO type=consists_of:

5008485,5008487,5008488,5010057,5042271,5617471

ART_ID_TO type=others:

6127034, ;6127053, ;6127091, ;6353464, ;6353468, ;6393734, ;6393879, ;6394046, ;6890827, ;6890828, ;6890877, ;7251147, ;7251148, ;7251149, ;7251150, ;7251151, ;7251152, ;7251153, ;8116006, ;8116007, ;8116008, ;8116009, ;8116020, ;8116021, ;8116022, ;811602

B3 Protruding length:

103 mm

B3_INCH Protruding length:

4,05511811023622 inch

B5 Overall length:

103 mm

B5_INCH Overall length:

4,05511811023622 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

630

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

10 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

6

CZCMS Connection size code machine side:

630

D7 Weight of item:

1,257 kg

D7_INCH Weight of item:

2,7711822 lbs

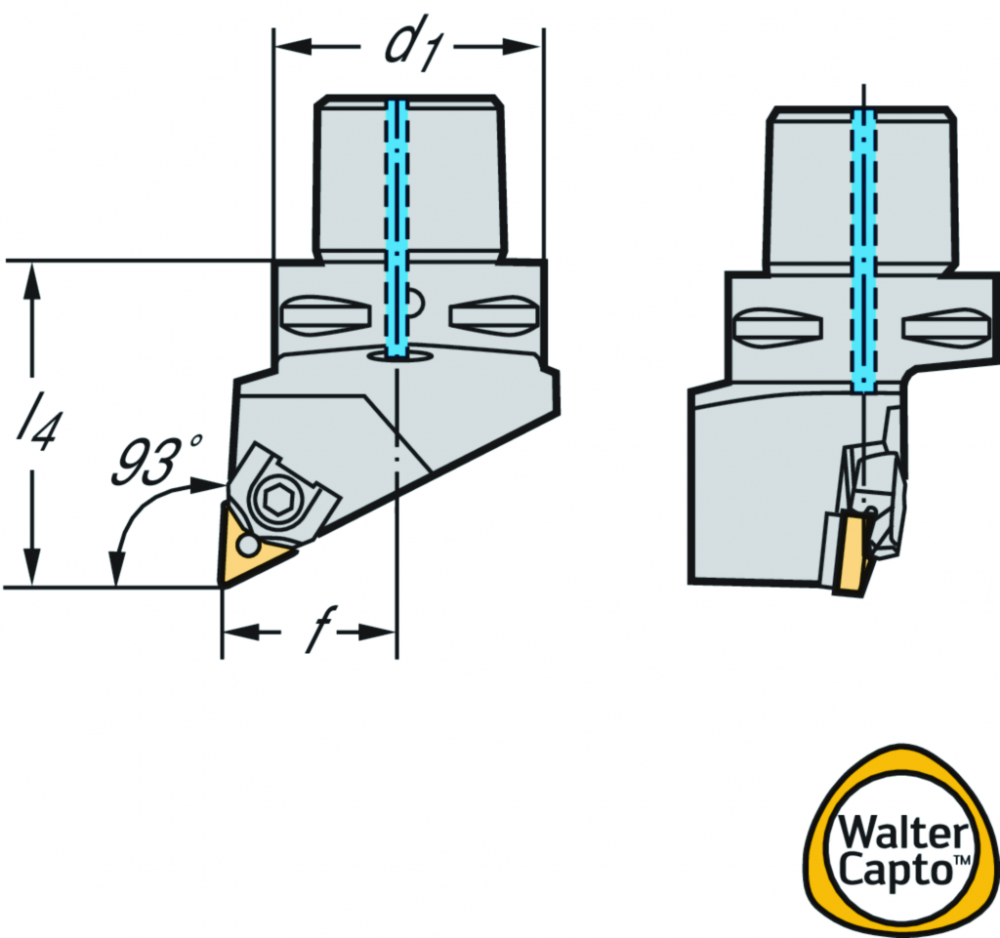

d1 Connection size code:

C6

Designation Tool designation:

C6-MTJNL-45065-22

E1 Tool cutting edge angle:

93 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

60 °

E4 Rake angle orthogonal:

-6 °

E5 Inclination angle:

-6 °

EAN:

0348927967

f Functional width:

45 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

D

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

-6 °

H21 Coolant entry style code:

1

H22 Coolant exit style code:

6

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

22

J1 Standard:

ISO26623-1

J21 Article number:

C6-MTJNL-45065-22

J3 Company code:

W

J41 Insert interface code:

ISO$TN2204002******

J42 Master insert identification:

TNMG 22 04 08

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

93 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61NK

l4 Functional length:

65 mm

LAMS Inclination angle:

-6 °

LF Functional length:

65 mm

LF_INCH Functional length:

2,55905511811024 inch

LPR Protruding length:

103 mm

LPR_INCH Protruding length:

4,05511811023622 inch

MANUFACTURER_AID:

C6-MTJNL-45065-22

MIID Master insert identification:

TNMG 22 04 08

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

103 mm

OAL_INCH Overall length:

4,05511811023622 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – Wedge clamping C...-MTJN • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=93° • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

MTJNL-CAPTO-AUSSEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

22 °

SC Insert shape code:

T

SSC Insert seat size code:

22

SUPPLIER_AID:

5012013

SUPPLIER_ALT_AID:

5012013

TERRITORY:

US

TSYCISO Tool style code:

MTJNL-CAPTO-AUSSEN

Type Possible indexable inserts:

TN .. 2204 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.CATFAM_CODE:

C...-MTJN

UDX.CATFAM_DESCR:

Turning tools – Wedge clamping

UDX.DESCR_APPLICATION:

For indexable inserts with negative T basic shape;Profiling is possible up to an angle of 22° with TNMG indexable inserts;Frequently used when shaft machining with undercuts

UDX.DESCR_TOOL:

Walter Capto^TM tool with wedge-type clamping (M)

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

2.7717

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.1339

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

2.9128

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

44.1412

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61NK

WF Functional width:

45 mm

WF_INCH Functional width:

1,77165354330709 inch

WT Weight of item:

1,257 kg

WT_INCH Weight of item:

2,7711822 lbs

XYWD xyw plane distance:

-65 mm

XYWD_INCH xyw plane distance:

-2,55905511811024 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

45 mm

YZWD_INCH yzw plane distance:

1,77165354330709 inch

γ Orthogonal rake angle:

-6 °

λs Inclination angle:

-6 °

Walter Capto^TM
