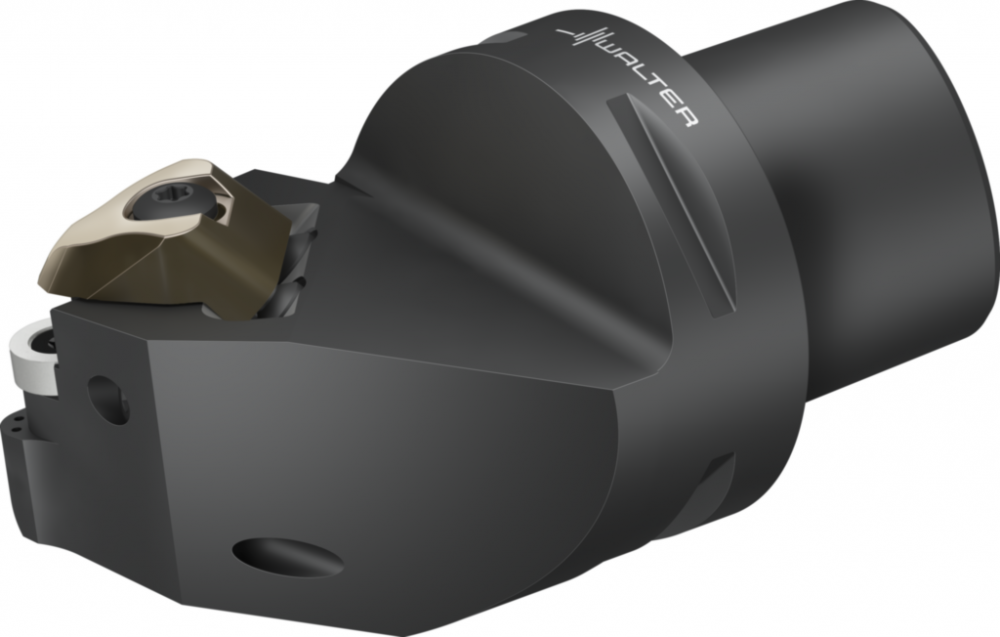

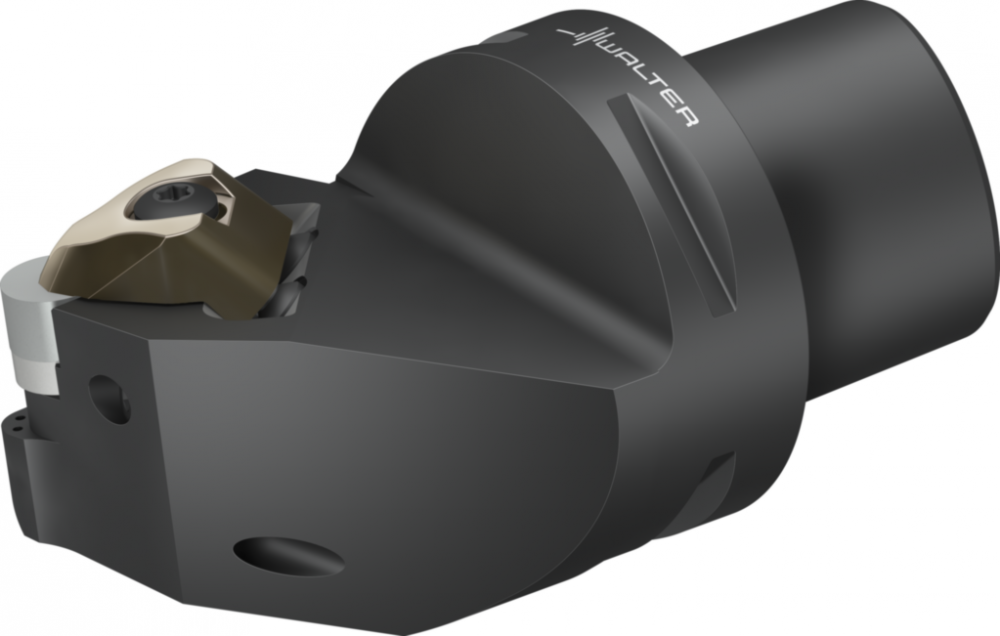

Turning tools - Rigid clamping : 7513031

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

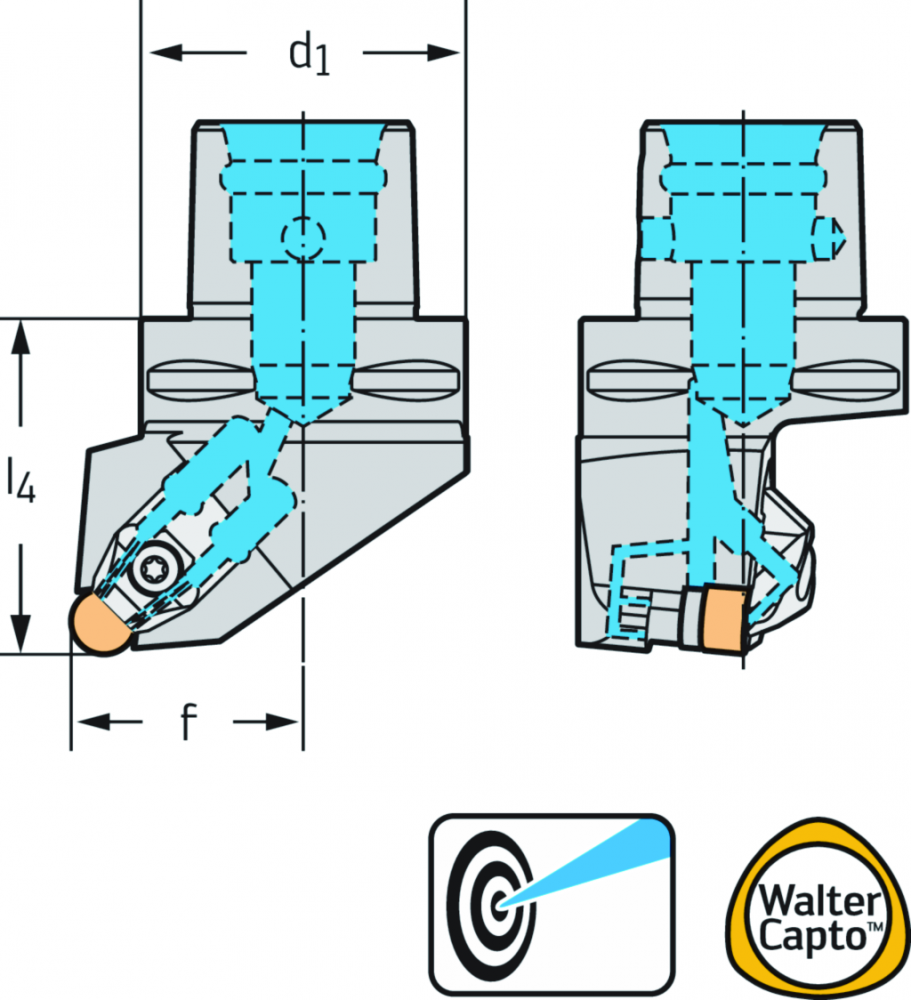

A2 Functional width:

45 mm

A2_INCH Functional width:

1,77165354330709 inch

A3 Functional length:

65 mm

A3_INCH Functional length:

2,55905511811024 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ART_ID_TO type=accessories:

7631436,7894876

ART_ID_TO type=consists_of:

5032918,5040976,5041482,6385546,6385826,7246565,7631435,5050336

ART_ID_TO type=others:

6189030, ;6189031, ;6188172, ;6188175, ;8377375, ;8377376, 5012390;5012391;5012402;5012403;5012436;5012437;5012661;5012662;5040088;5887232;6418707;6418717;6418728;6424436;6424438;6424475;6424837;6426218;6425676;6424833;6728021;6728022;6728031;5887230;58872

B3 Protruding length:

103 mm

B3_INCH Protruding length:

4,05511811023622 inch

B5 Overall length:

103 mm

B5_INCH Overall length:

4,05511811023622 inch

BD Body diameter:

63 mm

BD_INCH Body diameter:

2,48031496062992 inch

BLD Tool style code:

8

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

630

CICT Cutting item count:

1

CNSC Coolant entry style code:

3

CONTENT_UNIT:

PCE

CP Coolant pressure:

150 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

7

CZCMS Connection size code machine side:

630

D7 Weight of item:

1,3 kg

D7_INCH Weight of item:

2,86598 lbs

d1 Connection size code:

C6

Dmin2 Minimum diameter:

700 mm

Dmin Minimum diameter:

600 mm

Designation Tool designation:

C6-CRSNL-45065-12-P

DMIN Minimum bore diameter:

700 mm

DMIN_INCH Minimum bore diameter:

27,5590551181102 inch

E1 Tool cutting edge angle:

0 °

E2 Tool cutting edge angle type code:

B

E4 Rake angle orthogonal:

-6 °

E5 Inclination angle:

-6 °

EAN:

0928424967

f Functional width:

45 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

C

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

-6 °

H21 Coolant entry style code:

3

H22 Coolant exit style code:

7

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

Insert seat size Insert seat size:

12

J1 Standard:

ISO26623-1

J21 Article number:

C6-CRSNL-45065-12-P

J22 Product designation:

6953

J3 Company code:

W

J41 Insert interface code:

ISO$RN120700*****00

J42 Master insert identification:

RNGN 12 07 00

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

0 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61NP

l4 Functional length:

65 mm

LAMS Inclination angle:

-6 °

LF Functional length:

65 mm

LF_INCH Functional length:

2,55905511811024 inch

LPR Protruding length:

103 mm

LPR_INCH Protruding length:

4,05511811023622 inch

MANUFACTURER_AID:

C6-CRSNL-45065-12-P

MIID Master insert identification:

RNGN 12 07 00

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

103 mm

OAL_INCH Overall length:

4,05511811023622 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools - Rigid clamping C...-CRSN...-P • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=0° • Left • Precision cooling

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181008

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

CRSNL-CAPTO-AUSSEN-C-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SC Insert shape code:

R

SSC Insert seat size code:

12

SUPPLIER_AID:

7513031

SUPPLIER_ALT_AID:

7513031

TERRITORY:

US

TSYCISO Tool style code:

CRSNL-CAPTO-AUSSEN-C-P

Type Possible indexable inserts:

RNGN1207 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ceramic indexable inserts

UDX.BULLETTEXT_2:

Precision cooling

UDX.CATFAM_CODE:

C...-CRSN...-P

UDX.CATFAM_DESCR:

Turning tools - Rigid clamping

UDX.DESCR_APPLICATION:

First choice for machining high-temperature alloys and cast iron workpieces with ceramic indexable inserts;Can be used from 10 bar up to a maximum coolant pressure of 150 bar

UDX.DESCR_BENEFITS:

Optimum cooling increases tool life by 30–150%;Higher cutting speeds and longer tool life thanks to flank face cooling;Short chips thanks to precision cooling

UDX.DESCR_TOOL:

Coolant supplied directly through the clamp and along the flank face;Rigid clamping for high process reliability;The precision cooling brings the coolant as close and flatly angled as possible to the effective working area underneath the chip;Walter Capto<

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

2.8665

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.5433

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.1969

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

3.0848

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

65.2466

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.5433

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D61NP

WF Functional width:

45 mm

WF_INCH Functional width:

1,77165354330709 inch

WT Weight of item:

1,3 kg

WT_INCH Weight of item:

2,86598 lbs

XYWD xyw plane distance:

-65 mm

XYWD_INCH xyw plane distance:

-2,55905511811024 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

45 mm

YZWD_INCH yzw plane distance:

1,77165354330709 inch

γ Orthogonal rake angle:

-6 °

λs Inclination angle:

-6 °

For ceramic indexable inserts

For ceramic indexable inserts|Precision cooling

Precision cooling
