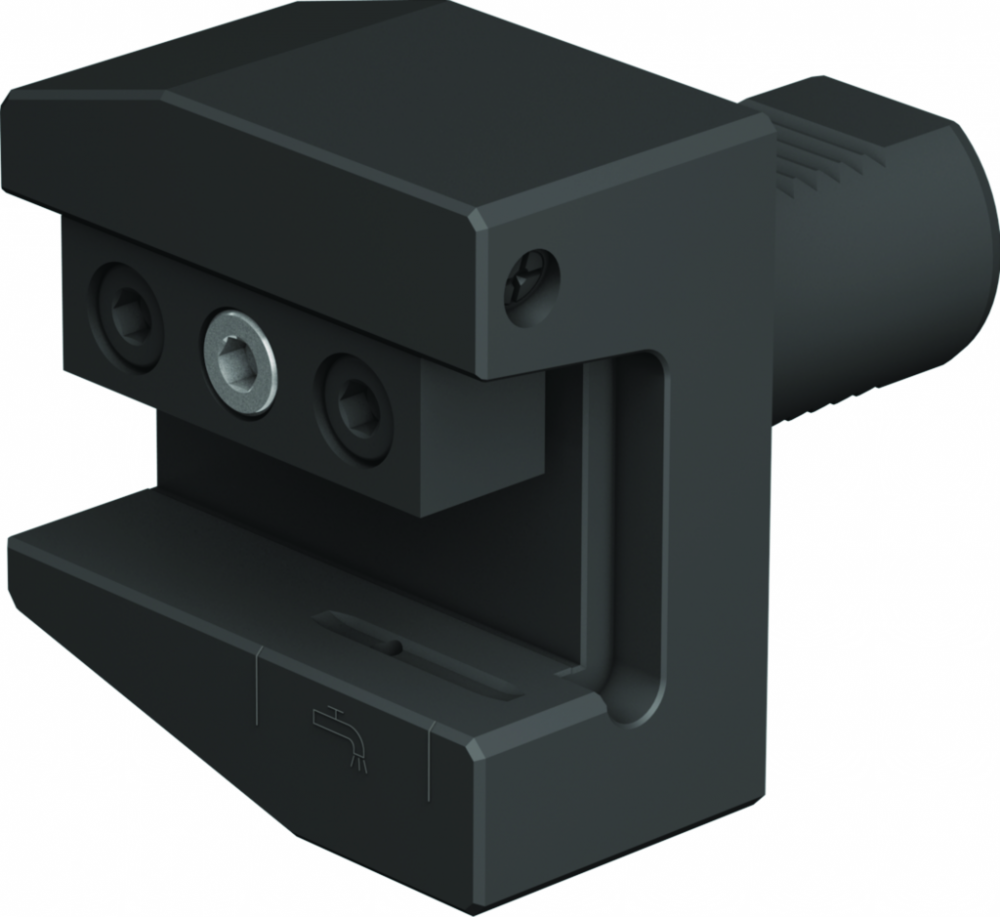

VDI adaptor – shank tools : 6787726

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Adapters

ART_ID_TO type=accessories:

5875491

ART_ID_TO type=consists_of:

6730816,6788077,5052150,6788160,6788161

B3 Protruding length:

48 mm

B3_INCH Protruding length:

1,88976377952756 inch

B4 Overall length:

123 mm

B4_INCH Overall length:

4,84251968503937 inch

B71 Functional length:

23 mm

B71_INCH Functional length:

0,905511811023622 inch

B72 Functional height:

25 mm

B72_INCH Functional height:

0,984251968503937 inch

B73 Functional width:

50 mm

B73_INCH Functional width:

1,96850393700787 inch

B81 Overall height:

110 mm

B81_INCH Overall height:

4,33070866141732 inch

B82 Radial height:

55 mm

B82_INCH Radial height:

2,16535433070866 inch

B91 Overall width:

100 mm

B91_INCH Overall width:

3,93700787401575 inch

B92 Radial width:

50 mm

B92_INCH Radial width:

1,96850393700787 inch

b1 Width:

50 mm

b2 Radial width:

50 mm

C11 Connection code type machine side:

ZYV

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

C3 Connection diameter machine side:

50 mm

C3_INCH Connection diameter machine side:

1,96850393700787 inch

C4 Shank length:

78 mm

C4_INCH Shank length:

3,07086614173228 inch

C51 Connection code type workpiece side:

VKT

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

2516

C71 Connection diameter min:

251,6 mm

C71_INCH Connection diameter min:

9,90551181102362 inch

C72 Connection diameter max:

252,7 mm

C72_INCH Connection diameter max:

9,9488188976378 inch

CCMS Connection code machine side:

ZYV01C0500$$$$

CCWS Connection code workpiece side:

VKT01A2516****VKT01A2527****

CNSC Coolant entry style code:

6

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

A

CURRENCY:

USD

CXSC Coolant exit style code:

6

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

2516

D7 Weight of item:

4,345 kg

D7_INCH Weight of item:

9,578987 lbs

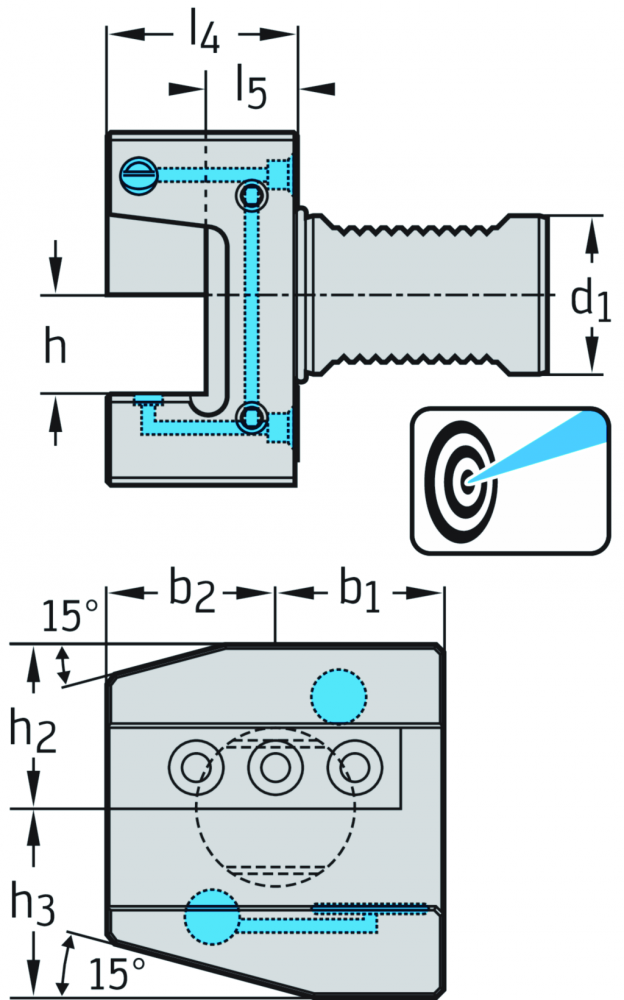

d1 Mounting diameter:

50 mm

Designation Tool designation:

A2121-V50-25L-100-P

E1 Cutting direction:

L

E2 Kappa:

0 °

EAN:

0785512963

FMT Form type workpiece side:

INT

h Height:

25 mm

H21 Coolant entry style code:

6

H22 Coolant exit style code:

6

h2 Height:

50 mm

h3 Height:

55 mm

HAND Cutting direction:

L

HF Functional height:

25 mm

HF_INCH Functional height:

0,984251968503937 inch

J1 Standard:

-

J21 Article number:

A2121-V50-25L-100-P

J3 Company code:

W

J4 Connection code workpiece side:

VKT01A2516****VKT01A2527****

J6 Connection code machine side:

ZYV01C0500$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders cylindrical shank VDI type (serrated) - Prism mounting KENNAMETAL|D60AW

l4 Functional length:

48 mm

l5 Shank length:

23 mm

LF Functional length:

23 mm

LF_INCH Functional length:

0,905511811023622 inch

LPR Protruding length:

48 mm

LPR_INCH Protruding length:

1,88976377952756 inch

LS Shank length:

78 mm

LS_INCH Shank length:

3,07086614173228 inch

MANUFACTURER_AID:

A2121-V50-25L-100-P

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAH Overall height:

110 mm

OAH_INCH Overall height:

4,33070866141732 inch

OAL Overall length:

123 mm

OAL_INCH Overall length:

4,84251968503937 inch

OAW Overall width:

100 mm

OAW_INCH Overall width:

3,93700787401575 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

RADH Radial height:

55 mm

RADH_INCH Radial height:

2,16535433070866 inch

RADW Radial width:

50 mm

RADW_INCH Radial width:

1,96850393700787 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

VDI adaptor – shank tools A2121-V...-P • metric • VDI DIN 69880

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022008

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022008

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022008

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021103

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021103

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021103

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022008

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022008

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022008

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A2121-VDI-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

6787726

SUPPLIER_ALT_AID:

6787726

TERRITORY:

US

TSYC Tool style code:

A2121-VDI-P

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Precision cooling

UDX.CATFAM_CODE:

A2121-V...-P

UDX.CATFAM_DESCR:

VDI adaptor – shank tools

UDX.DESCR_APPLICATION:

For use on all machines with VDI interface;Machining of any type of material;Use of coolant-through tools in the plug-and-play method

UDX.DESCR_BENEFITS:

Easy handling thanks to plug-and-play solution;Reduction of downtimes;Fast tool change thanks to lateral operation of the wedge;Increase in the tool life of tool and cutting edge, as well as improved chip formation, because the coolant is guided directly u

UDX.DESCR_TOOL:

VDI adaptors for precision-cooled shank tools;Radial adaptors

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

9.5807

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

7.2835

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.6772

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

9.5807

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

429.2792

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

7.6772

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D60AW

WF Functional width:

50 mm

WF_INCH Functional width:

1,96850393700787 inch

WT Weight:

4,34 kg

WT Weight of item:

4,345 kg

WT_INCH Weight of item:

9,578987 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch
